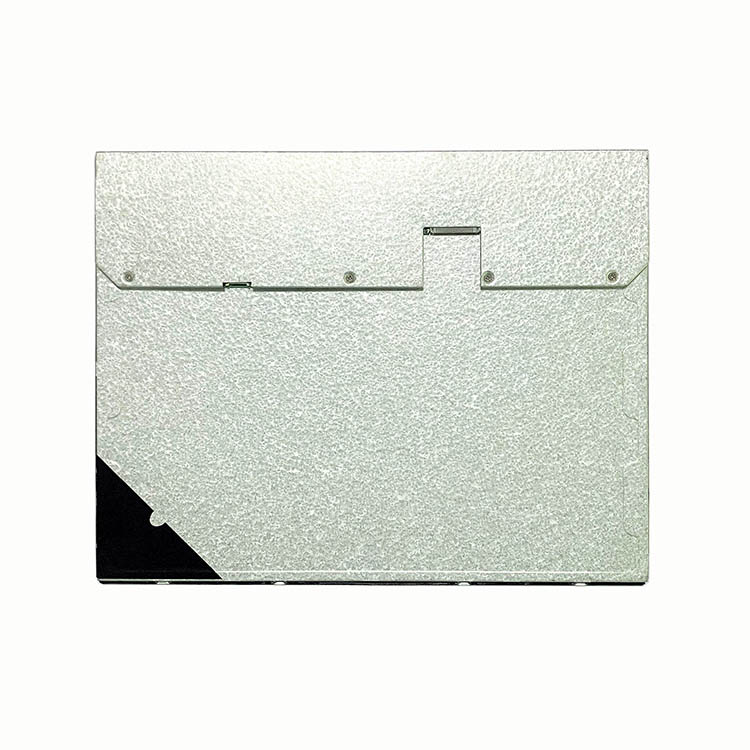

12.1 Ips Tft Lcd Display

IPS LCD size: 12.1 inch
Part Number:RXL121122-C
Resolution:1024X768
LCD Dimensions: 260.5mm*204mm*8.6mm
LCD viewing area: 245.76mm*184.32mm
Interface: LVDS
Brightness: 600 nits
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

An IPS (In-Plane Switching) TFT (Thin-Film Transistor) LCD (Liquid Crystal Display) is a type of display technology commonly used in electronic devices such as smartphones, tablets, computer monitors, and televisions. It is known for its superior color reproduction, wide viewing angles, and high-quality visual performance.


IPS TFT LCD displays have become increasingly popular due to their excellent color reproduction, wide viewing angles, and overall visual quality. They are commonly used in devices where color accuracy and viewing experience are crucial, such as Medical display,Automotive display,Monitors,Industrial control,Transportation and Point-of Sale systems.











Hot tags:12.1 ips tft lcd display, 240x240 round lcd, capacitive materials for touch screen, 11.9 inch capacitive touch screen, tft lcd monitor, 12 inch tft lcd monitor, 12 tft lcd monitor, resistive touch screen device, pillow tft lcd color monitor, 1.8 color tft lcd display, china, customized, suppliers, factory, manufacturers

IPS LCD size: 12.1 inch

Part Number:RXL121122-C

Resolution:1024X768

LCD Dimensions: 260.5mm*204mm*8.6mm

LCD viewing area: 245.76mm*184.32mm

Interface: LVDS

Brightness: 600 nits

Dot/pixel pitch: 0.2400(H)×RGB×0.2400(V)

Display Mode: Normal Black

Display color: 16.7M

Surface treatment: HC

Contrast: 900:1 (typ.)

Angle of view: 85/85/85/85(typ.)

Working temperature: -20°C~+70°C

Storage temperature: -30°C~+80°C

Lead Time: Samples are in stock; Mass production 3-4 weeks

Whether to support customization: yes
