HDMI to EDP converter board for 13.3 inch 15.6 inch LCD display
  • RXB-133-HDMI-EDP
  • TFT LCD Module
  • Glass+Backlight+FPC
  • Samples are available; 3-4 weeks for M/P order
  • 100k pcs per month

Product advantages

This newest HDMI to EDP 4K board could be compatible with different sizes of LCD screens,such as 11.6 inch,13.3 inch and max to 15.6 inch tft lcd display with eDP interface.

This board could be used as an independent player for music and videos.and it's compatible with HDMI as well as PD input for pictures and video display.

Touch function is also supported.

Besides,this board works perfectly under Windows/Linux/Android/IOS systems,and it support keypad and could easily adjust screen sound,brightness,language ,etc.It also support speaker for video and music enjoyment.

Reshine TFT-LCD display modules are available in various sizes,such as 1.77", 2.4”,2.8" ,3.2”,3.5”,4.0”,4.5”,5.0”,5.5”,6.0”,7.0”,8.0”,10.1”,10.4”,11.6”,12.1”,13.3”,15.6”,19” and 21.5” TFT LCD.These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard TFT LCM, TFT color display, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C,and also Higher brightness or wider viewing angle displays.

Many of Reshine TFT display modules have more than one interface available including MCU, RGB, TTL and LVDS as well as two touch panels optional in resistive and capacitive technology.



Reshine’s lcd displays are wildly used in smart home,car navigator,home security system,POS,medical devices,table advertising machine,industrial measuring inintrument,industrial control system,HMI devices,game player machine,detectors and so on.


hdmi to edp convert board




Technical parameters for 13.3 inch 1920x1080 IPS tft lcd display with hdmi-edp convert board:



Product name13.3 inch 1920x1080 IPS tft lcd module with hdmi-edp convert board
Display typeTFT
Resolution1920x1080
LCD OD337mm*178.1mm
LCD AA293.73mm*165.24mm
Total thickness2.80mm
Brightness250 nits
View angle
FULL
Interface eDP
Operating temperature-20°C ~ +70°C
Storage temperature-30°C ~ +80°C
Lead timeSamples are available;3-4 weeks for mass production
Trade termsFOB shenzhen
Payment100% Paypal or T/T  in advanc for samples
30% T/T in advance and 70% before delivery for mass production
Warranty12 months
Customized available



Drawing for 13.3 inch 1920x1080 IPS tft lcd display



13.3 inch 1920x1080 lcd display edp interface

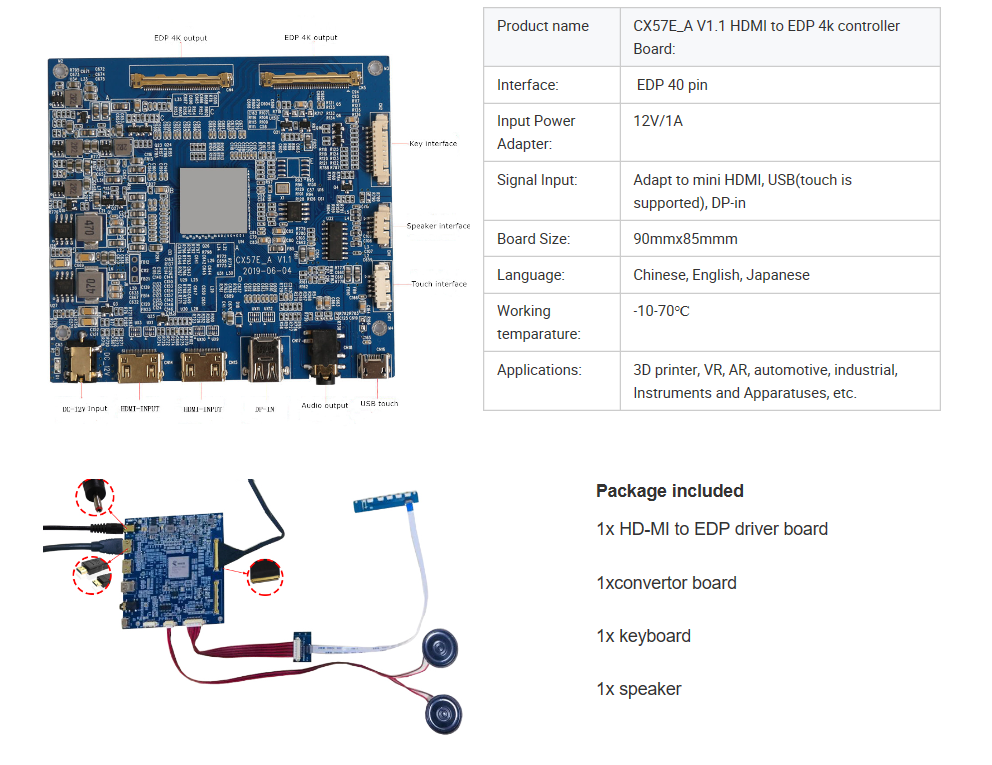

Technical parameters for  hdmi to eDP convert board:


Board dimension90mm*85mm
Basic systemWindows/Linux/Android/iOS
Other acceeoriesspeaker, keypad(12V DC adapter and Mini HD-MI could be provided extra charge if needed)
Input voltage and currentDC 12V
Input single cableUSB for touch, mini HD-MI/DP for signal
Compatible screens
BOE  NV156QUM_N72, NV156QUM_N32, NV156QUM_N81, NV140QUM_N16,NV125QUM_N81,
SHARP LQ125D1JW33,LQ125D1JW34,LQ156D1JX05,LQ156D1JX06,LQ156D1JX02, LQ173D1JW33,LQ133D1JW33

LG  LPL_LP133UD1,KLMPK2969TPZZ

AUO B133ZAN01


15.6 inch lcd display with edp to hdmi interface




Pros and Cons of Air gap bonding and optical bonding of TFT Lcd with touch screen:




hdmi to edp convert board

Pros of Air gap Bonding:



·         Lower cost

·         Faster leading time

·         It is not easy to cause interference between lcd and touch screen



Cons of Air gap Bonding:



·         It can be difficult to read the screen in bright light and causes the product to be more susceptible to moisture damage and breakage



 13.3 inch 1920x1080 lcd display edp interface

Pros of Optical bonding:



·         Improved luminance,enhance sunlight readability

·         Reflection prevention,improved contrast

·         Improved shock resistance,enhance display’s lifetime by protecting display from dust and moisture

·         Condensation prevention

·         Reduced parallax effect and increase optical clarity with bright lighting conditions.


Cons of Optical bonding:



·         Cost higher than air gap bonding

·         It is easy to cause interference between lcd and touch screen




FAQ:





Q. Can you provide OEM service?

A. Yes, we can provide both OEM and ODM service,can customize both resistive touch panel and capacitive touch screens according to customer’s requirements.Customized projects include the shape and size of cover glass,silk print,FPC of touch panel,driver ic replacement,etc..


Q. What is the minimum order?

A. There is no MOQ for our standard touch screens and lcds.(From 2 inch to 32 inch capacitive/resistive touch panel)

A.We deeply know that every customer needs a lot of manpower, material resources and time cost to develop a new project, so we provide “No MOQ” service for every new project in the early stage.


Q. What's your after-sale service?

A. You will get our reply within 24 hours if there is any questions,and solutions will be offered instantly by our professional technical team.


Q. What is your warranty?

A. 12 months


Q. What is your advantages?

A. We have some standard products (2.0 inch to 32 inch PCAP )in stock and no tooling&MOQ request.

A. 4000 m2 factory with 500k pieces monthly capacity to meet your need.

A. High quality&low price and high reliability of our touch screens and Ensure long-term supply

A. Complete Projected capacitive touch screen solutions, Sunlight readable solutions, Customization &Design, Optical bonding service.

A. Customization options to Cover glass thickness , shape and surface treatments such as Anti-Glare, Anti-reflective, touch with gloves and water available.

A. Variety selection of touch screen design for different applications.

A .Short lead time, just needs 15 days for customizing samples.

A. Having 12 years of touch screen industry experience, we understand customer's request.
