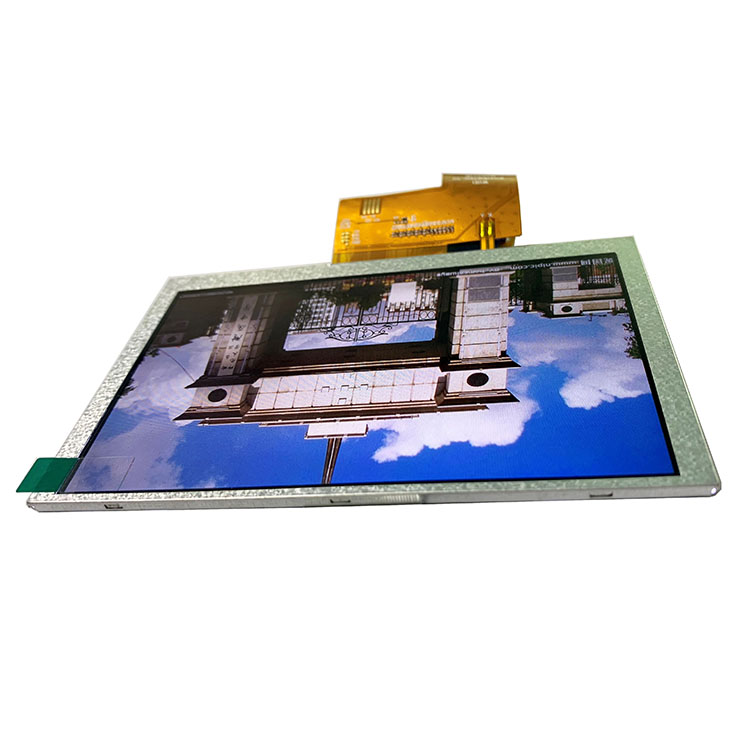

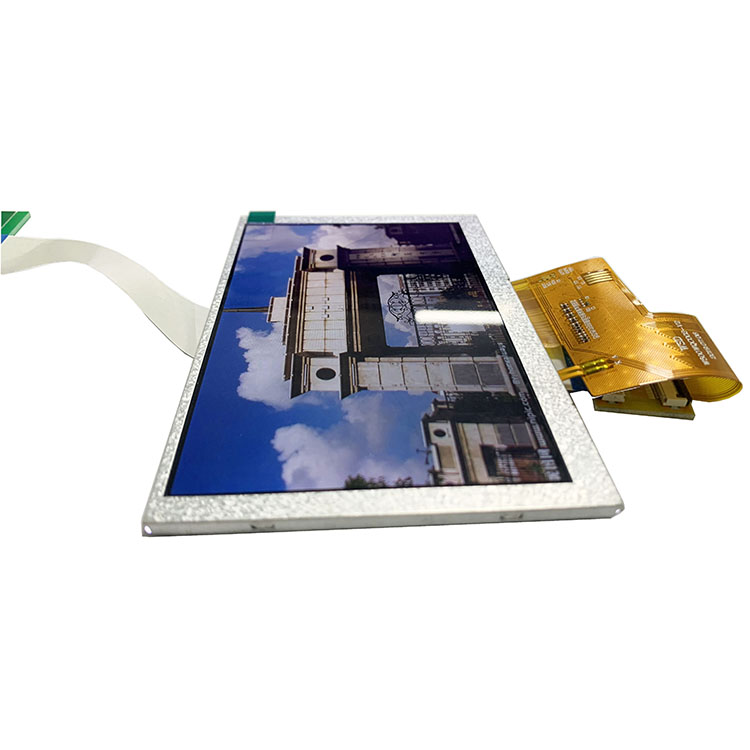

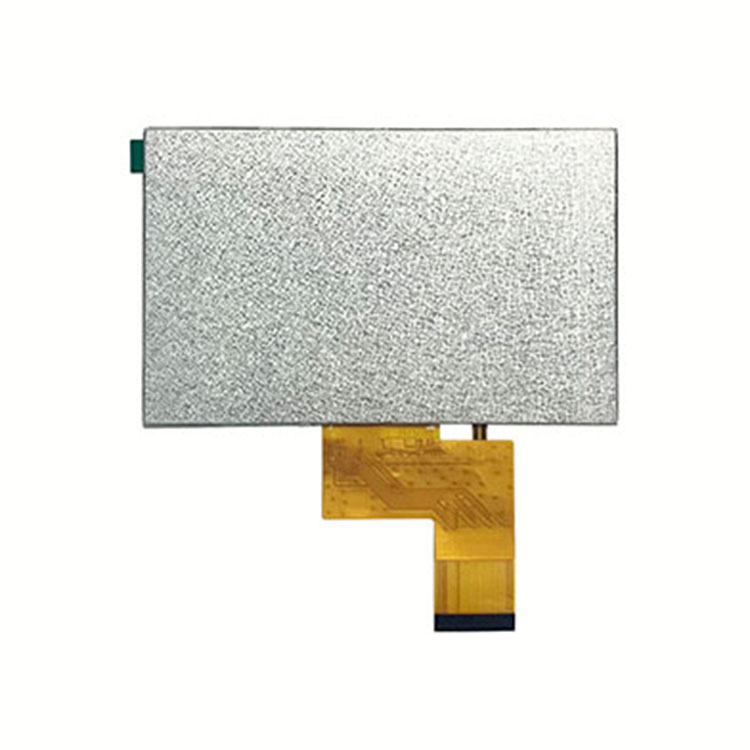

5.0 Ips Tft Lcd Display

IPS LCD size: 5.0 inch
Part Number:RXL050131-B
Resolution: 800x480
LCD Dimensions: 120.7mm*75.8mm*2.83mm
LCD viewing area: 108mm*64.8mm
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

An IPS (In-Plane Switching) TFT (Thin-Film Transistor) LCD (Liquid Crystal Display) is a type of display technology commonly used in electronic devices such as smartphones, tablets, computer monitors, and televisions. It is known for its superior color reproduction, wide viewing angles, and high-quality visual performance.


IPS TFT LCD displays have become increasingly popular due to their excellent color reproduction, wide viewing angles, and overall visual quality. They are commonly used in devices where color accuracy and viewing experience are crucial, such as Medical display,Automotive display,Monitors,Industrial control,Transportation and Point-of Sale systems.










Hot tags:5.0 ips tft lcd display, 5 lcd display with ips viewing angle, tft lcd shield, 5-wire resistive touch screen pinout, micro lcd display module, lcd display module interface, 5 point capacitive touch screen, 5 inch capacitive touch screen, resistive touch screen circuit, ips lcd vs tft, china, customized, suppliers, factory, manufacturers

IPS LCD size: 5.0 inch

Part Number:RXL050131-B

Resolution: 800x480

LCD Dimensions: 120.7mm*75.8mm*2.83mm

LCD viewing area: 108mm*64.8mm

Interface: RGB

Brightness: 350 nits

Driver IC: ST7262

Dot/pixel pitch: 0.0565(H)×RGB×0.1695(V)

Display Mode: Normal Black

Display color: 16M

Surface treatment: HC

Contrast: 800:1 (typ.)

Angle of view: 80/80/80/80(typ.)

Working temperature: -20°C~+70°C

Storage temperature: -30°C~+80°C

Lead Time: Samples are in stock; Mass production 3-4 weeks

Whether to support customization: yes
