The 23 open frame touchscreen display has become a popular choice for various commercial, industrial, and kiosk applications due to its versatility, durability, and interactive capabilities. One common question among users and system integrators is whether a 23 open frame touchscreen display can be wall mounted easily. This article explores the mounting options, installation considerations, benefits, and challenges associated with wall mounting a 23 open frame touchscreen display, providing a comprehensive guide for anyone considering this setup.

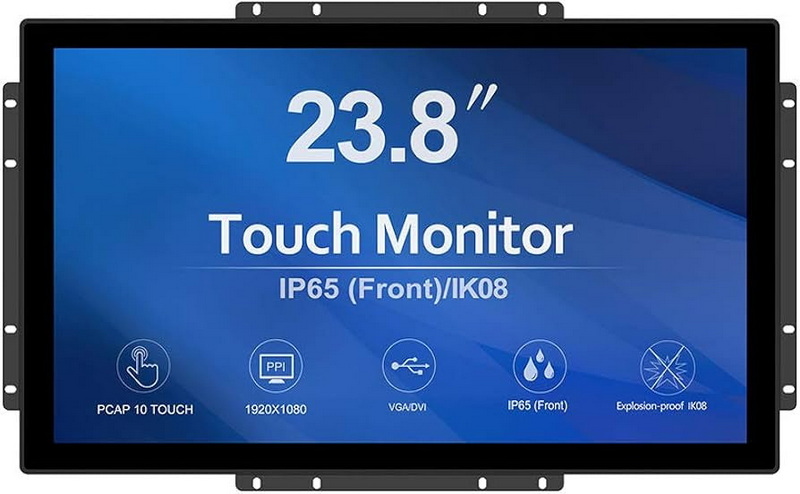

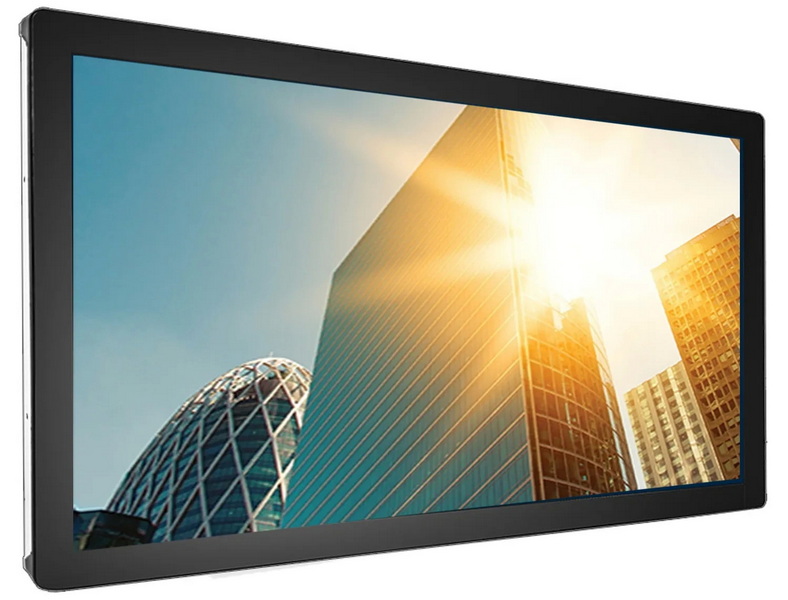

Before diving into the mounting options, it is important to understand what a 23 open frame touchscreen display is. These displays typically feature a 23 to 24-inch diagonal screen size, often with a Full HD resolution of 1920x1080 pixels, and use projected capacitive (PCAP) touch technology supporting multi-touch points (up to 10 simultaneous touches). The open frame design means the display is provided without a protective enclosure or bezel, allowing it to be integrated into custom housings, kiosks, or other installations.
The open frame touchscreen is designed for industrial-grade applications, offering durability with features like anti-glare coatings, hardened glass surfaces, and VESA mounting compatibility. These displays are widely used in retail kiosks, gaming machines, industrial automation, healthcare, and digital signage due to their flexibility and reliability.
A key factor that makes a 23 open frame touchscreen display easy to wall mount is its compatibility with VESA mounting standards. Most 23 open frame touchscreens come with VESA mounting holes on the back, typically following the 100mm x 100mm pattern. This allows users to attach the display to standard VESA-compatible wall mounts, arms, or brackets without the need for custom adapters.
For example, models like the Elo 2494L and Mimo Monitors' 23.8-inch open frame displays support VESA 100mm mounts, enabling straightforward installation on walls or other surfaces. This standardization simplifies the mounting process and ensures that a wide variety of mounting hardware is compatible.
The slim profile of many 23 open frame touchscreen displays also contributes to ease of wall mounting. Their thin design reduces the space needed behind the display, allowing for a sleek, low-profile installation that is aesthetically pleasing and practical for tight spaces. Additionally, these displays can often be mounted in various orientations—landscape, portrait, or even face-up—providing flexibility depending on the wall or enclosure design.
Some manufacturers provide mounting brackets or kits specifically designed for open frame displays. These kits may include “L” brackets, flush mount kits, or side mounting hardware that facilitate secure attachment to walls or custom enclosures. For instance, certain Elo models include side mount brackets and optional bezel kits for front mounting, enhancing the ease of installation.
Though 23 open frame touchscreen displays are relatively lightweight (typically around 6 to 10 kilograms), ensuring the wall or mounting surface can support the weight is essential. Proper anchors or studs should be used to prevent the display from falling or shifting. The VESA mount system distributes the weight evenly, but the mounting hardware and wall material must be suitable for secure installation.
Wall mounting often requires careful planning for cable routing, including power, video (HDMI, DVI, VGA), and USB cables for touch functionality. Many 23 open frame displays come with multiple input options and USB interfaces, so ensuring cables are accessible and neatly managed behind the wall or enclosure is important for both aesthetics and safety.
When mounting a 23 open frame touchscreen display on a wall, environmental factors such as ambient light, temperature, and potential exposure to dust or moisture should be considered. Many open frame displays are designed for indoor use with anti-glare coatings and durable glass, but additional protective enclosures may be required in harsher environments.
- Space Saving: Wall mounting frees up desk or counter space, making it ideal for kiosks, retail environments, or industrial settings where space is limited.
- Improved Accessibility: Mounting at eye level or ergonomic height enhances user interaction and accessibility.
- Aesthetic Integration: The slim open frame design allows for a clean, modern look that integrates well into various environments.
- Versatility: The ability to mount in multiple orientations and the availability of VESA mounts make it adaptable to different use cases.
- Enhanced Durability: Wall mounting reduces the risk of accidental damage from handling or movement.
Because open frame displays lack an outer enclosure, the edges and electronics may be exposed when wall mounted. This can pose risks of damage or dust ingress.
Solution: Use a custom enclosure or bezel designed for the specific display model to protect the edges and electronics while maintaining touch functionality.
Once mounted, accessing cables for maintenance or replacement can be difficult.
Solution: Plan cable routing with accessible conduits or use quick-disconnect connectors to facilitate easier maintenance.
Not all walls or surfaces are ideal for mounting, especially in older buildings or uneven walls.
Solution: Use mounting plates or backer boards to provide a flat, sturdy surface for installation.
To ensure the best performance of a 23 open frame touchscreen display, regular calibration is recommended. Calibration helps maintain touch accuracy and responsiveness, especially in high-traffic environments where frequent use can cause slight deviations over time. Maintenance should also include cleaning the screen surface with appropriate materials to avoid damage. Using microfiber cloths and non-abrasive cleaning solutions helps preserve the screen's clarity and touch sensitivity.
These displays are often integrated with other hardware and software systems, such as point-of-sale (POS) systems, industrial controllers, or digital signage networks. Ensuring compatibility and seamless communication between the touchscreen and these systems is crucial for smooth operation. Many 23 open frame touchscreen displays support multiple input types and standard communication protocols, making integration straightforward.
Modern 23 open frame touchscreen displays are designed to be energy efficient, consuming less power compared to older models. This is beneficial for installations where multiple displays are used, reducing overall energy costs and environmental impact. Additionally, many models include power-saving features such as automatic brightness adjustment based on ambient light and sleep modes when not in use.
Wall mounting a 23 open frame touchscreen display at an ergonomic height enhances user comfort and accessibility, especially in public or commercial environments. It is important to consider the average user height and interaction distance to optimize touch accuracy and reduce fatigue. For accessibility compliance, mounting height should accommodate wheelchair users and people with disabilities.
In public or semi-public environments, securing the 23 open frame touchscreen display against theft or tampering is important. Wall mounting with secure locking brackets or enclosures can deter unauthorized removal or damage. Additionally, some mounting solutions include tamper-proof screws and reinforced materials to enhance security.
A 23 open frame touchscreen display can indeed be wall mounted easily, thanks primarily to its VESA mount compatibility, slim design, and the availability of mounting accessories. Proper installation requires attention to structural support, cable management, environmental factors, and user ergonomics to ensure a secure and functional setup. Wall mounting these displays offers significant benefits in terms of space efficiency, accessibility, aesthetics, and durability, making them a versatile choice for commercial and industrial applications. With appropriate planning and protective measures, the challenges of mounting an open frame touchscreen display on a wall can be effectively managed, resulting in a reliable and user-friendly interactive solution.
Yes, most 23 open frame touchscreen displays support multiple orientations including landscape and portrait, allowing flexible wall mounting options to suit your application needs.
A standard VESA 100mm x 100mm wall mount bracket is compatible with most 23 open frame touchscreen displays, facilitating easy installation with widely available mounting hardware.
Since open frame displays lack an outer enclosure, it is advisable to use a protective bezel or custom enclosure to shield the edges and electronics from dust, damage, or environmental factors.
Cable management should be planned carefully, using conduits, cable ties, or raceways to route power, video, and USB cables neatly behind the wall or enclosure for safety and aesthetics.
No, wall mounting does not affect the touch functionality as long as the display is installed securely and cables are properly connected. The projected capacitive touch technology remains fully operational in any mounting orientation.
