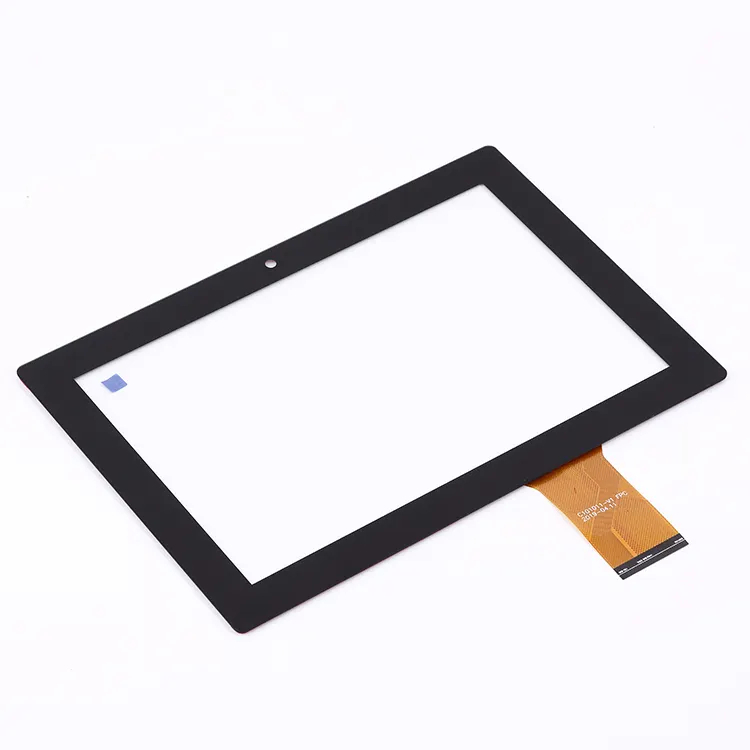

10.1" Capacitive Touch Screen With Touch Screen Controller Board Can Be Used For Raspberry Pi Display RXC-GG101252H-1.0

Model: RXC-GG101252H-1.0
Capacitive touch screen Size: 10.1 inch
Manufacturer: Reshine Display
Light transmittance: ≥85%
Hardness: 6H


Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • RXC-GG101252H-1.0

  • Reshine Display

Capacitive Touch Panel Operation Principle:

Capacitive touch panel works through body's current induction. When finger is on or close to touch panel surface, due to body electric field, the user and touch panel surface forms one coupling capacitance.

For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal,

Finally the controller works out the touch point position.




Product Specification:

The structures explanation:

* P+G=PET+Glass (cover lens is PET and touch sensor is glass).

* G+G=Glass+Glass (cover lens is glass and touch sensor is glass).

* G+F/F=Glass+Film+Film (cover lens is glass and touch sensor is film+film).

* CG= Cover Glass, OD= Outside Dimension, VA= Viewing Area.



Product structure for 10.1 inch capacitive touch panel screens:




Technical parameter for 10.1'' capacitive touch panel screens:

Model

RXC-GG101252H-1.0

LCD Screen Size

10.1 inch

Total product thickness(mm)

1.6

Outline Dimension(mm)

228.46*148.1

Viewing Area(mm)

217.56*136.2

FPC Length(mm)

75.4

Structure

G+G

Working Voltage

2.8-3.3V

Drive IC

ILI2511

Interface

USB

LCD Type

COB type

Touch type

Multi-touch capacitive touch panel

Operation Temperature

-10℃~60℃

Storage Temperature

-20℃~70℃

Transmittance

≥85%

Surface Hardness

6H

Pin NO

4Pin

Pin Pitch

0.5mm

Warranty

1 year

Manufacturer

Reshine Display



Custom Projected Capacitive Touch Screen:

☆ Our capacitive touch panel design can be suitable for housing design from the customers to cover their lens or replace the physical buttons on its original module.

☆ We are also capable of doing the customized shape needed to suit for customer's mechanical design.

☆ With the assistance of the simulation software, equipment with high accuracy and simplifying assembly process, we are capable of making the sample in shorter period and with lower development charge.

Custom Projected Capacitive Touch Screen



                  Lens's Features

> Shape: Irregular and hole

> Color: Silk printing, Logo

> Glass brand: AGC, Corning, CSG, ETC

> Treatments: AG, AR, AF, Anti-explosion

> Thickness: 0.55mm, 0.7mm,1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm, 4.0mm

                 Sensor Features

> Sensor material: Glass, Film,Film + Film

> Thickness:0.125mm,0.4mm, 0.55mm, 0.7mm, 1.1mm

> FPC: Shape design optional

> IC: Focaltech, Goodix, Cypress, EETI

> Interface: IIC, USB, RS232, SPI

                Assembly

> Optical Bonding with OCA

> Double faced adhesive tape



Our Advantage:

Rich experience

Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client

Advanced Equipment

Full automatic FPC&IC bonding machine, film attaching machine, CNC machine, polish machine advance production equipment ensure product quality

Quality Assurance

Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment

Fast response

Quickly realize your customized ideas, and have a sample ready in short time

Low MOQ

Depends on product

Stable supply

1~10 years supply period

Extensive range

Providing complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen

Large production capacity

PCAP(PCT,CTP)2KK monthly; RTP(resistive touch)5KK monthly.

Quality guarantee

RoHS compliant

Management

ISO 9001:2008, ISO 14001:2004



Product Line:

☆ Clean Room class 10k@0.8um, Pressurec 0.8kgf

☆ Antistatic floor, resistance : 1x10 ohm to 1x10 ohm

☆ COG production lines: 4 .

☆ Backlight production lines: 2 .

☆ Existing machine capacity will be 1KK per month.



Certificate for PCAP Touch and Resistive Touch Screens:

We're maker of 2.4''-55'' PCAP & 2.4''-21.5'' Resistive touch screen . Also provide touch screen boned with TFT LCD by air/optical bonding.

Customization products are our advantage, as we have ultral-low development fee, short lead time and high-quality.

REACH,  ROHS,  ISO 9001, ISO 14001,  IATF16949  are certificated.



Company Strength:

Reshine Display founded in 2007, factory area of 10,000 square meters.

We use international advanced production equipment and has a 10,000-class (local hundred-level) production workshop.

We can provide resistive touch screen from 2.4inch to 21.5inch, capacitive touch screen from 2.4inch to 55inch, and TFT LCD screen.

Also provide touch screen with TFT LCD by air/frame and optical bonding.



FAQ:

1. What interfaces do you have for capacitive touch panel?
A: Reshine Display have COB, COF type.


2. What size touch panel can you manufacture?
A: We're manufacturer of 2.4 inch to 21.5 inch resistive touch panel screen, and 2.4 inch to 55 inch projected capacitive touch panel screen.

Also provide TFT LCD with touch panel by air/frame bonding and optical bonding.


3. Do you provide technical support?
A: Yes, Reshine Display can provide free technical support. We have professional technical and R&D team over 17years.


4. What shipping ways do you support?
A: We support Fedex, DHL and UPS or sea shipment.


5. Can you support custom touch panel?

A: Yes, we can, just send your projects and drawings for our evaluation, we’ll help you.

1 days for design technical drawings, 2weeks for samples. 3weeks for mass production.



6. What structure can your capacitive screen be made of?

A: Reshine Display can make four types structures:

G+G: Cover Glass+Sensor Glass

G+F: Cover Glass+Film

P+G: Pet+Sensor Glass

G+F+F:  Cover Glass+Film+Film


7. What size rangs of the projective capacitive touch screen you can offer?

A: Reshine Display can offer the capacitive touch screen sizes :

2.4"  2.8"  3.5"  4.3" 5.0"  5.6"  5.7"  7.0"  8.0"  10.1" 10.4"  11.6" 12.1"  13.3''  15.6"  18.5"  21.5"  23.8"  27"  32" .


8. Resistive or capacitive touch screen which is best?

We manufacture resistive touch screen vs touchscreen with rich experiences, it's depends on client's application demands and application scenarios. Like touch screen display for car, 11.6 touch screen for automotive, capacitive monitor for HMI.
