If you design, source, or manufacture Industrial HMI, in-vehicle terminals, EV charging stations, test & measurement instruments, or self-service kiosks, this post will save you from costly project delays, failed certification, and unexpected screen failures.
80% of IK impact test failures in finished equipment do not stem from a low-quality touch screen—they come from a widespread, costly misalignment between what IK ratings actually mean, and how they’re specified to touch display suppliers.
Let’s cut through the noise with clear definitions that eliminate 90% of specification miscommunication:
●IK Impact Rating (per IEC 62262): This is a protective rating for COMPLETE EQUIPMENT ENCLOSURES, NOT a standalone performance metric for bare touch screen displays.
●Steel Ball Drop Test: This is the touch display industry’s gold standard for validating standalone screen impact resistance—this is the only specification your touch screen supplier can 100% control and guarantee.

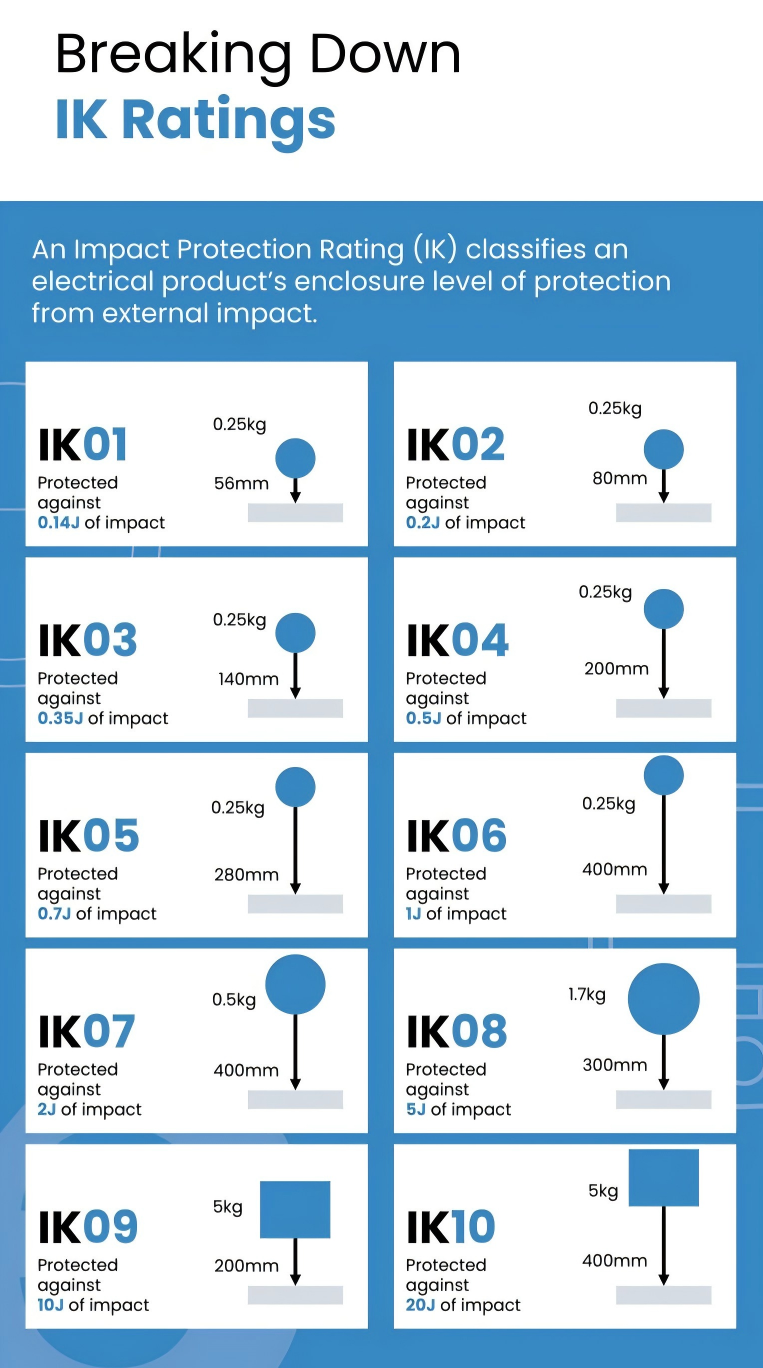

The IK rating is formally defined by the international IEC 62262 standard, which measures the ability of a fully assembled electrical equipment enclosure to withstand external mechanical impacts.
Critical fine print: The test is performed on a complete, production-ready unit—including its housing, bezel, mounting structure, internal support, and shock absorption components. It is never designed to evaluate a bare touch screen, cover glass, or display panel on its own.

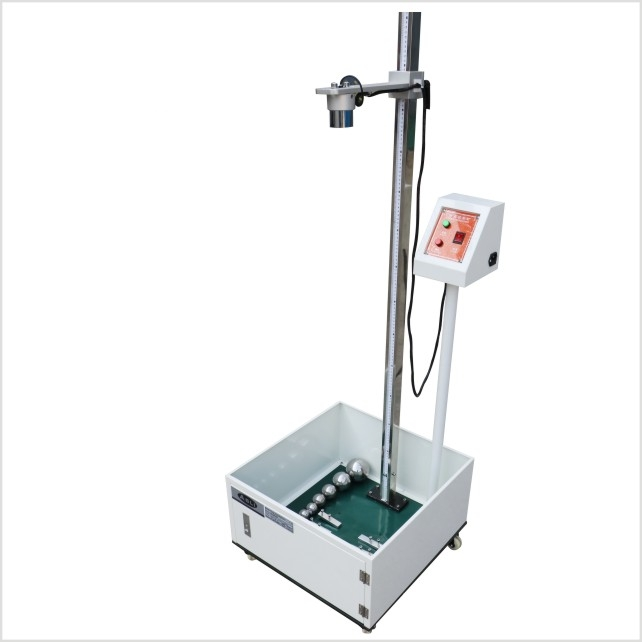

By contrast, the Steel Ball Drop Test is the universal, industry-specific validation for standalone touch screen assemblies. It measures the screen’s inherent ability to resist hard object impacts under simulated mounting conditions, with all performance parameters fully controlled by the display manufacturer via material selection, glass strengthening, and lamination processes.
Here’s the hard truth most suppliers won’t tell you: 90% of your finished device’s ability to pass IK certification comes from your mechanical enclosure design, only 10% comes from the touch screen itself.
Passing an IK rating hinges on your bezel clamping strength, rear support structure, shock-absorbing foam selection, and housing rigidity—all of which are fully controlled by the equipment manufacturer, not the touch screen supplier.
We’ve seen this firsthand countless times: The same 1.8mm chemically strengthened aluminosilicate touch screen easily passes IK7 when mounted in a self-service kiosk with a full metal bezel and rear support, yet fails even IK5 when installed in an EV charging station with a floating, unbuffered housing design.
For the Steel Ball Drop Test, pass/fail is determined entirely by the screen’s inherent design: cover glass material, chemical strengthening parameters, edge finishing, and lamination technology. These are all factors your display manufacturer can precisely engineer, validate, and commit to in your product specification.
When a touch screen manufacturer says "this screen can meet IK7”, what they actually mean is:
"This screen's inherent impact resistance can withstand the 2 Joules of impact energy defined by the IK7 rating, when tested under simulated full-device mounting conditions (perimeter bezel clamping + rigid rear support).”
But what many equipment OEMs hear is:
"This screen will guarantee my finished device passes IK7 certification, no matter how I design my enclosure.”
This misalignment is the #1 cause of certification failures, project delays, and unplanned rework costs across every industrial and commercial display vertical.
With frequent tool drops and equipment collisions on the factory floor, IK7/IK8 ratings are standard—but many teams overlook mounting bracket rigidity and perimeter buffer design, leading to screen failures during final validation.
Subject to constant vibration and shock on the road, IK6 ratings are common for automotive and commercial vehicle displays. Poor mounting structure and incorrect shock absorption foam selection often lead to cracked screens and touch failures during road testing.
Exposed to harsh outdoor environments and high risk of vehicle collisions, these have the strictest IK8/IK9 requirements in the industry. Skipping rigid housing design and proper screen mounting clearance almost always results in failed certification and expensive enclosure reworks.
Frequently moved between lab and field, with high risk of accidental drops. Many teams specify impact resistance for the screen, but neglect drop-proof structure and corner cushioning in the device design, leading to shattered screens during reliability testing.
High foot traffic in public spaces means constant accidental bumps and intentional impact. IK7 is table stakes here, but insufficient bezel wrapping and rear support lead to frequent screen breakages and sky-high aftermarket service costs in live operations.
Stop sending your touch screen supplier the unenforceable requirement of “your screen must pass IK7/IK8”. Instead, use this industry-standard, actionable specification that aligns expectations on both sides:
"The touch screen assembly shall withstand [X] Joules of impact energy (corresponding to IK[X] rating, e.g. 2J for IK7), when tested under simulated finished device mounting conditions (perimeter bezel clamping + rigid rear support). After impact, the screen shall have no cracking, no touch function failure, and no display abnormalities.”
This specification:
●Honors your finished device’s IK rating requirements
●Gives your supplier a clear, testable, and guaranteeable metric
●Eliminates the costly misalignment that derails 80% of projects
At Reshine Display, we specialize in custom touchscreen display solutions built to meet your real-world impact requirements—no vague promises, only fully testable, engineering-backed specifications.
