Connecting a Raspberry Pi to a touchscreen display is a straightforward process that opens up a wide range of possibilities for interactive projects, from simple information dashboards to complex entertainment systems. The Raspberry Pi Touch Display 2, for instance, is a popular choice due to its ease of use and compatibility with most Raspberry Pi models. This article will guide you through the process of setting up a touchscreen display with your Raspberry Pi, highlighting key considerations and troubleshooting tips.

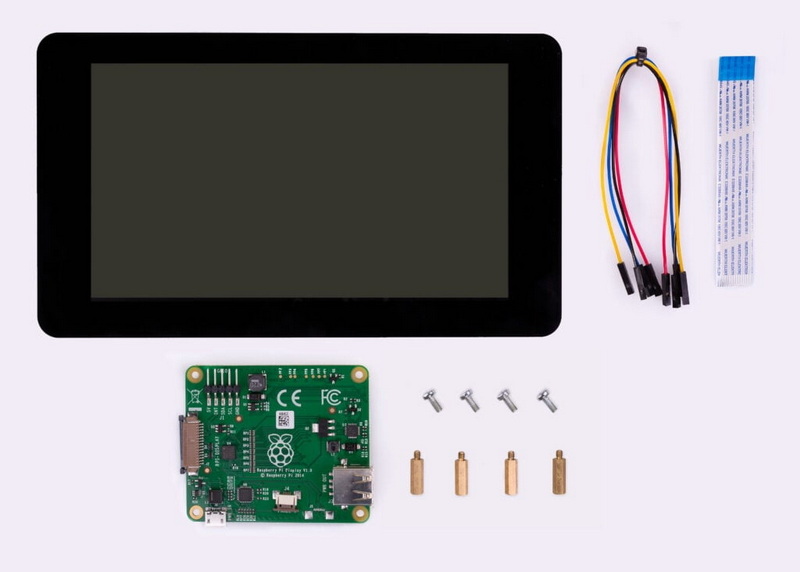

To connect a Raspberry Pi to a touchscreen display like the Touch Display 2, you will need a few essential components. These include a Flat Flexible Cable (FFC) and a GPIO connector. The type of FFC required depends on your Raspberry Pi model; for example, the Raspberry Pi 5 uses a 22-way to 15-way FFC, while other models use a 15-way to 15-way FFC. The Touch Display 2 is powered directly by the Raspberry Pi, eliminating the need for a separate power supply.
Setting up the Touch Display 2 involves several steps:
1. Disconnect Power: Ensure your Raspberry Pi is disconnected from power before starting the setup process.
2. Connect the FFC: Insert one end of the FFC into the Touch Display 2's connector with the metal contacts facing upwards. Secure the FFC by pushing down the retaining clips.
3. Connect to Raspberry Pi: Insert the other end of the FFC into the Raspberry Pi's DSI connector, ensuring the metal contacts face towards the Ethernet and USB ports.

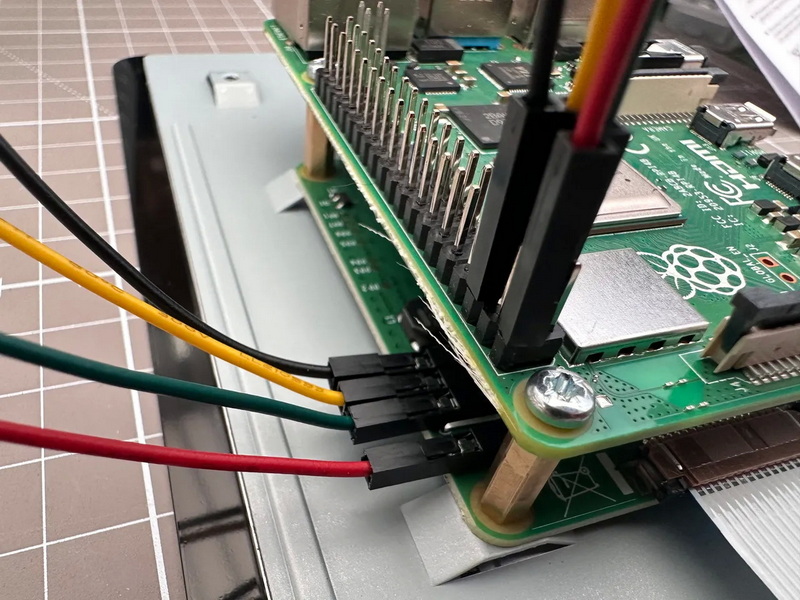

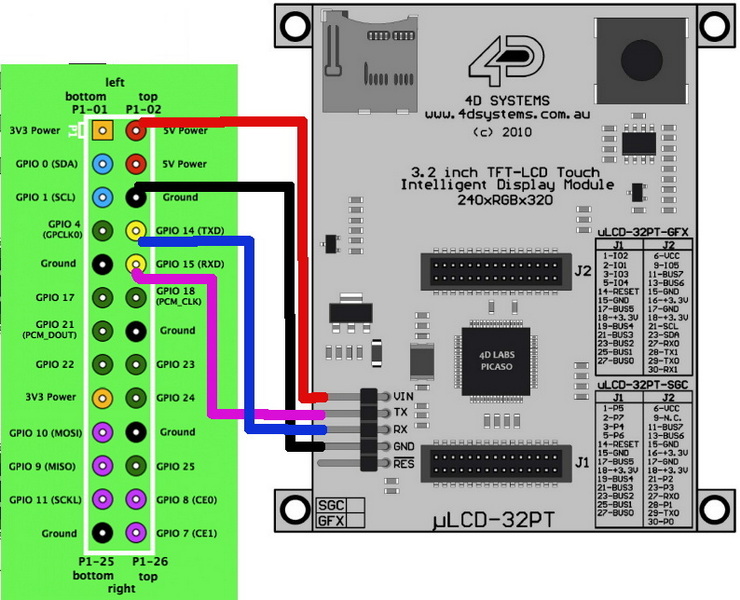

4. GPIO Connection: Connect the GPIO connector cable to the Touch Display 2 and the appropriate pins on the Raspberry Pi (5V to pin 2, GND to pin 6).
5. Mounting: Optionally, use the included screws to mount the Raspberry Pi to the back of the Touch Display 2.
6. Reconnect Power: Once all connections are secure, reconnect your Raspberry Pi to power and wait for the display to initialize.
Raspberry Pi OS provides an on-screen keyboard, known as Squeekboard, which automatically appears when text input is required. This feature is available in Raspberry Pi OS Bookworm and later versions. For applications that do not support text entry detection, you can manually show or hide the keyboard using the taskbar icon or through the Raspberry Pi Configuration tool.
If you need to change the screen orientation, you can do so by accessing the Screen Configuration from the Preferences menu. Right-click on the touch display rectangle, select Orientation, and choose the desired orientation. This feature is particularly useful if you plan to mount your display in a portrait orientation for applications like digital signage or interactive kiosks.
When selecting a touchscreen display for your Raspberry Pi, consider factors such as resolution, size, and compatibility. The Touch Display 2 offers a resolution of 1280×720 pixels, which is suitable for most applications. However, if you need higher resolution or specific features like capacitive touch, you may want to explore other options available in the market.
Ensure that your power supply can handle the additional power requirements of the touchscreen display. The Touch Display 2 is designed to be powered by the Raspberry Pi, but using a high-quality power adapter is crucial to prevent power-related issues. A power supply with at least 2.5A is recommended to ensure stable operation.
Troubleshooting is an essential part of setting up any electronic device. Common issues with the touchscreen display include incorrect FFC connections or insufficient power supply. Always ensure that the FFC is fully inserted and properly secured to avoid display problems. If the display does not turn on, check that the power supply is sufficient and that all connections are secure.
Once you have your touchscreen display set up, you can explore a variety of advanced projects. For instance, you can create interactive dashboards for home automation systems, build a digital picture frame with touch controls, or even develop a custom tablet for specific applications. The versatility of the Raspberry Pi combined with a touchscreen display opens up endless possibilities for creativity and innovation.
To enhance the user experience of your touchscreen projects, consider integrating additional features such as Wi-Fi connectivity for remote access, Bluetooth for wireless peripherals, or even integrating sensors for environmental monitoring. These features can transform your project from a simple interactive display to a fully integrated smart system.
Customizing the interface of your touchscreen display can greatly enhance user interaction. You can design custom GUIs using tools like Tkinter or PyQt, allowing you to tailor the interface to your specific needs. Additionally, you can integrate multimedia elements such as videos or animations to make your project more engaging.
Touchscreen displays paired with Raspberry Pi are also excellent tools for educational projects. They can be used to create interactive learning platforms, interactive whiteboards, or even assistive technology devices for students with special needs. The affordability and ease of use make them ideal for classroom environments.
In commercial settings, touchscreen displays can be used for point-of-sale systems, customer service kiosks, or digital signage. The ability to customize the interface and integrate with existing systems makes them highly versatile for business applications.
Connecting a Raspberry Pi to a touchscreen display like the Touch Display 2 is a rewarding project that can enhance the functionality of your Raspberry Pi projects. With the right hardware and a bit of patience, you can create interactive systems that are both fun and useful. Whether you're building a tablet, an entertainment system, or an information dashboard, the Raspberry Pi Touch Display 2 offers a versatile solution.
The Raspberry Pi Touch Display 2 has a resolution of 1280×720 pixels with a 24-bit RGB display.
The Touch Display 2 is compatible with all Raspberry Pi models from the 1B+ onwards, except for the Raspberry Pi Zero and Zero 2 W, which lack a DSI connector.
To calibrate the touchscreen, you can install and run calibration software, following the on-screen instructions to adjust the touch sensitivity and accuracy.
No, the Touch Display 2 is powered directly by the Raspberry Pi, eliminating the need for a separate power supply.
Yes, you can change the screen orientation by accessing the Screen Configuration from the Preferences menu and selecting the desired orientation.
