Building automation systems (BAS) have evolved significantly over recent years, driven by the need for enhanced energy efficiency, occupant comfort, and operational control. Among the technologies that have transformed BAS, BACnet (Building Automation and Control Network) stands out as a pivotal communication protocol that enables interoperability among diverse building systems. Integrating BACnet with touchscreen displays further elevates the efficiency and usability of building automation by providing intuitive, real-time control and monitoring capabilities. This article explores in depth how a BACnet touchscreen display enhances building automation efficiency, its key features, benefits, and practical applications.
BACnet is an open communication protocol developed specifically for building automation and control systems. It allows devices from different manufacturers-such as HVAC units, lighting controls, fire safety systems, and security devices-to communicate seamlessly on a shared network. This interoperability is crucial for creating integrated building management systems that optimize energy use, streamline maintenance, and improve occupant safety and comfort.
BACnet supports multiple data transmission media, including BACnet over Ethernet, which facilitates high-speed communication between networked devices. This protocol enables real-time data exchange, scheduling, alarming, and control functions, making it the backbone of modern BAS.

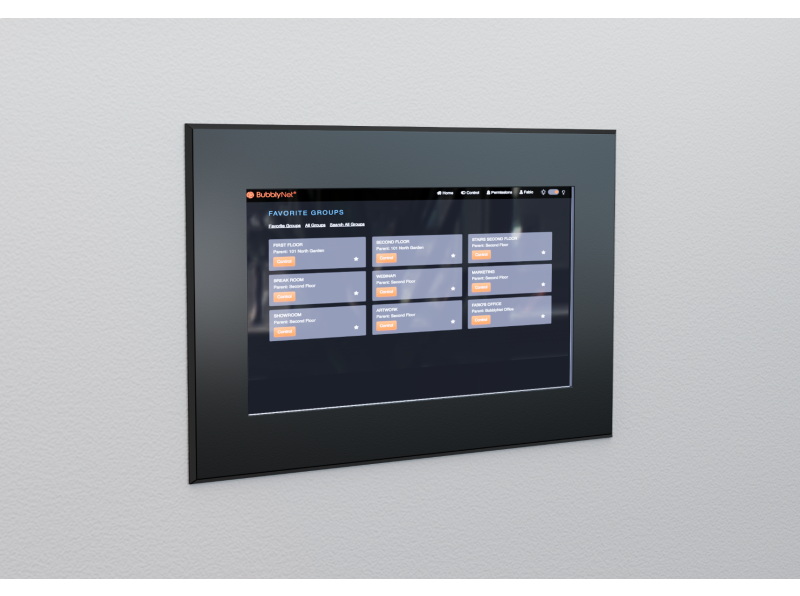

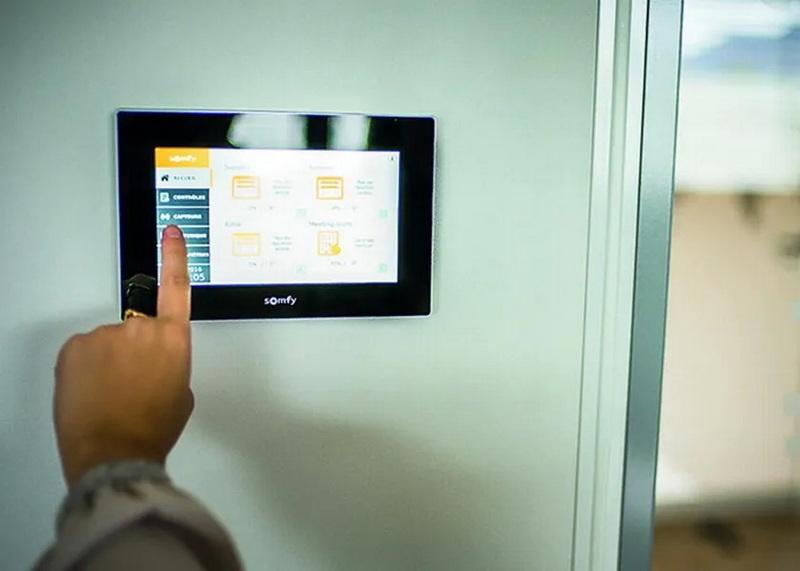

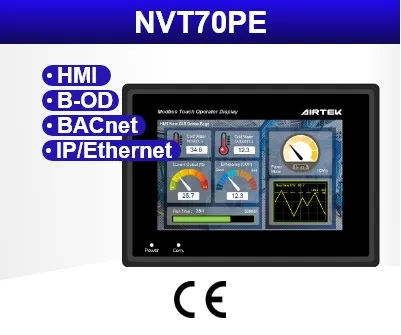

A BACnet touchscreen display is a human-machine interface (HMI) device designed to interact directly with BACnet-enabled building automation systems. These displays typically feature color LCD screens with capacitive touch capabilities, enabling users to monitor, control, and adjust various building systems through an intuitive graphical interface.
For example, Delta Controls' DHMI is a 7-inch color LCD touchscreen that communicates over BACnet Ethernet with controllers managing HVAC, lighting, and access systems. It supports real-time graphical visualization, including customizable 3D animated graphics, allowing operators to manage equipment such as air handlers, boilers, and chillers efficiently[1]. Similarly, Automated Logic's OptiPoint System Touch offers multi-touch capabilities, multi-language support, and advanced features like trend viewing, alarm visualization, and schedule editing, all accessible directly through the BACnet network[5].
BACnet touchscreen displays provide operators with immediate access to real-time data from building systems. This capability allows for quick identification of issues such as equipment faults, abnormal energy consumption, or environmental deviations. Operators can adjust settings like temperature setpoints, lighting levels, and ventilation schedules directly from the display, facilitating proactive management that reduces energy waste and enhances occupant comfort.
The graphical interface simplifies complex data by presenting it visually, often with color-coded alerts and animations, which help users quickly understand system status and respond accordingly. This immediacy in monitoring and control is critical for maintaining optimal building performance and avoiding costly downtime.
Because BACnet is an open and widely adopted standard, touchscreen displays that natively support BACnet can interface with a broad range of devices and subsystems regardless of manufacturer. This interoperability ensures that all building systems-HVAC, lighting, security, and more-can be managed cohesively from a single interface.
The BACnet touchscreen acts as a centralized control point, reducing the need for multiple disparate control panels and simplifying the operator's workflow. This integration leads to better coordination among systems, such as adjusting HVAC settings based on lighting occupancy sensors or security system alerts, thereby optimizing energy use and operational efficiency.
Modern BACnet touchscreen displays often support connectivity with IoT gateways and cloud platforms, enabling remote access and control. Building managers can monitor system performance, receive alerts, and make adjustments from mobile devices or computers, even when off-site. This remote capability enhances responsiveness and reduces the need for on-site visits, saving time and operational costs.
Automation features allow the system to adjust settings automatically based on occupancy patterns, time schedules, or environmental conditions detected by sensors. For example, HVAC temperatures can be lowered during unoccupied hours, or lighting can be dimmed in response to daylight levels, all managed through the BACnet touchscreen interface or remotely via connected systems.
By enabling precise control and continuous monitoring, BACnet touchscreen displays contribute directly to energy efficiency. Operators can analyze trends and consumption patterns through the display's graphical tools, identifying opportunities to reduce waste. Real-time feedback on energy use helps in making informed decisions that lower utility costs and reduce carbon footprints.
Integration with other building systems via BACnet allows for coordinated energy-saving strategies, such as demand-controlled ventilation or lighting schedules aligned with occupancy. This holistic approach supports sustainability goals and compliance with environmental regulations.
BACnet touchscreen displays also enhance building security and safety management. They provide immediate access to alarms and status updates from fire detection, intrusion, and surveillance systems integrated into the BAS. Operators can respond swiftly to emergencies by viewing detailed information and triggering appropriate actions, such as unlocking doors or shutting down hazardous equipment.
The ability to visualize alarms and system statuses on a single interface improves situational awareness, streamlines emergency response, and helps maintain occupant safety.
BACnet touchscreen displays allow operators to monitor and control HVAC components such as air handlers, chillers, boilers, and thermostats. Real-time graphical interfaces display temperature, humidity, airflow, and equipment status, enabling quick adjustments to maintain comfort and efficiency. Scheduling functions can be managed directly on the display, optimizing operation according to occupancy and environmental conditions.
Lighting systems integrated via BACnet can be controlled from the touchscreen display, allowing for dimming, scheduling, and scene setting. This integration supports energy savings by ensuring lights are used only when needed and at appropriate levels, contributing to occupant comfort and productivity.
Security systems connected through BACnet provide status updates and alarms on the touchscreen display. Operators can monitor access points, view camera feeds, and respond to security events promptly. This integration enhances overall building safety and operational coordination.
The touchscreen interface often includes tools for viewing energy consumption trends and analytics, enabling facility managers to identify inefficiencies and optimize resource use. This data-driven approach supports continuous improvement in building performance.
BACnet touchscreen displays provide detailed alarm information and diagnostic data, facilitating faster troubleshooting and preventive maintenance. Technicians can access system logs and trend data directly, reducing downtime and extending equipment life.
A BACnet touchscreen display significantly improves building automation efficiency by providing an intuitive, centralized interface for real-time monitoring, control, and management of diverse building systems. Its native BACnet compatibility ensures seamless integration and interoperability across HVAC, lighting, security, and energy management subsystems. The ability to visualize data graphically, respond to alarms promptly, and automate system functions leads to enhanced energy efficiency, occupant comfort, and operational productivity.
Moreover, remote access capabilities and advanced automation features empower building managers to optimize performance continuously, reduce costs, and support sustainability goals. As building automation technology advances, BACnet touchscreen displays will remain essential tools for creating smarter, safer, and more efficient built environments.
A BACnet touchscreen display is a human-machine interface device designed to communicate directly with BACnet-enabled building automation systems. Unlike traditional control panels, it offers a graphical, interactive interface with real-time data visualization, multi-touch capabilities, and customizable displays, making system monitoring and control more intuitive and efficient.
BACnet's open protocol allows devices from different manufacturers and subsystems to communicate seamlessly. This interoperability enables integrated control and monitoring of HVAC, lighting, security, and other systems from a single interface, improving coordination, reducing complexity, and enhancing overall system efficiency.
Yes. Many BACnet touchscreen displays integrate with IoT gateways and cloud platforms, allowing building operators to access system data, receive alerts, and make adjustments remotely via mobile devices or web applications. This capability enhances responsiveness and operational flexibility.
By providing real-time monitoring, trend analysis, and automation capabilities, BACnet touchscreen displays enable precise control of building systems. Operators can optimize HVAC and lighting schedules, adjust setpoints based on occupancy, and identify inefficiencies, leading to reduced energy consumption and lower utility costs.
Yes. BACnet displays typically include multi-level password protection and support secure communication protocols like BACnet Secure Connect (BACnet/SC). These features help protect against unauthorized access and ensure data integrity, maintaining the security of building automation operations.
