Choosing the right touchscreen display for your business can significantly impact operational efficiency, customer interaction, and overall user experience. The ELO 1000 Series 1715L touchscreen display is a popular option in the commercial touchscreen market, known for its reliability, affordability, and versatility. This comprehensive article explores every aspect of the Elo 1715L touchscreen monitor to help you decide if it is the best choice for your business needs.

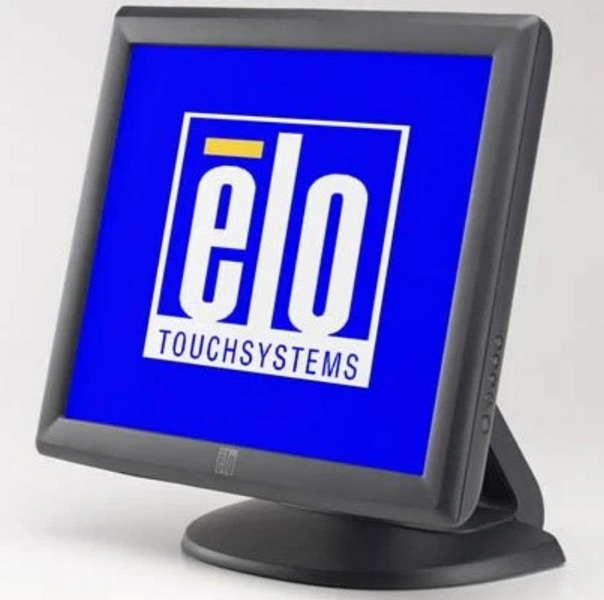

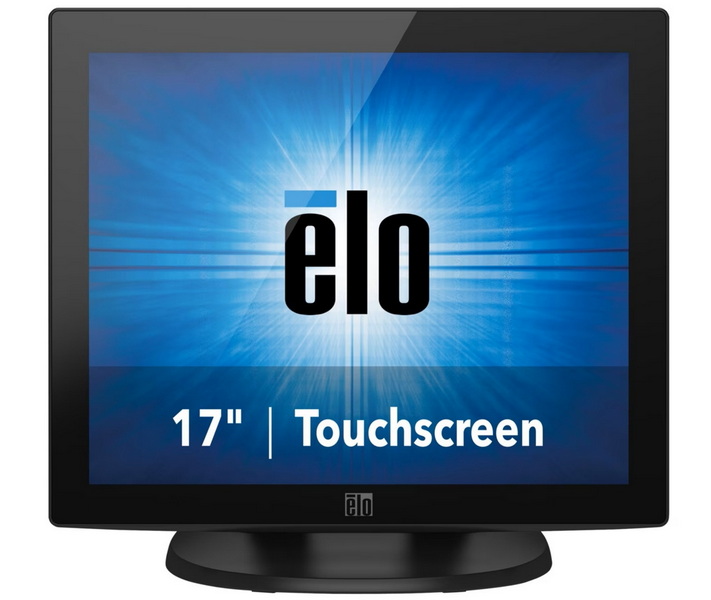

The Elo 1000 Series 1715L is a 17-inch touchscreen monitor designed specifically for commercial environments such as retail, hospitality, kiosks, and industrial applications. It features a 5-wire resistive touchscreen technology and offers a resolution of 1280 x 1024 pixels, delivering sharp and vibrant visuals suitable for diverse business uses.
- Display Size and Resolution: 17-inch diagonal active matrix TFT LCD with SXGA resolution (1280 x 1024), providing crisp images and clear text.
- Touch Technology: Available with AccuTouch five-wire resistive or IntelliTouch surface acoustic wave (SAW) technology, both offering single-touch input with high accuracy.
- Durability: Factory-sealed against dirt, dust, and liquids, making it ideal for busy environments.
- Mounting Options: Flexible installation options including removable base for desktop use, VESA wall or pole mounting.
- Connectivity: Dual serial and USB interfaces for easy integration with existing systems.
- Brightness and Contrast: Typical brightness of 250 nits (LCD panel) and a contrast ratio of 1000:1 ensure good visibility.
- Power Efficiency: Low power consumption with an internal AC power supply.
- Warranty: Comes with a three-year standard warranty for peace of mind.
This combination of features makes the Elo 1715L a robust and adaptable touchscreen solution for many business scenarios.
Unlike generic monitors adapted for touch, the Elo 1000 Series 1715L touchscreen display is purpose-built for touch applications. It features a stable tilt stand designed to withstand heavy use, with controls placed on the side to prevent accidental access and lockout capabilities for public environments. This design consideration enhances user experience and device longevity.
The monitor's removable base and VESA mount compatibility allow businesses to install the touchscreen in various ways-on counters, walls, or poles-maximizing space efficiency. The base also includes mounting holes for secure attachment, an important feature for retail or kiosk environments where theft or tampering is a concern.
The availability of different touch technologies-AccuTouch five-wire resistive and IntelliTouch SAW-caters to different business needs. AccuTouch is ideal for environments where users may wear gloves or use styluses, while IntelliTouch offers superior image clarity, suitable for upscale retail or hospitality settings.
With a 5:4 aspect ratio and SXGA resolution, the Elo 1715L provides sharp images with vibrant colors, supporting 16.7 million colors. Its anti-glare display reduces reflections, making it easier to use in brightly lit environments such as stores with large windows or under strong lighting.
The monitor consumes about 10.5 watts during operation, making it energy efficient compared to many commercial displays. This helps reduce operational costs, especially when deployed in multiple units across a business.
The Elo 1715L touchscreen is widely used in retail environments for point-of-sale (POS) systems, self-checkout kiosks, and loyalty program terminals. Its sealed touchscreen protects against spills and dust, common in busy retail settings, while its responsive touch technology ensures quick transactions.
Hotels and restaurants benefit from the Elo 1715L by using it for self-service check-in/out kiosks and ordering systems. The monitor's durability and anti-glare screen improve guest interaction, while flexible mounting options allow it to fit seamlessly into various spaces.
In industrial environments, the Elo 1715L's sealed touchscreen and robust build make it suitable for data entry and control stations exposed to dust or liquids. The resistive touch technology allows use with gloves or styluses, which is often necessary in manufacturing settings.
Though not as common as larger or multi-touch displays, the Elo 1715L can still serve in healthcare for patient check-in kiosks or information terminals, where ease of cleaning and reliability are critical.
| Feature | Specification |
|---|---|
| Display Size | 17 inches (diagonal) |
| Resolution | 1280 x 1024 (SXGA) |
| Aspect Ratio | 5:4 |
| Touch Technology | AccuTouch 5-wire resistive or IntelliTouch SAW |
| Brightness | 250 nits (LCD panel), 200-225 nits (touchscreen) |
| Contrast Ratio | 1000:1 |
| Viewing Angle | Horizontal ±85°, Vertical ±80° |
| Colors | 16.7 million |
| Connectivity | VGA, USB Type B, RS232 (DB-9) |
| Power Consumption | 10.5 W typical |
| Mounting Options | Removable base, 75 mm VESA mount |
| Operating Temperature | 0°C to 40°C |
| Warranty | 3 years |
The combination of these specifications ensures that the Elo 1715L touchscreen display meets the demands of commercial environments requiring reliable, clear, and responsive touchscreens.
| Pros | Cons |
|---|---|
| Durable and sealed against dust and liquids | Single-touch only, no multi-touch support |
| Flexible mounting options | Resolution limited to 1280 x 1024 (not Full HD) |
| Multiple touch technologies to choose from | Relatively heavier than some modern slim monitors |
| Stable, tilt-adjustable base | No built-in speakers |
| Energy efficient with low power consumption | Limited to 17-inch screen size |
| Three-year warranty |
When compared to other touchscreen monitors in the same price and size range, the Elo 1715L stands out for its commercial-grade build quality and reliability. Many consumer-grade touchscreens lack the sealed design and robust construction that make the Elo 1715L suitable for demanding business environments. While newer models may offer multi-touch capabilities, the Elo 1715L's single-touch resistive and SAW options provide excellent precision and durability, especially where gloves or styluses are used.
The Elo 1715L is designed for straightforward installation. The removable base allows for quick transition between desktop use and wall or pole mounting via standard VESA mounts. The monitor comes with VGA and USB cables, and the touchscreen interface supports plug-and-play functionality with most operating systems after installing Elo's drivers.
The on-screen display (OSD) controls allow easy adjustment of brightness, contrast, and other settings, with lockout features to prevent unauthorized changes in public settings.
The Elo 1715L requires minimal maintenance due to its sealed design. Cleaning can be done with a soft cloth and mild cleaner without risk of damaging internal components. Elo provides a three-year warranty and customer support to address any issues, making it a reliable long-term investment.
The Elo 1000 Series 1715L touchscreen display is an excellent choice for businesses seeking a reliable, durable, and affordable touchscreen monitor. Its commercial-grade design, flexible mounting options, and responsive touch technologies make it well-suited for retail, hospitality, industrial, and kiosk applications. While it lacks multi-touch capability and is limited to a 17-inch screen size, its strengths in durability, image quality, and ease of integration position it as a top contender in its class.
If your business requires a robust, professional touchscreen solution with proven reliability and a solid warranty, the Elo 1715L is definitely worth considering.
The Elo 1715L offers AccuTouch five-wire resistive and IntelliTouch surface acoustic wave (SAW) touch technologies, both providing single-touch functionality with high accuracy and durability.
Yes, the monitor's base is removable, and it supports standard 75 mm VESA mounting, allowing installation on walls or poles for flexible deployment.
Yes, the touchscreen is factory-sealed against dirt, dust, and liquids, making it ideal for busy retail, hospitality, and industrial environments.
No, the Elo 1715L supports only single-touch input. For multi-touch capabilities, other Elo models or series should be considered.
The Elo 1715L comes with a standard three-year warranty covering manufacturing defects and hardware issues.
