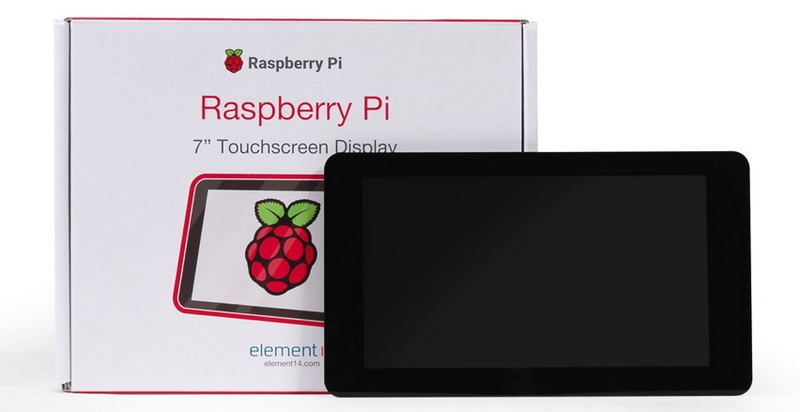

The Raspberry Pi has revolutionized DIY electronics and computing projects, offering a compact, affordable, and versatile platform. One of the most popular accessories to enhance its functionality is the element 14 7 inch pi touchscreen LCD display. This 7-inch touchscreen display integrates seamlessly with the Raspberry Pi, providing an interactive interface that transforms your Pi into a standalone device, tablet, or embedded system. In this comprehensive article, we will explore the extensive benefits of using a 7-inch touchscreen LCD display with your Raspberry Pi, covering technical features, practical applications, and user experience enhancements.
The element 14 7 pi touchscreen LCD display offers a perfect balance between size and usability. At 7 inches diagonally, it is large enough to comfortably interact with graphical user interfaces, yet compact enough to maintain the portability of Raspberry Pi projects. The display dimensions and resolution (800 x 480 pixels) provide clear, crisp visuals while keeping power consumption low, making it ideal for mobile and embedded applications.
One of the standout features of the 7-inch touchscreen is its capacitive touch panel, which supports up to 10 simultaneous touch points. This multi-touch capability enables sophisticated gestures such as pinch-to-zoom, swiping, and multi-finger taps, enhancing the user experience for applications like tablets, kiosks, and interactive dashboards. The touchscreen is highly responsive and accurate, eliminating the need for external input devices like keyboards or mice in many projects.
The element 14 7 pi touchscreen LCD display connects directly to the Raspberry Pi via the DSI (Display Serial Interface) port using a ribbon cable. This connection method ensures a high-speed data transfer and reduces cable clutter compared to HDMI or USB interfaces. Additionally, the display is powered through the Raspberry Pi's GPIO pins, requiring only two connections: the DSI ribbon cable for data and the GPIO pins for power. This simplicity in wiring makes assembly straightforward and reliable.
The Raspberry Pi OS includes native support for the 7-inch touchscreen display, with drivers that enable full multi-touch functionality and an on-screen keyboard. This software integration means users do not need to install additional drivers or configure complex settings to get the touchscreen working. The display supports the latest versions of Raspberry Pi OS, ensuring compatibility with Raspberry Pi 2, 3, 4, and 5 models, though it is not compatible with Raspberry Pi Zero or Pi 400 due to hardware interface limitations.
The element 14 7 pi touchscreen LCD display opens up a wide array of project possibilities:
- Portable Tablets and Media Players: Create custom tablets or media centers with interactive touch controls.
- Home Automation and IoT Devices: Develop smart home interfaces with visual feedback and touch input.
- Educational Tools: Use the touchscreen to run educational software that benefits from direct interaction.
- Embedded Systems: Integrate the display into kiosks, control panels, or information dashboards.
- Gaming Consoles: Build retro gaming consoles with touch-enabled menus and controls.
Despite its bright and vivid display, the 7-inch touchscreen is designed to be power efficient, typically consuming around 350-390mA at 5V. This low power draw is crucial for battery-operated or portable projects where energy conservation is essential. The adapter board included with the display manages power distribution and signal conversion efficiently, contributing to overall system stability.
The display features a 24-bit color depth and a wide viewing angle, ensuring that the screen content remains clear and vibrant from various perspectives. This is particularly useful for applications where multiple users may view the screen simultaneously or where the device orientation changes frequently.
- Screen Size: 7 inches diagonal
- Resolution: 800 x 480 pixels
- Active Area: Approximately 155mm x 86mm
- Touch Technology: Capacitive multi-touch (up to 10 fingers)
- Color Depth: 24-bit true color
- Viewing Angle: Wide, suitable for multi-user viewing
- Interface: DSI ribbon cable connection
- Power Supply: 5V via Raspberry Pi GPIO pins

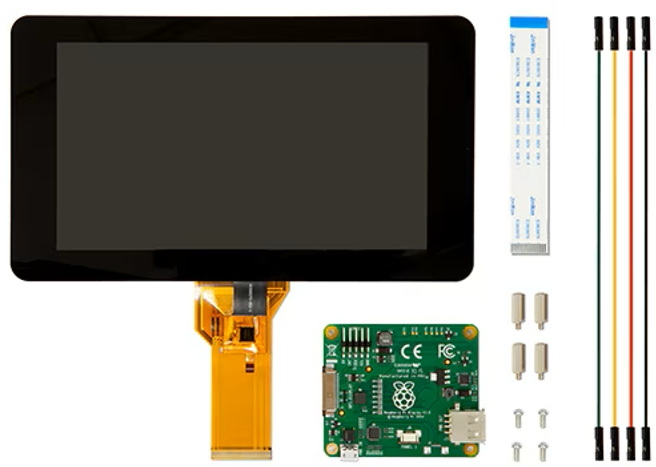

- 7-inch LCD panel with capacitive touch overlay
- Adapter board for power management and signal conversion
- DSI ribbon cable for data connection
- Mounting hardware including stand-offs and screws
- Native support in Raspberry Pi OS with multi-touch drivers
- On-screen keyboard integration for keyboard-less operation
- Compatible with Raspberry Pi 2, 3, 4, and 5 models
- Requires updated Raspberry Pi OS for full functionality
Using the element 14 7 pi touchscreen LCD display allows developers to create intuitive and user-friendly interfaces. The touch capability means users can interact directly with programs, menus, and controls without needing peripherals. This is especially beneficial in embedded systems or kiosks where space and simplicity are paramount.
With the touchscreen and on-screen keyboard, projects can be completely self-contained. This reduces the need for external keyboards, mice, or monitors, making the Raspberry Pi setup cleaner and more portable.
The integrated touchscreen display provides a sleek, modern look to Raspberry Pi projects. It transforms the Pi from a bare circuit board into a polished device suitable for demonstrations, presentations, or consumer products.
For educators and learners, the touchscreen display makes programming and interaction more engaging. Students can write code that directly manipulates the screen, seeing immediate visual feedback, which enhances understanding and motivation.
The Raspberry Pi ecosystem supports a wide range of programming languages and libraries, including Python, which can easily interface with the touchscreen. Developers can create custom graphical user interfaces (GUIs), interactive dashboards, and control panels tailored to their specific needs.
- Ensure your Raspberry Pi is running the latest Raspberry Pi OS.
- Update your system packages using terminal commands to avoid compatibility issues.
- Attach the DSI ribbon cable from the touchscreen display to the Raspberry Pi's DSI port.
- Connect the power from the Raspberry Pi's GPIO pins to the adapter board on the display.
- Secure the display and Raspberry Pi using the provided stand-offs and screws.
- The Raspberry Pi OS should detect the touchscreen automatically.
- Enable the on-screen keyboard for keyboard-less operation.
- Calibrate the touchscreen if necessary, although most units come pre-calibrated.
- Use Python or other supported languages to develop touch-enabled applications.
- Explore existing educational and IoT projects that leverage the touchscreen.
The element 14 7 pi touchscreen LCD display is an invaluable accessory for Raspberry Pi enthusiasts and professionals alike. It offers a compact, high-quality, and interactive display solution that enhances the usability and functionality of Raspberry Pi projects. Its true multi-touch capacitive technology, seamless hardware integration, and robust software support make it ideal for a diverse range of applications-from DIY tablets and media centers to embedded IoT devices and educational tools. The ease of setup and low power consumption further add to its appeal, making it a smart investment for anyone looking to elevate their Raspberry Pi experience.
The display is compatible with Raspberry Pi models 2, 3, 4, and 5. It is not compatible with Raspberry Pi Zero, Zero 2 W, or Pi 400 due to the absence of a DSI connector on those models.
Yes, it supports true capacitive multi-touch with up to 10 simultaneous touch points, allowing complex gestures like pinch, zoom, and swipe.
The display is powered through the Raspberry Pi's GPIO pins, requiring no separate power supply. The adapter board manages power and signal conversion efficiently.
No additional software is needed if you use the latest Raspberry Pi OS, which includes native drivers and an on-screen keyboard for full touchscreen functionality.
Yes, the display is energy efficient, consuming roughly 350-390mA at 5V, making it suitable for portable and battery-powered applications with appropriate power management.
