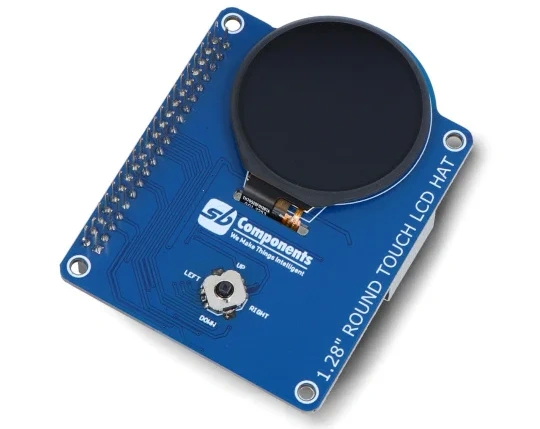

Modern TFT touchscreen LCD displays have become ubiquitous in consumer electronics, industrial control panels, and embedded systems. To enhance their usability and functionality, LCD overlay ICs play a crucial role by managing touch input, display control, and signal processing. This article explores which LCD overlay ICs work best with modern TFT touchscreen LCD displays, focusing on compatibility, performance, and integration.
An LCD overlay IC for TFT touchscreen LCD display is an integrated circuit that interfaces between the TFT LCD panel and the touch sensor overlay. It manages the display signals and processes touch inputs, enabling smooth interaction and high-quality visual output. These ICs often combine driver functions for the LCD panel, touch controller capabilities, and sometimes additional features like backlight control or memory.
- Display Driving: Controls the TFT LCD pixels by managing timing, voltage, and color data.
- Touch Sensing: Processes touch inputs from resistive or capacitive overlays, converting analog or digital signals into coordinates.
- Signal Interface: Supports various communication protocols like SPI, I2C, LVDS, or MIPI-DSI for data exchange with microcontrollers or processors.
- Additional Features: May include built-in memory, power management, and image processing to enhance display quality.
Resistive touchscreens use two conductive layers that detect touch by measuring voltage changes. LCD overlay ICs for resistive touchscreens are simpler and cost-effective, suitable for applications where multi-touch is not required.
- Example: The XPT2046 touch controller is widely used with TFT LCDs driven by ILI9341 or ILI9486 driver ICs. It communicates via SPI and supports 4-wire resistive touch sensing.

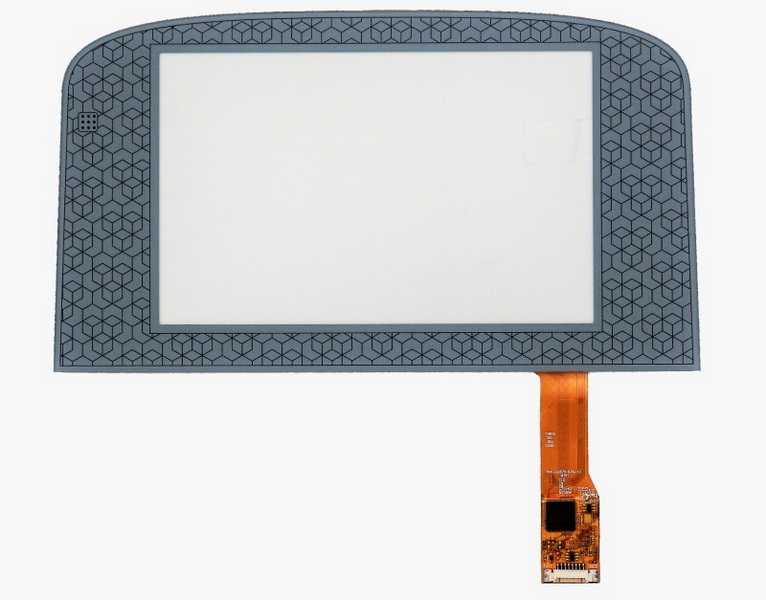

Capacitive touchscreens detect touch through changes in capacitance and support multi-touch and gestures. LCD overlay ICs for capacitive touchscreens are more complex and provide higher accuracy and responsiveness.
- Example: The GT911 touch chip integrated with ILI9488-driven TFT LCDs offers multi-touch support and I2C communication, ideal for modern capacitive overlays.
- The FocalTech FT5426 controller is another popular capacitive touch IC, often paired with Sitronix ST7272A driver ICs for IPS TFT LCDs, delivering precise touch recognition and enhanced responsiveness.
Some modern LCD overlay ICs combine the TFT driver and touch controller into a single chip, simplifying design and reducing component count.
- Sitronix ST7272A is an example of a driver IC optimized for TFT LCDs with capacitive touch overlays, providing smooth image rendering and touch performance.
- ST7282 Drive IC is used in some Rocktech TFT displays with integrated touch, offering compatibility with STM32 microcontrollers and LTDC interfaces.

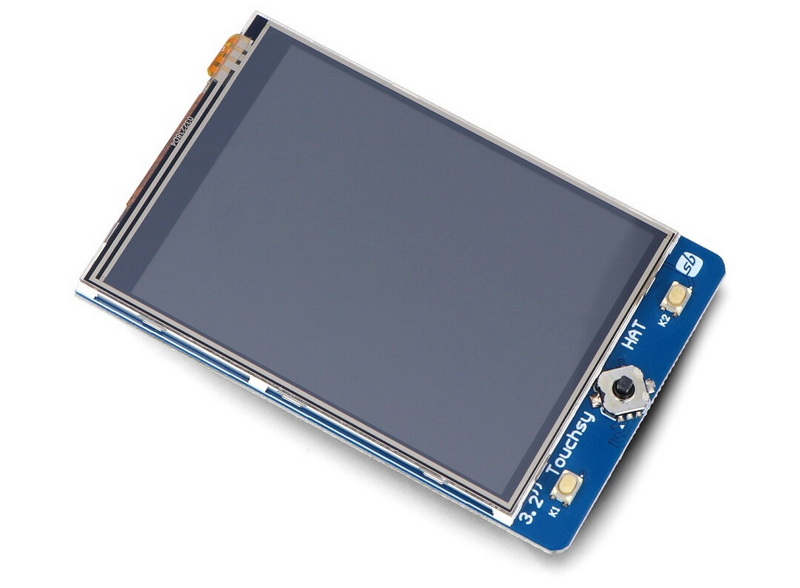

- SPI (Serial Peripheral Interface): Common for both display and touch data, especially in smaller TFT modules (e.g., 2.8” to 3.5” sizes). It balances speed and simplicity.
- I2C (Inter-Integrated Circuit): Often used for capacitive touch controllers like GT911 or FT5426, providing multi-touch data to host controllers.
- LVDS (Low-Voltage Differential Signaling): Used in higher-resolution displays for noise immunity and longer cable lengths.
- MIPI-DSI (Mobile Industry Processor Interface - Display Serial Interface): High-speed serial interface common in smartphones and tablets, offering low power and high performance.
Modern LCD overlay ICs must be compatible with popular microcontrollers like Arduino, ESP32, and STM32 series. For example, the ILI9341 and ILI9486 driver ICs are well-supported by Arduino libraries, and capacitive touch ICs like GT911 can interface via I2C with STM32 processors.
- Color Depth and Resolution: Driver ICs like ILI9488 support 16-bit color depth and resolutions up to 480x320 pixels, providing vivid images.
- Viewing Angle and Brightness: IPS TFT LCDs with driver ICs such as Sitronix ST7272A offer superior viewing angles and brightness, enhancing user experience.
- Response Time: IPS panels driven by modern ICs have faster response times than traditional TN TFTs, reducing motion blur.
- Capacitive touch ICs like GT911 and FT5426 provide multi-touch capabilities and high precision.
- Resistive touch controllers like XPT2046 are simpler but less precise and do not support multi-touch.
- Modern driver ICs integrate power management to optimize consumption.
- IPS TFT LCDs may consume more power due to backlight requirements but offer better image quality.
- Integrated driver and touch controller ICs reduce design complexity.
- Availability of libraries and community support (e.g., Arduino, ESP32) facilitates development.
| LCD Overlay IC | Touch Type | Display Driver | Interface | Key Features |
|---|---|---|---|---|
| ILI9341 + XPT2046 | Resistive | ILI9341 | SPI | Widely supported, cost-effective, 240x320 resolution |
| ILI9486 + XPT2046 | Resistive | ILI9486 | SPI | Higher resolution 320x480, 16-bit color |
| ILI9488 + GT911 | Capacitive | ILI9488 | SPI + I2C | Multi-touch, 480x320, IPS panel support |
| Sitronix ST7272A + FT5426 | Capacitive | ST7272A | RGB + I2C | IPS TFT, high brightness, multi-touch |
| ST7282 (Rocktech) | Capacitive | ST7282 | RGB + I2C | Compatible with STM32 LTDC, industrial use |
Choosing the best LCD overlay IC for TFT touchscreen LCD displays depends on the application requirements, including touch type, display resolution, interface compatibility, and power consumption. For modern applications demanding high visual quality and multi-touch functionality, integrated driver ICs like Sitronix ST7272A or ILI9488 combined with capacitive touch controllers such as GT911 or FT5426 offer excellent performance. For cost-sensitive or simpler applications, resistive touch controllers like XPT2046 paired with ILI9341 or ILI9486 driver ICs remain popular and effective. Understanding the interface protocols and ensuring compatibility with your microcontroller platform is essential for seamless integration.
An LCD overlay IC is an integrated circuit that manages the interface between a TFT LCD panel and its touchscreen overlay, handling display driving and touch input processing.
Yes, capacitive overlay touchscreens are compatible with various display types, including TFT LCDs, LED-backlit LCDs, and OLEDs, allowing enhanced touch functionality without compromising display quality.
Common interfaces include SPI for communication with microcontrollers, I2C for capacitive touch controllers, LVDS for high-speed data transfer in larger displays, and MIPI-DSI for smartphone-grade displays.
Capacitive touch controllers like GT911 and FocalTech FT5426 support multi-touch and gestures, typically paired with driver ICs such as ILI9488 or Sitronix ST7272A.
Integrated ICs simplify design, reduce PCB space and cost, and often improve performance by optimizing communication between display and touch functions, making them preferable for modern TFT touchscreen LCD displays.
