When working with Raspberry Pi projects, especially those involving interactive displays, a common question arises: Can I connect a Raspberry Pi to a 7 inch touchscreen without using HDMI? The answer is yes, and this article will explore the various methods, technical details, and practical steps to connect a Raspberry Pi 7 touchscreen display without relying on HDMI connections.

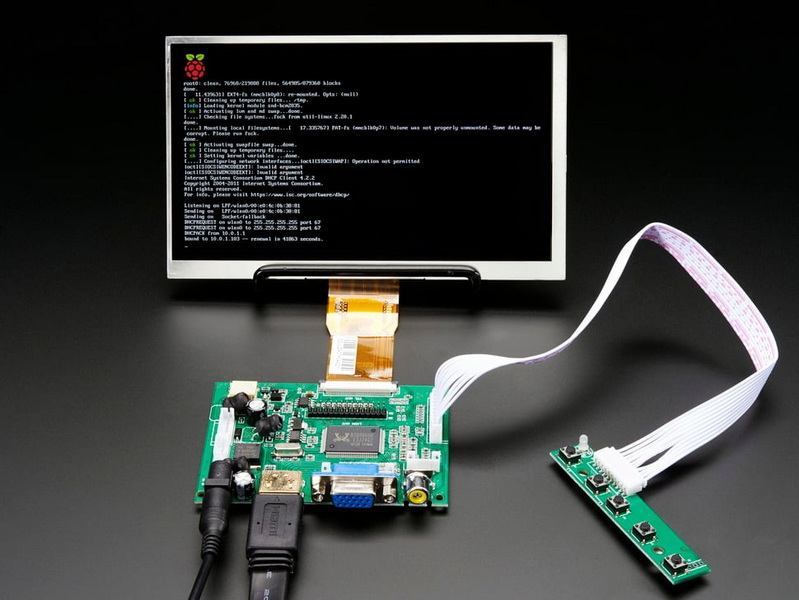

The Raspberry Pi 7 inch touchscreen display is a specially designed LCD screen with a diagonal size of 7 inches and a resolution typically around 800x480 pixels or higher, depending on the model. It supports multi-touch capabilities, often up to 10 points, and is designed to integrate seamlessly with Raspberry Pi boards for projects like tablets, information dashboards, and entertainment systems.
Unlike generic HDMI monitors, the official Raspberry Pi 7 inch touchscreen uses a dedicated interface called the DSI (Display Serial Interface) to connect to the Raspberry Pi, along with GPIO pins for power and touch input signals.
HDMI is a common video interface but is not the only way to connect a display to a Raspberry Pi. The official Raspberry Pi 7 inch touchscreen display does not use HDMI at all. Instead, it uses the DSI port, which offers several advantages:
- Direct connection to the Pi's display controller for better integration.
- Lower power consumption compared to HDMI.
- Simpler cabling with a flat ribbon cable.
- Touchscreen support built-in without additional USB or HDMI adapters.
The primary method to connect a Raspberry Pi 7 inch touchscreen display without HDMI is through the DSI connector on the Raspberry Pi. This is a ribbon cable interface designed for connecting displays directly to the Pi's processor.
Steps to connect via DSI:
1. Power Off Your Raspberry Pi: Always disconnect power before connecting hardware.
2. Connect the Flat Flexible Cable (FFC): Attach one end of the FFC to the `RPI-DISPLAY` port on the touchscreen's driver board. The contacts should face away from the display.
3. Connect the Other End to Raspberry Pi: Insert the other end of the FFC into the Raspberry Pi's DSI port labeled `DISPLAY` or `DISP`, with the contacts facing inward toward the Pi.
4. Secure the Connectors: Ensure the retaining clips on the connectors are lifted before inserting the cable and pressed down afterward to secure the connection.
5. Power the Display: The touchscreen is powered through the Raspberry Pi's GPIO pins. Connect the 5V and GND pins from the display driver board to the Pi's corresponding GPIO pins using jumper wires.
6. Power On: Once connected, power on the Raspberry Pi. The display should light up and show the boot sequence.
This method requires no HDMI cable, as the display data and touch signals are handled through the DSI and GPIO connections.

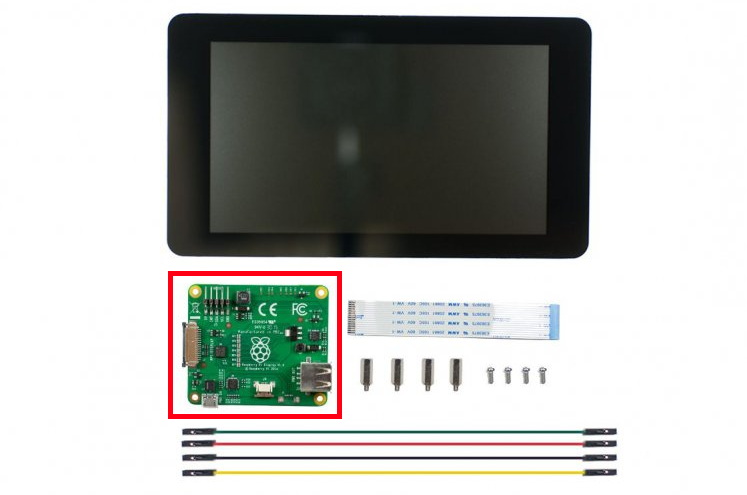

The Raspberry Pi 7 inch touchscreen display draws power from the Pi's GPIO pins, specifically the 5V and GND pins. It's important to use a reliable power supply capable of providing enough current to power both the Pi and the display to avoid instability.
Some third-party 7 inch touchscreen displays use SPI or GPIO pins for display and touch input instead of HDMI or DSI. These generally require more complex wiring and software configuration but offer flexibility for custom projects.
Another alternative is to use an HDMI monitor combined with a USB touchscreen overlay. However, this approach still requires HDMI for video and USB for touch, so it does not eliminate HDMI but separates touch and display connections.
The official Raspberry Pi OS includes drivers and support for the official 7 inch touchscreen display connected via DSI. This includes:
- Touchscreen drivers supporting multi-touch.
- On-screen keyboard support.
- Automatic display configuration on boot.
- Check if the FFC cable is fully inserted and oriented correctly.
- Ensure the power connections to the GPIO pins are secure.
- Confirm that the Raspberry Pi OS is updated and supports the touchscreen.
- Verify the GPIO connections for the touch controller.
- Check if the touchscreen drivers are loaded.
- Test with a different Raspberry Pi model if possible.
You can indeed connect a Raspberry Pi to a 7 inch touchscreen display without using HDMI by utilizing the Raspberry Pi's dedicated DSI connector and GPIO pins for power. This method is the standard for the official Raspberry Pi 7 inch touchscreen display, providing a compact, efficient, and integrated solution for interactive projects. By following proper connection techniques and ensuring your Raspberry Pi OS is up to date, you can achieve a seamless touchscreen experience without HDMI cables.
Not all 7 inch touchscreens support non-HDMI connections. The official Raspberry Pi 7 inch touchscreen uses the DSI interface, but many third-party screens rely on HDMI or SPI connections. Always check the display's specifications.
The Raspberry Pi Zero lacks a DSI connector, so it cannot directly connect to the official 7 inch touchscreen via DSI. HDMI or other interfaces are required for display on the Pi Zero.
The touchscreen is powered through the Raspberry Pi's GPIO pins, specifically the 5V and GND pins, eliminating the need for a separate power supply or HDMI power.
No, the official Raspberry Pi 7 inch touchscreen uses the DSI port exclusively, and the Raspberry Pi does not support using both HDMI and DSI displays at the same time.
Double-check the ribbon cable orientation and ensure it is firmly inserted. Also, verify power connections and update your Raspberry Pi OS. If problems persist, test with another Raspberry Pi or touchscreen to isolate the issue.
