The Raspberry Pi 3 is a popular single-board computer widely used in DIY projects, education, and prototyping. One common question among Raspberry Pi 3 users is whether it can support a full HD 1920x1080 touchscreen monitor for enhanced display and interactive capabilities. This article explores the capabilities, limitations, and practical considerations of using a 1920x1080 touchscreen display with the Raspberry Pi 3, providing a comprehensive guide for enthusiasts and developers.

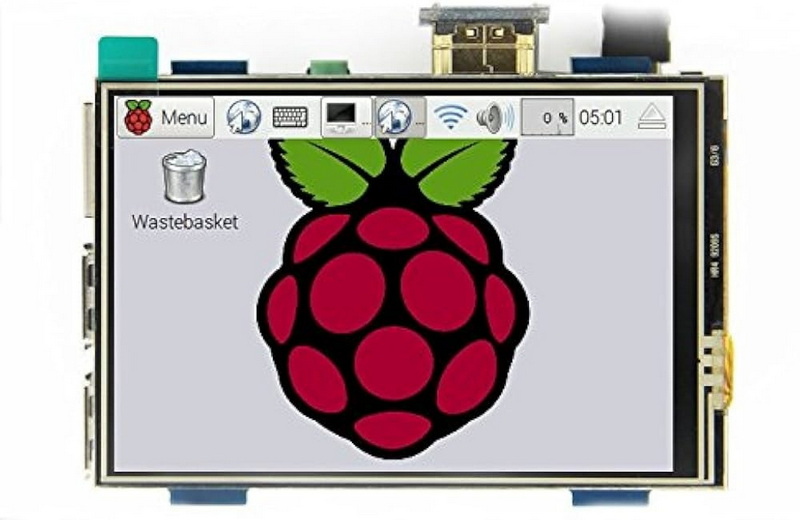

The Raspberry Pi 3 Model B and B+ come equipped with an HDMI output that supports video output up to 1080p at 60 frames per second. This means the hardware can natively handle full HD resolution signals through its HDMI interface. However, the official Raspberry Pi touchscreen display, which connects via the DSI (Display Serial Interface) port, has a lower maximum resolution of 800x480 pixels, making it unsuitable for full HD applications.
- DSI Interface: The official Raspberry Pi touchscreen uses the DSI port, which is designed for lower resolution displays. The maximum resolution achievable via DSI on Raspberry Pi 3 is 720p (1280x720), as the DSI interface has bandwidth and hardware limitations that prevent full HD support.
- HDMI Interface: To achieve full HD 1920x1080 resolution, the Raspberry Pi 3 must use an HDMI-connected display. HDMI supports higher resolutions and refresh rates, including full HD at 60Hz, which is the standard for most modern monitors.
Therefore, if you want to use a 1920x1080 touchscreen display for Raspberry Pi 3, it must be an HDMI-compatible touchscreen monitor that connects via HDMI for video and USB for touch input.

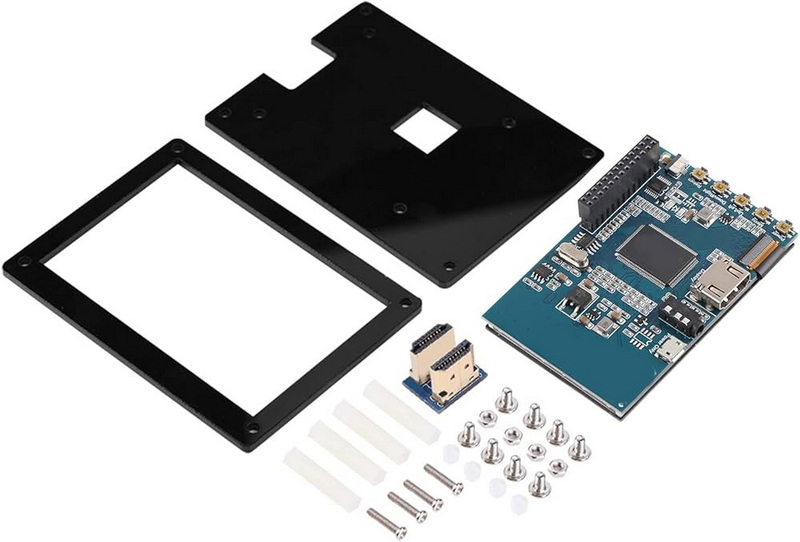

There are various touchscreen monitors on the market that support full HD resolution and are compatible with the Raspberry Pi 3. These typically have the following features:
- Resolution: 1920x1080 pixels (Full HD)
- Touch Technology: Capacitive multi-touch, often supporting 10-point touch
- Connectivity: HDMI for video signal, USB for touch input
- Power: Separate power supply or powered via USB
- Screen Size: Common sizes range from 7 inches to 15.6 inches or larger
- Elecrow SF101T 10.1 Inch Touchscreen: This monitor offers a 1920x1080 IPS display with USB capacitive touch support. It connects via HDMI and USB to the Raspberry Pi 3, providing crisp images and responsive touch without the need for additional drivers.
- CrowPi 11.6 Inch Touchscreen Monitor: Supports full HD resolution with 10-point capacitive touch. It is compatible with Raspberry Pi 3 and offers HDMI and USB connectivity.
- Waveshare 13.3 Inch HDMI 1920x1080 IPS Capacitive Touchscreen: A larger display option that supports full HD resolution and multi-touch input, compatible with Raspberry Pi 3 via HDMI and USB.
These monitors require connecting the Raspberry Pi 3's HDMI port to the monitor for video output and a USB port for touch functionality.
To connect a 1920x1080 touchscreen display for Raspberry Pi 3, you need to use the HDMI port on the Pi for video output and a USB port for touch input. The touchscreen monitor will typically come with both HDMI and USB cables. The HDMI cable carries the video signal, while the USB cable transmits the touch data back to the Raspberry Pi. Additionally, the touchscreen monitor may require its own power source, either through a dedicated power adapter or via USB power, depending on the model.
The Raspberry Pi 3 is designed to automatically detect the connected display's resolution and adjust accordingly. However, sometimes manual configuration is necessary to ensure the device outputs at full 1920x1080 resolution. This can be done through the Raspberry Pi OS settings or by adjusting the display configuration files. After configuration, rebooting the device helps apply the changes. Verifying the resolution through system tools confirms that the Raspberry Pi is outputting full HD.
Most modern capacitive USB touchscreens are plug-and-play with Raspberry Pi OS, meaning they work immediately upon connection without additional driver installation. However, some touchscreen monitors might require calibration to align touch input accurately with the display. Calibration tools are available within the Raspberry Pi OS or through third-party software. If the touchscreen does not respond as expected, checking the manufacturer's website for specific drivers or firmware updates is advisable.
While the Raspberry Pi 3 supports full HD output, the actual performance depends on how you use the device and the touchscreen display.
- Video Playback and Graphics: The Raspberry Pi 3 can handle 1080p video playback, but performance varies based on the video codec, bitrate, and the media player used. Hardware acceleration helps, but some high-bitrate or complex videos may stutter or lag.
- User Interface Responsiveness: Touch input via USB on a 1920x1080 touchscreen display is generally responsive. However, running graphically intensive applications or multiple processes simultaneously can introduce some lag.
- Power Consumption: Full HD touchscreen monitors consume more power than smaller or lower resolution displays. It is important to ensure your power supply can handle the combined load of the Raspberry Pi 3 and the touchscreen monitor to avoid power-related issues.
- Heat Management: Operating at full HD resolution with demanding applications can cause the Raspberry Pi 3 to generate more heat. Using heat sinks or active cooling solutions like fans can help maintain stable performance and prevent thermal throttling.
A stable and sufficient power supply is crucial when using a full HD touchscreen display with the Raspberry Pi 3. The combined power draw of the Pi and the monitor can exceed the capacity of standard power adapters, leading to instability or unexpected shutdowns. It is recommended to use a power supply rated at least 3A at 5V to ensure smooth operation.
Using high-quality HDMI and USB cables can prevent signal degradation, which is especially important for full HD displays. Keep cable lengths as short as practical to reduce interference and maintain signal integrity.
Optimizing the Raspberry Pi OS and applications for performance can enhance the user experience on a 1920x1080 touchscreen. This includes disabling unnecessary background services, using lightweight desktop environments, and selecting efficient media players for video playback.
If you plan to run graphics-intensive applications or use the touchscreen display for extended periods, consider adding heat sinks or a fan to the Raspberry Pi 3 to prevent thermal throttling and maintain performance.
Despite its capabilities, the Raspberry Pi 3 has some limitations when used with a 1920x1080 touchscreen display:
- The official Raspberry Pi 3 DSI touchscreen cannot achieve 1920x1080 resolution; it is limited to 800x480 or 1280x720 on newer versions.
- For resolutions beyond 1080p or for better performance, upgrading to a Raspberry Pi 4 is recommended as it supports higher resolutions and better graphics processing.
- Some ultra-wide or non-standard resolution monitors (e.g., 3840x600) are not supported by the Pi 3 HDMI output.
- The Raspberry Pi 3's processing power may limit the smoothness of certain high-resolution graphical user interfaces or video playback compared to newer models.
Using a full HD touchscreen display with Raspberry Pi 3 opens up many possibilities:
- Home Automation Control Panels: A 1920x1080 touchscreen display can serve as a sleek interface for smart home systems, offering clear visuals and responsive touch control.
- Portable Media Centers: The Pi 3 combined with a full HD touchscreen can be used as a compact media player for movies and music with touch navigation.
- Educational Tools: Interactive lessons and coding tutorials can benefit from a larger, high-resolution touchscreen for better clarity and user engagement.
- Digital Signage: Businesses can use Raspberry Pi 3 with a full HD touchscreen for interactive kiosks or information displays.
- DIY Projects: Robotics, gaming consoles, and other projects can leverage the touchscreen for user input and display output.
The Raspberry Pi 3 can indeed support a full HD 1920x1080 touchscreen monitor, but only through an HDMI-connected display paired with USB for touch input. The official Raspberry Pi touchscreen via DSI does not support full HD resolution. When selecting a 1920x1080 touchscreen display for Raspberry Pi 3, ensure it offers HDMI video input and USB touch connectivity. With proper setup and configuration, the Raspberry Pi 3 can deliver crisp visuals and responsive touch functionality suitable for a wide range of projects. For more demanding display requirements, consider upgrading to a Raspberry Pi 4, which offers enhanced graphics capabilities and supports higher resolutions.
No, the official Raspberry Pi 3 touchscreen display connects via the DSI port and supports a maximum resolution of 800x480 pixels. It cannot display full HD 1920x1080 resolution.
A 1920x1080 touchscreen display for Raspberry Pi 3 must connect via HDMI for video output and USB for touch input, as the DSI interface does not support full HD.
Most capacitive USB touchscreen monitors are plug-and-play with Raspberry Pi OS and do not require additional drivers. However, some models may need calibration or specific drivers provided by the manufacturer.
Yes, Raspberry Pi 3 can handle 1080p video playback, but performance depends on the video codec, software used, and system load. Some high-bitrate or complex videos may not play smoothly.
Yes, Raspberry Pi 4 offers improved graphics capabilities, supports higher resolutions beyond 1080p, and generally provides better performance for full HD touchscreen displays compared to Raspberry Pi 3.
