Introduction

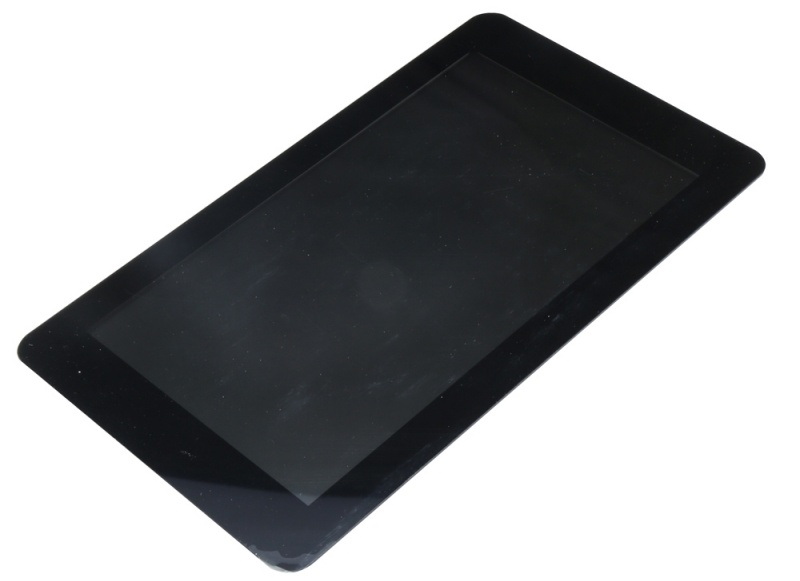

The Pi Foundation 7 inch Touchscreen Display is a versatile and interactive tool designed specifically for the Raspberry Pi, enabling users to create a variety of projects such as tablets, infotainment systems, and information dashboards. This display offers a resolution of 800x480 pixels and supports 10-finger capacitive touch, making it highly suitable for applications that require precise and multi-fingered gestures. The question arises whether this touchscreen can effectively replace a traditional monitor for the Raspberry Pi, considering its capabilities and limitations.

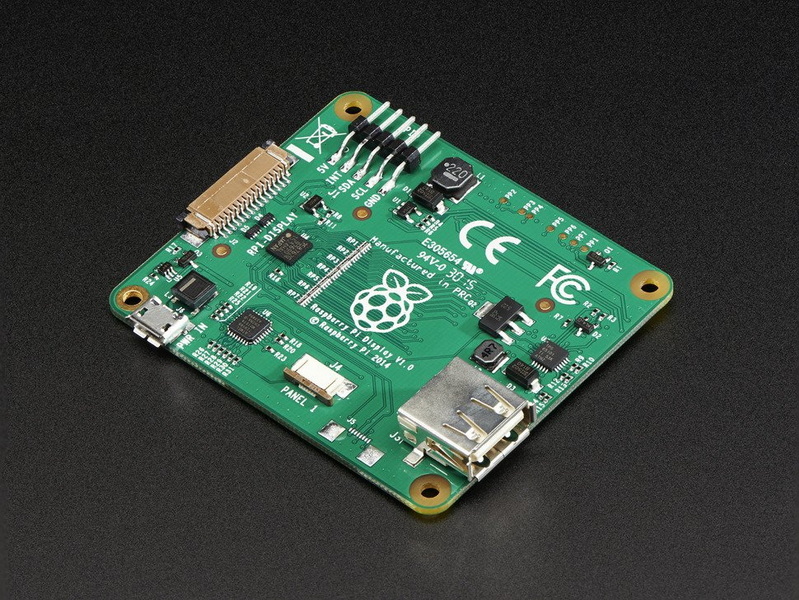

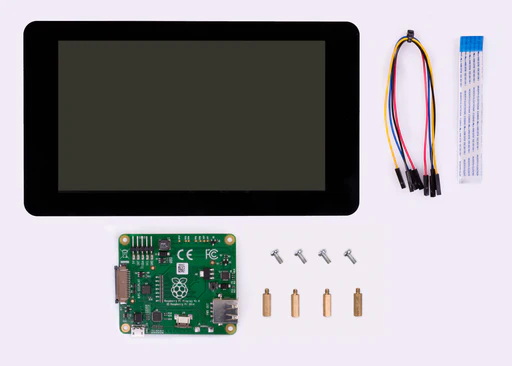

The touchscreen display connects to the Raspberry Pi via an adapter board, which handles power and signal conversion. It requires only two connections: power from the GPIO port and a ribbon cable connected to the DSI port. This setup allows the display to be powered directly from the Raspberry Pi, eliminating the need for a separate power supply. The display's compatibility with the latest Raspbian OS provides touchscreen drivers with support for an on-screen keyboard, enabling full functionality without the need for a physical keyboard or mouse.

Key Features of the Pi Foundation 7 inch Touchscreen

- Resolution and Display Size: The display features a 7-inch screen with a resolution of 800x480 pixels, which is sufficient for viewing desktop environments and running various applications like Retro-Gaming, OctoPrint, and Media Center.

- Capacitive Touch: It supports 10-point capacitive touch, allowing for multi-finger gestures and precise touch detection.

- Power Supply: The display is powered directly from the Raspberry Pi via the GPIO ports, eliminating the need for an external power supply.

- Software Support: The latest Raspbian OS includes drivers for the touchscreen, providing an on-screen keyboard and eliminating the need for external input devices.

Can the Pi Foundation 7 inch Touchscreen Replace a Monitor?

While the Pi Foundation 7 inch Touchscreen Display offers a compact and interactive solution for Raspberry Pi projects, its ability to replace a traditional monitor depends on several factors. Traditional monitors typically offer higher resolutions and larger screen sizes, which are advantageous for tasks requiring detailed visuals or multitasking. However, the touchscreen display provides unique benefits such as portability, touch functionality, and the ability to create standalone devices without the need for additional peripherals.

For projects that require a compact, interactive interface, such as home automation devices, IoT projects, or educational tools, the Pi Foundation 7 inch Touchscreen is an excellent choice. It allows users to create self-contained systems that are both visually appealing and user-friendly. However, for applications demanding high-resolution graphics or extensive multitasking, a traditional monitor might still be preferable.

Detailed Analysis of the Touchscreen's Capabilities

1. Portability and Integration

The Pi Foundation 7 inch Touchscreen Display is highly portable and integrates well with the Raspberry Pi, making it ideal for projects that require mobility and compactness. It can be easily mounted to the back of the Raspberry Pi using the included stand-offs and screws, creating a self-contained unit. This portability is particularly beneficial for projects that need to be moved frequently or deployed in environments where space is limited.

2. Touchscreen Functionality

The capacitive touchscreen offers precise touch detection and supports multi-finger gestures, which is beneficial for applications requiring interactive interfaces. This feature allows users to interact with the system without needing a keyboard or mouse, enhancing user experience in standalone devices. The touch functionality also enables developers to create intuitive interfaces that are easy to navigate, making it suitable for applications like kiosks or interactive displays.

3. Power Efficiency

The display is power-efficient, drawing between 350-390mA at 5V, which is advantageous for battery-powered projects or applications where energy consumption needs to be minimized. This efficiency also contributes to its suitability for mobile or embedded systems, where power sources may be limited. Additionally, the low power consumption helps reduce heat generation, ensuring that the system remains cool and reliable during extended use.

4. Software Compatibility

The display is fully supported by the latest Raspbian OS, which includes drivers for the touchscreen and an on-screen keyboard. This compatibility ensures that users can leverage the full potential of the display without needing to install additional drivers or software. The on-screen keyboard is particularly useful for applications where physical input devices are not feasible, allowing users to input text directly on the touchscreen.

5. Cost and Availability

While the official Pi Foundation display is generally priced competitively with other similar displays, its availability can sometimes be limited. However, it offers better support and compatibility compared to third-party alternatives, which can be crucial for projects requiring reliability and ease of setup. The official display also benefits from community support and documentation, making it easier for users to troubleshoot and optimize their projects.

Practical Applications of the Pi Foundation 7 Inch Touchscreen

The Pi Foundation 7 inch Touchscreen Display is versatile and can be applied in various practical scenarios:

- Home Automation Systems: It can serve as an interactive interface for controlling lights, thermostats, and security systems within a home. Users can create custom dashboards to monitor and adjust settings with ease.

- IoT Projects: The touchscreen is ideal for IoT projects that require user interaction, such as monitoring sensor data or controlling robotic systems. Its compact size and touch functionality make it suitable for deployment in small spaces.

- Educational Tools: In educational settings, the touchscreen can be used to create interactive learning tools. Students can engage with educational software and interactive lessons directly on the display, enhancing their learning experience.

- Retro Gaming Consoles: For retro gaming enthusiasts, the display can be used to build a portable gaming console. The touchscreen allows users to navigate menus and select games without needing additional controllers.

Challenges and Limitations

Despite its advantages, the Pi Foundation 7 inch Touchscreen Display has some limitations. The resolution of 800x480 pixels may not be sufficient for applications requiring high-definition visuals. Additionally, the display's size can limit multitasking capabilities compared to larger monitors. However, for most projects that focus on interactivity and portability, these limitations are often acceptable.

Future Developments and Improvements

Looking forward, there is potential for future improvements in the Pi Foundation's touchscreen displays. Enhancements in resolution and screen size could make the display more competitive with traditional monitors while maintaining its unique benefits. Additionally, advancements in power efficiency and software support could further expand its applications in IoT and mobile projects.

Conclusion

In conclusion, the Pi Foundation 7" Touchscreen Display can effectively replace a traditional monitor for Raspberry Pi projects that prioritize portability, interactivity, and compactness. Its touch functionality, power efficiency, and seamless integration with the Raspberry Pi make it an ideal choice for creating standalone devices such as tablets, infotainment systems, and IoT projects. However, for applications requiring high-resolution displays or extensive multitasking, a traditional monitor may still be necessary.

Frequently Asked Questions (FAQ)

1. What is the resolution of the Pi Foundation 7 inch Touchscreen Display?

The display features a resolution of 800x480 pixels.

2. Does the Pi Foundation 7 inch Touchscreen require a separate power supply?

No, it can be powered directly from the Raspberry Pi via the GPIO ports.

3. Is the Pi Foundation 7 inch Touchscreen compatible with all Raspberry Pi models?

It is compatible with most Raspberry Pi models except the Zero series and the Raspberry Pi 400.

4. Does the display support multi-touch functionality?

Yes, it supports up to 10-point capacitive touch.

5. Is calibration required for the touchscreen?

No, calibration is not necessary; the display works accurately out of the box.
