The Raspberry Pi 7-inch touchscreen display is one of the most versatile and popular accessories available for the Raspberry Pi family. It allows users to transform their Raspberry Pi into a compact, interactive device that can serve a variety of purposes, from a portable gaming console to a smart home control panel. However, to get the best performance and reliability from this setup, it is crucial to understand how to power and set up the Raspberry Pi 7 touchscreen correctly. This article provides a detailed, step-by-step guide on the Raspberry Pi 7 touchscreen display installation, focusing on powering options, assembly, configuration, and troubleshooting.

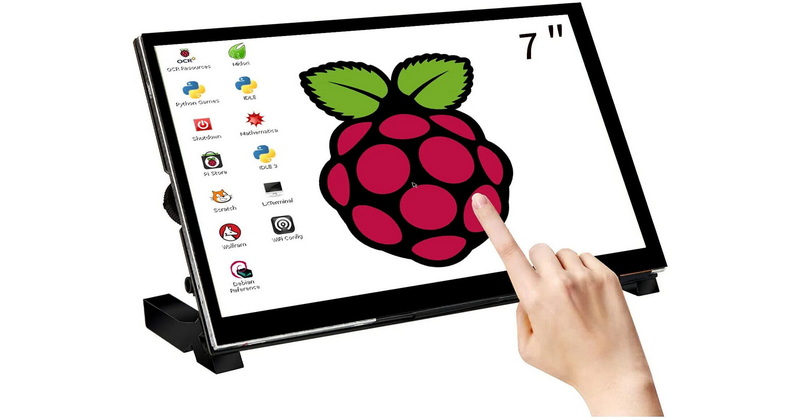

The official Raspberry Pi 7-inch touchscreen display is designed to seamlessly integrate with the Raspberry Pi. It features a resolution of 1024 by 600 pixels and supports capacitive touch input with up to 10 fingers, making it highly responsive for various interactive applications. Unlike HDMI displays, this touchscreen uses the Display Serial Interface (DSI) ribbon cable to connect directly to the Raspberry Pi's DSI port. This connection carries both video and touch data, allowing for a clean and efficient setup without the need for additional USB connections for touch functionality.
The display requires a 5V power supply and can be powered in two main ways: through the Raspberry Pi's GPIO pins or via a separate micro USB power source. Each powering method has its advantages and considerations, which will be discussed in detail later.
Before diving into the installation process, it is essential to prepare all necessary components and ensure your Raspberry Pi is ready for the touchscreen display.
- Raspberry Pi board (models 2, 3, 4, or later recommended for compatibility)
- Official Raspberry Pi 7-inch touchscreen display kit (includes the display, adapter board, DSI ribbon cable, jumper wires, screws, and stand-offs)
- MicroSD card preloaded with the Raspberry Pi OS
- Official Raspberry Pi power supply or equivalent high-quality 5V power source
- Optional accessories such as a case or stand for mounting the display and Raspberry Pi together
To guarantee the touchscreen works flawlessly, it is important to have the latest drivers and software updates installed on your Raspberry Pi. This ensures compatibility with the display and improves touch responsiveness. Updating the Raspberry Pi OS before connecting the touchscreen is a recommended best practice.
The Raspberry Pi 7 touchscreen display installation involves connecting the display to the Raspberry Pi, powering the display correctly, and optionally mounting the Pi to the display for a compact setup.

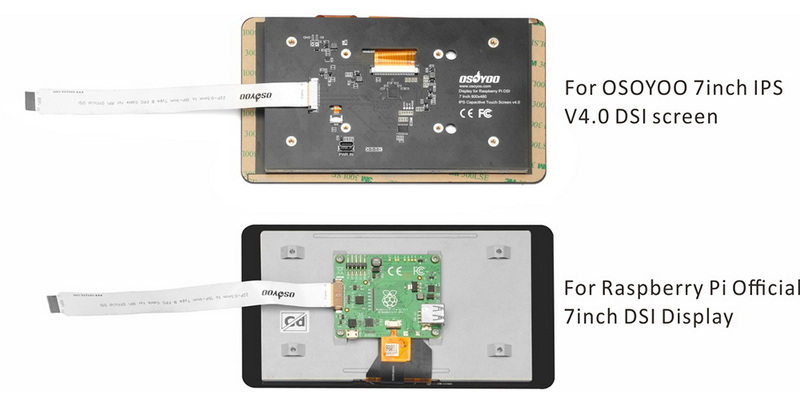

The DSI ribbon cable is the primary connection between the Raspberry Pi and the touchscreen display. It carries both the video signal and touch data, making it essential to connect it properly.
- Begin by placing the touchscreen display face down on a soft, clean surface to avoid scratches.
- Locate the DSI connector on the back of the display's adapter board. This connector has a small black clamp that holds the ribbon cable in place.
- Gently lift the clamp to open the connector.
- Insert the ribbon cable with the blue side facing down toward the back of the display.
- Press the clamp back down to secure the cable firmly.
- Connect the other end of the ribbon cable to the Raspberry Pi's DSI port, ensuring the contacts face inward toward the Pi.
- Secure this connection by pressing the clamp down on the Pi's DSI connector.
This connection is delicate, so take care not to force the cable or bend it sharply.
Powering the Raspberry Pi 7 touchscreen display correctly is critical for stable operation. The display requires a consistent 5V power supply and draws approximately 500mA of current. There are two main ways to provide this power:
One common method is to power the touchscreen display through the Raspberry Pi's GPIO header pins. This involves connecting jumper wires from the Pi's 5V and ground pins to the corresponding power and ground pins on the touchscreen adapter board.
- Make sure the Raspberry Pi is powered off before making these connections.
- Connect a jumper wire from a 5V pin on the Pi's GPIO header to the 5V pin on the display adapter.
- Connect a jumper wire from a ground pin on the Pi's GPIO header to the ground pin on the display adapter.
This method shares the power supply between the Raspberry Pi and the touchscreen. It is simple and reduces cable clutter but requires a power supply capable of delivering enough current to both devices.
Alternatively, the touchscreen display can be powered independently using a dedicated 5V micro USB power supply connected directly to the display's power port.
- Use a high-quality 5V micro USB power supply capable of providing at least 1A.
- Do not connect the GPIO power pins if you use this method to avoid power conflicts.
- This approach reduces the risk of undervoltage and power instability, especially if your Raspberry Pi setup includes additional peripherals that draw significant power.
Choosing the right power method depends on your project requirements and available power sources.
For a neat and compact setup, you can mount the Raspberry Pi board directly to the back of the touchscreen display using the provided stand-offs and screws.
- Align the mounting holes on the Raspberry Pi with those on the adapter board attached to the display.
- Use the stand-offs to create a small gap between the Pi and the adapter board to avoid short circuits.
- Secure the Pi in place with the screws.
This mounting solution helps reduce cable strain and creates a portable all-in-one touchscreen device.
Once all connections are made, power on the Raspberry Pi using its power supply. The touchscreen should light up, displaying the Raspberry Pi boot sequence. Test the touchscreen by navigating the interface or opening applications to ensure touch responsiveness.
After successful installation, you might want to customize the display orientation or calibrate the touchscreen for your specific use case.
Depending on your project's physical setup, the touchscreen might need to be rotated to display correctly.
- The Raspberry Pi OS supports screen rotation through configuration settings.
- You can rotate the display clockwise or counterclockwise to match your mounting orientation.
- Adjusting the screen rotation also affects the touchscreen input, ensuring that touch coordinates align with the display.
Generally, the official Raspberry Pi 7-inch touchscreen comes pre-calibrated and works out of the box. However, in rare cases where touch input seems inaccurate:
- You can use touchscreen calibration tools available in the Raspberry Pi OS.
- These tools allow you to fine-tune the touch input to match your screen orientation and setup.
Even with careful setup, users might encounter some common issues. Here are solutions to frequent problems:
- Verify the DSI ribbon cable is properly seated on both the Raspberry Pi and the display adapter board.
- Ensure the cable is inserted with the correct orientation (blue side facing the right direction).
- Check that the power connections to the touchscreen are secure.
- Confirm the Raspberry Pi OS is updated to support the display.
- Power instability is the most common cause. Use a high-quality power supply capable of delivering sufficient current.
- Avoid powering the display and Pi from separate, unreliable sources.
- Check jumper wires for loose connections or shorts.
- Avoid connecting SDA or SCL pins on the GPIO header to the display, as this can cause interference.
- Make sure the DSI cable is connected firmly.
- Update the Raspberry Pi OS to the latest version.
- If using a custom OS or third-party distributions, verify touchscreen driver support.
- If the Raspberry Pi or display resets randomly or shows undervoltage warnings, consider upgrading your power supply.
- Using a separate power supply for the touchscreen can reduce load on the Pi's power input.
- Keep power cables short and use good quality wires to minimize voltage drops.
To maximize the lifespan and performance of your Raspberry Pi 7 touchscreen display installation, follow these best practices:
- Always use the official Raspberry Pi power supply or a high-quality equivalent rated for your Pi model.
- Avoid cheap or unregulated power adapters that may cause voltage fluctuations.
- When powering the touchscreen via GPIO, ensure the power supply can handle the combined current draw of the Pi and display.
- Use short, secure cables to prevent accidental disconnections.
- Keep the Raspberry Pi and display in a well-ventilated area to avoid overheating.
- Regularly update your Raspberry Pi OS to benefit from improved touchscreen drivers and bug fixes.
- Consider using an enclosure designed for the Pi and touchscreen to protect components and improve portability.
For users looking to extend the functionality of their Raspberry Pi 7 touchscreen display installation, here are some advanced tips:
- Dual Display Setup: While the official 7-inch touchscreen uses the DSI interface exclusively, Raspberry Pi 4 supports dual displays, allowing HDMI output alongside the touchscreen. This can be useful for multi-monitor projects.
- Custom Enclosures: Many third-party cases and enclosures are available that integrate the Raspberry Pi and touchscreen into a single compact unit, ideal for portable projects.
- Power Management: For mobile or battery-powered projects, consider using a UPS HAT or battery pack designed for the Raspberry Pi to provide uninterrupted power.
- Software Enhancements: Customize the Raspberry Pi OS interface to better suit touchscreen use by increasing icon sizes, enabling on-screen keyboards, or installing kiosk mode software for dedicated applications.
Correctly powering and setting up the Raspberry Pi 7 touchscreen display is essential to unlock the full potential of this versatile accessory. By carefully connecting the DSI ribbon cable, choosing the right power method, and securely mounting the Raspberry Pi to the display, you can create a reliable and responsive touchscreen system suitable for a wide variety of projects. Proper configuration and regular software updates will ensure smooth operation and minimize common issues such as display flickering, touch unresponsiveness, or power instability.
Whether you are a beginner exploring the world of Raspberry Pi or an experienced developer building custom interactive devices, mastering the Raspberry Pi 7 touchscreen display installation process will expand your project possibilities and enhance your user experience.
You can power the touchscreen either by connecting its 5V and ground pins to the Raspberry Pi's GPIO pins using jumper wires or by using a separate 5V micro USB power supply dedicated to the display. Using the official Raspberry Pi power supply rated for your Pi model is recommended to ensure sufficient current and prevent undervoltage issues.
First, check that the DSI ribbon cable is fully inserted and oriented correctly on both the Raspberry Pi and the display adapter board. Also, verify that the jumper wires for power are connected properly if powering via GPIO. Ensure your Raspberry Pi OS is updated, and try rebooting the device.
Most Raspberry Pi models use the DSI interface exclusively for the official 7-inch touchscreen, so HDMI output is disabled when the touchscreen is connected. However, newer models like the Raspberry Pi 4 support dual display output, allowing HDMI and DSI use simultaneously with proper configuration.
Adjust the screen rotation through the Raspberry Pi OS settings by modifying the display orientation configuration. This ensures that both the display and touchscreen inputs align correctly with your physical setup.
Use the official Raspberry Pi power supply that matches your Pi model's current requirements (usually 2.5A to 3A at 5V). If powering the touchscreen separately, use a 5V micro USB power supply capable of delivering at least 1A to ensure stable operation.
