The Raspberry Pi 3 B+ combined with a 7-inch touchscreen display offers a versatile and compact platform for a wide range of interactive projects. Whether you are a hobbyist, educator, or developer, understanding how to fully leverage this setup can unlock numerous possibilities. This article explores how to maximize the use of the Raspberry Pi 3 B+ 7 touchscreen display, covering setup, configuration, project ideas, troubleshooting, and optimization techniques.

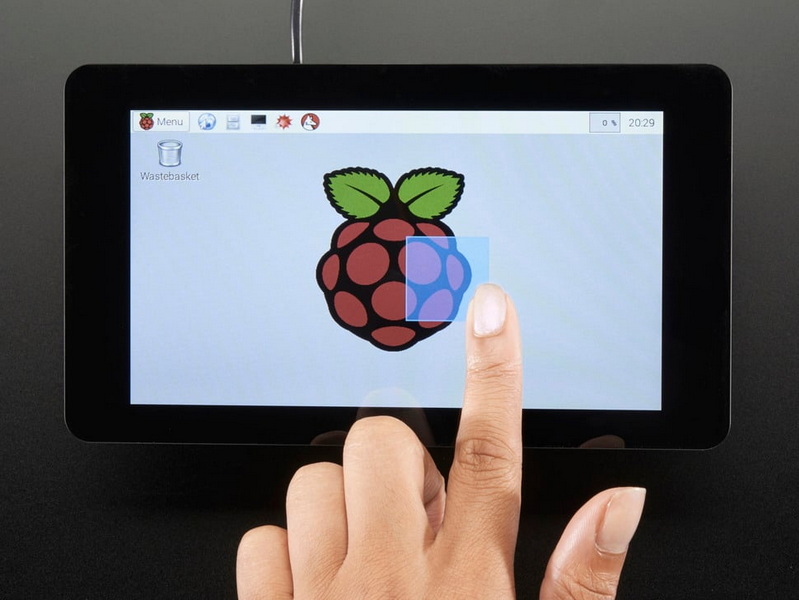

The Raspberry Pi 3 B+ is a powerful single-board computer with enhanced processing speed, wireless connectivity, and improved power management compared to its predecessors. When paired with the official 7-inch touchscreen display, which features an 800 x 480 pixel resolution and true multi-touch capacitive technology supporting up to 10 touch points, it becomes an interactive mini-computer ideal for various applications.
- Display size: 7 inches diagonal
- Resolution: 800 x 480 pixels (RGB)
- Touch panel: True multi-touch capacitive with up to 10 points
- Power: Powered directly from the Raspberry Pi's GPIO pins, requiring no separate power supply
- Connectivity: Connects via DSI ribbon cable and GPIO for power
- Compatibility: Works seamlessly with Raspberry Pi 3 B+ and other models except Raspberry Pi 400 and Zero line
To maximize your setup, start with proper assembly:
1. Mount the Raspberry Pi 3 B+ to the back of the touchscreen display using the provided stand-offs to create a compact unit.
2. Connect the Flat Flexible Cable (FFC) from the display's `RPI-DISPLAY` port to the Raspberry Pi's DSI port, ensuring the contacts are oriented correctly-contacts facing away from the display on one end and inward toward the Pi on the other.
3. Power the display through GPIO pins by connecting jumper wires from the display driver board's 5V and GND to the corresponding 5V and GND pins on the Raspberry Pi GPIO header.
4. Double-check all connections to avoid common issues like no display or a single color screen, which often result from loose or incorrectly inserted cables.
- Install the latest Raspberry Pi OS (formerly Raspbian) from the official site to ensure compatibility with the touchscreen drivers.
- The Raspberry Pi OS includes native support for the touchscreen with ten-finger multi-touch and an on-screen keyboard, eliminating the need for external input devices.
- If you encounter touch calibration or axis scaling issues (such as the x-axis being stretched), use tools like `xinput` to map the touchscreen input correctly to the display output.
- For advanced users, editing the 'config.txt' file allows customization of display orientation, resolution, and touch parameters to suit your project needs.
The Raspberry Pi 3 B+ requires a stable 2.5A power supply for reliable operation, especially when powering the 7-inch touchscreen display simultaneously. Using an official Raspberry Pi power supply or a high-quality equivalent prevents low voltage warnings and ensures smooth performance.
- Use official or third-party cases designed to hold both the Raspberry Pi 3 B+ and the 7-inch touchscreen to protect your setup and create a portable device.
- Consider using stands or custom chassis if you want to separate the display and Pi for specific project requirements.
- Rotate the display orientation via software if your project requires portrait or inverted landscape modes.
- Activate right-click functionality and other touch gestures through configuration files or third-party utilities.
- Disable screensavers and adjust backlight settings to optimize power consumption and user experience.
- Use the touchscreen for interactive dashboards, media centers, portable gaming consoles, or custom control panels.
- Install lightweight window managers or kiosk software for dedicated applications.
- Leverage programming languages like Python with libraries such as Pygame or Kivy to create custom touch-based interfaces.
Transform your Raspberry Pi 3 B+ with the 7-inch touchscreen into a compact media player using software like Kodi. The touchscreen allows intuitive navigation without additional peripherals.
Create a smart home control panel displaying sensor data, controlling lights, thermostats, and security systems with touch interactions.
Use emulators and front-end software to build a handheld gaming device with touch controls and on-screen buttons.
Develop a low-cost tablet for students with educational apps, interactive lessons, and programming environments.
Monitor network status, server health, or IoT devices on a compact touchscreen interface.
- Check the FFC cable orientation and ensure it is fully inserted and secured.
- Verify power connections between the display and Raspberry Pi GPIO pins.
- Confirm you are using a compatible Raspberry Pi OS version; some users report issues with newer OS versions and find stability with older releases like Buster.
- Use `xinput` commands to remap touch input to the display.
- Check for driver updates and ensure the touchscreen overlay is enabled in the configuration.
- Verify that the display is not being stretched by composite or HDMI outputs interfering with the DSI display.
- Ensure your power supply delivers at least 2.5A.
- Avoid powering the Pi and display through USB or jumper cables from insufficient sources.
- Use official or high-quality power supplies to prevent performance issues.
For users comfortable with Linux kernel and driver configurations, customizing device tree overlays ('dtoverlay') can enhance display performance and enable additional features like backlight control or rotation.
While the Raspberry Pi 3 B+ supports only one DSI display at a time, advanced users can experiment with HDMI outputs alongside the touchscreen, but simultaneous use of DSI and DPI displays is limited to newer models like the Pi 4.
Automate touchscreen calibration, brightness adjustment, and screen rotation on boot by scripting these settings in startup files.
The Raspberry Pi 3 B+ paired with the official 7-inch touchscreen display is a powerful and flexible platform for countless interactive projects. By carefully assembling the hardware, installing the correct software, and optimizing power and display settings, users can create compact, efficient, and user-friendly devices. Whether for media consumption, gaming, home automation, or educational purposes, maximizing the use of the Raspberry Pi 3 B+ 7 touchscreen display unlocks its full potential as a versatile tool for innovation.
Connect the Flat Flexible Cable (FFC) from the display's `RPI-DISPLAY` port to the Raspberry Pi's DSI port with the correct orientation of contacts, then power the display by bridging the 5V and GND pins between the display driver board and the Raspberry Pi GPIO header. Secure all connections firmly to avoid display issues.
An official Raspberry Pi power supply delivering at least 2.5A is recommended to ensure stable operation and prevent low voltage warnings when powering both the Raspberry Pi 3 B+ and the touchscreen display.
No, the Raspberry Pi 3 B+ supports either the DSI touchscreen or HDMI output at one time. Using both simultaneously is not supported and may cause display conflicts or black screens.
Use the 'xinput' tool to remap the touchscreen input to the correct display output. This is especially useful if the x-axis or y-axis touch response is misaligned or scaled incorrectly.
The latest Raspberry Pi OS is generally recommended, but some users have reported better stability with the Buster version compared to newer releases like Bullseye. Always ensure you have the latest updates and touchscreen drivers installed.
