Liquid Crystal Displays (LCDs) have become a ubiquitous part of modern electronic devices, including voltage meters. Understanding how does a LCD screen work on a voltage meter involves exploring the principles behind LCD technology, the integration with voltage measurement circuits, and the specific challenges in displaying accurate voltage readings. This article will provide a comprehensive explanation of the working mechanism of LCD screens on voltage meters, covering the technical details, voltage considerations, and practical aspects of their operation.
An LCD is a flat-panel display that modulates light using liquid crystals sandwiched between two polarized filters and transparent electrodes. Unlike LED or OLED displays, LCDs do not emit light themselves but control the passage of external light to create visible images.
The core principle of an LCD is the manipulation of polarized light. Each pixel consists of liquid crystal molecules aligned between two electrodes and two polarizing filters arranged perpendicularly. When no voltage is applied, the liquid crystals twist the polarization of light so it can pass through the second polarizer, making the pixel appear bright or gray. When voltage is applied, the crystals untwist, blocking the light and making the pixel appear dark or black. By varying the voltage, the LCD can display different shades, allowing for detailed images and text.

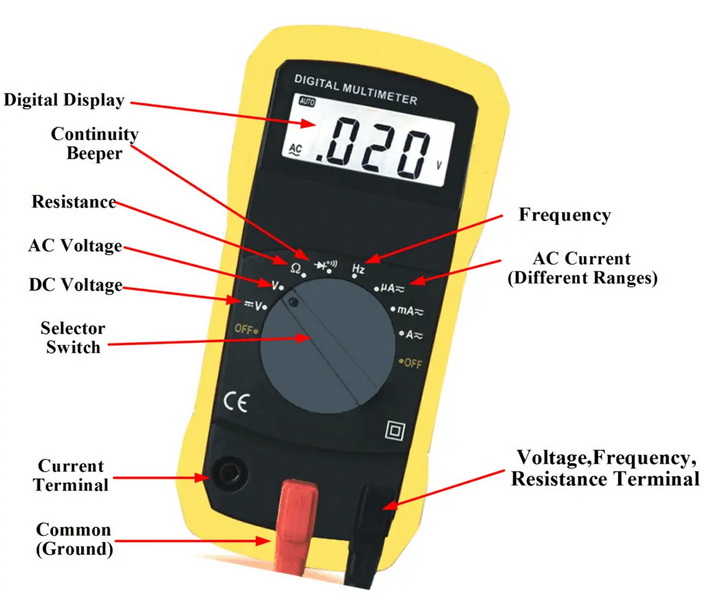

A voltage meter measures electrical potential difference and displays the value on an LCD screen. The LCD screen on a voltage meter is driven by a control circuit that converts the measured analog voltage into a digital signal, which is then translated into a visual numeric display on the LCD.
The key component enabling this process is the Analog-to-Digital Converter (ADC). The ADC samples the input voltage and converts it into a digital number. This digital output is sent to the LCD driver, which controls the segments or pixels on the LCD to show the corresponding voltage value.

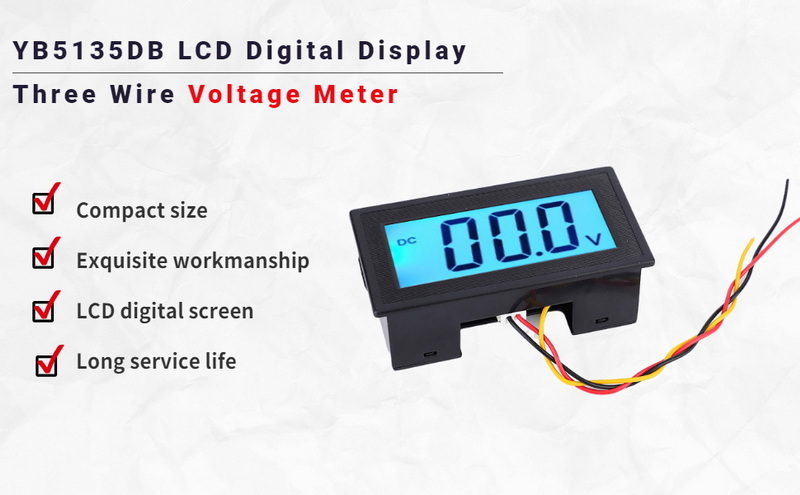

Modern panel meters with LCDs often have built-in ADCs, making them compact and efficient. The LCD screen receives power, ground, and digital signals corresponding to the voltage measurement, allowing it to update the display in real time.
The LCD screen itself requires a specific driving voltage, typically between 2.8V and 5V, often around 3.3V. This voltage powers the liquid crystal layer and controls the contrast of the display. If the voltage is too low, the display appears dim or faint; if too high, ghosting or unintended segments may appear, causing confusion.
A particular voltage, often called V0, is used to adjust the contrast of the LCD. This voltage is the difference between the supply voltage (VDD) and ground (VSS) and can be fine-tuned with a potentiometer or automatically adjusted by firmware based on temperature. Proper contrast adjustment ensures the digits on the voltage meter are sharp and readable under various environmental conditions.
The voltage meter's input circuit senses the voltage to be measured. This analog voltage is fed into the ADC.
The ADC converts the analog voltage into a binary digital value proportional to the input voltage level.
The digital value is processed by a microcontroller or dedicated driver circuit to determine the appropriate segments or pixels to activate on the LCD.
The LCD driver applies the necessary voltage to the electrodes of the LCD segments or pixels. By selectively applying voltage, the driver controls which segments appear dark or light, forming numbers or symbols representing the voltage reading.
The LCD screen displays the voltage reading visually, updating dynamically as the input voltage changes.
The LCD screen and the voltage meter's measuring circuit must share compatible voltage levels. For example, supplying a 5V LCD with a 12V source will damage the screen. The power supply for the LCD and its backlight (if present) are separate and must be managed carefully.
Temperature affects the LCD's contrast voltage and response time. Colder temperatures require higher driving voltage to maintain display clarity. Some advanced voltage meters incorporate temperature compensation to adjust the LCD voltage dynamically.
LCDs have optimal viewing angles, typically described in clock positions (e.g., 6 o'clock or 12 o'clock). The design of the voltage meter ensures that the display is easily readable from the user's typical viewing angle.
The LCD panel requires precise timing for powering on, data transmission, and backlight activation to avoid flickers or white screens. The microcontroller manages these timing sequences to ensure smooth display operation.
- Low Power Consumption: LCDs consume minimal power, extending battery life in portable voltage meters.
- Clear Numeric Display: Segment-based LCDs provide clear, easy-to-read digits.
- Compact and Lightweight: LCDs allow voltage meters to be compact and portable.
- Temperature Compensation: Modern LCDs can adapt to environmental changes for consistent readability.
Understanding how does a LCD screen work on a voltage meter reveals the intricate interplay between liquid crystal technology, voltage measurement, and digital control. The LCD acts as a visual interface that translates electrical signals into readable numbers by manipulating light polarization through voltage control. Key components such as the ADC, LCD driver, and contrast voltage adjustment ensure accurate and clear voltage display. Proper voltage supply, temperature compensation, and timing control are critical for optimal LCD performance on voltage meters. This synergy of electronic measurement and display technology makes LCD voltage meters reliable, efficient, and user-friendly tools in electrical diagnostics.
LCD screens on voltage meters usually operate between 2.8V and 5V, with 3.3V being common. Supplying voltage outside this range can cause poor contrast or damage.
The analog voltage is converted into a digital signal by an Analog-to-Digital Converter (ADC). This digital information drives the LCD segments to visually represent the voltage value.
Contrast adjustment, controlled by the V0 voltage, ensures the digits are sharp and readable. Incorrect contrast can cause faint or ghosted segments, making the display hard to read.
Temperature changes affect the LCD's required driving voltage. Lower temperatures require higher voltage to maintain contrast, so some meters adjust voltage automatically for consistent display quality.
Yes, depending on the design, LCD screens can show voltage, current, resistance, or other measurements by controlling different segments or pixels dynamically.
