When working with a 5.0 40-pin 800x480 TFT display without touchscreen driver, selecting the right controller board is crucial for proper functionality. This type of display is a raw pixel-dot-clock display, meaning it lacks an onboard controller, SPI/parallel interface, or built-in RAM. It requires constant refreshing at 60Hz with pixel clock, vertical sync, horizontal sync, and other timing signals. Because of these requirements, most small microcontrollers cannot drive this display directly without additional hardware support.
This article explores the best controller boards compatible with the 5.0 40-pin 800x480 TFT LCD display without touchscreen driver, their features, how to use them, and considerations for integration into your projects.

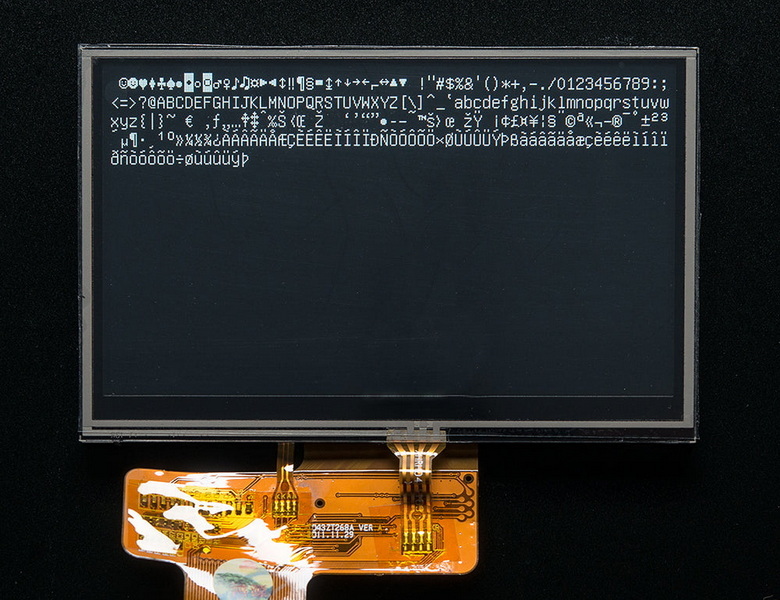

The 5.0 40-pin 800x480 TFT display without touchscreen driver is a 5-inch thin-film transistor (TFT) LCD panel with a resolution of 800 pixels horizontally and 480 pixels vertically. It features a 40-pin connector that carries 8 bits each for red, green, and blue color channels, enabling 24-bit color depth. The display has an LED backlight requiring a constant-current boost converter, often up to 24V, unlike smaller displays that run the backlight at 5V.
This display is commonly used in consumer electronics such as miniature TVs, GPS devices, handheld games, and automotive displays. However, it does not include a touchscreen, which reduces cost and complexity but also means no direct touch input support.
- Resolution: 800 x 480 pixels
- Screen size: 5.0 inches diagonal
- Connector: 40-pin FPC with RGB parallel interface
- Color depth: 24-bit (8 bits per RGB channel)
- Refresh rate: 60Hz (requires constant refreshing)
- Backlight: LED with constant-current boost converter (up to 24V)
- No onboard controller or RAM
- No touchscreen attached (pins 37-40 are not connected)
Because it is a "raw pixel-dot-clock" display, it needs a controller board capable of generating the required timing signals and managing the large video RAM needed to store the frame buffer.
The 5.0 40-pin 800x480 TFT display without touchscreen driver cannot be driven directly by most microcontrollers because:
- It requires precise timing signals (pixel clock, HSYNC, VSYNC).
- It needs continuous refreshing at 60Hz.
- It demands a large frame buffer (video RAM) to hold the image data.
- The backlight requires a specialized power supply (constant current boost converter).
- The parallel RGB interface is complex and bandwidth-intensive.
Therefore, a dedicated controller board is essential to interface this display with microcontrollers or other digital systems. The controller board handles the timing, memory, and signal conversion, allowing easier integration with microcontrollers such as Arduino, Raspberry Pi, or more advanced processors.
The Adafruit RA8875 driver board is widely recommended for the 5.0 40-pin 800x480 TFT display without touchscreen driver. The RA8875 chip is a powerful TFT controller that can handle large displays with high resolution and color depth. Key features include:
- Supports 40-pin TFT displays with 800x480 max resolution.
- Manages the huge video RAM and timing requirements internally.
- Provides a SPI interface to microcontrollers, saving pins.
- Includes a constant-current backlight driver capable of supplying 25mA or 50mA at up to 24V.
- Compatible with Arduino and other microcontrollers.
- Comes with a graphics library for easy programming and drawing functions.
This board is the best way to interface the 5.0 40-pin 800x480 TFT display without touchscreen driver to microcontrollers, as it offloads the complex timing and memory management from the host processor.

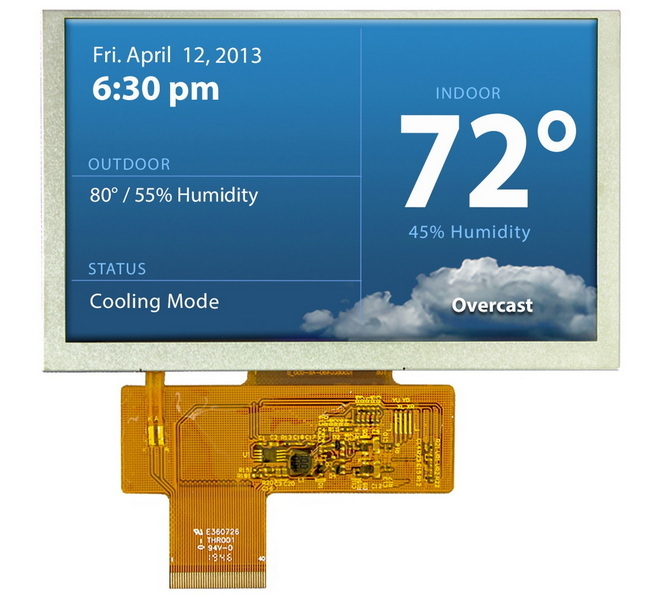

Another option is the Newhaven Display controller board featuring the SSD1963 controller chip. This board is designed for 5-inch TFT displays with similar specifications:
- 34-pin FFC connector (slightly different from 40-pin but adaptable).
- 16-bit parallel interface.
- Integrated resistive touchscreen signals (if needed).
- Operates at 3.3V supply.
- Wide operating temperature range.
- Suitable for evaluation and production.
While this board is more industrial-focused, it supports similar display resolutions and can be adapted to work with 40-pin displays with proper wiring and interface adjustments.
For users wanting to drive the 5.0 40-pin 800x480 TFT display without touchscreen driver from HDMI or DVI sources, specialized driver boards like the Adafruit TFP401 are available. These boards convert HDMI/DVI signals to the RGB TTL signals required by the display. However, these are more suitable for advanced users and specific applications.
- Connect the 40-pin FPC connector of the TFT display to the corresponding connector on the RA8875 or compatible controller board.
- Provide power supply to the controller board (typically 3.3V or 5V depending on the board).
- Connect the backlight power input to a constant-current boost converter capable of supplying up to 24V.
- Interface the controller board with your microcontroller via SPI or parallel interface as supported.
- Ensure proper grounding and voltage level shifting if needed.
- Install the graphics library provided by the controller board manufacturer (e.g., Adafruit RA8875 library).
- Use example sketches or sample code to initialize the display and test drawing functions.
- Customize graphics, text, and UI elements as per your application needs.
- For advanced users, modify timing parameters or driver settings to optimize performance.
- The display must be refreshed continuously at 60Hz to avoid flickering.
- The microcontroller should not be burdened with timing-critical tasks; the controller board handles this.
- Backlight brightness can usually be adjusted via PWM or current control on the driver board.
- Avoid direct wiring of the display to microcontrollers without a driver board unless you have specialized hardware like FPGA.
- Challenge: Microcontroller cannot drive the display directly due to timing and memory constraints.
Solution: Use the Adafruit RA8875 driver board or similar controller board that handles timing and video RAM.
- Challenge: Backlight requires higher voltage than standard 5V.
Solution: Use a constant-current boost converter capable of supplying up to 24V for backlight power.
- Challenge: No touchscreen functionality on this display variant.
Solution: If touchscreen is needed, choose the version with a resistive touchscreen or add an external touchscreen controller.
- Challenge: Compatibility with microcontroller interfaces.
Solution: Use SPI or parallel interface provided by the controller board; ensure voltage levels match your microcontroller.
When selecting a controller board for the 5.0 40-pin 800x480 TFT display without touchscreen driver, it is important to consider the microcontroller or processor you plan to use. For example, smaller microcontrollers with limited RAM and processing speed, such as the Arduino Uno or Nano, will struggle to generate the necessary timing signals and handle the large frame buffer. The RA8875 controller board is designed to offload these tasks, communicating with the microcontroller over a simple SPI interface, which is manageable even for modest microcontrollers.
On the other hand, more powerful processors like the Raspberry Pi or STM32 microcontrollers can sometimes drive these displays directly through their parallel interfaces or dedicated LCD controllers. However, this often requires custom driver development and more complex wiring. Using a dedicated controller board simplifies development and reduces the risk of timing errors or flickering.
The 5.0 40-pin 800x480 TFT display without touchscreen driver typically requires two main power sources: one for the logic and one for the backlight. The logic power is usually 3.3V or 5V, depending on the controller board and microcontroller. The backlight, however, demands a higher voltage, often around 24V, supplied via a constant-current boost converter. This is necessary to maintain consistent brightness and prevent damage to the LED backlight.
When choosing a controller board, ensure it either includes a built-in backlight driver or plan to use an external boost converter module. Some controller boards provide PWM control for backlight brightness, allowing you to adjust the intensity programmatically.
The 5.0 40-pin 800x480 TFT display without touchscreen driver requires precise timing signals to refresh the image at 60Hz. These signals include pixel clock, horizontal sync, vertical sync, and data enable signals. The controller board must generate these signals accurately; otherwise, the display may show flickering, tearing, or no image at all.
The RA8875 controller chip is designed specifically to handle these timing requirements internally. This feature makes it ideal for this type of display, as it frees the microcontroller from managing timing-critical tasks. Without such a controller, developers would need to implement complex timing generation, which is impractical for most microcontrollers.
Because the 5.0 40-pin 800x480 TFT display without touchscreen driver uses a parallel RGB interface, signal integrity is crucial. The 40-pin cable carries multiple data lines, clock signals, and power lines. Long cables or poor shielding can cause signal degradation, resulting in corrupted images or flickering.
To mitigate this, use short, high-quality flat-flex cables (FFC) or ribbon cables designed for high-speed data transmission. Additionally, ensure proper grounding and minimize electromagnetic interference (EMI) in your project environment.
The backlight LED and controller board can generate heat during operation. While the power consumption of a 5-inch TFT display is moderate, continuous use at high brightness can cause temperature rise.
Ensure your enclosure or project design allows for adequate ventilation or includes heat sinks if necessary. Overheating can shorten the lifespan of the display and cause color distortion or other issues.
Controller boards like the RA8875 often receive firmware updates or improvements to their graphics libraries. Keeping your controller board's software up to date can improve performance, add new features, and fix bugs.
Regularly check the manufacturer's website or repository for updates and carefully follow instructions to update your controller board firmware or library.
The 5.0 40-pin 800x480 TFT display without touchscreen driver is a versatile and high-resolution display option for many embedded systems and DIY projects. However, due to its raw pixel-dot-clock interface and lack of onboard controller, it requires a dedicated controller board to function properly.
Among the available options, the Adafruit RA8875 driver board stands out as the best choice for most users. It simplifies integration by handling the complex timing, video RAM, and backlight power requirements, while providing an easy-to-use SPI interface compatible with many microcontrollers. Other alternatives like the Newhaven Display SSD1963-based boards or HDMI-to-RGB converter boards can also be used depending on your project needs and expertise.
When integrating this display, pay close attention to power supply requirements, signal integrity, and continuous refreshing to ensure smooth and flicker-free operation. With the right controller board and careful setup, the 5.0 40-pin 800x480 TFT display without touchscreen driver can deliver vibrant, high-quality visuals for a wide range of applications.
The Adafruit RA8875 driver board is highly recommended because it handles the large video RAM and timing requirements and provides an easy SPI interface to microcontrollers.
No, most small microcontrollers like Arduino cannot directly drive this display due to its complex timing and video RAM needs. A controller board like the RA8875 is necessary.
Yes, the LED backlight requires a constant-current boost converter capable of supplying up to 24V, unlike smaller displays that run backlight at 5V.
Yes, there is a similar 5.0 40-pin 800x480 TFT display version with a 4-wire resistive touchscreen attached, but it is more expensive.
Yes, with specialized driver boards like the Adafruit TFP401, you can convert HDMI or DVI signals to the RGB TTL signals required by the display, but this is for advanced users.
