How Does A Ps2 LCD Screen Work?

Views: 222     Author: Wendy     Publish Time: 2025-05-28      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

What Is a PS2 LCD Screen?

Basic Principles of LCD Technology

How Does a PS2 LCD Screen Work?

Construction of a PS2 LCD Screen

Integration with PS2 Hardware

Advantages of Using a PS2 LCD Screen

Limitations of PS2 LCD Screens

The Evolution of Portable Gaming Screens

Maintenance and Troubleshooting

Conclusion

FAQ

>> 1. How does a PS2 LCD screen connect to the console?

>> 2. Does the PS2 LCD screen have its own power source?

>> 3. Can the PS2 LCD screen display HD graphics?

>> 4. What kind of backlight does a PS2 LCD screen use?

>> 5. Are PS2 LCD screens compatible with all PS2 models?

The PlayStation 2 (PS2) remains one of the most iconic gaming consoles ever made, and many gamers and enthusiasts are curious about the technology behind its accessories, including the PS2 LCD screen. Understanding how does a PS2 LCD screen work involves exploring both the fundamentals of LCD technology and how it integrates specifically with the PS2 system.

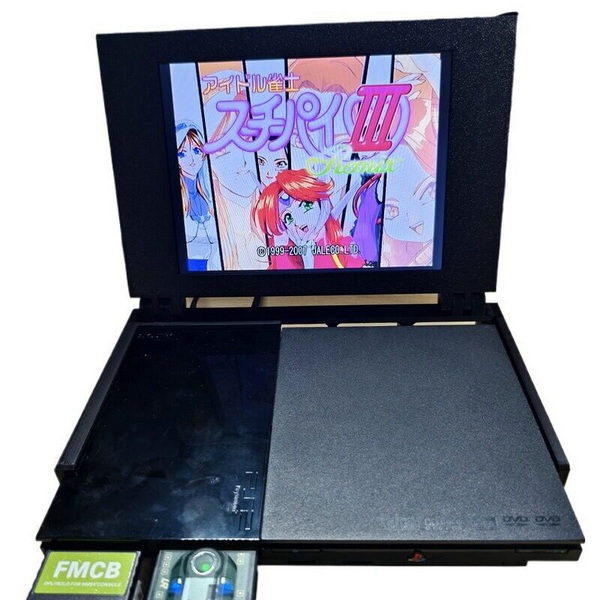

Internal Working Of LCD In Voltage Meters

What Is a PS2 LCD Screen?

A PS2 LCD screen is a portable or attachable liquid crystal display designed to work with the PlayStation 2 console, often used with the PS2 Slim model. These screens allow gamers to play PS2 games on a compact, self-contained display without needing a traditional TV or monitor. Some third-party manufacturers produced attachable LCD screens that fold down onto the PS2, similar to a laptop screen, making the system portable and convenient for gaming on the go.

These screens were especially popular among gamers who wanted a more compact gaming setup or needed a display solution while traveling. The PS2 LCD screen essentially transforms the console into a portable gaming device, similar in concept to modern handheld consoles, but leveraging the PS2's powerful hardware and vast game library.

Basic Principles of LCD Technology

To understand how does a PS2 LCD screen work, it is essential first to grasp the general working principle of LCDs (Liquid Crystal Displays):

- Light Blocking, Not Emitting: Unlike LED or OLED screens that emit light, LCDs work by blocking or allowing light to pass through. They require an external light source, such as a backlight, because liquid crystals do not emit light themselves.

- Polarized Light: LCDs use polarized light. The display consists of two polarized glass filters, placed at right angles to each other, with liquid crystal molecules sandwiched between them.

- Molecular Alignment and Light Control: The liquid crystals can twist and untwist when an electric current is applied. This twisting changes the angle of the polarized light passing through the crystals. When aligned correctly, light passes through both polarizing filters; when misaligned, light is blocked, creating dark areas on the screen.

- Electrodes and Pixel Control: The screen has electrodes that apply voltage to specific areas, controlling the orientation of liquid crystal molecules pixel by pixel. This selective blocking or passing of light forms the images seen on the screen.

This technology allows for thin, lightweight displays that consume relatively low power, which is why it became a popular choice for portable gaming screens like the PS2 LCD.

How Does a PS2 LCD Screen Work?

The PS2 LCD screen works by combining the above LCD principles with the video output from the PS2 console:

- Connection to PS2: The LCD screen connects to the PS2 Slim via the AV Multi Out port or a dedicated connector designed for the screen. This connection transmits the video signal from the PS2's GPU (Graphics Synthesizer) directly to the LCD display.

- Video Signal Processing: The PS2's GPU outputs video signals in standard resolutions compatible with the LCD screen, typically up to 480p or 720p depending on the screen model. The LCD screen processes these signals to display the game visuals.

- Backlight Illumination: Since the LCD does not emit light, the PS2 LCD screen includes a backlight system (usually LED-based) that illuminates the liquid crystal panel from behind, making the image visible.

- Controls and Adjustments: The PS2 LCD screen often includes controls for brightness, volume, and aspect ratio. These allow users to adjust the display settings for optimal viewing experience.

- Audio Output: Many PS2 LCD screens come with built-in speakers and headphone jacks, enabling audio playback directly from the screen unit, enhancing portability.

Construction of a PS2 LCD Screen

The PS2 LCD screen consists of several key components:

- Liquid Crystal Display Panel: The core display element that manipulates light to form images.

- Polarizing Filters: Two layers of polarized glass that control light passage.

- Electrodes: Transparent conductive layers that apply voltage to control liquid crystal orientation.

- Backlight Unit: Provides illumination behind the LCD panel.

- Control Circuitry: Processes incoming video signals and manages display functions.

- Housing and Mounting: Designed to attach securely to the PS2 Slim, often folding down like a laptop screen for portability.

Each of these components plays a vital role in ensuring the PS2 LCD screen functions correctly. The control circuitry is particularly important as it converts the incoming analog or digital video signals into the appropriate format for the LCD panel. This involves signal timing, synchronization, and sometimes scaling to fit the screen's native resolution.

Integration with PS2 Hardware

Understanding how does a PS2 LCD screen work also requires knowledge of how it integrates with the PS2's hardware:

- Video Output Compatibility: The PS2 outputs video signals through its AV Multi Out port, which supports composite, S-Video, component, and RGB signals. The LCD screen is designed to accept these signals and convert them to the display's native format.

- Power Supply: The PS2 LCD screen often draws power directly from the console, eliminating the need for an external power source. This integration simplifies setup and enhances portability.

- Audio Integration: Audio signals are transmitted alongside video or through separate connections to the screen's built-in speakers or headphone jack.

- Physical Attachment: Many PS2 LCD screens are designed to physically attach to the PS2 Slim, creating a compact, all-in-one gaming unit. This design mimics a laptop form factor, where the screen folds down onto the console for easy transport.

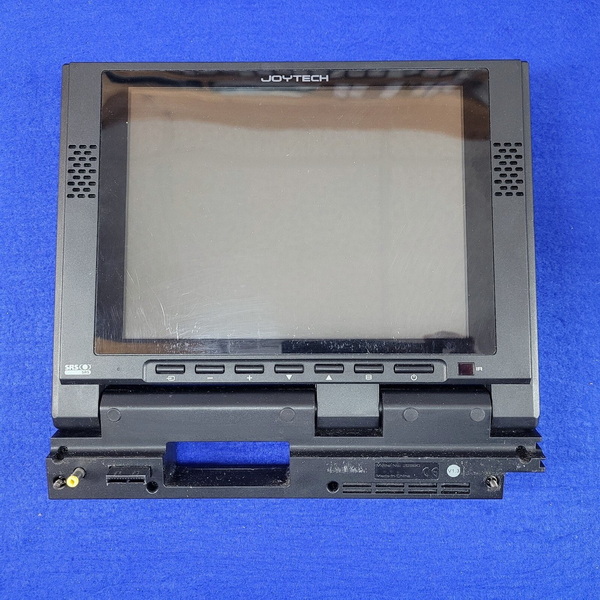

LCD Display Mechanism For Voltage Reading

Advantages of Using a PS2 LCD Screen

- Portability: Enables gaming without the need for a bulky TV.

- Space-saving: Ideal for small spaces or travel.

- Integrated Audio: Built-in speakers and headphone jacks enhance convenience.

- Power Efficiency: LCD technology consumes less power compared to older CRT displays.

- Improved Convenience: Having a dedicated screen eliminates the need to find a TV or monitor, making it easier to play anywhere.

Limitations of PS2 LCD Screens

- Screen Size: Typically smaller than traditional TV screens, which can affect immersion.

- Resolution Constraints: Limited by the PS2's output and the LCD panel's capabilities.

- Color and Contrast: Early LCDs sometimes suffered from limited color accuracy and contrast compared to CRTs.

- Availability: Original PS2 LCD screens, especially branded ones, are rare and often third-party.

- Compatibility: Mainly designed for the PS2 Slim, limiting use with other PS2 models without adapters.

The Evolution of Portable Gaming Screens

The PS2 LCD screen represents an early step toward portable console gaming. While it does not offer the integrated portability of modern handheld consoles, it allowed gamers to enjoy high-quality PS2 games without the need for a TV. This innovation paved the way for later developments in portable gaming technology, influencing designs in handheld consoles and portable monitors.

Maintenance and Troubleshooting

Understanding how does a PS2 LCD screen work also helps in maintaining and troubleshooting the device:

- Backlight Issues: Since the backlight is crucial, if the screen appears very dim or dark, the backlight might be failing.

- Connection Problems: Loose or damaged cables can cause no signal or distorted images.

- Display Artifacts: Issues with the control circuitry or the LCD panel itself can cause flickering or dead pixels.

- Power Supply: Ensuring the screen receives proper power from the PS2 is essential for operation.

Proper care, such as avoiding excessive pressure on the screen and keeping connectors clean, helps prolong the lifespan of the PS2 LCD screen.

Conclusion

Understanding how does a PS2 LCD screen work involves recognizing the fundamental principles of LCD technology—using liquid crystal molecules to control light passage combined with a backlight—and how this technology integrates with the PlayStation 2's video output system. The PS2 LCD screen offers a portable, efficient way to enjoy PS2 gaming without a traditional television, making it a valuable accessory for enthusiasts and collectors. Despite some limitations in size and resolution, the PS2 LCD screen remains a fascinating example of combining classic gaming hardware with display technology.

Its design reflects a clever solution to the demand for portable gaming before the era of modern handheld consoles, showcasing the versatility of the PS2 platform. For gamers who appreciate retro technology and portable gaming, the PS2 LCD screen is a unique and practical accessory that enhances the PlayStation 2 experience.

Voltage Meter LCD Display Functionality

FAQ

1. How does a PS2 LCD screen connect to the console?

The PS2 LCD screen typically connects via the AV Multi Out port on the PS2 Slim, using a dedicated connector or cable that transmits video and audio signals directly to the screen.

2. Does the PS2 LCD screen have its own power source?

Most PS2 LCD screens draw power directly from the PS2 console through the connection port, although some models may have an additional power input or battery for portability.

3. Can the PS2 LCD screen display HD graphics?

The PS2 LCD screen generally supports standard definition resolutions up to 480p, which matches the PS2's output capabilities. True HD resolutions are not supported due to hardware limitations.

4. What kind of backlight does a PS2 LCD screen use?

PS2 LCD screens usually use LED backlighting, which provides bright, energy-efficient illumination behind the liquid crystal panel.

5. Are PS2 LCD screens compatible with all PS2 models?

Most PS2 LCD screens are designed specifically for the PS2 Slim model due to the physical connection and form factor. Compatibility with the original PS2 (fat model) is limited or requires adapters.
