The iPhone's capacitive touch screen technology has revolutionized how users interact with their devices. Unlike traditional resistive screens that rely on pressure, capacitive screens detect touch through the electrical properties of the human body. This article will explore the intricacies of capacitive touch screens, their functionality, advantages, and the technology behind Apple's innovative approach.

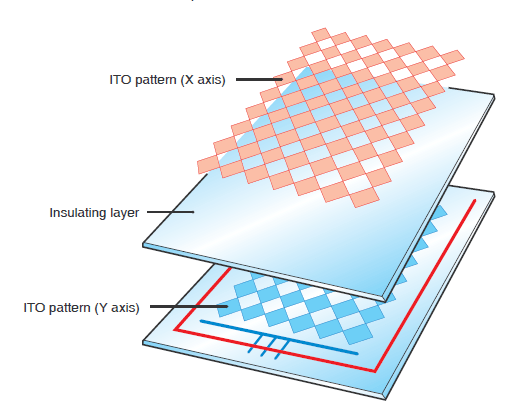

Capacitive touch screens operate based on the principle of capacitance. They consist of several layers, including:
- Top Layer: A glass surface coated with a transparent conductive material, typically indium tin oxide (ITO).
- Insulating Layer: This layer prevents interference from external electrical signals.
- Grid of Sensing Lines: These lines are crucial for detecting touch and determining its location.
When a finger touches the screen, it alters the electrostatic field, allowing the device to register the touch. This change in capacitance is detected by sensors located at various points on the screen.
The process of detecting a touch involves several steps:
1. Electrical Charge Transfer: When a finger comes into contact with the screen, a small electrical charge is transferred from the screen to the finger.
2. Voltage Drop Measurement: This transfer creates a voltage drop at the point of contact, which is measured by the sensors.
3. Signal Processing: The data from these sensors is sent to the iPhone's processor for interpretation.
4. Gesture Recognition: The processor analyzes the data to determine what action to take based on the user's gesture (e.g., tap, swipe, pinch).
There are two main types of capacitive touch screens used in devices like the iPhone:
- Surface Capacitive Touch Screens: These utilize sensors placed around the edges of the screen and detect changes in capacitance at one point.
- Projected Capacitive Touch Screens: These have a grid of electrodes that allow for multi-touch capabilities and greater accuracy in detecting multiple simultaneous touches.
Capacitive touch screens offer several advantages over traditional resistive screens:
- High Sensitivity: They can detect even light touches, making interactions smooth and responsive.
- Multi-Touch Capability: Users can perform gestures like pinch-to-zoom and swipe with multiple fingers simultaneously.
- Durability: The glass surface is resistant to scratches and damage, ensuring longevity.
- Clarity and Brightness: Capacitive screens provide excellent image clarity as they do not have additional layers that can distort visuals.
Despite their many benefits, users may encounter some issues with capacitive touch screens:
- Unresponsive Areas: Sometimes certain parts of the screen may not respond to touch due to software glitches or hardware malfunctions.
- Sensitivity Problems: Environmental factors like moisture or extreme temperatures can affect responsiveness.
To troubleshoot these issues, users can restart their devices or check for software updates.
The future of capacitive touch screen technology looks promising with advancements such as:
- Haptic Feedback Integration: Enhancing user interaction by providing tactile feedback when touching the screen.
- Flexible Displays: Allowing for more innovative device designs and applications.
- Improved Gesture Recognition: Making interactions more intuitive and user-friendly.
The iPhone's processor plays a crucial role in interpreting input from the touch screen. When a user touches the screen, signals travel from it to the processor as electrical impulses. The processor uses software to analyze this data and determine features such as size, shape, and location of each touch.
This analysis allows for advanced gesture recognition capabilities, enabling users to interact seamlessly with applications. For example, if a user performs a pinch gesture, the processor calculates movement between touch points and executes corresponding actions like zooming in or out on images or maps.
Understanding the differences between capacitive and resistive touch screens is essential for appreciating why capacitive technology has become prevalent in modern devices like iPhones:
| Feature | Capacitive Touch Screens | Resistive Touch Screens |
|---|---|---|
| Touch Detection | Detects electrical properties | Requires pressure |
| Multi-Touch | Yes | No |
| Sensitivity | High sensitivity to light touches | Requires firm pressure |
| Durability | More durable due to glass construction | Less durable; prone to wear |
| Clarity | Higher clarity and brightness | Lower clarity due to additional layers |
To maintain optimal performance of your iPhone's capacitive touch screen:
- Use a soft microfiber cloth dampened with water or an alcohol-based cleaner.
- Avoid using abrasive materials that could scratch the surface.
- Regularly clean your device to prevent buildup of oils and dirt that can affect sensitivity.
The iPhone's capacitive touch screen technology has set a standard for user interaction in mobile devices. By leveraging electrical conductivity and advanced sensing techniques, it provides a responsive and intuitive experience that enhances usability. As technology continues to evolve, we can expect even more innovations that will further improve how we interact with our devices.

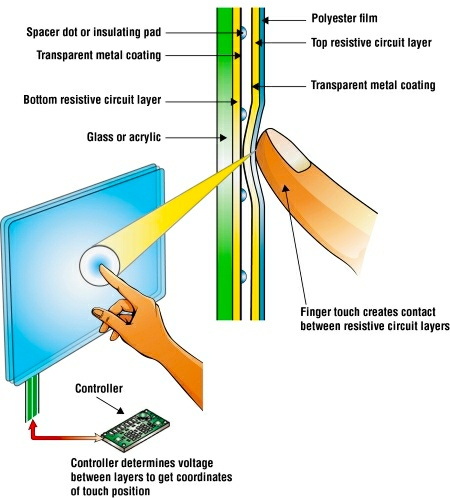

Capacitive touch screens detect touch through electrical conductivity, while resistive screens rely on pressure applied to two conductive layers coming into contact. This makes capacitive screens more sensitive and capable of multi-touch gestures.
First, restart your device. If that doesn't work, check for software updates or consider performing a factory reset. If issues persist, professional repair may be necessary.
Yes, capacitive touch screens typically have a glass surface that is resistant to scratches and damage compared to resistive screens which are more prone to wear due to their layered structure.
Standard gloves usually do not work because they insulate electrical conductivity. However, there are gloves designed with conductive materials specifically for use with capacitive touch screens.
Software processes raw data from the sensors to interpret user gestures accurately, determining actions based on factors like gesture type and application context being used at the time of interaction.
