The Adafruit PiTFT 2.8-inch display is a popular choice among Raspberry Pi enthusiasts for adding a compact touchscreen interface to their projects. It offers a 320x240 pixel resolution with 16-bit color depth and a capacitive or resistive touch overlay depending on the model. To understand how it compares to other Raspberry Pi displays, it is important to examine its features, compatibility, usability, and performance in relation to alternatives available in the market.

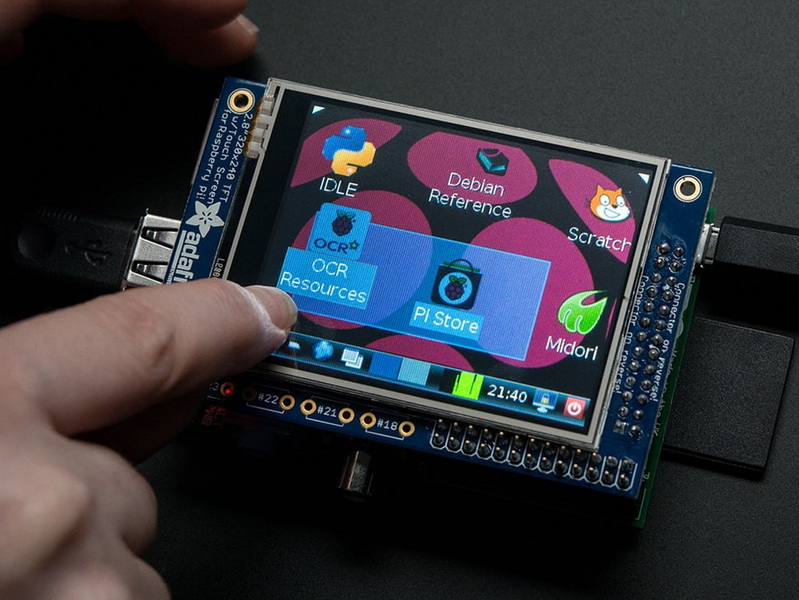

The Adafruit PiTFT 2.8-inch display is designed specifically for Raspberry Pi models with a 2x20 GPIO header, such as the Pi 2, Pi 3, Pi 4, Pi Zero, and Model A+ and B+. It features a 320x240 pixel TFT screen with either a capacitive or resistive touchscreen overlay. The capacitive version allows finger touch input, offering a more modern and responsive experience compared to resistive touchscreens, which require a stylus or fingernail for input. The display uses hardware SPI and I2C pins for communication and includes four slim tactile switches wired to GPIO pins for additional input options, such as power on/off buttons or user interface controls[2][5][7].
The display fits neatly on top of Raspberry Pi boards, with some versions slightly overhanging the USB ports on older models. The newer PiTFT Plus versions are designed to match the outline of newer Pi models and bring out all 40 GPIO pins, allowing for easier expansion and compatibility with GPIO cables and enclosures[1][5].
The PiTFT 2.8-inch display is relatively small compared to other Raspberry Pi displays, such as the official 7-inch Raspberry Pi touchscreen, which offers a 800x480 resolution. While the PiTFT's 320x240 resolution is adequate for simple graphical interfaces, console access, or basic GUI applications, it is less suitable for tasks requiring high-resolution graphics or detailed visuals. Larger displays provide more screen real estate and higher pixel density, enhancing usability for multimedia, web browsing, or complex applications.
Adafruit offers both capacitive and resistive touchscreen versions of the PiTFT 2.8. Capacitive touchscreens are more responsive and support multi-touch gestures, making them more intuitive for users accustomed to smartphones and tablets. Resistive touchscreens, while less sensitive, can be activated with any object and are generally more affordable. Many other Pi displays, including the official Raspberry Pi touchscreen, use capacitive touch technology by default, providing a smoother user experience.
The PiTFT 2.8 is designed to integrate tightly with the Raspberry Pi's GPIO pins, requiring specific hardware SPI and I2C connections. This makes it easy to install without additional cables or adapters but limits its compatibility to Raspberry Pi models with a 2x20 GPIO header. Older Pi models with 2x13 headers are not compatible with the newer PiTFT Plus versions[1][2].
Other displays, such as HDMI-based screens, offer broader compatibility across different Pi models and even other devices but often require external power and cables, making the setup less compact.
The PiTFT 2.8 supports console mode and graphical environments like X11, though its small size and resolution mean it is best suited for specialized applications rather than general desktop use. Adafruit provides detailed tutorials and scripts to configure the display, calibrate the touchscreen, and customize the user interface. The inclusion of tactile buttons adds versatility for creating simple control panels or embedded systems[2][6].
In contrast, larger official Raspberry Pi displays or third-party HDMI monitors support full desktop environments more comfortably and are better suited for multimedia or productivity tasks. However, they lack the compactness and GPIO integration of the PiTFT series.

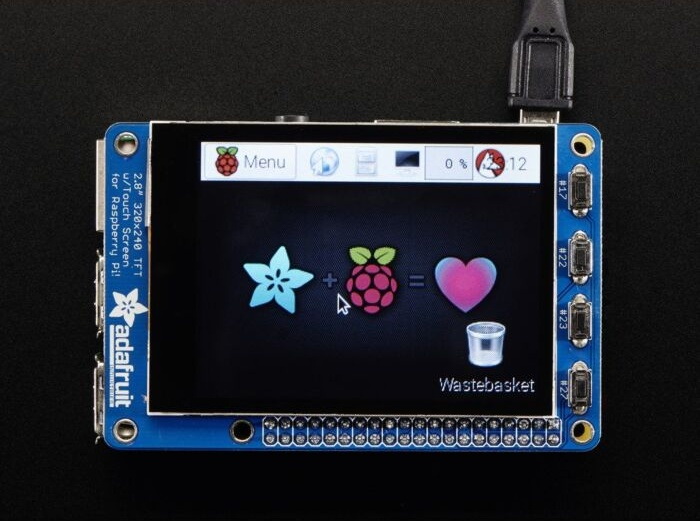

The PiTFT 2.8 features a sturdy design with a black bezel and glass overlay for the capacitive version, giving it a polished look. It is lightweight and compact, making it ideal for portable or embedded projects. The tactile switches integrated into the display board provide convenient input options without additional hardware[2][5].
Other displays may offer higher resolution and larger sizes but often sacrifice portability and simplicity of integration. The PiTFT's design is optimized for tight integration with the Raspberry Pi ecosystem.
The PiTFT 2.8 is particularly well suited for projects that require a small, responsive touchscreen interface directly on the Raspberry Pi. Examples include handheld gaming devices, custom control panels, portable consoles, and simple graphical interfaces for IoT or robotics projects. Its low resolution and size limit its use for media consumption or detailed graphical work but excel in embedded and DIY applications where space and power efficiency are priorities[4][6].
Other larger displays are better suited for desktop replacements, media centers, or projects where screen size and resolution are critical.
The Adafruit PiTFT 2.8-inch display stands out as a compact, well-integrated touchscreen solution for Raspberry Pi projects that require a small form factor and direct GPIO connection. Its 320x240 resolution and capacitive touch option provide a good balance between usability and size for embedded applications. Compared to larger official Raspberry Pi displays and HDMI monitors, the PiTFT offers superior portability and GPIO integration but at the cost of screen size and resolution.
For users seeking a small, easy-to-install touchscreen for custom interfaces, the PiTFT 2.8 is an excellent choice. However, for applications demanding higher resolution, larger display area, or full desktop usability, other displays may be more appropriate. Overall, the PiTFT 2.8 occupies a unique niche in the Raspberry Pi display ecosystem, combining compactness, touch capability, and GPIO accessibility.
The PiTFT 2.8-inch display is compatible with Raspberry Pi models featuring a 2x20 GPIO header, including Pi Zero, Pi 2, Pi 3, Pi 4, and Model A+ and B+. It is not compatible with older Pi models that have a 2x13 GPIO header, such as the original Pi 1 Model A and B[1][2][7].
Adafruit offers both versions. The PiTFT Plus 2.8 features a capacitive touchscreen overlay, allowing finger touch input similar to modern smartphones. The original PiTFT 2.8 uses a resistive touchscreen, which requires a stylus or fingernail for input but can be activated by any object[2][6].
While the PiTFT 2.8 supports graphical environments like X11, its small 320x240 resolution and screen size make it less suitable as a primary desktop display. It is better used for console access, custom graphical interfaces, or embedded applications rather than general desktop computing[2][4].
The display connects directly to the Raspberry Pi's 2x20 GPIO header, using hardware SPI pins (SCK, MOSI, MISO, CE0) and I2C pins (SDA, SCL) for communication. It also uses GPIO pins #24 and #25 for touchscreen control and includes four tactile switches wired to GPIO pins for additional input[2][6].
Some users have reported difficulties getting the PiTFT 2.8 to display correctly on the Pi 400, especially when using certain HATs like the Cyberdeck. However, it is possible to use the PiTFT 2.8 with the Pi 400 by following specific installation instructions and configurations. The Pi 400's unique form factor and GPIO layout may require additional setup steps[3].
