HDMI touchscreen displays are versatile devices that combine the functionality of a monitor with the interactivity of a touchscreen. These displays are commonly used in various applications, including presentations, kiosks, and home automation systems. However, setting up and calibrating an HDMI touchscreen can be challenging, especially for those new to these technologies. This article will guide you through the process of connecting and calibrating an HDMI touchscreen display, focusing on common issues and solutions.
Connecting an HDMI touchscreen display involves more than just plugging in the HDMI cable. Typically, touchscreens require a separate interface, such as USB, to send touch events back to the computer or device. This is because HDMI is primarily a video input and does not support touch data transmission. Therefore, ensuring that both video and touch interfaces are properly connected is crucial.
Calibration is another critical step in setting up a touchscreen display. It ensures that the touch input accurately corresponds to the visual output on the screen. Calibration involves adjusting the screen's sensitivity and alignment to match user interactions precisely. This process can vary depending on the operating system and touchscreen technology used.

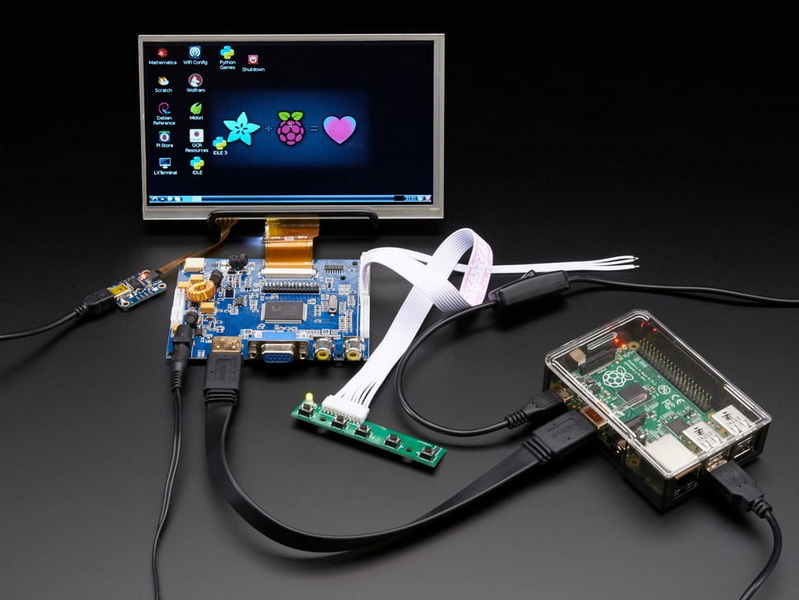

To set up an HDMI touchscreen display, follow these general steps:
1. Connect the HDMI Cable: Ensure the HDMI cable is securely connected to both the display and the device (e.g., a computer or Raspberry Pi). It's essential to check for any physical damage or bent connectors on the cable, as these can cause connectivity issues[2].
2. Connect the Touch Interface: Typically, this involves connecting a USB cable from the touchscreen to the device. This step is essential for enabling touch functionality. Avoid using external USB hubs or non-approved USB extenders/repeaters/cables, as they can cause connectivity problems[7].
3. Power On the Display: Make sure the display is powered on and recognized by the device. If the display does not turn on, check the power adapter cable and ensure it is properly connected to the electricity source[7].
4. Install Drivers: Depending on the display and operating system, you may need to install specific drivers to enable touch functionality. For Linux systems like Raspberry Pi, this often involves cloning a repository and running a script to configure the display.
Calibration is a straightforward process that requires interacting with the touchscreen. Here's how it typically works:
- Run the Calibration Tool: Depending on your system, you might use tools like `xinput_calibrator` for Linux or built-in calibration tools in Windows. For Windows 10, navigate to “Settings” > “System” > “Display” and scroll down to access calibration options[6].
- Touch Calibration Points: The calibration process involves touching specific points on the screen. These points are usually displayed as crosses or dots, and you need to touch them as accurately as possible.
- Save Calibration Data: Once calibration is complete, the tool will save the new calibration data. This might involve creating or modifying configuration files.
Modern resistive touch screen systems employ sophisticated calibration techniques that extend beyond basic point-to-point mapping. These advanced methods incorporate multiple calibration points across the screen surface to create a comprehensive and accurate coordinate transformation model. This approach ensures more uniform accuracy across the entire display area. Calibration algorithms utilize various mathematical approaches, including linear regression, polynomial fitting, and complex non-linear transformations, to account for screen distortions and ensure consistent accuracy across different operating conditions[1].
If your touchscreen is not recognized, ensure that the USB cable is securely connected and that the correct drivers are installed. For Linux systems, you might need to configure udev rules to properly identify the touchscreen device. If using a USB hub, try connecting the touchscreen directly to the computer to avoid potential connectivity issues.
If calibration does not seem to apply correctly, check that you have saved the calibration data properly and that the configuration files are in the correct location. For Wayland environments, you might need to use different calibration methods compared to traditional X11 environments.
Ensure that your display resolution matches the native resolution of the touchscreen. Incorrect resolutions can lead to inaccurate touch input and poor display quality. Also, ensure that the refresh rate is appropriate for your application, especially if you are using the display for gaming or real-time video streaming[3].
If you encounter issues with the HDMI connection, such as no signal, try restarting the device or checking the HDMI cable for damage. Ensure that the display is set to the correct input. If using multiple HDMI ports, try connecting to a different port to rule out any issues with the current port[2].
Ensure that your touchscreen is compatible with your operating system. Some touchscreens may require specific drivers or configurations for different OS versions. Always check the manufacturer's documentation for compatibility information.

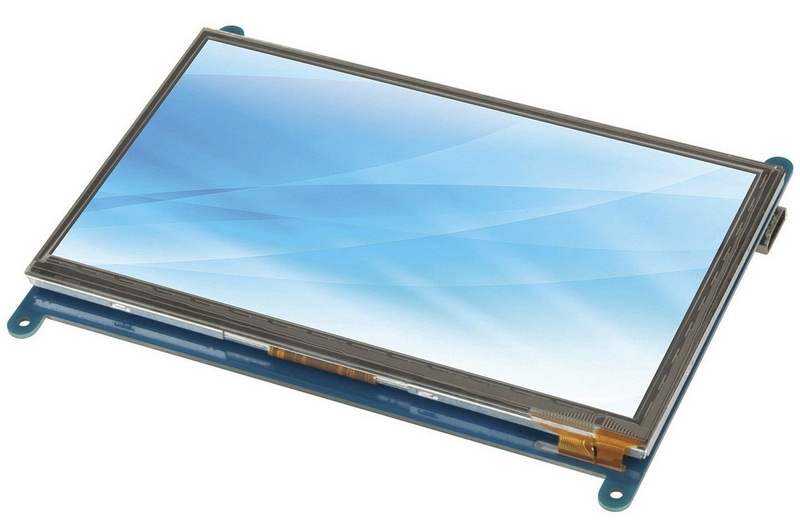

HDMI capacitive touch screens combine the versatility of HDMI connectivity with the responsiveness of capacitive touch technology. Unlike resistive touch screens, which rely on pressure, capacitive screens detect the electrical properties of the human body, allowing for a more responsive and accurate touch experience. These screens are ideal for applications requiring multi-touch capabilities, such as gestures like pinch-to-zoom or swipe actions[4].
Capacitive touch screens are known for their high-quality display capabilities, offering high resolutions and excellent color accuracy. This makes them suitable for various applications, from gaming to professional presentations. The clarity and vibrancy of the display enhance the overall visual experience, making it more engaging for users[4].
To ensure the longevity and optimal performance of touch screens, regular maintenance is essential. This includes cleaning the screen regularly with a soft, lint-free cloth or a screen-specific cleaning kit. Avoid using harsh chemicals or excessive moisture, as these can damage the screen or affect touch sensitivity[5].
Proper calibration is also crucial. Calibrate the touch screen periodically or whenever necessary to maintain accurate touch response. Follow the manufacturer's instructions to calibrate the device properly. Calibration ensures that touch inputs are recognized correctly, enhancing the user experience and reducing errors[5].
Protection from environmental factors is another important aspect. Ensure that the display is shielded from direct sunlight, moisture, and extreme temperatures. Regular software updates can also help maintain compatibility and fix any bugs that might affect touch functionality[5].
HDMI touchscreens are versatile and can be used in a variety of settings:
- Industrial Environments: They are ideal for control panels, monitoring systems, and data visualization due to their durability and responsiveness[4].
- Educational Settings: The interactive nature of touchscreens enhances learning outcomes by providing engaging visuals and interactive content[4].
- Home Appliances: Touchscreens can enhance user interaction in smart home devices, making them more intuitive and user-friendly[4].
- Interference Reduction: Keep electronic devices like Wi-Fi routers or microwaves away from the HDMI cable to reduce signal interference[2].
- Software Updates: Regularly update both the TV and connected device software to ensure compatibility and fix any bugs that might affect HDMI connectivity[2].
- Cable Quality: Use high-quality HDMI cables with good shielding to protect against interference and ensure a stable connection[2].
Connecting and calibrating an HDMI touchscreen display requires attention to detail but is generally a straightforward process. Ensuring that both the video and touch interfaces are properly connected and calibrated is key to achieving accurate and responsive touch functionality. Whether you are using a Raspberry Pi, Windows, or another system, understanding the specific requirements and troubleshooting common issues can help you successfully integrate HDMI touchscreens into your projects.
Yes, calibration is necessary to ensure that touch inputs accurately correspond to the visual output on the screen.
No, HDMI is primarily for video and does not support touch data transmission. A separate interface, like USB, is needed for touch functionality.
Use tools like `xinput_calibrator` or `ts_calibrate` depending on your setup. Ensure you have the correct drivers installed and follow the on-screen instructions for calibration.
Check that the calibration data was saved correctly and that the configuration files are in the correct location. Also, ensure that the USB connection is secure.
Typically, no. Touchscreens require a separate interface for touch data, usually USB.
