Connecting a Raspberry Pi to a 7-inch touchscreen display is a straightforward process that enhances the functionality of your Raspberry Pi projects by providing a user-friendly interface. This setup is ideal for various applications, including interactive kiosks, home automation systems, and educational tools. In this article, we will guide you through the steps to connect and configure your Raspberry Pi with a 7-inch touchscreen display.

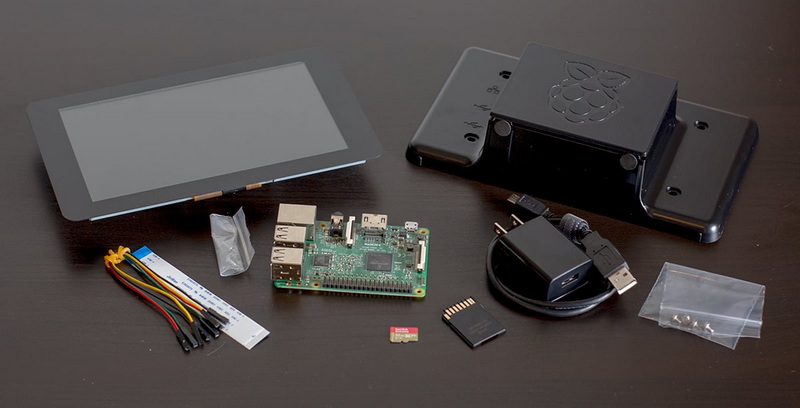

To begin, ensure you have the necessary components:
- Raspberry Pi Model (e.g., Raspberry Pi 4 Model B)
- 7-inch Touchscreen Display (official or compatible third-party models)
- DSI Ribbon Cable
- Jumper Wires (for power and data connections)
- Screws (for mounting the Raspberry Pi to the display adapter board)
- Power Supply (mini USB or external battery pack)
The first step involves setting up the touchscreen display. Flip over the screen to locate the adapter board attached to its back. Open the ribbon housing by sliding out the black brackets on either side, then insert the DSI ribbon cable with the blue side facing down. Secure the ribbon by closing the brackets.

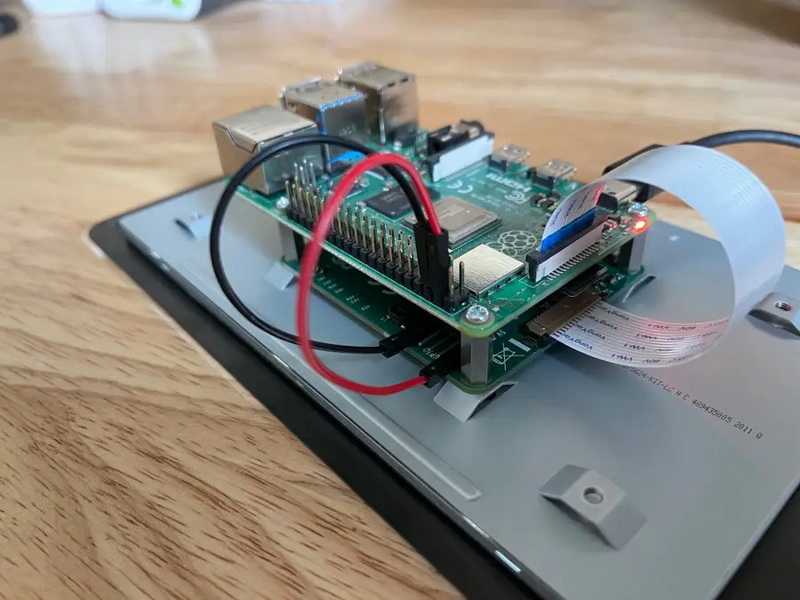

Next, connect the jumper wires to the appropriate pins on the display's adapter board and the Raspberry Pi. Typically, these connections include power and data lines that facilitate communication between the Raspberry Pi and the display.
After connecting the wires, ensure that all connections are secure and properly aligned. This step is crucial to avoid any potential damage to the components or issues with the display's functionality.
The DSI (Display Serial Interface) ribbon cable is a critical component in connecting the Raspberry Pi to the touchscreen display. It is designed to transmit video signals from the Raspberry Pi to the display. The cable should be inserted into the DSI port on the Raspberry Pi and the corresponding port on the display's adapter board. Ensure that the blue side of the ribbon cable faces down when inserting it into the ports.
Choosing the right power supply is essential for ensuring that your Raspberry Pi and touchscreen display function properly. The power supply should be capable of providing sufficient voltage and current to both devices. A mini USB power supply is commonly used, but if you plan to use your setup in a mobile environment, consider using an external battery pack.
Before attaching the Raspberry Pi to the display adapter board, configure it for touchscreen use. Connect your Raspberry Pi to a monitor, keyboard, and mouse. Boot into the Raspberry Pi OS and update the system to ensure that all necessary drivers are installed and up-to-date.
To enable the on-screen keyboard, install the necessary software packages. This will allow users to input text directly on the touchscreen display without needing an external keyboard.
Reboot your Raspberry Pi after updating and installing the necessary software. This ensures that all changes take effect and that the system is ready for use with the touchscreen display.

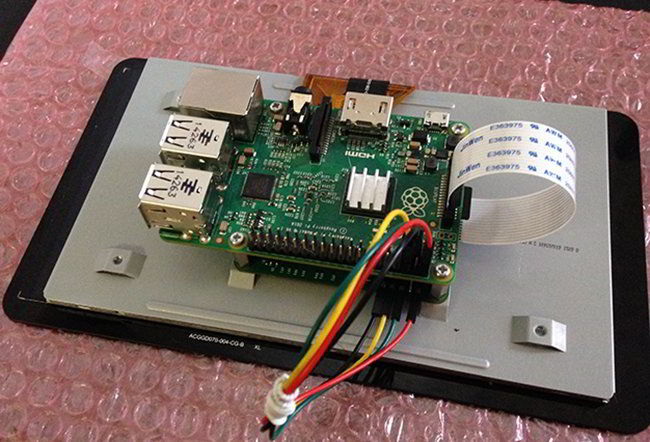

Align the Raspberry Pi with the adapter board so that the ribbon ports are stacked on the same side. Secure them together using the provided screws. Insert the DSI ribbon cable into the Raspberry Pi's DSI port and attach the jumper wires to their respective pins.
Ensure that the Raspberry Pi is securely fastened to the adapter board to prevent any movement or damage during use. This step is crucial for maintaining the structural integrity of your setup.
Place the white frame face down onto the back of the screen and align it with the enclosure's openings for the Pi board. Secure everything together with screws. Finally, plug in your mini USB to a power outlet or an external battery pack to power up your setup.
As the system boots, you should see the Raspberry Pi OS loading on the touchscreen display. If everything is set up correctly, you should be able to interact with the display using touch inputs.
If your touchscreen is not accepting touch inputs, try reseating the ribbon cables, updating the Raspberry Pi OS, or reinstalling the operating system. Ensure that all connections are secure and that the touchscreen drivers are properly installed.
If the screen remains black after updating software, consider reinstalling the SD card image without performing any software updates. This issue might be related to compatibility problems with the latest updates.
To adjust the screen rotation, edit the configuration settings to flip the screen. This can be done by modifying specific configuration files on the Raspberry Pi. Reboot your Raspberry Pi after saving the changes.
Ensure that your power supply is sufficient. Some displays require a USB3 port for adequate power, especially if using a USB2.0 port, which might not provide enough voltage or current.
For optimal performance, ensure that your Raspberry Pi OS is up-to-date and that all necessary drivers are installed. Regularly update your system to maintain compatibility with the latest software and hardware configurations.
Once your Raspberry Pi is connected to the touchscreen display, you can explore various advanced configurations and applications. For instance, you can set up a home automation system that allows users to control lights, thermostats, and security cameras directly from the touchscreen interface.
Another application is in educational settings, where interactive tools and learning platforms can be developed using the touchscreen display. This setup can enhance student engagement and provide a more immersive learning experience.
In addition to these applications, the Raspberry Pi with a touchscreen display can be used in retail environments for interactive kiosks, allowing customers to browse products and access information easily.
When troubleshooting issues with your setup, start by checking all physical connections. Ensure that the DSI ribbon cable and jumper wires are securely attached to their respective ports. If issues persist, consider reinstalling the operating system or updating the software to the latest version.
It's also important to check for any software updates that might resolve compatibility issues or improve performance. Regular maintenance can help prevent common problems and ensure that your setup runs smoothly.
One of the advantages of using a Raspberry Pi with a touchscreen display is the ability to customize and personalize your setup. You can design custom interfaces for specific applications, such as a home automation dashboard or an educational tool.
Customization can also extend to the physical design of the enclosure. You can use 3D printing or laser cutting to create custom cases that fit your specific needs or match your desired aesthetic.
Connecting a Raspberry Pi to a 7-inch touchscreen display is a rewarding project that opens up a wide range of possibilities for interactive and user-friendly applications. By following the steps outlined in this guide, you can successfully set up your touchscreen display and troubleshoot common issues that may arise during the process. Whether you're building a home automation system, an educational tool, or simply experimenting with Raspberry Pi projects, a touchscreen interface can significantly enhance the user experience.
The necessary components include a Raspberry Pi, a 7-inch touchscreen display, a DSI ribbon cable, jumper wires, screws for mounting, and a power supply.
This could be due to loose connections, outdated software, or driver issues. Try reseating the ribbon cables and updating or reinstalling the operating system.
Edit the configuration settings to flip the screen. This can be done by modifying specific configuration files on the Raspberry Pi. Then, reboot your Raspberry Pi.
Consider reinstalling the SD card image without performing any software updates, as compatibility issues might be causing the problem.
Some displays need a USB3 port because USB2.0 ports may not provide enough voltage or current to power the display properly.
