Powering a Raspberry Pi with a 7-inch touchscreen safely involves several key considerations to ensure both devices operate efficiently and without damage. The Raspberry Pi is a versatile single-board computer that can be used for a wide range of projects, from media centers to interactive kiosks. When paired with a 7-inch touchscreen, it becomes an even more powerful tool for creating interactive applications. However, powering both devices requires careful planning to avoid issues like undervoltage, overheating, or damage to the components.
To begin, it's essential to understand the power requirements of both the Raspberry Pi and the 7-inch touchscreen. The Raspberry Pi typically requires a 5V power supply, with different models having varying current requirements. For example, the Raspberry Pi 4 requires a 3A power supply, while earlier models like the Raspberry Pi 3 can operate with a 2.5A supply. The 7-inch touchscreen also requires a 5V power supply, drawing around 450 to 470 mA on its own.
Ensuring safe powering involves using the correct power supply and connecting the devices appropriately. The official Raspberry Pi power supplies are recommended for reliability and safety. For powering the touchscreen, you can either use a separate micro USB power supply or connect it to the Raspberry Pi's GPIO pins. However, using a separate power supply for the touchscreen can help avoid undervoltage issues, especially if you're using other power-hungry peripherals with your Raspberry Pi.
1. Update Your Raspberry Pi: Before connecting the touchscreen, ensure your Raspberry Pi is running the latest version of Raspberry Pi OS. Connect your Pi to a monitor, keyboard, and mouse, then update the system to ensure you have the latest drivers and software.

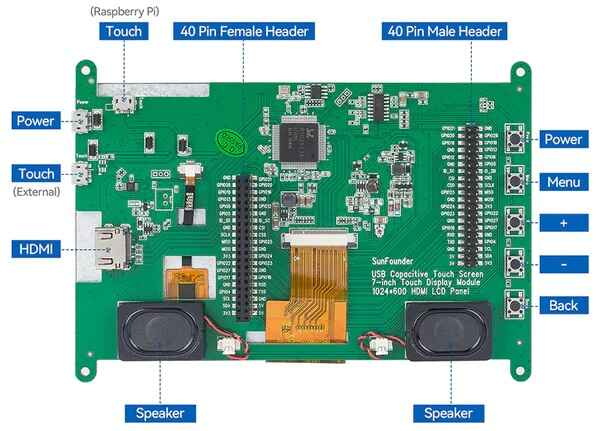

2. Assemble the Touchscreen: Follow the manufacturer's instructions to assemble the touchscreen. Typically, this involves connecting the ribbon cables to the controller board and securing the board to the back of the screen. Make sure all connections are secure to avoid any issues with the touchscreen's functionality.

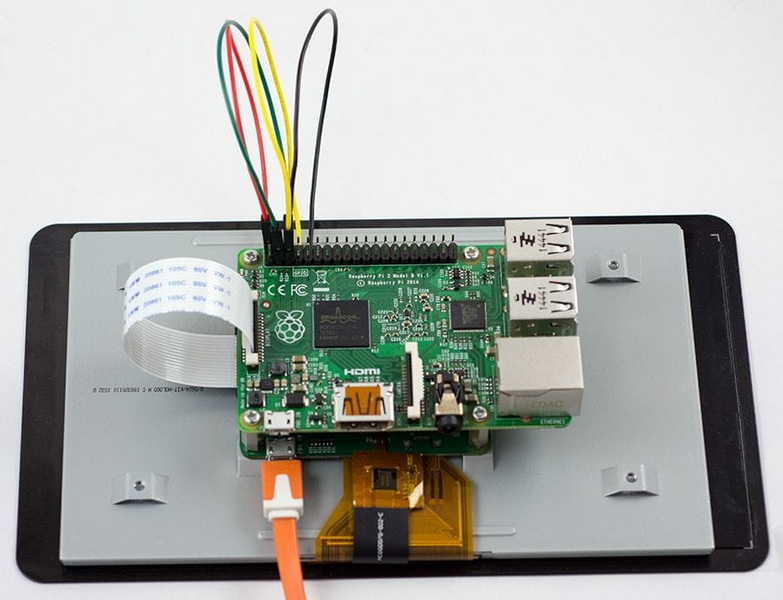

3. Connect Power: You can power the touchscreen using a separate micro USB power supply or by connecting it to the Raspberry Pi's GPIO pins. If using GPIO, connect the red wire to a 5V pin and the black wire to a GND pin. Ensure that your power supply can handle the combined current draw of both devices.
4. Mount the Raspberry Pi: Secure the Raspberry Pi to the back of the touchscreen using the provided standoffs and screws. This helps keep the setup organized and prevents accidental disconnections.
5. Test the Setup: Once everything is connected, power on the Raspberry Pi and ensure the touchscreen is functioning correctly. You should see the Raspberry Pi's desktop on the touchscreen, and you should be able to interact with it using the touch interface.
If you see a yellow lightning bolt icon on your screen, it indicates an undervoltage issue. This can occur if your power supply is insufficient or if there are issues with the cables. Ensure you're using a high-quality power supply that meets the total current requirements of your setup. If you're using a separate power supply for the touchscreen, check that it's properly connected and functioning.
Overheating can be a problem, especially if your project is enclosed. Ensure good airflow around the Raspberry Pi and consider using a heatsink if necessary. Heatsinks are inexpensive and can significantly reduce the temperature of your Raspberry Pi, helping prevent throttling or shutdowns due to overheating.
If the touchscreen doesn't work, check that all cables are securely connected. The ribbon cables can be finicky, so ensure they are properly seated and secured. If issues persist, refer to the manufacturer's troubleshooting guide for specific instructions.
If you plan to add other peripherals like USB drives, cameras, or Wi-Fi adapters, ensure your power supply can handle the additional current draw. Using a powered USB hub can help distribute power more efficiently and reduce the load on the Raspberry Pi's USB ports.
When building an enclosure for your project, consider ventilation to prevent overheating. You can use fans or design the enclosure to allow for natural airflow. This is crucial for maintaining the longevity and performance of your Raspberry Pi.
Ensure that your Raspberry Pi OS is configured to use the touchscreen as the primary display. You may need to adjust settings in the Raspberry Pi Configuration tool to enable the touchscreen and set it as the default display.
When selecting a power supply for your Raspberry Pi and touchscreen setup, consider not only the current requirements but also the voltage stability. A stable 5V output is crucial for preventing undervoltage warnings and ensuring reliable operation.
In addition to using heatsinks, consider active cooling solutions like small fans if your project will be running demanding applications or operating in a hot environment. Fans can be powered from the Raspberry Pi's GPIO pins or from a separate power source.
When designing an enclosure for your project, prioritize airflow and heat dissipation. Use materials that allow for good airflow, such as mesh panels or vents, to keep your Raspberry Pi cool.
If you're adding multiple peripherals, consider using a powered USB hub to distribute power more efficiently. This can help prevent overloading the Raspberry Pi's USB ports and reduce the risk of undervoltage issues.
Use software tools to monitor the power consumption and temperature of your Raspberry Pi. This can help you identify potential issues before they become serious problems.
Implement power-saving techniques such as reducing screen brightness or turning off unnecessary peripherals when not in use. This can help extend the life of your power supply and reduce heat generation.
Consider using a battery backup or a UPS (Uninterruptible Power Supply) for critical applications. This can ensure your project remains operational during power outages or fluctuations.
By incorporating these advanced considerations and techniques, you can create a robust and reliable setup that meets your project's needs while ensuring safe and efficient operation.
Powering a Raspberry Pi with a 7-inch touchscreen safely requires careful consideration of power supply and connectivity. By following the steps outlined above and addressing common issues promptly, you can create a reliable and efficient setup for your projects. Always use high-quality components and ensure your power supply meets the total current requirements of your setup. This will help prevent issues like undervoltage and overheating, ensuring your project runs smoothly and efficiently.
To power your Raspberry Pi and touchscreen safely, use a high-quality power supply that meets the total current requirements of your setup. You can power the touchscreen separately or connect it to the Raspberry Pi's GPIO pins, but ensure you're not exceeding the Pi's power output.
Use an official Raspberry Pi power supply or a reputable third-party equivalent. For most setups, a 2.5A to 3A supply is sufficient, depending on the Raspberry Pi model and additional peripherals.
Generally, you cannot use both HDMI and the touchscreen simultaneously unless you're using specific software that supports dual display output. However, some newer models of the Raspberry Pi support dual display output, so check your model's specifications.
Ensure good airflow around your Raspberry Pi. If necessary, use a heatsink to dissipate heat, especially in enclosed setups. You can also monitor the temperature using software tools to ensure it remains within safe limits.
Check that all cables are securely connected. Ensure the ribbon cables are properly seated and secured. If issues persist, refer to the manufacturer's troubleshooting guide for specific instructions.
