The Raspberry Pi 7 inch Touchscreen Display is an official accessory designed to enhance the functionality of Raspberry Pi boards by providing a capacitive touchscreen interface. This display allows users to create interactive projects such as tablets, infotainment systems, and embedded devices without the need for external keyboards or mice. The display connects to the Raspberry Pi via a ribbon cable to the DSI port and requires power from the GPIO port, making it a versatile tool for various applications.
To set up the Raspberry Pi 7" Touchscreen Display, you need to follow a series of steps that ensure both the hardware and software are properly configured. This guide will walk you through the process, addressing common issues and providing troubleshooting tips.

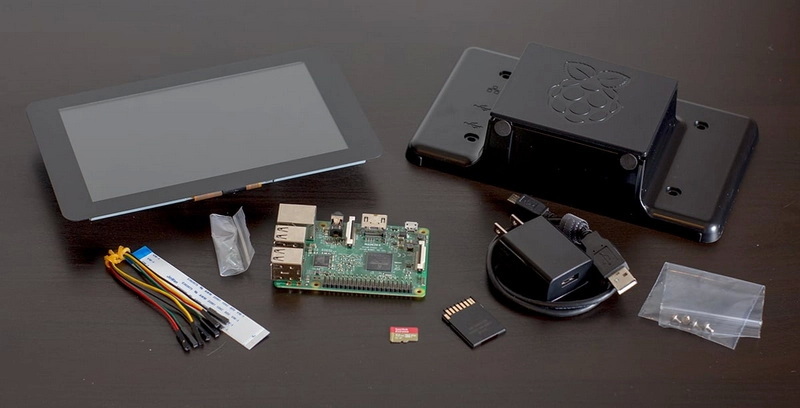

Before connecting the display to your Raspberry Pi, ensure that you have all the necessary components, including the display itself, an adapter board, a DSI ribbon cable, and stand-offs for mounting. The adapter board is crucial as it handles power and signal conversion between the display and the Raspberry Pi.

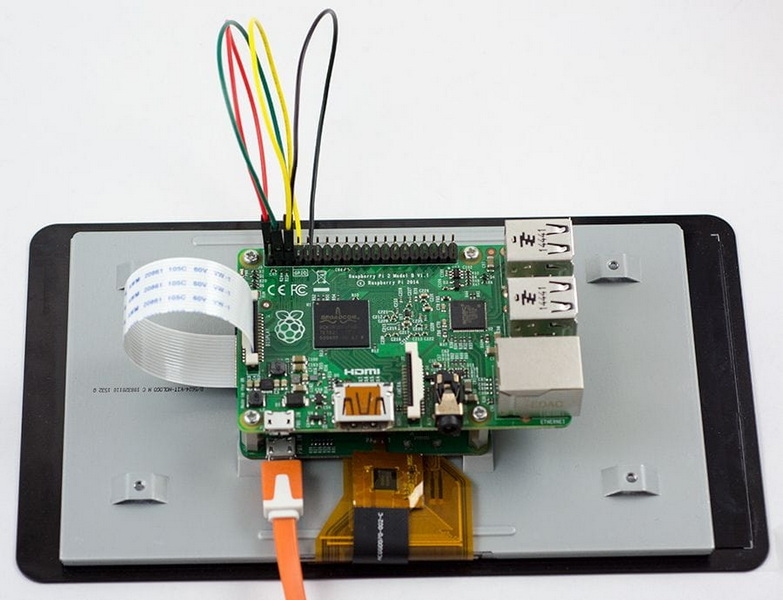

1. Connecting the Ribbon Cable: Start by connecting the large ribbon cable from the screen to the connector on the underside of the adapter board. Carefully undo the clamp on the connector before inserting the cable, and press the clamp in to secure it. This step is crucial for establishing communication between the display and the Raspberry Pi.
2. Powering the Display: The display is powered from the Raspberry Pi's GPIO port. Ensure that the power connections are secure and that the Raspberry Pi is capable of supplying enough power to both itself and the display. If you're using a Raspberry Pi model with limited power output, consider using a separate power supply for the display to avoid any power-related issues.
3. Mounting the Boards: Use the provided stand-offs and screws to mount the adapter board and the Raspberry Pi to the back of the display. This ensures a stable and compact setup, which is essential for projects that require portability or will be used in environments where space is limited.
For the display to function properly, you need to ensure that your Raspberry Pi is running the latest version of Raspberry Pi OS. This operating system includes drivers for the touchscreen display, allowing for multi-touch functionality and an on-screen keyboard.
1. Updating the Raspberry Pi OS: Connect your Raspberry Pi to a monitor, keyboard, and mouse. Boot into the Raspberry Pi OS and open a terminal window. Update the system to ensure you have the latest software and drivers.
2. Configuring the Display: Once updated, shut down the Raspberry Pi and connect the display. Boot up the Raspberry Pi again, and the display should now be recognized and functional. If the display does not turn on, check that all connections are secure and that the power supply is sufficient.
If you encounter issues with the touchscreen not responding or displaying incorrectly, there are several steps you can take:
1. Re-seat the Ribbon Cable: Ensure that the ribbon cable is securely connected to both the display and the adapter board. Sometimes, a loose connection can cause communication issues between the display and the Raspberry Pi.
2. Check for Software Updates: Ensure that your Raspberry Pi OS is up to date, as updates often resolve compatibility issues. The latest software versions include improved drivers and bug fixes that can address common problems.
3. Try Different Raspberry Pi Boards: If possible, try using a different Raspberry Pi board to rule out any issues with the specific model. This can help determine if the problem lies with the display or the Raspberry Pi itself.
If the touchscreen is not responding, first check that all cables are securely connected. Ensure that the ribbon cable is properly seated in both the display and the adapter board. If the issue persists, try reinstalling the Raspberry Pi OS or updating the system to ensure you have the latest touchscreen drivers. Sometimes, a simple reboot can resolve connectivity issues.
If the display does not turn on, check that it is receiving power from the Raspberry Pi's GPIO port. Ensure that the power connections are secure and that the Raspberry Pi is powered on. If the display still does not turn on, check for any damage to the power cables or the adapter board. A faulty adapter board or damaged power cables can prevent the display from receiving power.
If the display appears upside down or at an incorrect orientation, you can adjust this by configuring the display settings. This often involves adjusting the display rotation to match your setup. For instance, if the display is mounted upside down, you may need to rotate the image to ensure it is displayed correctly.
If the touchscreen is not calibrated correctly, you may experience issues with accuracy or responsiveness. Ensure that the latest touchscreen drivers are installed and that the system is updated. If calibration issues persist, consider reinstalling the Raspberry Pi OS to start with a clean setup.
If you are experiencing power supply issues, ensure that your Raspberry Pi's power supply can handle the additional load of the display. Consider using a separate power supply for the display if necessary. This is particularly important if you are using a Raspberry Pi model with limited power output, as insufficient power can lead to unstable operation or failure to boot.
The Raspberry Pi 7inch Touchscreen Display is not just limited to basic applications. It can be used in a variety of advanced projects, such as:
- Home Automation Systems: Create a central control panel for your home automation system, allowing you to control lights, thermostats, and security systems with a touch interface. This can enhance the convenience and efficiency of managing your home's systems.
- Interactive Kiosks: Build interactive kiosks for public spaces, providing information or services through a user-friendly touchscreen interface. These kiosks can be used in museums, shopping malls, or other public areas to engage users and provide valuable information.
- Educational Tools: Develop interactive educational tools that can be used in classrooms to enhance learning experiences. The touchscreen interface can make learning more engaging and interactive, helping students absorb complex concepts more effectively.
These projects showcase the versatility of the Raspberry Pi 7" Touchscreen Display and its potential to transform how we interact with technology.
When designing projects with the Raspberry Pi 7inch Touchscreen Display, consider the following factors:
- Durability: Ensure that the display is protected from environmental factors such as dust and moisture, especially if it will be used in harsh conditions.
- User Experience: Design the interface to be intuitive and user-friendly, ensuring that users can easily navigate through menus and options.
- Power Management: Plan for efficient power management to ensure that the system can operate for extended periods without needing frequent recharging or replacement of power sources.
By considering these factors, you can create robust and effective projects that leverage the full potential of the Raspberry Pi 7" Touchscreen Display.
Setting up the official Raspberry Pi 7" Touchscreen Display involves both hardware and software configurations. By following the steps outlined in this guide and troubleshooting common issues, you can create interactive projects that leverage the full potential of the Raspberry Pi ecosystem. Whether you're building a tablet, an infotainment system, or an IoT device, the Raspberry Pi 7" Touchscreen Display offers a versatile and user-friendly interface.
- The display has a resolution of 800 x 480 pixels, which is suitable for most interactive applications.
- No, it can be powered from the Raspberry Pi's GPIO port, but a separate power supply may be necessary depending on the setup and the specific Raspberry Pi model being used.
- The display is compatible with most Raspberry Pi models, but it does not work with the Raspberry Pi 400 or the Raspberry Pi Zero line due to differences in hardware design.
- Yes, the latest Raspberry Pi OS includes an on-screen keyboard, allowing full functionality without external input devices. This makes it ideal for projects where space is limited or where a touch interface is preferred.
- Check that all cables are securely connected, ensure the system is updated, and try reinstalling the Raspberry Pi OS if necessary. Sometimes, a simple reboot can resolve connectivity issues.
