When selecting a touch technology for a 5.0 inch 800x480 TFT display, understanding the differences between capacitive and resistive touchscreens is crucial. Both technologies offer distinct advantages and drawbacks depending on the application, environment, and user interaction requirements. This comprehensive article explores the characteristics, performance, durability, and cost considerations of capacitive and resistive touchscreens to determine which is better suited for 5.0 inch 800x480 TFT displays.
Capacitive touchscreens detect touch by sensing changes in the electrical field on the screen surface. They consist of a glass substrate coated with a transparent conductive material such as indium tin oxide (ITO). When a conductive object like a human finger touches the screen, it disturbs the electrostatic field, and this change is measured to pinpoint the exact touch location. This technology supports multi-touch gestures, enabling complex interactions like pinch-to-zoom or multi-finger swipes[1][5][8].
Resistive touchscreens rely on physical pressure to register touch inputs. They are composed of two flexible layers coated with resistive material and separated by a thin air gap. When pressure is applied, the layers make contact, completing an electrical circuit that allows the system to calculate the touch coordinates. Resistive screens do not support multi-touch and require a firmer press to register inputs[1][4][9].
Capacitive touchscreens are highly sensitive and can detect even the lightest touch, making them very responsive. They support multi-touch functionality, which enhances user experience with gestures and complex inputs. In contrast, resistive touchscreens require more pressure to register a touch, which can make them feel less responsive and slower, especially for quick or light touches. Resistive screens only detect single touch points[1][4][10][12].
Capacitive screens generally provide superior image quality and clarity. Their single-layer construction allows better light transmission, resulting in brighter displays with higher contrast and sharper images. This makes capacitive touchscreens ideal for applications where visual quality is paramount. Resistive screens, due to their multi-layer design, tend to reduce brightness and clarity slightly, causing a haze or distortion effect that lowers image sharpness[1][4][10].
Resistive touchscreens are often more durable in harsh environments. Their simple construction makes them resistant to dust, water, and contaminants, and they can be used with gloves or styluses, which is advantageous in industrial or outdoor settings. They are also less sensitive to environmental factors like water droplets causing false touches. Capacitive screens, while generally durable due to protective glass layers (e.g., Gorilla Glass), can be more prone to damage from sharp objects and are sensitive to water and dirt, which can interfere with touch detection[1][2][4][7][10].
Capacitive touchscreens consume less power than resistive ones because they rely on electrical field changes rather than physical pressure. They also have fewer mechanical parts, contributing to longer device life and lower maintenance costs. Resistive touchscreens, with their flexible layers and pressure-based detection, typically consume more power and may degrade faster over time with repeated use[6][10].
Resistive touchscreens are generally more affordable to manufacture and purchase, making them attractive for budget-sensitive projects or applications where cost is a primary concern. Capacitive touchscreens, due to their complex materials and technology, tend to be more expensive but offer enhanced functionality and user experience[7][10][12].

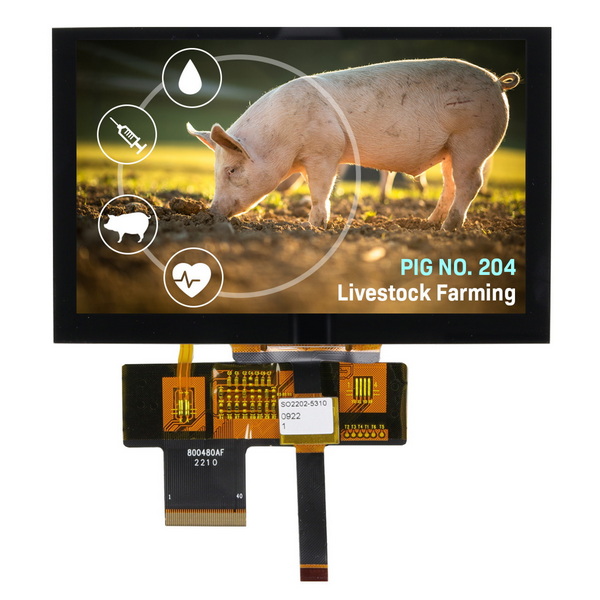

Capacitive touchscreens are widely used in consumer electronics such as smartphones, tablets, and high-end industrial devices where multi-touch support, high sensitivity, and superior image quality are essential. Their ability to detect multiple simultaneous touches enables advanced gesture controls, making user interactions intuitive and fluid. The 5.0 inch 800x480 TFT capacitive displays benefit from the IPS technology that enhances viewing angles and color reproduction, providing vibrant and clear visuals[3][5][6].

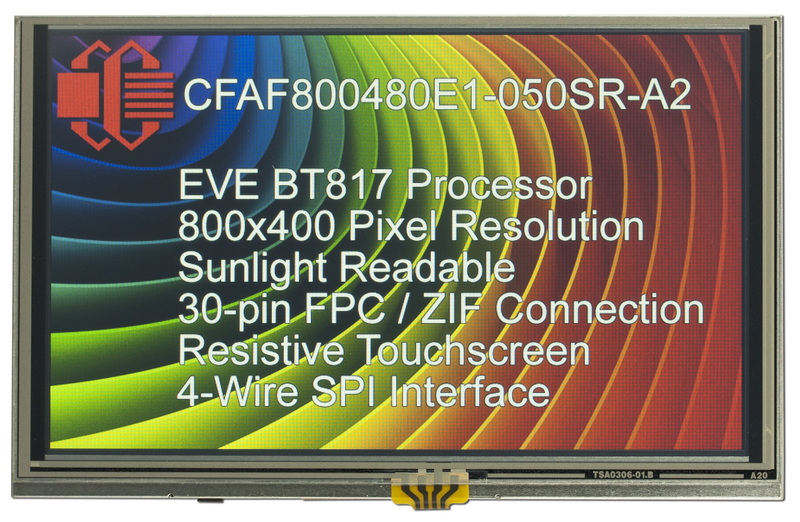

Resistive touchscreens are preferred in environments where users may wear gloves or use styluses, such as industrial machinery, outdoor kiosks, medical equipment, and rugged handheld devices. Their robustness to dirt, water, and physical impacts makes them suitable for harsh conditions. The 5.0 inch 800x480 TFT resistive displays are often sunlight-readable with high brightness (e.g., 850 nits), ensuring visibility outdoors. Their compatibility with any input device adds versatility for specialized applications[2][4][7][9].
| Feature | Capacitive Touch Screen | Resistive Touch Screen |
|---|---|---|
| Input Method | Finger, capacitive stylus | Any object (stylus, gloved hand, pen, etc.) |
| Sensitivity | Very high, supports multi-touch | Requires pressure, single touch only |
| Image Clarity | Superior, brighter and sharper | Slightly reduced due to multiple layers |
| Durability | Durable glass, prone to scratches and cracks | More resistant to dust, water, and rough use |
| Environmental Tolerance | Sensitive to water and dirt | More resistant to environmental factors |
| Power Consumption | Lower | Higher |
| Cost | Higher | Lower |
| Typical Applications | Consumer electronics, medical, automotive | Industrial, outdoor kiosks, rugged environments |
Choosing between capacitive and resistive touchscreens for a 5.0 inch 800x480 TFT display depends largely on the intended application and environment. Capacitive touchscreens excel in responsiveness, multi-touch capability, and display clarity, making them ideal for consumer devices and applications requiring high visual quality and intuitive interaction. However, they are more expensive and less tolerant of harsh environmental conditions.
Resistive touchscreens offer greater durability in rugged environments, compatibility with gloves and styluses, and cost-effectiveness, making them suitable for industrial, outdoor, and specialized use cases where environmental resistance and input flexibility are priorities. Their lower image clarity and single-touch limitation are trade-offs for their robustness.
For most modern consumer and high-precision applications, capacitive touchscreens are the better choice for 5.0 inch 800x480 TFT displays. For industrial or outdoor applications where durability and versatility of input are critical, resistive touchscreens remain a strong candidate.
Capacitive touchscreens offer high sensitivity, multi-touch support, superior image clarity, and lower power consumption. They provide a more responsive and visually appealing user experience, especially for consumer electronics and applications requiring precise gestures[1][5][6].
Resistive touchscreens are more resistant to dust, water, and physical impacts. They can be used with gloves or styluses, which is essential in many industrial or outdoor scenarios. Their lower cost and durability make them suitable for rugged applications[2][4][7].
Standard capacitive touchscreens typically do not work well with regular gloves because they rely on electrical conductivity. Specialized capacitive gloves or styluses designed for capacitive screens are required for glove use. Resistive touchscreens do not have this limitation[7][12].
Capacitive touchscreens support multi-touch, detecting multiple simultaneous touch points, enabling gestures like pinch-to-zoom and multi-finger swipes. Resistive touchscreens only detect single touch points, limiting interaction complexity[1][4][5].
Capacitive touchscreens have a single-layer design that allows better light transmission, resulting in brighter and clearer displays. Resistive touchscreens have multiple layers that slightly reduce brightness and clarity, causing a haze effect that can diminish visual quality[1][4][10].
