The Raspberry Pi 7 inch touchscreen display has been a popular choice among DIY enthusiasts and educators since its release. It offers a convenient way to turn your Raspberry Pi into a tablet, infotainment system, or standalone device, providing an interactive visual capability with an 800x480 resolution and 10-finger capacitive touch support. However, the question arises whether this touchscreen is compatible with all models of the Raspberry Pi. In this article, we will delve into the features, applications, and compatibility of the Raspberry Pi 7 inch touchscreen display.

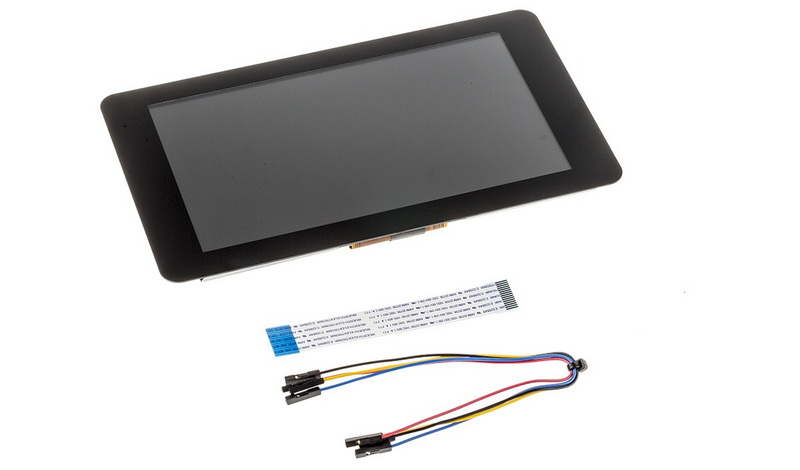

The display connects to the Raspberry Pi via an adapter board, which handles power and signal conversion. Only two connections to the Pi are required: power from the Pi's GPIO port and a ribbon cable that connects to the DSI port present on most Raspberry Pi models. This setup allows the display to be powered directly from the Raspberry Pi, eliminating the need for a separate power supply. The display's compatibility with the latest Raspbian OS provides touchscreen drivers with support for an on-screen keyboard, enabling full functionality without the need for a physical keyboard or mouse.
The Raspberry Pi 7 inch touchscreen display is compatible with most models of the Raspberry Pi, except for the Raspberry Pi Zero and Zero 2 W, which lack a DSI connector. Additionally, it is not compatible with the Raspberry Pi 400, as this model also does not have a DSI display connector. For older models like the original Raspberry Pi Model A or B, compatibility may require additional cables to connect to the i2c GPIO pins, but this is generally feasible with some extra setup.
The display is highly versatile and can be used in a variety of projects, including tablets, infotainment systems, home automation devices, and educational tools. Its portability and ease of setup make it ideal for DIY enthusiasts and educators alike. The touchscreen functionality allows for precise and multi-fingered gestures, making it suitable for applications that require interactive interfaces.
Beyond its basic functionality, the Raspberry Pi 7 inch touchscreen display can be used in a wide range of advanced projects. For instance, it can serve as the interface for a home automation system, allowing users to control lighting, temperature, and security systems with a touch. In educational settings, it can be used to create interactive learning tools, such as digital whiteboards or interactive science experiments.
Moreover, the display can be integrated into robotics projects, providing a visual interface for robots to interact with their environment. For example, a robot equipped with the touchscreen can display maps, show sensor data, or even allow users to input commands directly through the touch interface.
The versatility of the Raspberry Pi 7 inch touchscreen display also lies in its ability to integrate with other hardware components. For example, it can be paired with cameras to create surveillance systems or with sensors to monitor environmental conditions. The display can also be used in conjunction with external speakers to enhance audio output, making it suitable for multimedia applications.
One of the most appealing aspects of the Raspberry Pi ecosystem is the ability to customize and develop software and hardware components. The 7 inch touchscreen display is no exception. Developers can create custom applications using Python or other programming languages to leverage the display's capabilities fully. For instance, a developer might create a custom GUI for a specific application, optimizing the layout and functionality for the touchscreen interface.
Additionally, the display can be used as a testing platform for developing new user interfaces or interactive applications. Its affordability and ease of setup make it an ideal choice for prototyping and testing ideas before moving to more complex or expensive platforms.
In educational settings, the Raspberry Pi 7 inch touchscreen display offers a powerful tool for teaching programming and electronics. Students can use the display to create interactive projects that combine programming skills with physical computing. For example, students might build a simple game that uses the touchscreen for input or create an interactive quiz that tests knowledge in a fun and engaging way.
The display also supports collaborative learning by allowing multiple students to interact with the same device simultaneously. This feature can enhance classroom engagement and encourage teamwork among students.
The Raspberry Pi 7 inch touchscreen display has had a significant impact on the maker community by providing an affordable and accessible way to create interactive projects. Makers can use the display to build everything from simple tablets to complex home automation systems, leveraging its ease of use and versatility. The display's compatibility with a wide range of Raspberry Pi models ensures that makers can choose the model that best fits their project needs, whether it's a high-performance model like the Raspberry Pi 5 or a more budget-friendly option like the Raspberry Pi 3.
Moreover, the display has fostered collaboration within the maker community. Projects that utilize the touchscreen often involve sharing code, designs, and ideas, which helps to build a sense of community and encourages innovation. For example, makers might share custom GUI designs or scripts for integrating the display with other hardware components, helping others to overcome common challenges and achieve their project goals.
The Raspberry Pi 7 inch touchscreen display plays a crucial role in fostering innovation by providing a platform for prototyping and testing new ideas. Its affordability and ease of setup make it an ideal choice for entrepreneurs and inventors who want to quickly develop and test interactive prototypes without significant upfront costs.
In addition, the display's integration with other technologies, such as machine learning and IoT devices, opens up new avenues for innovation. For instance, developers can use the display to create interactive interfaces for AI-powered projects or to visualize data from IoT sensors, enhancing the user experience and providing valuable insights.
By facilitating rapid prototyping and testing, the Raspberry Pi 7 inch touchscreen display helps to accelerate the development cycle, allowing innovators to refine their ideas more quickly and move them closer to market readiness.
Looking ahead, there are several potential developments that could further enhance the capabilities of the Raspberry Pi 7 inch touchscreen display. For example, future updates to the Raspbian OS could include improved touchscreen drivers or support for higher resolution displays, expanding the display's potential applications.
Additionally, advancements in hardware technology could lead to the development of new display models with higher resolutions or more advanced features, such as gesture recognition or voice command integration. Such developments would not only improve the user experience but also open up new possibilities for interactive applications.
In conclusion, the Raspberry Pi 7 inch touchscreen display is a powerful tool that has made a significant impact on the maker community and continues to foster innovation. Its versatility, affordability, and ease of use make it an ideal choice for a wide range of projects, from simple DIY endeavors to complex industrial applications.
As technology continues to evolve, it will be exciting to see how the Raspberry Pi 7 inch touchscreen display adapts and improves, offering even more opportunities for creativity and innovation in the future.
In conclusion, the Raspberry Pi 7 inch touchscreen display is a versatile and interactive tool that is compatible with most Raspberry Pi models, excluding the Raspberry Pi Zero series and the Raspberry Pi 400. Its features, such as 10-finger capacitive touch and an on-screen keyboard, make it ideal for creating standalone devices like tablets and infotainment systems. While it has limitations in terms of resolution and compatibility with newer models, it remains a valuable option for projects prioritizing portability and interactivity.
The display's potential extends beyond basic applications, offering opportunities for advanced projects in home automation, robotics, and education. Its ability to integrate with other hardware components and its customization capabilities make it a powerful tool for developers and educators alike.
The display is compatible with most Raspberry Pi models, including the Raspberry Pi 2, 3, 4, and 5. However, it is not compatible with the Raspberry Pi Zero series or the Raspberry Pi 400 due to the lack of a DSI connector on these models.
No, the display can be powered directly from the Raspberry Pi via the GPIO ports, eliminating the need for an external power supply. However, for some setups, using a separate power supply may be beneficial to ensure stable power distribution.
Generally, calibration is not required as the touchscreen drivers are integrated into the latest Raspbian OS, providing accurate touch detection out of the box. However, if issues arise, calibration might be necessary to optimize performance.
Yes, the display supports an on-screen keyboard, allowing users to operate the Raspberry Pi without needing a physical keyboard or mouse. This feature is particularly useful for creating standalone devices or tablets.
The main limitations include its resolution of 800x480 pixels, which may seem outdated compared to modern displays, and the potential fragility of the display edges. Additionally, it may not be compatible with the latest Raspberry Pi boards without additional adapters.
