China has become a global hub for the design and manufacture of the 7 Inch Capacitive Touch Screen used in industrial HMI, medical devices, automotive dashboards, smart home terminals, and consumer electronics. For overseas buyers, working with leading Chinese 7 Inch Capacitive Touch Screen Manufacturers means access to mature supply chains, strong customization capabilities, and highly competitive pricing.A 7 Inch Capacitive Touch Screen combines a compact footprint with enough display area for sophisticated user interfaces, multi‑page menus, and gesture control. From factory production lines to smart appliances, the 7 Inch Capacitive Touch Screen has become a de‑facto standard size for embedded systems and smart devices around the world.
The 7‑inch diagonal format offers an excellent balance between space efficiency and usability. A 7 Inch Capacitive Touch Screen is big enough to show several widgets, trend curves, and soft keys, yet small enough to fit into tight housings such as handheld terminals, wall‑mounted controllers, and compact kiosks. Engineers appreciate that a 7 Inch Capacitive Touch Screen can be installed in enclosures where larger displays are impractical but smaller screens would compromise readability.This size also aligns well with common 16:9 or 16:10 aspect ratios, which makes UI layout and software development easier. Standard resolutions such as 800×480 and 1024×600 are widely supported by microcontrollers, industrial PCs, and embedded boards, so integrating a 7 Inch Capacitive Touch Screen is straightforward for most hardware platforms. The availability of many off‑the‑shelf 7‑inch modules further reduces development risk and cost.

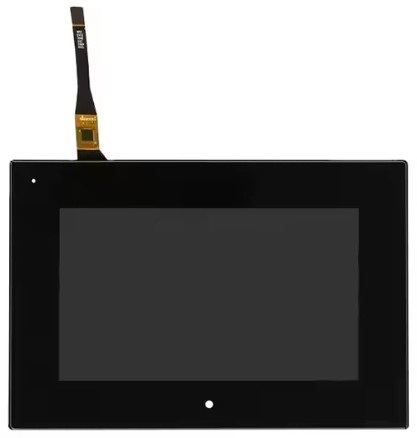

A modern 7 Inch Capacitive Touch Screen generally adopts projected capacitive (PCAP) technology. In this structure, transparent conductive electrodes are patterned on glass or film layers and driven by a dedicated touch controller IC. When a finger or conductive stylus approaches the surface, it changes the local electric field, and this variation is detected as a touch event by the controller.Compared with older resistive technology, a 7 Inch Capacitive Touch Screen offers higher light transmission, multi‑touch capability, and a smoother glass surface that is easy to clean and more resistant to wear. Multi‑touch gestures such as pinch‑to‑zoom, two‑finger scrolling, and rotation can be implemented, which improves the interaction experience in both industrial and consumer applications. For OEMs, this combination of durability and user‑friendly operation explains why the 7 Inch Capacitive Touch Screen has become the standard choice.
When selecting a 7 Inch Capacitive Touch Screen, buyers should understand the typical technical parameters:- Resolution and brightness: Most 7‑inch TFTs paired with a 7 Inch Capacitive Touch Screen use 800×480 or 1024×600 resolution, with brightness levels from about 350 nits for indoor use to 800–1000 nits or more for outdoor or high‑ambient‑light environments.- Viewing angles and panel type: IPS technology is commonly used to provide wide viewing angles, good color reproduction, and stable contrast, which is essential when a 7 Inch Capacitive Touch Screen is viewed from different positions.- Touch structure: Typical stack‑ups include GG (glass‑glass), GFF (glass‑film‑film), GF (glass‑film), or other combinations. A GG‑type 7 Inch Capacitive Touch Screen offers better mechanical strength, while GFF can be thinner and lower cost.Other important parameters include cover glass thickness, surface hardness, optical treatments such as anti‑glare (AG), anti‑reflection (AR), and anti‑fingerprint (AF), and the number of supported touch points. These details determine whether a 7 Inch Capacitive Touch Screen can tolerate harsh environments, frequent operation, and demanding optical requirements.
Most 7 Inch Capacitive Touch Screen solutions use I⊃2;C or USB as the interface between the touch panel and the host system. I⊃2;C is typically preferred in compact embedded boards because it uses fewer pins and is simple to integrate with microcontrollers and SoCs. USB is common in industrial panel PCs, where the 7 Inch Capacitive Touch Screen is connected like a standard HID input device.Touch controller ICs from vendors such as Goodix, FocalTech, ILITEK, EETI, Microchip, and others are often used in Chinese 7 Inch Capacitive Touch Screen modules. These controllers support advanced features like noise suppression, water rejection, glove mode, and palm rejection. Firmware tuning at the factory side ensures that the 7 Inch Capacitive Touch Screen maintains stable performance under EMI, temperature changes, and noisy power conditions.
The following sections introduce 10 representative manufacturers and solution providers in China that can supply or integrate a 7 Inch Capacitive Touch Screen for global customers.
Beijing DWIN Technology is a well‑known provider of intelligent HMI solutions that combine TFT displays, embedded systems, and touch panels, including 7 Inch Capacitive Touch Screen modules. The company offers 7‑inch LCD screens, 7‑inch touch panels, and complete smart HMI units that are widely adopted in medical devices, industrial automation, smart home systems, and vending machines.A major advantage of working with DWIN is that its 7 Inch Capacitive Touch Screen products are often integrated with its own DGUS or Linux platforms, enabling rapid UI development and shortening overall project cycles. DWIN provides detailed documentation, development tools, and after‑sales engineering support, which is valuable for OEMs requiring turnkey 7 Inch Capacitive Touch Screen solutions rather than only bare components.
Reshine Display specializes in projected capacitive (PCAP) technology and offers custom 7 Inch Capacitive Touch Screen panels alongside a wide range of other sizes. The company is experienced in designing PCAP structures in GG, GFF, GF, and other stack‑ups, allowing customers to balance impact resistance, thickness, and cost according to their project requirements.For a 7 Inch Capacitive Touch Screen, Reshine can select from various controller ICs and optimize firmware to support features such as water tolerance, glove operation, and high‑sensitivity modes. It also offers AG/AR/AF surface treatments and supports both air bonding and optical bonding with matching 7‑inch TFT LCDs. This makes Reshine a strong partner for industrial and outdoor applications where the 7 Inch Capacitive Touch Screen must operate reliably in difficult conditions.
RXTP LCD is a TFT LCD and touch solution provider with a product line that includes a 7‑inch projected multi‑touch 7 Inch Capacitive Touch Screen in a G+G structure. This design uses a glass cover and glass sensor to provide high durability and good light transmission, making it suitable for handheld terminals, industrial equipment, and smart home devices that may face mechanical stress.By pairing its 7 Inch Capacitive Touch Screen with a range of 7‑inch TFT panels, RXTP can customize brightness, viewing angle, and interface while maintaining a consistent mechanical outline. This helps OEMs standardize on a single 7 Inch Capacitive Touch Screen cut‑out across multiple product variants, simplifying mechanical design and inventory management.
Shenzhen Dingtouch is a professional manufacturer of capacitive touch screens, including various 7‑inch models. The company focuses on custom cover glass designs, decorative borders, and different glass thickness options, so buyers can obtain a 7 Inch Capacitive Touch Screen that matches both mechanical requirements and brand identity.With flexible production capabilities, Dingtouch can support small to medium volume orders and adapt lead times to international customers. OEMs that need a customized front panel with logo printing, special shapes, or specific mounting requirements often choose Dingtouch as their 7 Inch Capacitive Touch Screen supplier.
Chenghao LCD specializes in small‑size TFT displays and touch modules and is known for providing IPS 7‑inch TFT LCDs with optional 7 Inch Capacitive Touch Screen integration. Its products target applications such as outdoor terminals, instrument panels, and high‑end consumer devices where sunlight readability and wide viewing angles are important.A typical Chenghao 7 Inch Capacitive Touch Screen assembly combines a high‑brightness IPS panel with a bonded PCAP touch panel and robust cover glass. This design supports stable operation in high‑temperature or high‑humidity environments and can be customized with specific brightness, interface, and mechanical dimensions based on customer needs.
CJTouch has a long history in touch technologies, from surface acoustic wave (SAW) and infrared to modern PCAP solutions. Although many of its references highlight larger electrodes for digital signage and kiosks, the company also supports smaller sizes that can be configured as a 7 Inch Capacitive Touch Screen.For OEMs that need consistent PCAP technology from small embedded devices through to large interactive displays, CJTouch can act as a unified partner. By using similar controller families, firmware concepts, and design rules across different sizes, customers can streamline driver integration and long‑term maintenance of their 7 Inch Capacitive Touch Screen and larger systems.
Future Displays offers a 7‑inch 1024×600 TFT LCD module with an optional capacitive touch screen, effectively forming a compact 7 Inch Capacitive Touch Screen display unit. Typical specifications include mid‑range brightness, LVDS or RGB interfaces, and an available PCAP sensor for multi‑touch interaction.For buyers who want a standard, well‑defined 7 Inch Capacitive Touch Screen module with moderate customization, Future Displays provides a practical starting point. Its modules can be deployed in industrial control panels, multimedia players, smart terminals, and other projects where design speed and stable supply are critical.
On mainstream B2B platforms, numerous audited factories and trading companies present OEM 7‑inch TFT LCD modules with capacitive or resistive touch options. A typical listing describes an 800×480 or 1024×600 7 Inch Capacitive Touch Screen with 500–1000 nits brightness, optional controller boards, and different touch structures.These suppliers are useful for price comparison and initial sourcing of 7 Inch Capacitive Touch Screen solutions, especially at early project stages. Buyers should carefully review company backgrounds, certifications, and customer reviews, and then request physical samples and test reports before confirming mass production.
TPI Tech presents itself as a dedicated capacitive touch panel manufacturer with a standard size list that includes 7‑inch PCAP touch panels. Its standard products can often be used directly as a 7 Inch Capacitive Touch Screen in kiosks, all‑in‑one PCs, and industrial control fronts with only minor adaptation.If the standard size list does not fully match the customer's design, TPI Tech can offer customization of the 7 Inch Capacitive Touch Screen, such as changing the cover glass outline, thickness, or printed border. This combination of standardization and custom capability helps shorten projects while still achieving the desired mechanical fit.
A number of Chinese POS and industrial panel PC manufacturers also act as integrators of 7 Inch Capacitive Touch Screen technology. Instead of selling bare touch panels or open‑frame modules, they deliver complete terminals that combine a 7‑inch display, 7 Inch Capacitive Touch Screen, motherboard, enclosure, and pre‑installed software.For some buyers, especially in retail, hospitality, and self‑service sectors, this approach greatly simplifies procurement and certification. Rather than integrating a 7 Inch Capacitive Touch Screen at the component level, they can purchase a ready‑to‑deploy device, reducing engineering effort and accelerating time‑to‑market.
The versatility of the 7 Inch Capacitive Touch Screen explains its presence in many different application scenarios. In industrial automation, it is widely used as the front‑end of HMI panel PCs, PLC operator panels, and small SCADA terminals. Operators can monitor process variables, adjust setpoints, and acknowledge alarms by interacting directly with the 7 Inch Capacitive Touch Screen.In the commercial and consumer fields, a 7 Inch Capacitive Touch Screen is frequently integrated into POS systems, cashier terminals, smart vending machines, and interactive digital signage. It also appears in smart home controllers, HVAC thermostats, and lighting control panels, where the responsive PCAP touch interface and vivid graphics enhance user satisfaction. In automotive and transportation, 7‑inch center stacks or entertainment screens rely on 7 Inch Capacitive Touch Screen technology to provide intuitive control in tight dashboard spaces.
Proper mechanical and electrical integration is essential to extract full performance from a 7 Inch Capacitive Touch Screen. Mechanically, the front bezel must support the cover glass without applying excessive stress that could cause cracking or reduce sensitivity. Designers should follow the supplier's recommended gasket and bonding guidelines to maintain a uniform gap and avoid warping the touch panel.Electrically, the 7 Inch Capacitive Touch Screen controller must be placed and routed with care to minimize noise coupling from power electronics, motors, and high‑speed digital signals. Careful PCB layout, proper grounding, and shielding are important to keep the touch signal stable. In firmware, tuning the controller parameters for environment, glove use, and moisture conditions ensures that the 7 Inch Capacitive Touch Screen remains responsive but not overly sensitive. Early collaboration with the touch manufacturer can greatly simplify this optimization process.
When selecting a Chinese 7 Inch Capacitive Touch Screen manufacturer, buyers should start by examining company track record, export experience, and certifications. ISO‑certified factories with proven shipments to Europe, North America, or other regions are generally better prepared for international quality and compliance expectations. Long‑term availability commitments and clear EOL (end‑of‑life) policies are valuable for industrial customers who need stable supply for many years.Technical capabilities and support also matter. A reliable 7 Inch Capacitive Touch Screen supplier should offer detailed drawings, 3D models, electrical schematics, and reference firmware. The ability to customize cover glass shape, add logo printing, modify interface boards, and fine‑tune touch performance is critical for OEM projects. Requesting samples, conducting environmental and EMC tests, and visiting the factory (or arranging a remote audit) are effective ways to evaluate whether a supplier is a good long‑term partner for 7 Inch Capacitive Touch Screen business.
The 7 Inch Capacitive Touch Screen has evolved into a core building block for today's industrial, commercial, automotive, and smart home devices. China's extensive ecosystem of touch panel manufacturers, TFT module suppliers, and system integrators allows global buyers to choose from standard or heavily customized 7 Inch Capacitive Touch Screen solutions, depending on project requirements. By carefully evaluating technical specifications, quality systems, customization capabilities, and engineering support, OEMs and system integrators can confidently select Chinese partners that provide reliable, long‑life 7 Inch Capacitive Touch Screen products and help them succeed in competitive global markets.
A 7 Inch Capacitive Touch Screen is a touch panel designed to fit a 7‑inch display and based on projected capacitive technology. It uses transparent electrodes and a controller IC to detect changes in capacitance when a finger or conductive stylus approaches the surface.
Most 7 Inch Capacitive Touch Screen modules are paired with 800×480 or 1024×600 TFT LCDs, though other resolutions exist for special applications. Brightness typically ranges from around 350 nits for indoor use up to 800–1000 nits or higher for outdoor or semi‑outdoor environments.

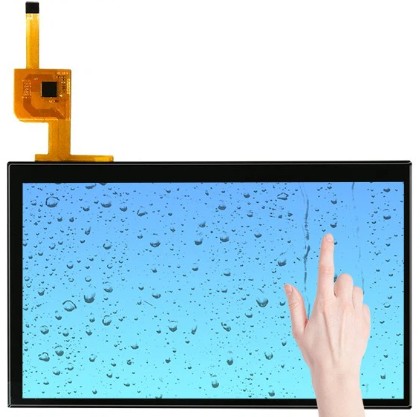

Yes, many industrial 7 Inch Capacitive Touch Screen designs can be tuned to operate with thick gloves or in the presence of water droplets. This is achieved by adjusting controller sensitivity, filtering algorithms, and sometimes by selecting specific controller ICs optimized for harsh conditions.
Buyers should compare certifications, export experience, sample quality, response time, and engineering support when choosing a 7 Inch Capacitive Touch Screen partner. It is recommended to qualify at least two suppliers, run reliability tests on their samples, and check their ability to handle customizations and long‑term supply before confirming a strategic cooperation.
Compared with resistive panels, a 7 Inch Capacitive Touch Screen offers higher light transmission, a smooth glass surface, and multi‑touch capability for gestures and richer UI interactions. It typically provides better durability against scratches, a more modern look, and a more responsive, smartphone‑like user experience that many end users now expect.
