The Raspberry Pi 7 Touchscreen Display is a popular accessory that enhances the Raspberry Pi experience by providing a compact, interactive display solution. This article presents a comprehensive raspberry pi 7 touchscreen display review, exploring its advantages and disadvantages, technical specifications, practical applications, and user insights. The goal is to provide an in-depth understanding of this device, helping enthusiasts and professionals decide if it fits their project needs.

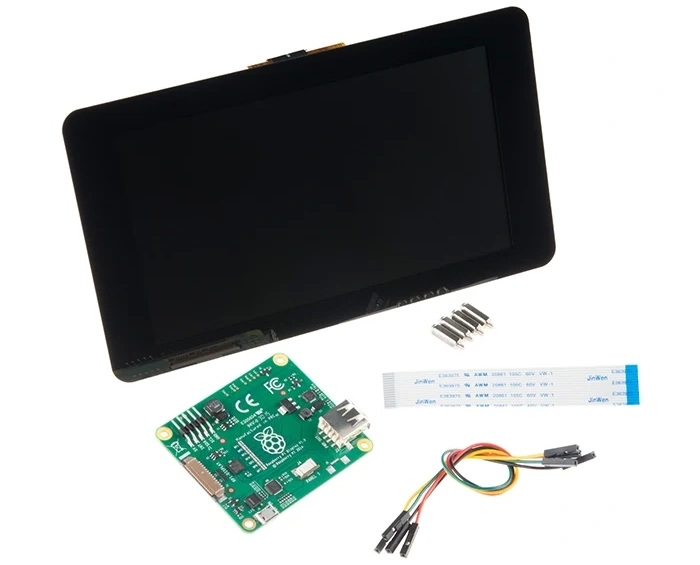

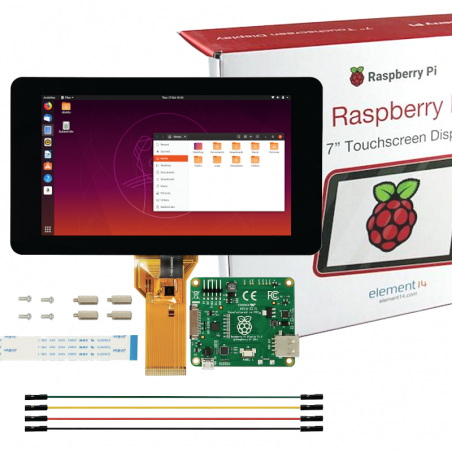

The official Raspberry Pi 7-inch touchscreen display features a 7-inch diagonal screen with an 800 x 480 pixel resolution. It uses a capacitive multi-touch panel supporting up to 10 simultaneous touch points, enabling intuitive gestures like pinch-to-zoom and swiping. The display connects via a DSI (Display Serial Interface) ribbon cable to compatible Raspberry Pi models and is powered through the Pi's GPIO pins, eliminating the need for an external power supply. Raspberry Pi OS provides native driver support, including an on-screen keyboard, making it a plug-and-play solution for most users.
- Screen size: 7 inches diagonal
- Resolution: 800 x 480 pixels
- Touch technology: Capacitive multi-touch (up to 10 fingers)
- Color depth: 24-bit true color
- Viewing angle: Wide, suitable for multi-user viewing
- Interface: DSI ribbon cable
- Power: 5V via Raspberry Pi GPIO pins
- Compatibility: Raspberry Pi 2, 3, 4, and 5 (not compatible with Pi Zero or Pi 400)
This combination of features makes the Raspberry Pi 7 touchscreen display a versatile and integrated solution for many Raspberry Pi projects.
One of the standout advantages is the capacitive touch panel that supports up to 10 simultaneous touch points. This allows for complex multi-touch gestures such as pinch, zoom, and multi-finger taps, which significantly enhance user interaction compared to resistive touchscreens. The touch responsiveness is highly accurate and requires no calibration, providing a smooth and intuitive experience for users.
The display connects directly to the Raspberry Pi via the DSI port using a ribbon cable, which reduces cable clutter and simplifies setup. Power is drawn from the Pi's GPIO pins, so no separate power supply is needed. This integration enables a compact and tidy build, ideal for portable or embedded projects.
Raspberry Pi OS includes built-in drivers for the touchscreen, enabling full multi-touch functionality and an on-screen keyboard without additional software installation. This plug-and-play experience makes it accessible even for beginners and reduces setup time.
At 7 inches, the display is large enough for comfortable interaction with graphical user interfaces but still compact enough to maintain the portability of Raspberry Pi projects. This size is well-suited for tablets, media players, kiosks, and embedded control panels.
The display consumes roughly 350-390mA at 5V, which is relatively low power for a touchscreen display. This makes it suitable for battery-powered or portable applications where energy efficiency is important.
Despite its modest resolution, the display offers clear and vibrant visuals with 24-bit color depth and wide viewing angles. This ensures content remains visible and sharp from various perspectives, which is beneficial for multi-user setups or devices used in different orientations.
Compared to other touchscreen displays with similar features, the official Raspberry Pi 7-inch touchscreen is priced competitively, balancing cost with functionality and quality. This affordability aligns with the Raspberry Pi Foundation's goal of providing accessible technology.
The 800 x 480 pixel resolution is relatively low compared to modern tablet displays or some third-party Raspberry Pi screens. While sufficient for many applications, it may not provide the sharpness or detail required for high-definition video playback or detailed graphical work.
The touchscreen is not compatible with Raspberry Pi Zero, Zero 2 W, or Pi 400 models due to the absence of a DSI connector. This limits its use to Raspberry Pi 2, 3, 4, and 5 models. Users with unsupported models must seek alternative displays or additional adapters, which can complicate projects.
Since the display uses the DSI port and requires power from GPIO pins, it occupies these interfaces, potentially limiting other hardware expansions or requiring careful planning to integrate additional peripherals.
The included adapter board manages power and signal conversion but adds some bulk to the assembly. While it simplifies connections, it may not fit all custom enclosures or compact designs without modifications.
Though Raspberry Pi OS supports the display natively, some users report occasional glitches or issues with backlight control, power management, or driver conflicts, especially when using alternative kernels or advanced configurations. Troubleshooting may require familiarity with Raspberry Pi's software environment.
The display itself does not include speakers or audio output, so users must rely on the Raspberry Pi's audio jack or external audio solutions for sound, which can add complexity to multimedia projects.
The official 7-inch touchscreen display unlocks a wide range of project possibilities:
- Portable Tablets and Media Players: Create custom tablets or media centers with touch controls for navigation and playback.
- Home Automation Interfaces: Develop smart home control panels with visual feedback and direct touch input.
- Educational Tools: Run interactive educational software that benefits from touch interaction.
- Embedded Systems and Kiosks: Build information kiosks, control panels, or digital signage with integrated touchscreens.
- Gaming Consoles: Combine with emulators and touch-enabled menus for portable gaming devices.
- IoT Dashboards: Monitor and control IoT devices with intuitive touch interfaces.

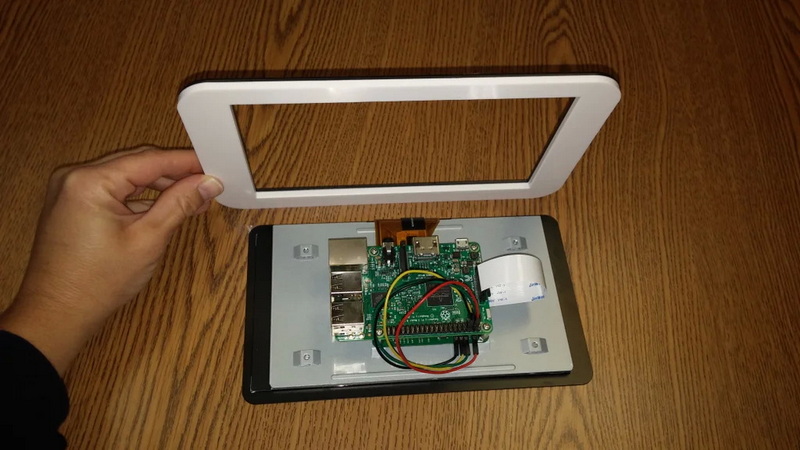

The setup process is straightforward:
1. Update your Raspberry Pi OS to the latest version to ensure driver compatibility.
2. Connect the DSI ribbon cable from the display to the Raspberry Pi's DSI port.
3. Connect the power jumper wires from the display's adapter board to the Raspberry Pi's GPIO pins.
4. Power on the Raspberry Pi; the display should initialize automatically with full touch support.
5. Use the on-screen keyboard and multi-touch gestures without additional configuration.
For troubleshooting, verify all connections are secure, ensure sufficient power supply, and keep the OS updated.
The Raspberry Pi 7 Touchscreen Display is a well-designed, affordable, and versatile accessory that significantly enhances the Raspberry Pi ecosystem. Its true multi-touch capacitive technology, seamless integration, and native software support make it ideal for a broad spectrum of projects, from portable tablets to embedded control panels. While its resolution and compatibility limitations may affect some users, the overall benefits outweigh the drawbacks for most applications. This raspberry pi 7 touchscreen display review highlights that for users seeking an official, reliable, and easy-to-use touchscreen solution, this display remains a top choice.
The display is compatible with Raspberry Pi 2, 3, 4, and 5 models. It is not compatible with Raspberry Pi Zero, Zero 2 W, or Pi 400 because these models lack the required DSI display connector.
Yes, it supports true capacitive multi-touch with up to 10 simultaneous touch points, enabling gestures such as pinch-to-zoom, swiping, and multi-finger taps.
The display draws power directly from the Raspberry Pi's GPIO pins through jumper wires connected to the adapter board. No separate power supply is necessary.
No additional software installation is needed if you use the latest Raspberry Pi OS, which includes native drivers and an on-screen keyboard for full touchscreen functionality.
Yes, the display is energy efficient, consuming approximately 350-390mA at 5V, making it suitable for portable and battery-powered applications with proper power management.
