Calibrating a touchscreen on a Raspberry Pi is essential for ensuring accurate touch input, especially when using it as an interactive display or control panel. The Raspberry Pi 7-inch touchscreen is a popular choice for projects requiring user interaction due to its size and functionality. However, like any touchscreen device, it may require calibration to ensure that the touch input aligns perfectly with the on-screen elements. In this article, we will explore the steps to calibrate a Raspberry Pi 7-inch touchscreen and address common issues that may arise during the process.
The calibration process involves adjusting the touchscreen's sensitivity and alignment so that the cursor or pointer on the screen accurately reflects the user's touch input. This is typically achieved using software tools that guide the user through a series of touch points on the screen to gather calibration data. The process is straightforward but requires careful attention to detail to achieve precise results.
Before starting the calibration, ensure your Raspberry Pi is properly set up with the latest version of the operating system. This includes updating the system and installing necessary packages. For most touchscreens, you will need to install calibration tools and possibly other dependencies. It's also important to ensure that your Raspberry Pi is connected to a stable power source and that all cables are securely connected to avoid any disruptions during the calibration process.
To calibrate your touchscreen, follow these detailed steps:
1. Update Your System: Ensure your Raspberry Pi is connected to the internet and update your system to the latest version. This step is crucial as it ensures that you have the most recent software and drivers available for your touchscreen.
2. Install Calibration Tools: Install the necessary calibration tools. These tools are designed to help you align the touch input with the on-screen elements accurately.

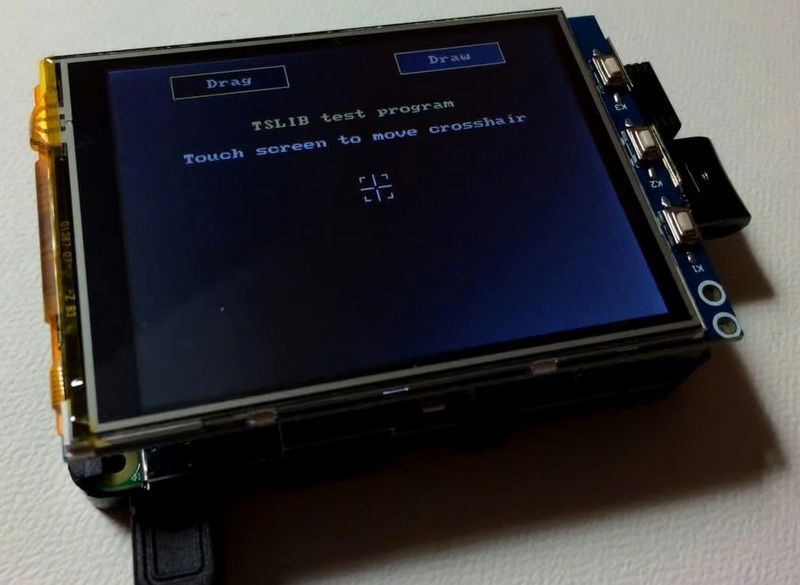

3. Run the Calibration Tool: Execute the calibration tool. This will open a calibration interface where you need to touch four points on the screen. These points are usually located at the corners of the screen, and touching them helps the system understand how to map touch inputs to screen coordinates.
4. Save Calibration Data: After completing the calibration, the tool will display new touch parameters. You may need to save these into a configuration file. This file tells the system how to interpret touch inputs based on the calibration data.
5. Reboot Your Raspberry Pi: Finally, reboot your Raspberry Pi to apply the calibration settings. This ensures that the new calibration data is loaded into memory and used by the system.
If your touchscreen is not recognized by the Raspberry Pi, ensure that it is properly connected and that the necessary drivers are installed. For USB touchscreens, check the system logs to verify recognition. Sometimes, a simple reboot can resolve connectivity issues.
Sometimes, the calibration points may appear off-screen, especially if the screen resolution or orientation is not correctly set. Adjusting the calibration window size can help resolve this issue. Ensure that the screen resolution matches the touchscreen's native resolution for optimal performance.
If the calibration is inaccurate, try recalibrating the touchscreen multiple times to improve precision. Ensure that the screen is clean and free from protective covers that might interfere with touch sensitivity. Also, avoid touching the screen with multiple fingers simultaneously during calibration, as this can skew the results.
If the calibration settings are not applied after rebooting, check that the configuration file is correctly formatted and saved in the right location. Ensure that the file permissions allow the system to read the file. Sometimes, manually editing the configuration file can resolve issues related to calibration data not being applied.
For systems using Wayland instead of X11, calibration might not work as expected since most calibration tools are designed for X11. In such cases, consider using manual adjustments to touch settings. This may involve editing system files to apply calibration data directly.
In addition to the basic calibration steps, there are advanced techniques that can further improve touch accuracy. These include using specialized software that allows for more precise control over touch sensitivity and alignment. Some users also experiment with different screen orientations to optimize touch performance for specific applications.
Customizing touch sensitivity can be beneficial for applications where precise touch input is critical. This might involve adjusting the touchscreen's response to different types of touch inputs, such as taps versus swipes. Advanced calibration tools can provide options for fine-tuning these settings.
While `xinput_calibrator` is widely used, there are other tools available that offer different features and interfaces. Some users prefer graphical tools that provide a more intuitive calibration experience, while others opt for command-line tools for their simplicity and flexibility.
A well-calibrated touchscreen can significantly enhance the user experience in various applications. For instance, in interactive kiosks, precise touch input ensures that users can navigate menus and select options accurately. In educational settings, calibrated touchscreens can provide an engaging and responsive interface for interactive learning tools.
In applications where user interaction is critical, such as in retail or hospitality environments, a calibrated touchscreen can make a significant difference. It ensures that users can quickly and accurately access information or perform transactions, which can lead to higher customer satisfaction and loyalty.
Beyond the common issues discussed earlier, there are other potential problems that may arise during calibration or use. These include issues related to screen brightness, touch sensitivity in different environmental conditions, and compatibility with various software applications.
Environmental factors such as temperature and humidity can affect touchscreen performance. In some cases, recalibrating the touchscreen under different conditions may be necessary to ensure consistent performance. Additionally, using protective covers or applying screen treatments can sometimes interfere with touch sensitivity, requiring adjustments to calibration settings.
Ensuring that your touchscreen is compatible with the software you are using is crucial. Some applications may require specific touch settings or calibration profiles to function optimally. In such cases, consulting the software documentation or contacting the developer for guidance can be helpful.
By addressing these additional considerations and troubleshooting techniques, you can further optimize your touchscreen's performance and ensure that it meets the needs of your project or application.
Calibrating a Raspberry Pi 7-inch touchscreen is a straightforward process that requires careful attention to detail to ensure accurate touch input. By following the steps outlined and addressing common issues, you can achieve precise touch functionality for your projects. Whether you're building an interactive display or a control panel, a well-calibrated touchscreen is essential for user satisfaction and project success.
Calibration ensures that the touch input aligns accurately with the on-screen elements, providing a better user experience.
The `xinput_calibrator` tool is widely used for calibrating touchscreens on Raspberry Pi.
You can install them by using the package manager to download and install the necessary software.
Adjust the calibration window size to ensure that all points are visible and accessible.
Yes, calibration tools are often designed for X11, and Wayland may require manual adjustments to apply calibration data.
