The 1388955 Raspberry Pi 7 Zoll Touchscreen Display rb-LCD-7 is a widely acclaimed accessory designed to enhance the Raspberry Pi experience by providing a compact, interactive, and versatile display solution. This 7-inch touchscreen display combines robust hardware features with seamless software integration, making it ideal for a broad range of projects from tablets and media players to embedded control systems and information dashboards. In this comprehensive article, we will explore the top features of the 1388955 Raspberry Pi 7 Zoll Touchscreen Display rb-LCD-7, its technical specifications, practical benefits, and why it remains a popular choice among Raspberry Pi enthusiasts.
The 1388955 Raspberry Pi 7 Zoll Touchscreen Display rb-LCD-7 features a 7-inch diagonal screen with an 800 by 480 pixel resolution. This size strikes a perfect balance between usability and portability, offering enough screen real estate for comfortable interaction with graphical user interfaces while maintaining the compactness expected from Raspberry Pi projects. The active display area measures approximately 154mm by 86mm, providing a crisp and clear visual experience suitable for a variety of applications.
One of the standout features of this display is its true multi-touch capacitive touch panel. It supports up to 10 simultaneous touch points, enabling complex gestures such as pinch-to-zoom, swiping, and multi-finger taps. This multi-touch capability significantly enhances user interaction compared to single-touch or resistive touchscreens, making it ideal for interactive applications like tablets, kiosks, and control panels. The touch response is highly accurate and requires no calibration, providing a smooth and intuitive user experience.

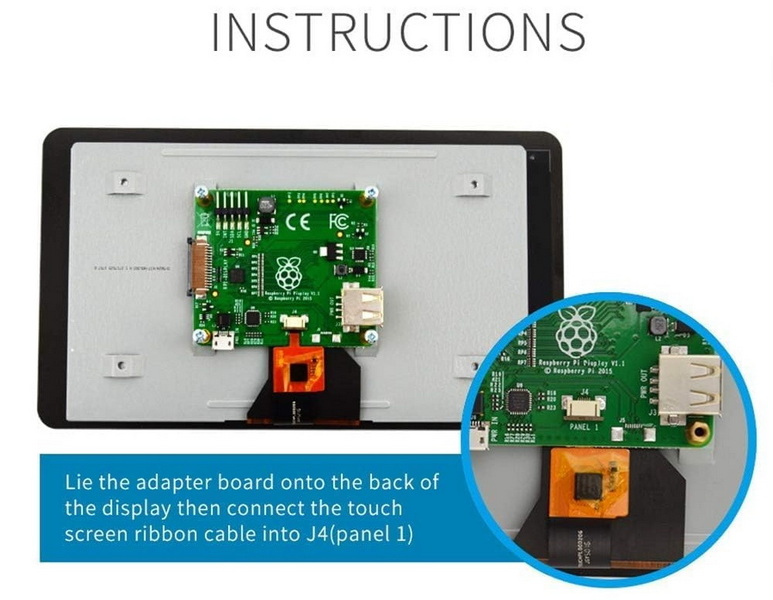

The 1388955 Raspberry Pi 7 Zoll Touchscreen Display rb-LCD-7 connects to the Raspberry Pi via a DSI (Display Serial Interface) ribbon cable, which handles the data transmission. Power is supplied through the Raspberry Pi's GPIO pins, eliminating the need for an external power supply and reducing cable clutter. This integration allows for a clean, compact setup that is easy to assemble and maintain. The adapter board included with the display manages power and signal conversion efficiently, ensuring stable operation.
Raspberry Pi OS provides native driver support for the 1388955 Raspberry Pi 7 Zoll Touchscreen Display rb-LCD-7, including multi-touch functionality and an on-screen keyboard. This means users can operate the display fully without needing a physical keyboard or mouse, which is particularly useful for portable or embedded projects. The plug-and-play nature of the display reduces setup time and complexity, making it accessible even to beginners.
The display consumes approximately 350 to 390mA at 5 volts, which is relatively low power consumption for a touchscreen display of this size. This energy efficiency makes the 1388955 Raspberry Pi 7 Zoll Touchscreen Display rb-LCD-7 suitable for battery-powered or portable applications where conserving energy is critical. Its compact form factor and power management features make it an excellent choice for mobile projects or devices that require long operating times without frequent recharging.
Despite its modest resolution, the display offers vibrant colors with 24-bit true color depth and wide viewing angles. This ensures that the screen content remains clear and visible from various perspectives, which is beneficial for multi-user environments or devices used in different orientations. The screen also features an anti-glare surface treatment that improves visibility in bright conditions.
The 1388955 Raspberry Pi 7 Zoll Touchscreen Display rb-LCD-7 is built with a TFT LCD panel that is normally white and transmissive, backed by an LED backlight for bright and consistent illumination. The assembly includes mounting hardware such as stand-offs and screws, allowing for secure installation in custom enclosures or projects. While the display edges require careful handling due to their delicate nature, the overall build quality is robust and reliable.
| Feature | Specification |
|---|---|
| Display Size (Diagonal) | 7 inches |
| Resolution | 800 x 480 pixels |
| Active Area | 154.08 mm x 85.92 mm |
| Touch Technology | True multi-touch capacitive (up to 10 fingers) |
| Color Depth | 24-bit true color |
| Viewing Angle | Wide viewing angle |
| Interface | DSI ribbon cable |
| Power Supply | 5V via Raspberry Pi GPIO pins |
| Backlight Type | LED backlight |
| Surface Treatment | Anti-glare |
| Compatible Raspberry Pi Models | Pi 2, Pi 3, Pi 4, Pi 5 (not Pi Zero or Pi 400) |
| Power Consumption | Approximately 350-390mA at 5V |
The multi-touch capacitive technology allows users to interact with their Raspberry Pi projects more naturally and intuitively. This is especially advantageous for applications requiring gesture controls or multi-user input, such as interactive kiosks, home automation panels, or portable tablets.
By drawing power directly from the Raspberry Pi and connecting through the DSI port, the display reduces the need for additional power adapters or complex wiring. This simplifies project design and assembly, making it easier to build clean, compact, and portable devices.
The display's size, touch capabilities, and integration make it suitable for a wide range of projects, including media centers, digital signage, gaming consoles, robotics control interfaces, and educational tools. Its portability and low power consumption further extend its usability to battery-powered and mobile applications.
Compared to other touchscreen displays with similar features, the 1388955 Raspberry Pi 7 Zoll Touchscreen Display rb-LCD-7 offers a competitive price point. It balances affordability with functionality and quality, aligning with the Raspberry Pi Foundation's mission to provide accessible technology.
While the 1388955 Raspberry Pi 7 Zoll Touchscreen Display rb-LCD-7 offers many advantages, there are a few considerations to keep in mind:
- The resolution of 800 x 480 pixels is modest compared to modern tablets or high-definition screens, which may limit its use for detailed graphical work or high-definition video playback.
- The display is not compatible with Raspberry Pi Zero models or the Pi 400 due to the lack of a DSI port on those devices.
- The adapter board adds some bulk to the assembly, which may require custom enclosures or additional modifications for compact builds.
- The screen brightness is fixed and cannot be adjusted, which might affect visibility in extremely bright environments.
The 1388955 Raspberry Pi 7 Zoll Touchscreen Display rb-LCD-7 is a feature-rich, versatile, and user-friendly accessory that significantly enhances the Raspberry Pi experience. Its 7-inch size, true multi-touch capacitive panel, seamless integration, and native software support make it an ideal choice for a wide range of interactive projects. Its energy efficiency and compact design further add to its appeal for portable and embedded applications. While it has some limitations regarding resolution and compatibility, the overall package provides excellent value and functionality for Raspberry Pi users seeking an interactive touchscreen display.
The display is compatible with Raspberry Pi 2, 3, 4, and 5 models. It is not compatible with Raspberry Pi Zero models or the Pi 400 because these lack the required DSI port for connection.
Yes, it features a true multi-touch capacitive touch panel that supports up to 10 simultaneous touch points, enabling gestures like pinch-to-zoom, swiping, and multi-finger taps.
The touchscreen is powered through the Raspberry Pi's GPIO pins, drawing 5 volts directly from the Pi. This eliminates the need for an external power supply and simplifies wiring.
No additional software installation is required. Raspberry Pi OS includes native drivers that support the touchscreen's multi-touch functionality and provide an on-screen keyboard for keyboard-less operation.
Yes, the display is energy efficient, consuming approximately 350-390mA at 5V, making it suitable for portable and battery-powered applications where power conservation is important.
