AMOLED (Active Matrix Organic Light Emitting Diode) capacitive touch screens have become a prominent feature in modern electronic devices, particularly smartphones, tablets, and televisions. This article delves into the meaning of AMOLED capacitive touch screens, exploring their technology, advantages, applications, and how they compare to other display technologies.
AMOLED technology combines two key components: Active Matrix and Organic Light Emitting Diodes.
- Active Matrix: This refers to the use of thin-film transistors (TFTs) that control each pixel individually. This allows for faster refresh rates and better image quality compared to passive matrix displays.
- Organic Light Emitting Diodes: These are organic compounds that emit light when an electric current is applied. Unlike traditional LCDs, which require a backlight, each pixel in an AMOLED display emits its own light, enabling deeper blacks and more vibrant colors.

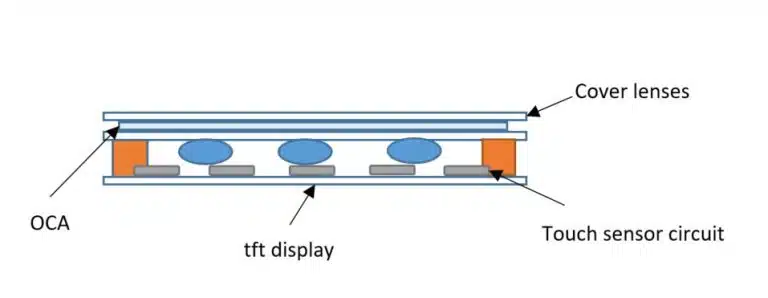

Capacitive touch screens utilize the electrical properties of the human body to detect touch. They consist of several layers:
- A protective outer layer of glass
- A conductive layer beneath it
- A layer of insulation
- A sensor grid that detects changes in capacitance
When a finger touches the screen, it alters the electric field at that point, allowing the device to determine the location of the touch. This technology enables multi-touch capabilities, making it ideal for gestures like pinch-to-zoom.
AMOLED capacitive touch screens offer several advantages over traditional LCDs and resistive touch screens:
- Vibrant Colors and High Contrast: AMOLED displays can produce incredibly rich colors and deep blacks due to their ability to turn off individual pixels completely. This results in contrast ratios that can exceed 100,000:1.
- Better Viewing Angles: Since each pixel emits its own light, the viewing angles on AMOLED screens are significantly better than those on LCDs. Colors remain consistent even at wide angles.
- Faster Refresh Rates: With refresh rates reaching up to 120Hz or more, AMOLED displays provide smooth motion for videos and gaming. The fast response time also enhances touch interactions.
- Low Power Consumption: AMOLED screens consume less power when displaying darker images since pixels can be turned off completely. This feature contributes to longer battery life in mobile devices.
- Thin and Lightweight Design: The absence of a backlight allows for thinner display designs, making devices lighter and more portable.
AMOLED capacitive touch screens are widely used across various devices:
- Smartphones and Tablets: Most flagship smartphones today utilize AMOLED technology for its superior color reproduction and energy efficiency.
- Televisions: High-end TVs often feature AMOLED displays for enhanced picture quality.
- Wearables: Smartwatches benefit from AMOLED technology due to its low power consumption and vibrant displays.
- Automotive Displays: As vehicles become more technologically advanced, AMOLED displays are increasingly used in dashboards and infotainment systems.
To understand how AMOLED capacitive touch screens stack up against other display technologies, consider the following comparison with LCDs:
| Feature | AMOLED Capacitive Touch Screen | LCD |
|---|---|---|
| Light Emission | Self-emitting (no backlight) | Requires backlight |
| Color Depth | High (vivid colors) | Moderate (less vibrant) |
| Black Levels | True black (pixels off) | Dark gray (backlight on) |
| Refresh Rate | Up to 120Hz | Typically 60Hz |
| Power Consumption | Lower with dark images | Higher due to backlight |
| Thickness | Thinner | Thicker |
Despite their popularity, there are several misconceptions about AMOLED displays:
1. Burn-In Issues: Some users worry about burn-in effects where static images leave a permanent mark on the screen. While this can occur with prolonged exposure to static content, it is less common with modern technology improvements.
2. Fragility: While AMOLED displays are thin and lightweight, they are designed with durability in mind. Many devices incorporate protective glass layers to enhance resistance against scratches and impacts.
3. Cost: Although historically more expensive than LCDs, the cost of manufacturing AMOLED displays has decreased over time as technology has advanced.
Capacitive touch screens operate based on the principle of capacitance. When a finger approaches or touches the screen, it creates a change in capacitance at that specific point on the surface. This change is detected by sensors located at the corners of the screen or embedded within it.
The construction of a capacitive touch screen typically includes:
- Glass Panel: The outer layer protects the internal components while allowing for clear visibility.
- Conductive Layer: Made from materials like Indium Tin Oxide (ITO), this layer detects changes in capacitance.
- Sensor Grid: A matrix of electrodes that measure capacitance changes across the surface area of the screen.
This design allows for precise detection of multiple touches simultaneously (multi-touch), enabling complex gestures like swiping or pinching.
Capacitive touch screens have several advantages compared to their resistive counterparts:
- Higher Sensitivity: They require only a light touch to register input, making them more responsive than resistive screens that need pressure.
- Durability: The glass surface is typically more resistant to scratches than plastic overlays used in resistive screens.
- Clarity: Capacitive screens provide better optical clarity since they do not require additional layers that can cause distortion.
- Multi-Touch Support: They can detect multiple points of contact simultaneously, allowing for advanced gesture controls that enhance user experience.
The integration of AMOLED technology into various devices has transformed how we consume media. With its ability to produce stunning visuals with high contrast ratios and vibrant colors, it has become a preferred choice for many manufacturers looking to enhance user experience.
1. Self-Luminous Pixels: Each pixel emits its own light, which allows for true blacks and vibrant colors without needing a backlight.
2. High Dynamic Range (HDR): The capability to display a wider range of colors and brightness levels makes content look more lifelike.
3. Flexibility in Design: The thinness and flexibility of AMOLED panels allow for innovative designs such as curved or foldable screens.
4. Energy Efficiency: Particularly when displaying darker images or themes, as previously mentioned, this feature is crucial for battery-powered devices like smartphones and wearables.
As technology continues to advance, both capacitive touch screens and AMOLED displays are expected to evolve further:
- Improved Durability: New materials may enhance resistance to scratches and impacts while maintaining clarity.
- Enhanced Flexibility: Future developments could lead to even more flexible displays suitable for various applications beyond smartphones.
- Sustainability Initiatives: Manufacturers are increasingly focusing on sustainable production processes for display technologies.
- Integration with Augmented Reality (AR): As AR becomes more prevalent, displays will need to support high resolutions and quick refresh rates without compromising power efficiency.
AMOLED capacitive touch screens represent a significant advancement in display technology, providing users with vibrant colors, deep blacks, faster refresh rates, and energy efficiency. Their application across various devices highlights their versatility and importance in modern electronics. As technology continues to evolve, we can expect further enhancements that will make these displays even more integral to our daily lives.
- While both technologies use organic compounds for light emission, AMOLED includes an active matrix of thin-film transistors for better control over each pixel compared to passive OLED displays.
- Yes, but it must be a compatible capacitive stylus designed specifically for this purpose; regular styluses will not work effectively.
- Because pixels can be turned off completely when displaying black or dark images, AMOLED displays generally consume less power than traditional LCDs, especially when using dark themes or wallpapers.
- Capacitive touch screens are commonly found in smartphones, tablets, kiosks, ATMs, industrial equipment, automotive interfaces, and smart home devices.
- Some disadvantages include potential burn-in issues from static images over time and visibility challenges in direct sunlight compared to some LCDs. However, these issues are being addressed through ongoing technological advancements.
