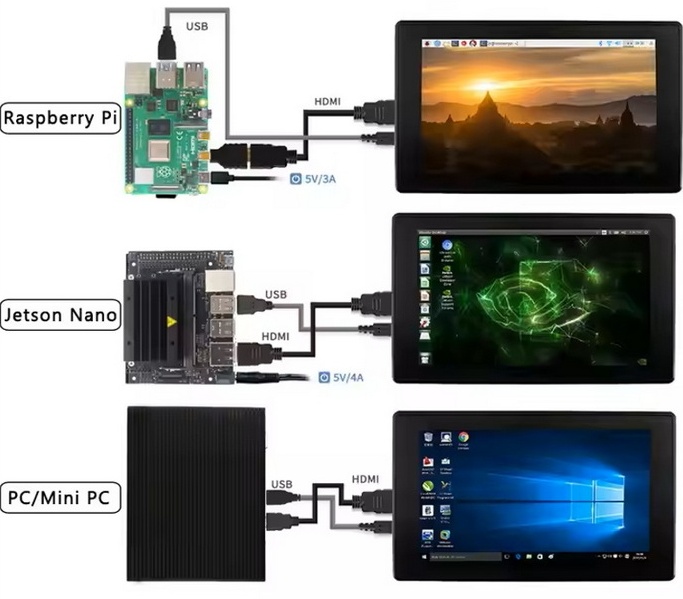

Connecting a Raspberry Pi to a 7 inch touchscreen display is one of the most rewarding projects for tech enthusiasts, educators, and developers alike. This setup transforms the Raspberry Pi from a simple single-board computer into a fully interactive device, capable of running custom interfaces, media centers, kiosks, and much more. If you are wondering what's the easiest way to connect a Raspberry Pi to a 7 inch touchscreen, this comprehensive guide will walk you through every step of the process, from hardware connections to software configuration, troubleshooting, and practical tips.
Throughout this article, we will also refer to the raspberry pi 7 touchscreen display manual to ensure accuracy and provide you with the best practices for a smooth and reliable setup.
Before starting the connection process, it's essential to understand the hardware you are working with. The Raspberry Pi 7 inch touchscreen display is an official accessory designed specifically for Raspberry Pi computers. It offers a balance between size, resolution, and touch responsiveness, making it ideal for many interactive projects.
- Screen Size and Resolution: The display measures 7 inches diagonally, with a typical resolution of 800 by 480 pixels. Some variants offer slightly higher resolutions, but the official model commonly uses 800x480.
- Touch Technology: It uses capacitive touch technology, which supports multi-touch gestures similar to modern smartphones and tablets. This allows for intuitive interaction with applications.
- Connection Interface: The display connects to the Raspberry Pi via a DSI (Display Serial Interface) ribbon cable. This interface is designed for high-speed communication between the Pi and the display, ensuring smooth video output.
- Power and Touch Signals: Apart from the DSI cable, the touchscreen requires additional connections for power and touch input signals. These are typically handled through the Raspberry Pi's GPIO pins.
- Compatibility: The touchscreen is compatible with Raspberry Pi models that have a DSI connector, such as Raspberry Pi 2, 3, 4, and 5. It is not compatible with Raspberry Pi Zero or Pi 400, as these models lack the required DSI interface.

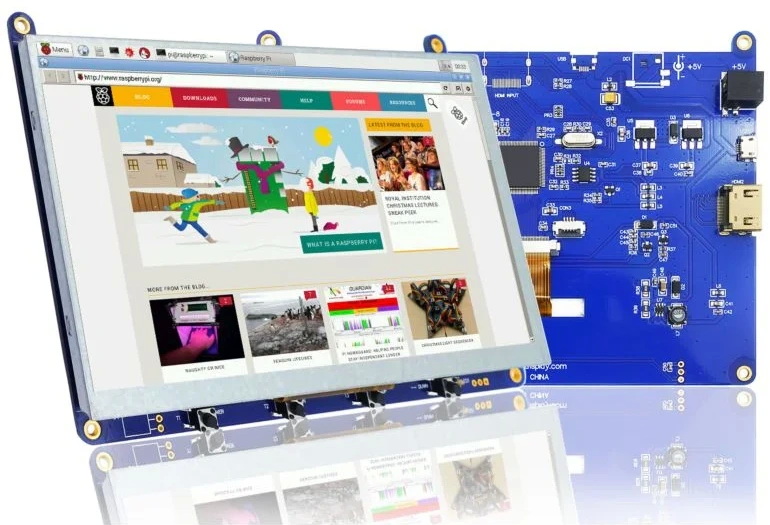

- Physical Design: The touchscreen comes with an adapter board on the back, which simplifies wiring and mounting. The raspberry pi 7 touchscreen display manual provides detailed diagrams and instructions for assembly.
Understanding these features helps you appreciate why the official Raspberry Pi 7 inch touchscreen is the easiest and most reliable choice for your projects.
To begin, you will need the following items:
- A compatible Raspberry Pi model (Pi 2, 3, 4, or 5)
- Official Raspberry Pi 7 inch touchscreen display
- DSI ribbon cable (usually included with the touchscreen)
- Four jumper wires for power and I2C communication
- MicroSD card preloaded with Raspberry Pi OS
- Official Raspberry Pi power supply
- Optional accessories such as an enclosure or mounting hardware
Having all components ready before starting will streamline the setup process.
Start by installing the latest Raspberry Pi OS on your microSD card. This operating system comes preloaded with drivers and support for the touchscreen, making configuration easier. Once installed, boot your Raspberry Pi with a regular monitor and keyboard to perform system updates. Keeping your Raspberry Pi OS up to date ensures compatibility with the touchscreen and fixes any known bugs.
After updating, shut down the Raspberry Pi properly before connecting the touchscreen hardware.
The DSI ribbon cable is the primary connection between the Raspberry Pi and the touchscreen display. It carries the video signal and is designed to fit snugly into the DSI port on the Raspberry Pi board.
To connect:
- Locate the DSI port on your Raspberry Pi. It is a small, flat connector typically located near the HDMI port.
- Gently lift the locking tab on the DSI port.
- Insert one end of the ribbon cable into the port, ensuring the contacts face the correct direction (usually toward the HDMI port).
- Press the locking tab back down to secure the cable.
- Repeat the same process on the touchscreen side, inserting the other end of the ribbon cable into the display's DSI connector.
This connection must be secure and properly oriented to avoid display issues.
The touchscreen requires power and a communication interface for touch input. This is achieved by connecting four jumper wires between the touchscreen adapter board and the Raspberry Pi's GPIO pins.
The connections are as follows:
- Power (5V): Supplies power to the touchscreen.
- Ground (GND): Completes the electrical circuit.
- I2C Clock (SCL): Synchronizes data transfer for touch signals.
- I2C Data (SDA): Carries touch data from the screen to the Pi.
Using the raspberry pi 7 touchscreen display manual, carefully identify the correct pins on both the adapter board and the Raspberry Pi GPIO header. Securely connect the jumper wires, ensuring no loose connections or crossed wires.
To create a compact and sturdy setup, mount the Raspberry Pi directly onto the back of the touchscreen adapter board. The touchscreen kit usually includes screws and stand-offs designed for this purpose.
Align the mounting holes on the Raspberry Pi with those on the adapter board, and fasten them together. This not only protects the components but also keeps cables organized and reduces strain on connectors.
Once all hardware connections are made, connect the official Raspberry Pi power supply to the Pi. Powering the device will light up the touchscreen and display the Raspberry Pi's boot sequence.
If the display orientation is incorrect, such as appearing upside down or rotated, you can adjust it through software settings. This ensures the touchscreen interface matches your desired viewing angle.
For a fully touch-enabled experience, you may want to install an on-screen keyboard. This is particularly useful if you plan to use the Raspberry Pi touchscreen as a standalone device without an attached physical keyboard.
You can also customize the user interface, install touchscreen-friendly applications, and configure gestures for enhanced usability.
To ensure the best experience with your Raspberry Pi 7 inch touchscreen, keep these tips in mind:
- Use the Official Power Supply: The Raspberry Pi and touchscreen require stable power. Using the official Raspberry Pi power supply minimizes the risk of power-related issues such as flickering or unresponsive touch.
- Refer to the Raspberry Pi 7 Touchscreen Display Manual: This manual contains critical information about pinouts, mounting instructions, and troubleshooting tips. Having it on hand during setup can save time and prevent errors.
- Handle Cables with Care: The DSI ribbon cable and jumper wires are delicate. Avoid bending or pinching them, and ensure they are fully inserted and locked in place.
- Keep Software Updated: Regularly update the Raspberry Pi OS to benefit from the latest touchscreen drivers and bug fixes.
- Test Before Final Assembly: Power on the setup and verify the display and touch functionality before securing everything in an enclosure or mounting permanently.
- Consider a Protective Case: If you plan to use the touchscreen in a portable or public environment, a case can protect the hardware from damage and dust.
The versatility of the Raspberry Pi combined with a 7 inch touchscreen opens up many creative possibilities. Here are some popular use cases:
- Portable Raspberry Pi Tablets: Create a compact, handheld device for browsing, coding, or media playback.
- Interactive Kiosks: Build information terminals for museums, retail stores, or exhibitions.
- Media Centers: Use the touchscreen as a control interface for media players like Kodi.
- Educational Tools: Develop interactive lessons, programming tutorials, or science experiments.
- Home Automation Panels: Control smart home devices with a custom touchscreen interface.
- Gaming Consoles: Build retro gaming consoles with touch controls.
Each application benefits from the ease of connection and integration provided by the official Raspberry Pi 7 inch touchscreen.
Even with a straightforward setup, you might encounter occasional problems. Here are some common issues and how to resolve them:
- Check that the DSI ribbon cable is properly connected and locked on both the Raspberry Pi and touchscreen.
- Ensure the Raspberry Pi is powered on and running.
- Confirm that your Raspberry Pi model supports the DSI display.
- Verify the jumper wires for power and I2C communication are correctly connected.
- Make sure the Raspberry Pi OS is updated to the latest version.
- Restart the Raspberry Pi to reset the touchscreen driver.
- Use the official Raspberry Pi power supply to provide consistent voltage.
- Avoid using long or low-quality cables that may cause signal degradation.
- Adjust the display rotation settings in the Raspberry Pi configuration to correct upside-down or sideways screens.
- Double-check that your Raspberry Pi model has a DSI port.
- Use the official touchscreen rather than third-party displays for guaranteed compatibility.
Connecting a Raspberry Pi to a 7 inch touchscreen display is a simple and rewarding process when using the official hardware and following the correct steps. The easiest way involves using the dedicated DSI ribbon cable for video, jumper wires for power and touch signals, and mounting the Raspberry Pi directly on the touchscreen adapter board.
By carefully following the guidelines outlined in the raspberry pi 7 touchscreen display manual, updating your software, and ensuring secure connections, you can enjoy a responsive and vibrant touchscreen interface for a variety of projects. Whether you are building a portable tablet, an interactive kiosk, or a home automation panel, the Raspberry Pi 7 inch touchscreen offers a versatile and user-friendly solution.
With patience and attention to detail, your Raspberry Pi touchscreen setup will be up and running smoothly, opening the door to countless creative possibilities.
The official Raspberry Pi 7 inch touchscreen is compatible with Raspberry Pi 2, 3, 4, and 5 models that feature a DSI connector. It is not compatible with Raspberry Pi Zero or Pi 400 models because they lack the necessary DSI port.
Most Raspberry Pi OS versions come with built-in support for the official 7 inch touchscreen, so no additional driver installation is usually necessary. Keeping your Raspberry Pi OS updated ensures optimal touchscreen functionality.
First, check that the jumper wires for the I2C interface (SCL and SDA) are correctly connected and secure. Also, verify that the Raspberry Pi OS is up to date and that the touchscreen is enabled in the system settings.
While it is possible to power the touchscreen separately, it is generally recommended to power it through the Raspberry Pi's 5V GPIO pins. This guarantees synchronized power delivery and reduces the risk of grounding issues.
You can adjust the display orientation through the Raspberry Pi's configuration settings. This allows you to rotate the screen to match your preferred viewing angle without physically repositioning the hardware.
