10.1 Inch High Brightness Lcd Display

High brightness LCD Display size: 10.1 inch
Part Number:RXL101031-H
Resolution: 1280X800

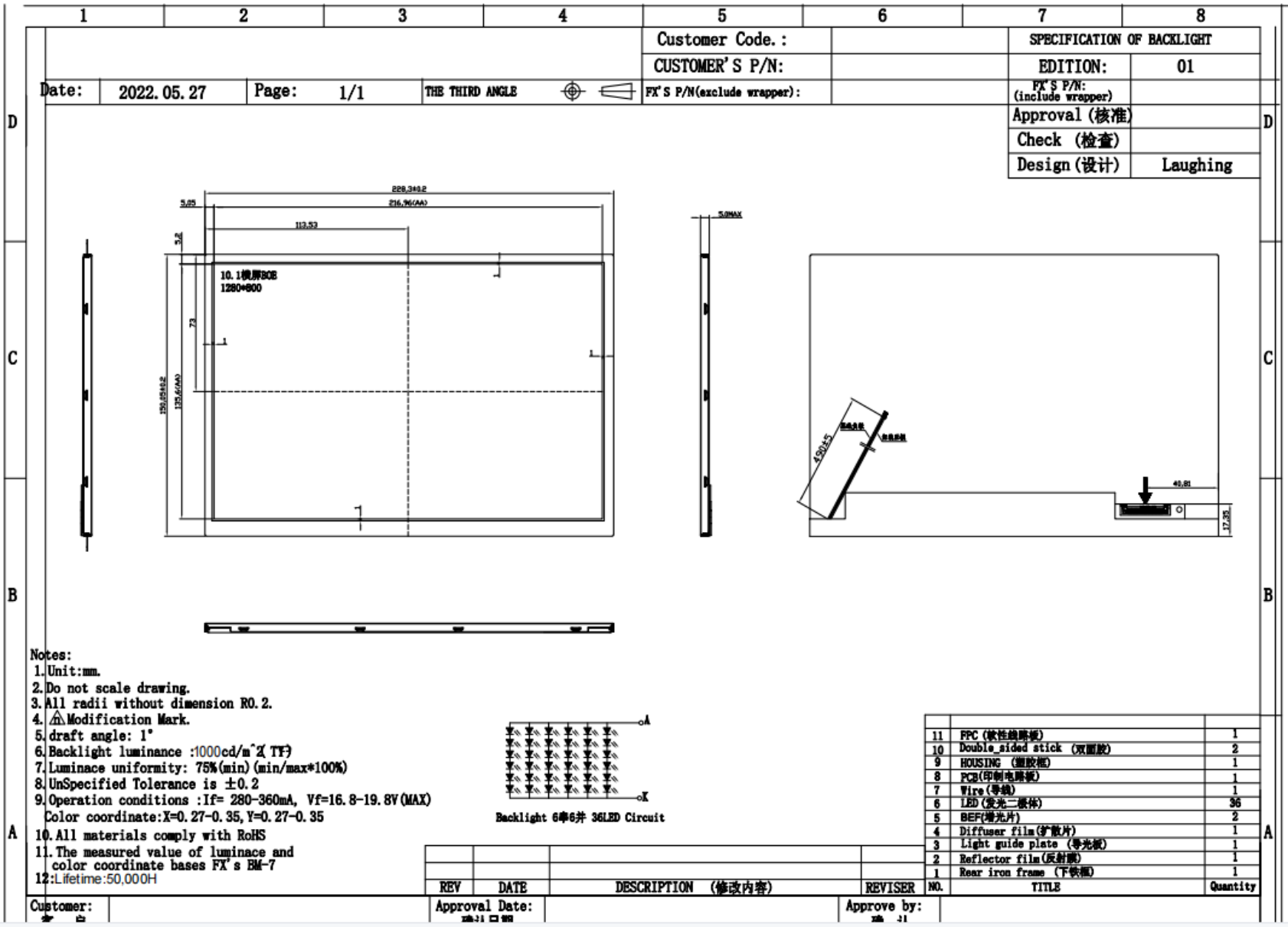

LCD Dimensions: 228.3mm*150.05mm*5.0mm
LCD viewing area: 216.96mm*135.6mm
Interface: RGB
Brightness: 1000 nits
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • RXL101031-H

  • Reshine Display

A high brightness TFT LCD display refers to a type of display that offers increased brightness levels compared to standard LCD displays. These displays are designed to provide enhanced visibility and readability in bright ambient lighting conditions or outdoor environments where high levels of brightness are required.The application fields of high brightness TFT LCD displays can include:Outdoor digital signage,Transportation systems,

Industrial and Outdoor equipment,Marine and Aviation displays.




Here are some key features and characteristics of high brightness TFT LCD displays:


Increased Brightness:


Enhanced Visibility:


Sunlight Readability:


Wide Operating Temperature Range:


Durability










Hot tags:10.1 inch high brightness lcd display, lcd display tft, tft lcd color display, tft lcd display panel, increasing brightness lcd display, 10.1 hdmi project lcd display, high brightness lcd panel, 10.1 lcd high bright, 20 tft lcd monitor, height adjustable lcd tft monitor, china, customized, suppliers, factory, manufacturers



High brightness LCD Display size: 10.1 inch

Part Number:RXL101031-H

Resolution: 1280X800

LCD Dimensions: 228.3mm*150.05mm*5.0mm

LCD viewing area: 216.96mm*135.6mm

Interface: RGB

Brightness: 1000 nits

Display Mode: Normal Black

Display color: 16.7M

Pixel Pitch:0.0565(H)×RGB×0.1695(V)

Contrast: 1000:1 (typ.)

Viewing Direction: ALL

Working temperature: -20°C~+70°C

Storage temperature: -30°C~+80°C

Lead Time: Samples are in stock; Mass production 3-4 weeks

Whether to support customization: yes

Applications for high brightness LCDs:Outdoor digital signage,Transportation systems,

Industrial and Outdoor equipment,Marine and Aviation displays.


图片1图片2


Previous:
Next:
Do you have any questions about the product?
If you're interested, please contact us to request a quote.
We look forward to your inquiry!

FAQ About Reshine Display

More >>
  • Q What sizes and types of touchscreen displays do you offer?

    A We offer a wide range of touchscreen displays, including capacitive, resistive, and TFT LCD displays, in sizes ranging from 2.4 inches to 32 inches. This diverse selection allows us to cater to various applications and industry needs.

  • Q What is your typical lead time for both standard and custom orders?

    A Our typical lead time for standard orders is 3 weeks, while custom orders may vary based on complexity and requirements. We strive to meet your timeline needs and provide accurate delivery estimates.
  • Q Are there any additional costs associated with customization?

    A Customization may involve additional costs depending on the complexity and specific requirements. We provide transparent pricing and will give you a detailed quote before starting the project.
