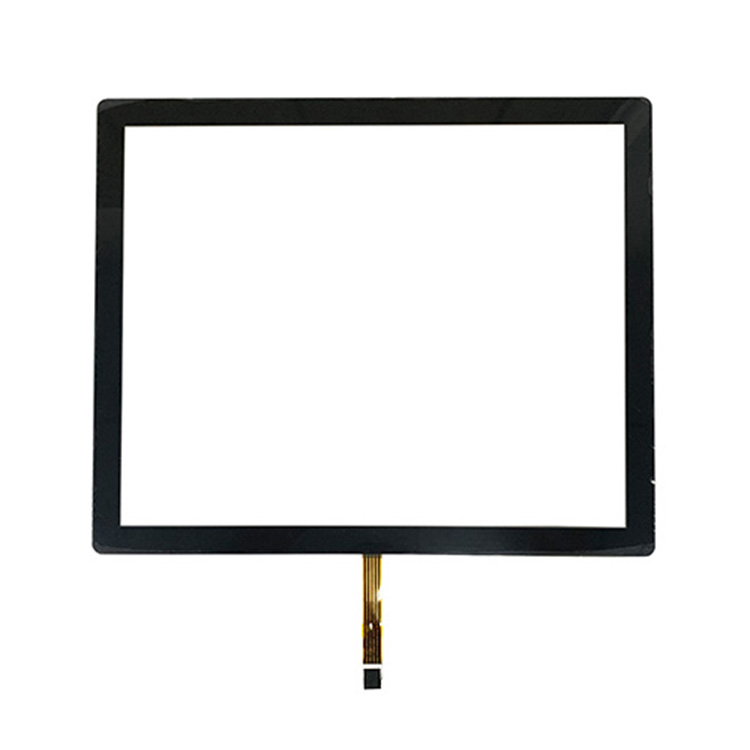

19 Resistive Touch Screen

Resistive touch screen Size: 19 inch 5-wire resistive touch screen
Working voltage: 3-7V
Insulation resistance: ≥20MΩ/25V (DC)
Linearity: ≤3.0%
Response time: <15ms
Light transmittance: ≥76%
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • RXF-190001-01

  • Reshine Display

A capacitive touch screen is a type of touch-sensitive display that uses the principle of capacitance to detect and respond to touch inputs. It consists of a transparent panel with a layer of capacitive material that stores an electrical charge. When a conductive object, such as a finger or a stylus, comes into contact with the screen, the capacitance at that specific location changes, allowing the touch screen to determine the touch position.


Capacitive touch screens are widely used in various devices and applications, including smartphones, tablets, laptops, point-of-sale systems, kiosks, automotive displays, and interactive displays. They provide a responsive and intuitive user interface, enabling users to interact with digital content effortlessly.









Hot tags:10.4 capacitive touch screen, 10.4 projected capacitive touch screen, 10.4 large capacitive touch screen, 10.4 usb capacitive touch screen, 10.4 touch screen for monitor, 10.4 capacitive touch display, 10.4 capacitive multi-touch, best 10.4 capacitive touch panel, 10.4 touch screen glass, 10.4 inch lcd touch screen, china, customized, suppliers, factory, manufacturers



Resistive touch screen Size: 19 inch 5-wire resistive touch screen

Working voltage: 3-7V

Insulation resistance: ≥20MΩ/25V (DC)

Linearity: ≤3.0%

Response time: <15ms

Light transmittance: ≥76%

Surface treatment: Matte anti-Newton ring.

Operating pressure: 50-150g

Operating temperature: -20℃~+50℃≤90%RH

Storage temperature: -10℃~+50℃≤90%RH

Surface hardness: ≥3H

Pencil dotting life: ≥10,000,000 times

Resistive touch screen application: industrial control, military field, commercial and super integrated equipment, security (smart home),

medical equipment, automation equipment, etc.


1 RT
2 RL
3 SG
4 LT
5 LL


eeeae50f16a5674af39515962e0848e
