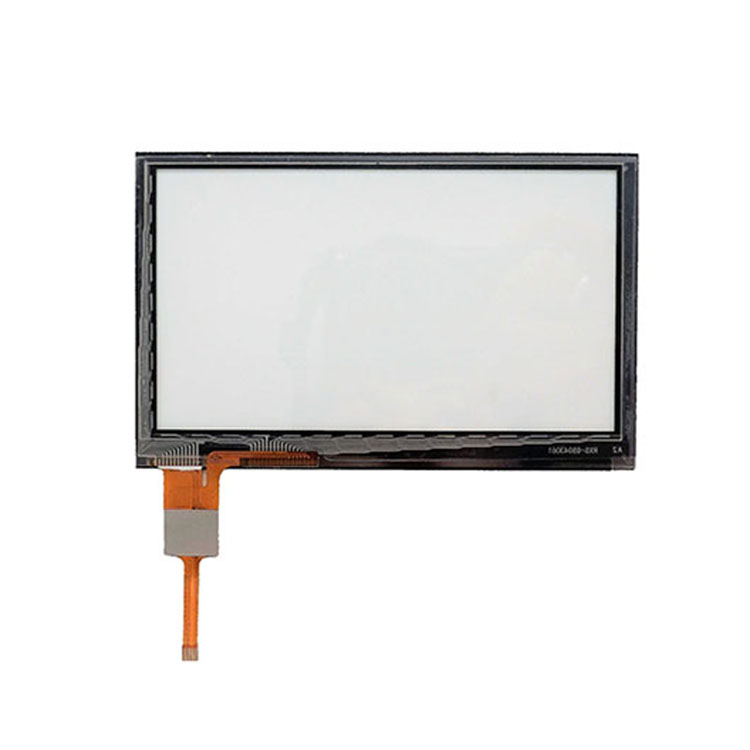

4.3 Capacitive Touch Screen

Category: 4.3 inch capacitive touch screen

Touch screen Model: RXC-GG043061C-1.0

IC: GT911

Interface: IIC

Resolution: 480X272

Brand: RX

Type: G+G
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

A capacitive touch screen is a type of touch-sensitive display that uses the principle of capacitance to detect and respond to touch inputs. It consists of a transparent panel with a layer of capacitive material that stores an electrical charge. When a conductive object, such as a finger or a stylus, comes into contact with the screen, the capacitance at that specific location changes, allowing the touch screen to determine the touch position.


Capacitive touch screens are widely used in various devices and applications, including smartphones, tablets, laptops, point-of-sale systems, kiosks, automotive displays, and interactive displays. They provide a responsive and intuitive user interface, enabling users to interact with digital content effortlessly.









Hot tags:4.3 capacitive touch screen, 4.3 projected capacitive touch screen, 4.3 touch screen, 4.3 touch screen display, 4.3 touch screen lcd, 4.3 inch touch screen raspberry pi, capacitive touch, capacitive touchscreen, industrial touch screen, display touch hdmi, china, customized, suppliers, factory, manufacturers

Category: 4.3 inch capacitive touch screen

Touch screen Model: RXC-GG043061C-1.0

IC: GT911

Interface: IIC

Resolution: 480X272

Brand: RX

Type: G+G

Dimensions: 105.5*67.2(±0.1)

Visual area: 96.04*54.86(±0.15)

Working temperature and humidity range: -20ºC~+70ºC

Storage temperature and humidity range: -30ºC~+80ºC

Transparency: ≥85%

Surface hardness: 6H

Voltage: 2.8V ~ 3.3V

Applications: Touch screens for car navigation, smart home, medical equipment, smart education, etc.

1 RST
2 VDD
3 GND
4 INT
5 SCL
6 SDA
