Touch screen technology has revolutionized the way we interact with devices, from smartphones and tablets to industrial control panels and digital signage[5]. Two prominent technologies in this field are LCD (Liquid Crystal Display) touch screens and glass touch controls. Both have their unique advantages and disadvantages, making the choice between them dependent on the specific application and user needs. This article delves into a detailed comparison of LCD touch screen controls and glass touch controls, exploring their underlying technologies, performance characteristics, and suitability for various applications.

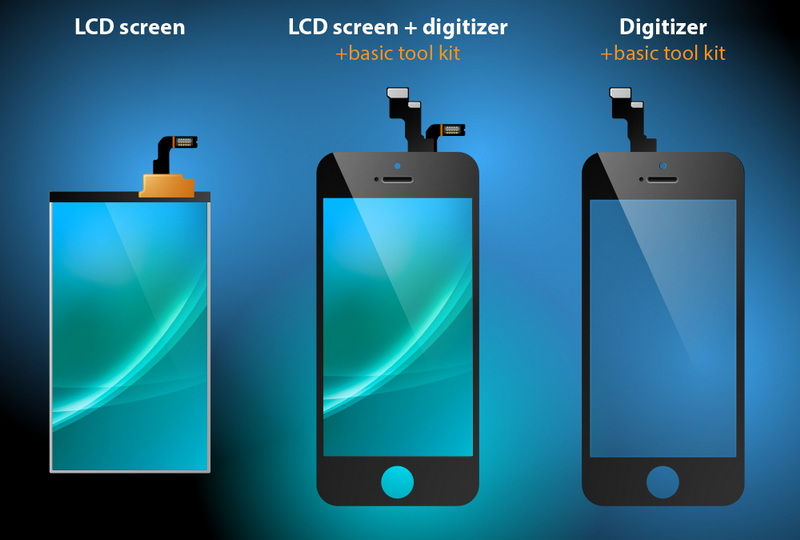

LCD touch screens combine the display capabilities of LCD technology with touch-sensing functionality. An LCD is an electronic display that uses liquid pixels to produce images[7]. Unlike other display technologies, LCDs don't use solid pixels but instead rely on liquid crystals, typically made of organic material[7].

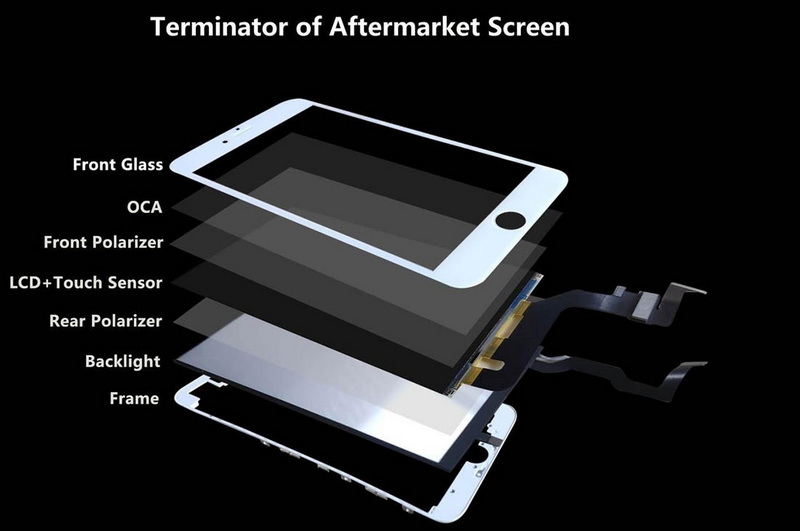

In an LCD touch screen, the LCD panel is integrated with a touch-sensing mechanism. Several touch technologies can be used, including resistive, capacitive, infrared, and others[5]. The basic structure of an ordinary LCD touch screen includes a protective layer, a touch layer, and a display layer[4]. Traditionally, there's an air layer between the protective glass, touch layer, and display panel, but full bonding technology can eliminate this air layer, reducing the screen's thickness and reflection while improving transparency[4].
Resistive Touch Technology:
Resistive touch screens consist of two layers of glass or plastic coated with a thin metallic coating that creates an electrical connection when pressure is applied[2][5]. This technology is known for its accuracy and affordability but typically offers lower clarity and supports only single-touch input.
Capacitive Touch Technology:
Capacitive touch screens use a transparent electrode layer, usually made of indium tin oxide (ITO), that creates an electrostatic field on the screen's surface[5]. When a finger touches the screen, it draws some of the electrical charge, and sensors detect the change to determine the touch location. Capacitive touch screens offer better clarity and sensitivity than resistive screens and support multi-touch input[5].
Surface Capacitive Touch Technology:
Designed with a single conductive layer coated with a transparent electrode, this technology transfers a small electrical charge to the finger upon contact, which is detected by sensors to determine the touch location[5]. It is durable and provides a smooth touch experience, commonly found in ATMs and kiosks[5].
Projected Capacitive Touch Technology (P-Cap):
This technology uses a grid of fine electrodes arranged in layers within the glass to create an electrostatic field. When a conductive object approaches, it changes the local electrostatic field, allowing the touchscreen to detect the touch[5]. P-Cap supports multi-touch and offers high sensitivity, making it popular in smartphones and tablets[5].
Infrared (IR) Touch Technology:
Infrared touch screens employ an array of infrared LEDs and sensors to create a grid of invisible light beams across the screen's surface[5]. When an object interrupts the beams, sensors identify the touch location. IR technology is highly accurate and works with any touch object but can be susceptible to interference from dirt and dust[5].
In-Cell and On-Cell Technology:
These technologies embed the touch-sensing mechanism within the LCD structure itself. In-cell technology places the touch sensor function inside the display screen, while on-cell technology places it on the outer layer of the LCD panel[4]. This integration reduces the thickness of the screen and improves readability[4].
OGS (One Glass Solution):
OGS integrates the touch layer and protective glass into one, coating the ITO conductive layer on the inside of the protective glass[4]. This solution saves a piece of glass and one lamination, making the LCD touch screen thinner and lighter[4].
Glass touch controls, also known as glass touch screens, utilize a glass surface as the primary interface for touch input. The touch-sensing technology is typically implemented using capacitive sensing, where a conductive layer on the glass surface detects changes in capacitance caused by touch[5].
- Durability: Glass touch screens are highly durable and resistant to scratches and damage, making them suitable for public-facing applications[2][5].
- Clarity: Glass touch screens offer excellent optical clarity, allowing for vibrant and clear display of images and information[5].
- Aesthetics: The sleek and modern look of glass touch controls can enhance the aesthetics of devices and environments[5].
- Customization: The glass layer can be customized to meet specific design requirements, including size, shape, and thickness[1].
- Cost: Glass touch screens can be more expensive than other touch technologies, especially for large sizes or specialized designs[5].
- Weight: Glass can add weight to devices, which may be a concern for portable applications[4].
- Fragility: Although durable, glass can shatter upon impact, requiring replacement[2].
- Single-Touch Limitation: Basic capacitive glass touch screens may only support single-touch input, limiting their functionality for multi-touch applications[5].
| Feature | LCD Touch Screen Controls | Glass Touch Controls |
|---|---|---|
| Technology | Combines LCD display with various touch-sensing technologies (resistive, capacitive, IR) | Uses glass surface with capacitive sensing |
| Durability | Varies depending on the touch technology; generally good | Highly durable and scratch-resistant |
| Clarity | Generally good, can be affected by the touch layer | Excellent optical clarity |
| Cost | Varies depending on the touch technology; can be more affordable than glass | Can be more expensive, especially for large sizes or specialized designs |
| Weight | Can be lighter due to integrated technologies like in-cell and on-cell | Can add weight to devices |
| Multi-Touch | Supported by capacitive and infrared technologies | Basic capacitive may only support single-touch |
| Customization | Limited by the LCD panel but can be customized to some extent | Highly customizable in terms of size, shape, and thickness |
| Applications | Smartphones, tablets, industrial control panels, digital signage | Kiosks, ATMs, public-facing displays, high-end consumer electronics |
When deciding between LCD touch screen controls and glass touch controls, consider the following factors:
- Application Requirements: Evaluate the specific requirements of the application, such as the need for multi-touch input, durability, clarity, and customization[5].
- Budget: Determine the budget for the touch screen solution, as glass touch controls can be more expensive[5].
- Environmental Conditions: Consider the environmental conditions in which the touch screen will be used, such as temperature, humidity, and exposure to liquids or chemicals[2].
- User Experience: Assess the desired user experience, including touch sensitivity, response time, and aesthetics[2].
- Maintenance and Repair: Factor in the ease of maintenance and repair, as well as the availability of replacement parts[1].
Both LCD touch screen controls and glass touch controls offer unique advantages and disadvantages. LCD touch screens provide a versatile solution with various touch technologies, while glass touch controls excel in durability, clarity, and aesthetics. The choice between them depends on the specific application requirements, budget, environmental conditions, and desired user experience. By carefully considering these factors, you can select the touch screen technology that best meets your needs.
Resistive touch screens use pressure to create an electrical connection between two layers, while capacitive touch screens detect changes in capacitance caused by touch[5]. Capacitive screens offer better clarity and support multi-touch, but resistive screens are more affordable[5].
Glass touch screens are generally more durable and scratch-resistant than LCD touch screens[2][5]. However, the durability of LCD touch screens can vary depending on the touch technology used[5].
Basic capacitive glass touch screens may only support single-touch input, but advanced glass touch screens can support multi-touch input[5]. Projected Capacitive Touch Technology (P-Cap) is specifically designed for multi-touch applications[5].
Infrared (IR) touch technology is often preferred for outdoor use because it is less affected by sunlight and can work with any touch object, including gloves[5]. However, it can be susceptible to interference from dirt and dust[5].
In-cell touch technology integrates the touch-sensing mechanism within the LCD structure itself, reducing the thickness of the screen, improving readability, and eliminating the need for a separate touch panel[4].
