Can A 5.0 Inch 40 Pin 800x480 TFT Display Work With Arduino Or Raspberry Pi?

Views: 222     Author: Wendy     Publish Time: 2025-06-24      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

Understanding the 5.0 40 Pin 800x480 TFT Display Without Touchscreen

>> What is the 5.0 40 Pin 800x480 TFT Display Without Touchscreen?

>> Key Features and Specifications

Compatibility with Arduino and Raspberry Pi

>> Can It Work With Arduino?

>> Can It Work With Raspberry Pi?

How to Interface the 5.0 40 Pin 800x480 TFT Display Without Touchscreen

>> Using the Adafruit RA8875 Driver Board with Arduino

>> Using the Adafruit TFP401 HDMI/DVI Decoder with Raspberry Pi

Challenges and Considerations

>> Hardware Complexity

>> Software Support

>> Power Requirements

>> No Touchscreen Capability

Practical Applications

Conclusion

FAQ

>> 1. Can I connect the 5.0 40 pin 800x480 TFT display without touchscreen directly to an Arduino Uno?

>> 2. Does the 5.0 40 pin 800x480 TFT display without touchscreen have a built-in controller?

>> 3. What driver board do I need to use this display with a Raspberry Pi?

>> 4. Is the backlight powered by 5V?

>> 5. Can I use this display for touch applications?

The 5.0 inch 40-pin 800x480 TFT display without touchscreen is a vibrant, high-resolution display widely used in various embedded applications. Its large screen size and detailed resolution make it an attractive option for projects requiring rich graphical interfaces. However, integrating this display with popular microcontrollers like Arduino or single-board computers such as Raspberry Pi involves careful consideration due to its hardware and signal requirements. This article delves into the technical aspects of this display, compatibility with Arduino and Raspberry Pi, practical interfacing methods, challenges, and best practices to help you decide if this display suits your project needs.

DIY LCD Screen 5 Inch

Understanding the 5.0 40 Pin 800x480 TFT Display Without Touchscreen

What is the 5.0 40 Pin 800x480 TFT Display Without Touchscreen?

This display features a 5-inch diagonal screen with a resolution of 800 pixels horizontally and 480 pixels vertically. It delivers rich colors through an 8-bit per color parallel RGB interface, totaling 24 bits for full-color depth. The 40-pin connector includes separate lines for red, green, and blue data, along with synchronization and clock signals necessary for refreshing the image.

Unlike many smaller TFT displays, this model lacks an onboard controller or frame buffer memory. It requires continuous refreshing of pixel data synchronized with horizontal and vertical sync signals, making it a raw pixel-dot-clock display. The absence of a touchscreen layer reduces cost and complexity but limits user interaction to display-only purposes.

Key Features and Specifications

- Screen Size: 5.0 inches diagonal, providing ample display area for detailed graphics.

- Resolution: 800x480 pixels, offering sharp and clear images suitable for user interfaces and multimedia.

- Interface: 40-pin parallel RGB interface, with 8 bits each for red, green, and blue signals.

- Backlight: LED backlight requiring a constant-current driver, typically powered at voltages higher than standard 5V logic levels.

- No Touchscreen: This version does not include any touch input capability.

- Raw Data Interface: Requires precise timing signals such as pixel clock, horizontal sync, and vertical sync for proper operation.

Compatibility with Arduino and Raspberry Pi

Can It Work With Arduino?

Arduino boards, especially popular models like the Uno and Mega, are limited in processing power, available RAM, and hardware peripherals. The 5.0 40 pin 800x480 TFT display without touchscreen demands a continuous stream of pixel data at a relatively high refresh rate, along with synchronization signals. This makes direct interfacing with Arduino challenging for several reasons:

- Timing Requirements: The display needs a pixel clock and sync signals running at tens of megahertz, which Arduino hardware cannot generate reliably.

- Memory Constraints: To hold a full frame buffer at 800x480 resolution with 24-bit color depth requires more RAM than Arduino offers.

- Signal Complexity: The parallel RGB interface with 40 pins is cumbersome to connect directly to Arduino's limited GPIO pins.

- Backlight Power: The LED backlight requires a dedicated constant-current driver with higher voltage than Arduino's 5V supply.

Nevertheless, Arduino can drive this display indirectly by using a dedicated driver board such as the Adafruit RA8875. This board handles the timing, buffering, and signal generation internally and communicates with Arduino over SPI, which Arduino supports well. This approach offloads the demanding video signal generation from Arduino, making it feasible to use the 5.0 40 pin 800x480 TFT display without touchscreen in Arduino projects.

Can It Work With Raspberry Pi?

Raspberry Pi models, especially the Raspberry Pi 3 and 4, have more powerful processors, larger memory, and HDMI output capabilities, making them more suitable for driving high-resolution displays. However, the 5.0 40 pin 800x480 TFT display without touchscreen is a raw RGB display without an onboard controller, so it cannot be connected directly to Raspberry Pi's GPIO pins.

Instead, the Raspberry Pi requires an HDMI-to-40-pin TTL converter board, such as the Adafruit TFP401 HDMI/DVI decoder. This board converts the HDMI digital video output from the Raspberry Pi into the parallel RGB signals and synchronization signals needed by the display.

Users must also configure the Raspberry Pi's boot settings to output the correct resolution and timing compatible with the display. When set up correctly, the Raspberry Pi can drive this display to show high-quality graphics and video.

How to Interface the 5.0 40 Pin 800x480 TFT Display Without Touchscreen

Using the Adafruit RA8875 Driver Board with Arduino

The RA8875 driver board is specifically designed to interface with 40-pin RGB TFT displays. It includes onboard video RAM and timing controllers, which handle the pixel clock and synchronization signals required by the display. This significantly simplifies the connection to Arduino, as the microcontroller only needs to communicate with the RA8875 chip via SPI.

The process involves connecting the display's 40-pin interface to the RA8875 board, then connecting the RA8875 board to the Arduino's SPI pins. The backlight must be powered separately using a constant-current boost converter to supply the required voltage and current.

Once connected, Arduino can use libraries designed for the RA8875 to initialize the display and send graphical commands. This method enables the Arduino to display complex graphics without managing the raw pixel timing.

Using the Adafruit TFP401 HDMI/DVI Decoder with Raspberry Pi

For Raspberry Pi, the 5.0 40 pin 800x480 TFT display without touchscreen requires a converter board that translates HDMI output into the parallel RGB signals the display needs. The Adafruit TFP401 HDMI/DVI decoder board performs this function.

The Raspberry Pi's HDMI port connects to the decoder board, which outputs the 40-pin RGB interface to the display. Proper configuration of the Raspberry Pi's display settings ensures the output resolution matches the display's native resolution of 800x480.

The backlight again requires a dedicated power supply with a constant-current driver. This setup allows the Raspberry Pi to drive the display with full color depth and refresh rate, suitable for multimedia and graphical user interfaces.

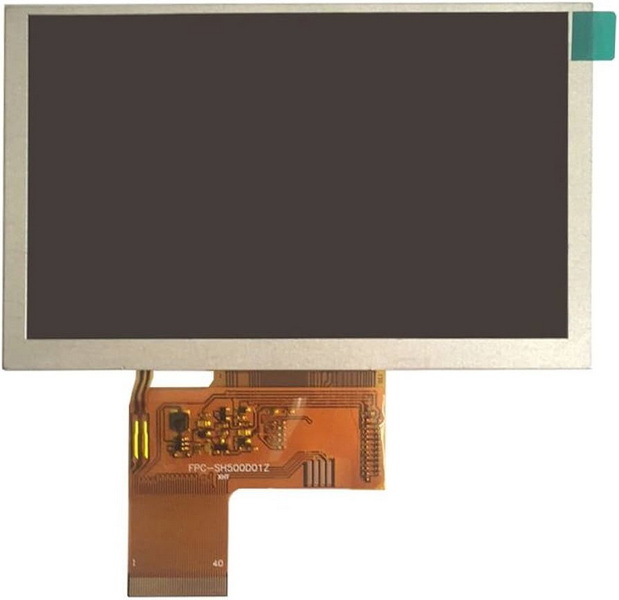

TFT Display Without Touchscreen

Challenges and Considerations

Hardware Complexity

The 5.0 40 pin 800x480 TFT display without touchscreen is not a simple plug-and-play device. It requires:

- Precise Timing Signals: The display needs pixel clock, horizontal sync, and vertical sync signals at specific frequencies.

- Large Frame Buffer: A full frame buffer for 800x480 resolution with 24-bit color requires substantial memory.

- High-Voltage Backlight Power: The LED backlight demands a constant-current driver with voltage higher than typical logic levels.

- Driver Boards: Without a driver board, generating the required signals and managing the display is impractical for most microcontrollers.

Software Support

- Arduino: Requires libraries compatible with the RA8875 or similar driver boards to communicate efficiently.

- Raspberry Pi: Needs correct HDMI resolution settings and may require additional driver support for the decoder board.

Power Requirements

The backlight LED requires a constant-current boost converter, often operating at voltages around 24V. This is significantly higher than the 5V logic supply from Arduino or Raspberry Pi, so a dedicated power supply circuit is necessary to avoid damage and ensure proper brightness.

No Touchscreen Capability

This display variant does not include a touchscreen layer. Projects requiring touch input must look for versions with resistive or capacitive touch panels or add external touch sensors.

Practical Applications

The 5.0 40 pin 800x480 TFT display without touchscreen is well-suited for applications where a large, high-resolution display is needed but touch input is unnecessary. Common uses include:

- Embedded User Interfaces: Industrial controls, home automation panels, and custom instrumentation.

- Multimedia Displays: Portable media players, video playback devices, and digital photo frames.

- Gaming Devices: Handheld gaming consoles or emulators requiring detailed graphics.

- Consumer Electronics: GPS navigation units, car dashboard displays, and small TVs.

When paired with the appropriate driver boards, this display can elevate the visual experience of embedded projects by providing crisp, colorful images and smooth graphics.

Conclusion

The 5.0 inch 40 pin 800x480 TFT display without touchscreen offers a large, high-resolution display option for embedded systems. However, due to its raw pixel-dot-clock interface and demanding power requirements, it cannot be driven directly by Arduino or Raspberry Pi without additional hardware.

For Arduino, the use of a dedicated driver board like the Adafruit RA8875 is essential to handle timing, buffering, and signal generation. For Raspberry Pi, an HDMI to 40-pin TTL converter board such as the Adafruit TFP401 decoder is necessary to translate HDMI output into the signals required by the display.

With the right hardware and configuration, this display can deliver vibrant, detailed graphics suitable for a wide range of applications. Its lack of touchscreen simplifies the hardware but limits interaction to display-only purposes. Careful attention to power supply design and software configuration ensures optimal performance and longevity.

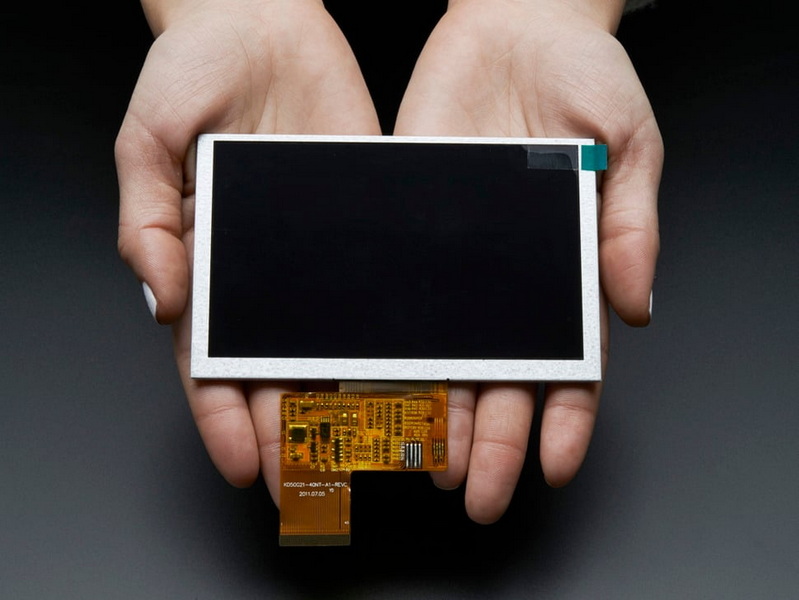

Embedded Display Panel

FAQ

1. Can I connect the 5.0 40 pin 800x480 TFT display without touchscreen directly to an Arduino Uno?

No, the Arduino Uno cannot directly drive this display because it lacks the hardware to generate the required pixel clock and synchronization signals and does not have sufficient RAM for buffering. A dedicated driver board like the RA8875 is necessary.

2. Does the 5.0 40 pin 800x480 TFT display without touchscreen have a built-in controller?

No, this display is a raw pixel-dot-clock type without an onboard controller or frame buffer memory. External hardware is required to handle timing and buffering.

3. What driver board do I need to use this display with a Raspberry Pi?

You need an HDMI to 40-pin TTL converter board such as the Adafruit TFP401 HDMI/DVI decoder to interface the Raspberry Pi's HDMI output with this display.

4. Is the backlight powered by 5V?

No, the backlight requires a constant-current boost converter that can supply voltages around 24V, which is higher than typical 5V logic supplies.

5. Can I use this display for touch applications?

No, this specific version does not include a touchscreen overlay. For touch functionality, you would need a version with a resistive or capacitive touch panel.
