Liquid Crystal Display (LCD) screens have become ubiquitous in our modern lives. From smartphones and laptops to televisions and industrial displays, LCDs are a dominant technology[4]. They offer a combination of relatively low cost, good image quality, and energy efficiency. However, like all display technologies, LCDs are not without their limitations. One concern that often arises is the potential for "burn-in," a phenomenon where a persistent ghost image remains visible on the screen even after the content changes[1][2]. This article will explore the causes of LCD burn-in, differentiate it from similar issues like image retention, and provide practical strategies for prevention and, in some cases, mitigation.
Screen burn-in, also known as "ghost imaging" or "image sticking," refers to the permanent discoloration of sections on an electronic display[1][2]. It manifests as a faint, persistent image that remains visible regardless of the content being displayed. This is particularly noticeable when the screen displays uniform colors or grayscales[1]. The term "burn-in" is somewhat misleading, as it doesn't involve a literal burning of the screen. Instead, it results from the degradation of the display's components due to prolonged use[3][4].
The underlying cause of burn-in varies depending on the display technology[1]. In older technologies like plasma displays and CRT (cathode-ray tube) monitors, burn-in was a common issue caused by the degradation of phosphor compounds[3]. These compounds emitted light to create the image, and prolonged use of static images caused them to wear out unevenly, leading to permanent ghosting[3][7].
LCDs, however, do not use phosphor compounds[3]. Instead, they rely on liquid crystals to control the passage of light from a backlight[3]. The liquid crystals twist and untwist to either block or allow light to pass through, creating the image we see[1]. Burn-in in LCDs occurs when these liquid crystals lose their ability to fully relax or return to their original state after being subjected to a static image for an extended period[1][2].
It's important to distinguish between burn-in in LCDs and OLEDs (Organic Light-Emitting Diodes)[1]. OLED displays are increasingly common in smartphones and high-end televisions due to their superior contrast and black levels[1]. Unlike LCDs, OLEDs do not require a backlight; each pixel emits its own light[1]. This makes them more energy-efficient and capable of producing true blacks[1].
However, OLEDs are more susceptible to burn-in than LCDs[1]. Because each pixel in an OLED ages differently based on its usage, static elements like navigation bars or logos can cause uneven wear, resulting in visible burn-in[1]. In an OLED display, the longer an individual pixel is illuminated, the dimmer it becomes compared to pixels used less frequently[1].
Table Suggestion: A table comparing LCD and OLED technologies, highlighting their strengths and weaknesses, including susceptibility to burn-in.
| Feature | LCD | OLED |
|---|---|---|
| Light Source | Backlight | Self-Emitting Pixels |
| Contrast Ratio | Good | Excellent |
| Black Levels | Decent | True Black |
| Energy Efficiency | Good | Excellent |
| Burn-In Risk | Lower | Higher |
| Cost | Generally Lower | Generally Higher |
Image retention is often confused with burn-in[2][8]. While both involve the persistence of an image on the screen, they are distinct phenomena[2][8]. Image retention is a temporary effect, while burn-in is permanent[2].
Image retention occurs when a "ghost" of a previous image remains briefly visible after the content changes[2]. This is usually caused by the liquid crystals in the LCD panel not fully returning to their relaxed state after displaying a static image[2]. The effect is usually transient and disappears within a few minutes or hours[2].

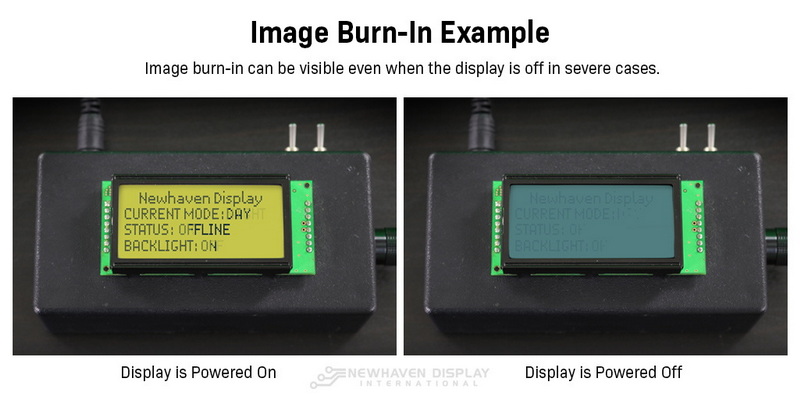

Burn-in, on the other hand, is a permanent issue[1]. It occurs when the liquid crystals have been stressed to the point where they can no longer return to their original state, leaving a lasting discoloration or ghost image[1]. The image will remain visible even after the display is turned off and on again[1].
- Faint ghost image: A faint outline of the previous image is visible[2].
- Temporary effect: The ghost image fades away after a short period[2].
- Content-dependent: The effect is more noticeable with certain content[2].
- Permanent discoloration: A persistent discoloration or ghost image is always visible[1].
- Unaffected by power cycling: The issue remains even after turning the display off and on[1].
- Visible across all content: The burn-in is noticeable regardless of the content being displayed[1].
Several factors can contribute to LCD burn-in[4]. The most common is the prolonged display of static images[1]. This can occur in various scenarios:
- Static logos or banners: On televisions or displays used in commercial settings, static logos or news tickers can cause burn-in over time[1].

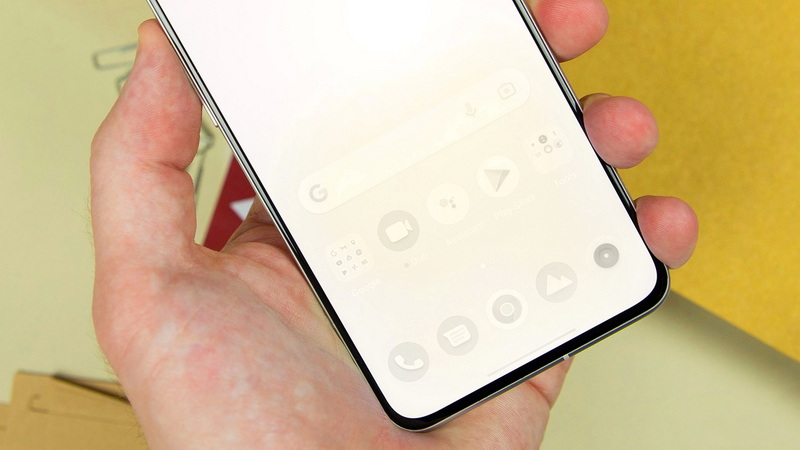

- Persistent user interface elements: On smartphones or tablets, static elements like the keyboard, navigation bar, or status bar icons can contribute to burn-in[1].
- Fixed screen elements in video games: Prolonged gaming with static HUD elements (heads-up display) can lead to burn-in[1].
- Industrial displays with unchanging information: In industrial settings, displays showing unchanging data or control panels are susceptible[2].
Other contributing factors include:
- High brightness levels: Operating the display at maximum brightness for extended periods can accelerate the degradation of the liquid crystals[4].
- High temperatures: Elevated ambient temperatures can also contribute to burn-in[4].
- Poor display quality: Lower-quality LCD panels may be more susceptible to burn-in[4].
While LCD burn-in is less common than in older display technologies or OLEDs, it's still a concern, especially with prolonged use[3][7]. Fortunately, several strategies can help prevent or minimize the risk:
- Use a rotating screensaver: A screensaver that constantly changes the image prevents any single area of the screen from being continuously illuminated[2].
- Enable power-saving mode: Configure the display to automatically turn off or dim after a period of inactivity[2].
- Reduce brightness and contrast: Lowering the brightness and contrast settings can reduce the stress on the liquid crystals[4].
- Avoid static images: Whenever possible, avoid displaying static images for extended periods[4].
- Regularly change the background or wallpaper: This helps prevent the same pixels from being constantly activated[2].
- Turn off the display when not in use: This is the most effective way to prevent burn-in[2].
- Vary content: Switch between different types of content to avoid prolonged exposure to static elements[2].
- Pixel shifting: Some displays incorporate pixel-shifting technology, which subtly moves the image on the screen to distribute wear more evenly[5].
- Anti-burn-in technology: Some manufacturers offer proprietary technologies designed to mitigate burn-in[5].
Unfortunately, true burn-in is a permanent issue and cannot be fully repaired[1]. However, in some cases, it may be possible to mitigate the effects or reduce the visibility of the burn-in[2].
- Run a "burn-in fixer" program: These programs display rapidly changing patterns and colors designed to stimulate the liquid crystals and potentially reduce the visibility of the burn-in[5]. These apps often display an inverted image of the areas affected[5].
- Use a white screen saver: Displaying a solid white screen for an extended period can sometimes help reset the liquid crystals[2].
- Turn off the display for an extended period: In some cases, simply turning off the display for several hours or even days can allow the liquid crystals to relax and reduce the visibility of the burn-in[2].
Important Note: These methods are not guaranteed to work, and their effectiveness varies depending on the severity of the burn-in and the type of LCD panel[5].
LCD screens are widely used in industrial applications, from control panels and HMI (Human Machine Interface) displays to digital signage and process monitoring systems[2]. In these environments, displays often show static information for extended periods, making them particularly vulnerable to burn-in[2].
- Choose industrial-grade displays: These displays are designed for demanding environments and often incorporate features to mitigate burn-in[2].
- Implement regular screen refresh cycles: Schedule regular periods where the display shows a blank screen or a rotating image[2].
- Use dynamic content: Whenever possible, use dynamic content that changes regularly to avoid static images[2].
While LCD screen burn-in is less prevalent than in older display technologies or OLEDs, it remains a potential issue, especially with prolonged use in demanding environments[3][7]. Understanding the causes of burn-in, differentiating it from image retention, and implementing preventive strategies are crucial for maximizing the lifespan and performance of LCD screens[2][8]. By adopting the practical tips outlined in this article, users can significantly reduce the risk of burn-in and ensure that their LCD displays continue to provide clear and vibrant images for years to come[4].
While all LCD screens are theoretically susceptible to burn-in, it is less common and less severe than in OLED or plasma displays[3]. High-quality LCD panels are generally more resistant to burn-in[4]. The risk increases with prolonged use of static images, high brightness levels, and elevated temperatures[4].
Look for a persistent, faint ghost image or discoloration that remains visible even when the content changes[1]. This is most noticeable when displaying uniform colors or grayscales[1]. Unlike image retention, burn-in is permanent and does not fade away[1].
Unfortunately, true burn-in is a permanent issue and cannot be fully repaired[1]. However, some mitigation techniques, such as running burn-in fixer programs or using a white screen saver, may help reduce the visibility of the burn-in in some cases[2].
Yes, high brightness levels can accelerate the degradation of the liquid crystals and increase the risk of burn-in[4]. Lowering the brightness setting can help reduce the stress on the display[4].
Lower-quality LCD panels may be more susceptible to burn-in[4]. Additionally, displays used in demanding environments, such as industrial applications with prolonged static images, are at higher risk[2]. IPS (In-Plane Switching) LCDs are generally less prone to permanent burn-in and are more likely to experience temporary image retention[8].
