Swapping the LCD screen on a Game Boy Advance SP (GBA SP) can significantly improve the visual experience, especially since earlier models had inferior front-lit screens compared to the later back-lit versions. This guide provides a comprehensive overview of how to perform this upgrade, offering insights into the process and considerations for a successful outcome.
The original Game Boy Advance SP was released with two types of screens: the front-lit version and the back-lit version. The front-lit screens, while innovative at their time, often left players squinting in low-light conditions. The introduction of back-lit screens changed the gaming landscape, providing clearer visuals and more vibrant colors. Thus, upgrading to an IPS (In-Plane Switching) screen can not only enhance your gameplay experience but also breathe new life into your beloved handheld console.
Investing in a quality screen upgrade can transform your gaming sessions. Players can enjoy crisp graphics, improved color accuracy, and better visibility in various lighting conditions. Whether you're revisiting classic titles or exploring new ones, a new screen can elevate your experience significantly.
Before starting the screen swap, gather the necessary tools and components:
- Tri-wing screwdriver (specifically for Nintendo screws)
- Regular Phillips head screwdriver
- Prying tool

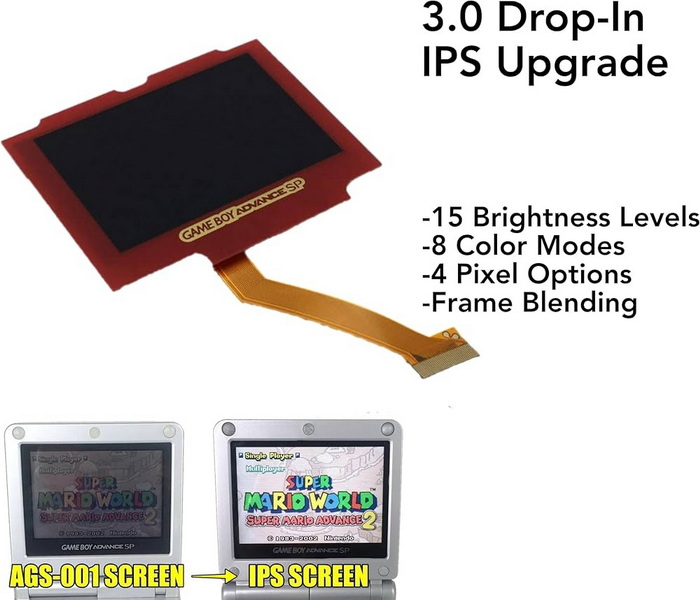

- Replacement IPS screen kit
- Tweezers (for handling small components)
- Anti-static wrist strap (to prevent static damage to electronic components)
Ensure you have a suitable workspace and take precautions to avoid damaging the delicate components of the GBA SP. A clean, well-lit area will make it easier to see small parts and avoid losing screws.
1. Opening the GBA SP: Begin by flipping the GBA SP over and removing the screws on the back. There are three screws that need to be taken out using a tri-wing screwdriver. Keep these screws separated as they are of different sizes; labeling them can help during reassembly.
2. Accessing the Motherboard: After opening the case, you'll need to remove three regular Phillips screws that secure the motherboard in place. Be extremely careful, as a ribbon cable connects the motherboard to the screen.
3. Disconnecting the Ribbon Cable: On the motherboard end of the ribbon cable, there are two small switches that hold it in place. Push these down gently to detach the ribbon cable from the motherboard. Take your time during this step to avoid damaging either component.
4. Removing the Original Screen: Locate a small screw underneath where the ribbon cable goes through the case and unscrew it. This will make it easier to pull out the ribbon cable. Next, unscrew any additional screws around the screen's edges to separate it from its housing.
1. Removing the Original Screen: Once all screws are removed, you can take off the top of the SP to access the screen. If you want to replace or clean any glass over the LCD, you can peel it off carefully.
2. Shell Modification: To fit the new IPS screen, some internal plastic rails inside the top shell piece may need to be removed. Typically, this involves removing a rail on the left-hand side (when looking at the screen with the hinge down) to create space for your new screen. A Dremel-type cutting tool can be useful here, but proceed slowly and carefully to avoid mistakes.
3. Test Fitting: Before finalizing installation, test fit your new screen to ensure it fits well within its housing. The screen should align properly on both left and right sides; any discrepancies usually occur at bottom corners.
1. Connecting Your New Screen: Carefully connect your new IPS screen's ribbon cable into its designated slot on the motherboard. Ensure that it is firmly seated but avoid applying excessive pressure that could damage either component.
2. Securing with Screws: Once connected, use any screws you removed earlier around the screen's edge to secure it in place.
3. Adjusting Brightness Settings: If your new IPS screen comes with brightness settings or requires soldering for optimal performance, follow manufacturer instructions carefully at this stage.
1. Reattaching Ribbon Cable: After securing your new screen, carefully reattach any ribbon cables that were disconnected during disassembly.
2. Securing Motherboard: Replace any Phillips screws that secure your motherboard back into place.
3. Closing Up Your GBA SP: Before closing up your device, double-check that all components are correctly placed and there are no loose parts inside that could rattle or cause damage during use.
4. Final Screws: Finally, replace all tri-wing screws on the back of your GBA SP.
- IPS Screen Installation: Adding a new screen is generally easy with minimal soldering required for brightness sensors or other features depending on your chosen model.
- Shell Cutting: Modifying your shell might be necessary for fitting some models of screens; this often involves removing plastic rails inside.
- Power Consumption: Be aware that different screens have different power drain characteristics; some screens may consume more battery power than others.
- Source Quality: Always credit original sources when quoting information from tutorials or videos; consider linking to original sources as well for proper citation.

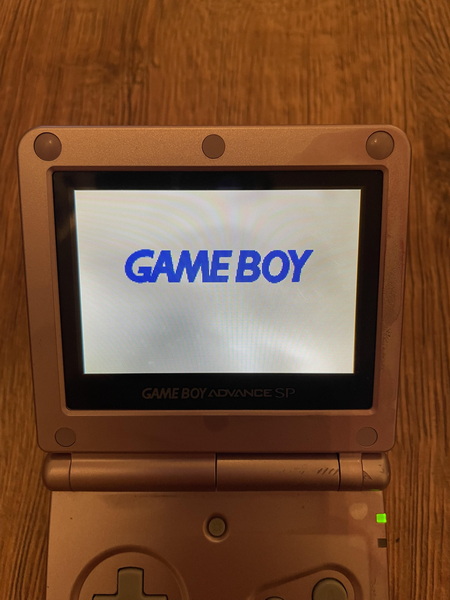

Once you've reassembled your Game Boy Advance SP, it's time to test out your newly installed IPS screen:
1. Power On: Turn on your device and check if everything powers up correctly.
2. Visual Quality Check: Look for any dead pixels or discoloration on your new screen while playing different games.
3. Brightness Settings Adjustment: If applicable, adjust brightness settings according to your preference and check for smooth transitions between levels.

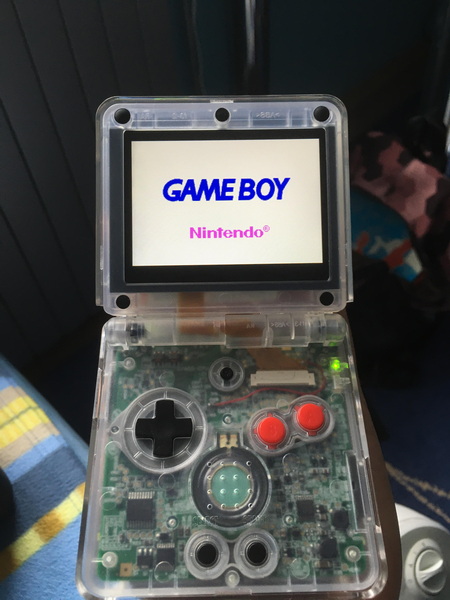

If everything appears normal and functions well, congratulations! You have successfully upgraded your Game Boy Advance SP.
While swapping out an LCD screen is generally straightforward, issues may arise:
- Screen Flickering: This could indicate a loose connection or an improperly seated ribbon cable.
- Dead Pixels: If you notice dead pixels after installation, ensure that no dust or debris is trapped under your new screen.
- Inconsistent Brightness Levels: If brightness levels fluctuate unexpectedly, revisit soldered connections related to brightness settings.
Upgrading your GBA SP's LCD screen offers several benefits beyond just improved visuals:
1. Enhanced Gaming Experience: A brighter and clearer display allows for more enjoyable gaming sessions without straining your eyes.
2. Increased Resale Value: A GBA SP with an upgraded IPS screen may fetch a higher price if you decide to sell it later on.
3. Customization Options: Many aftermarket screens come with customizable features such as adjustable brightness levels or even different color options for frames.
After successfully installing an IPS display in your GBA SP, it's important to maintain it properly:
1. Regular Cleaning: Use a microfiber cloth designed for electronics to keep fingerprints and smudges at bay without scratching your new display.
2. Avoid Excessive Force: Be gentle when pressing buttons or interacting with touch-sensitive areas near or around your new screen.
3. Store Properly: When not in use, store your GBA SP in a protective case or pouch to prevent accidental damage from drops or impacts.
Swapping out an LCD screen on a Game Boy Advance SP is not only a rewarding upgrade but also an opportunity to enhance gameplay significantly by improving visual quality and clarity. By carefully following these steps and taking necessary precautions throughout each phase of disassembly and reassembly, you can successfully replace your GBA SP screen.
This upgrade allows gamers not only to enjoy their favorite titles in better light conditions but also adds a personal touch to their gaming devices—making them feel more modern while retaining their nostalgic charm.
The satisfaction derived from completing such a project is immense; not only do you get a functional device that performs better than before, but you also gain valuable skills in electronics repair—a hobby that can lead you down many exciting paths in tech.
You will need a tri-wing screwdriver specifically designed for Nintendo screws, a Phillips head screwdriver for general use, a prying tool for careful disassembly, tweezers for handling small components, and an anti-static wrist strap if available.
Soldering is minimal; typically only one wire for connecting brightness sensors is optional depending on which model you choose.
Yes, modifying your shell might be necessary depending on which model of IPS screen you purchase; this often involves removing plastic rails inside for better fitment.
If you encounter fitting issues during installation or test fitting phases, examine areas where alignment may be off—typically at bottom corners—and adjust accordingly by trimming excess plastic if needed.
To prevent damage during installation or removal processes regarding ribbon cables—be extremely gentle when disconnecting them from their slots; use appropriate tools like prying tools rather than forceful hands alone.
