Can Faulty Cable Cause Dim Lcd Screen?

Views: 222 Author: Wendy Publish Time: 2025-02-23 Origin: Site

Inquire

Content Menu

● Understanding LCD Screen Functionality

● Symptoms of a Faulty Cable

● Other Potential Causes of Dim LCD Screens

● Diagnosing the Issue

● Repairing or Replacing the Cable

● Preventive Measures

● Exploring Alternative Solutions

● The Importance of Understanding Display Technologies

● User Experiences and Anecdotes

● Conclusion

● FAQ

>> 1. Can a faulty LCD cable cause permanent damage to my monitor?

>> 2. How do I know if my LCD screen is damaged or if it's just the cable?

>> 3. Is it safe to open my monitor to check for loose cables?

>> 4. Can I replace an LCD cable myself?

>> 5. What are some signs that my LCD backlight might be failing?

● Citations

Dim LCD screens can be a frustrating issue for users, often leading to confusion about the underlying causes. One of the potential culprits is a faulty cable connecting the display to the motherboard. This article explores how a defective cable can affect an LCD screen's brightness and overall functionality, as well as other potential causes and solutions.

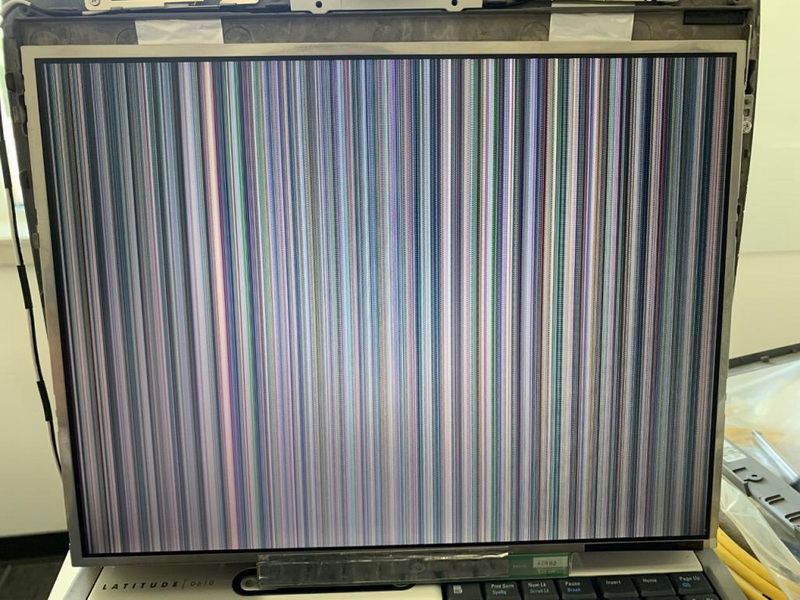

Faulty can Cable Cause Dim Lcd Screen2

Understanding LCD Screen Functionality

LCD (Liquid Crystal Display) screens rely on a combination of components to function properly, including the LCD panel itself, backlighting, and the cables that connect these components. The cable, often referred to as the LCD cable or LVDS (Low-Voltage Differential Signaling) cable, transmits data and power between the motherboard and the display. If this cable becomes damaged or faulty, it can lead to various display issues.

The LCD panel consists of liquid crystals sandwiched between two layers of glass or plastic. When an electric current passes through these crystals, they align in such a way that they either allow light to pass through or block it. This process is what creates the images you see on your screen. Backlighting is essential for illuminating these images since liquid crystals themselves do not emit light.

Symptoms of a Faulty Cable

When an LCD cable is malfunctioning, several symptoms may arise:

- Dim Display: A common sign of a faulty cable is a dim or dark screen. This occurs because the cable may not be transmitting sufficient power to the backlight. If the backlight is not receiving adequate power, it cannot illuminate the liquid crystals effectively, resulting in a dim display.

- Flickering or Blurry Images: Users may notice images flickering or appearing blurry, indicating that data transmission is inconsistent. This can happen due to poor connections or internal breaks within the cable.

- No Image Displayed: In severe cases, a broken cable can prevent any image from being displayed at all, leaving only backlighting visible. This indicates that while power may be reaching the screen, data is not being transmitted correctly.

Other Potential Causes of Dim LCD Screens

While a faulty cable is a significant factor in dim LCD screens, there are other potential causes that users should consider:

- Backlight Failure: The backlight itself may be failing due to age or manufacturing defects. If the backlight is malfunctioning, it will not provide enough illumination for the screen.

- Inverter Issues: For older LCD screens that use CCFL (Cold Cathode Fluorescent Lamp) backlighting, a faulty inverter can lead to dim displays. The inverter converts DC power from the laptop into AC power needed for the CCFLs.

- Software Settings: Sometimes, the issue may stem from software settings rather than hardware failures. Brightness settings can be adjusted through operating system controls or keyboard shortcuts.

- Graphics Card Problems: A malfunctioning graphics card can also affect display brightness and clarity. If the graphics card is not functioning correctly, it may not send proper signals to the LCD screen.

Diagnosing the Issue

To determine if the dimness of an LCD screen is due to a faulty cable or another issue, users can perform several diagnostic checks:

- Check Connections: Ensure that all connections are secure. Loose connections can often cause display issues. Disconnecting and reconnecting cables can sometimes resolve these problems.

- Test with External Monitor: Connecting the laptop to an external monitor can help isolate whether the issue lies with the LCD screen or another component. If the external monitor displays correctly while the laptop's screen remains dim, it indicates a potential problem with the LCD or its cable.

- Inspect for Physical Damage: Physical wear and tear on the cable can lead to internal breaks. Inspecting the cable for any visible damage can provide clues about its condition. Look for frayed wires or kinks in the cable that could indicate damage.

- Run Diagnostic Software: Many laptops come with built-in diagnostic tools that can help identify hardware issues. Running these tools might reveal problems with your display settings or hardware components.

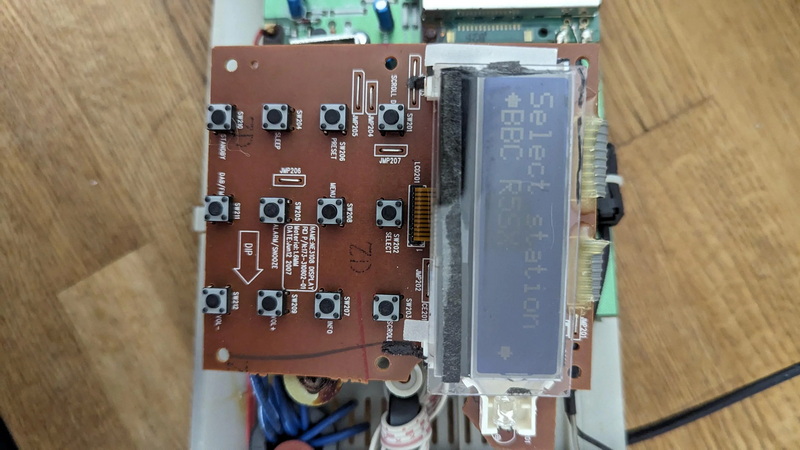

lcd dim screen

Repairing or Replacing the Cable

If a faulty LCD cable is confirmed as the issue, users have two primary options:

- Repair: In some cases, minor repairs can be made by re-seating loose connections or replacing damaged connectors. However, this requires some technical knowledge and skill in handling electronic components.

- Replacement: If the damage is extensive or repair is not feasible, replacing the entire LCD cable may be necessary. This process typically involves disassembling parts of the device to access and replace the cable. It's advisable to consult your device's service manual for specific instructions on how to perform this task safely.

Preventive Measures

To avoid future issues with dim LCD screens caused by faulty cables or other components, consider implementing preventive measures:

- Handle Cables with Care: When using your device, avoid pulling on cables or placing undue stress on them. This will help prevent wear and tear over time.

- Regular Maintenance: Keep your device clean and free from dust accumulation that could interfere with connections. Regularly check connections and cables for signs of wear.

- Use Proper Settings: Familiarize yourself with your device's brightness settings and ensure they are appropriately adjusted according to your environment.

- Update Drivers: Keeping graphics drivers up-to-date can help ensure optimal performance and compatibility with your display hardware.

Exploring Alternative Solutions

If you find yourself frequently dealing with dim displays despite taking preventive measures, consider exploring alternative solutions:

- External Monitors: Using an external monitor can provide a temporary fix if your laptop's display is consistently dim. This allows you to continue working without interruption while you troubleshoot your primary display issue.

- Brightness Calibration Tools: There are software tools available that allow you to calibrate your screen brightness more effectively than standard operating system settings. These tools can help optimize brightness levels based on ambient lighting conditions.

- Professional Assessment: If you are unable to diagnose or resolve the issue yourself after thorough troubleshooting, seeking professional assistance may be necessary. Technicians have specialized tools and experience that can help identify less obvious problems affecting your display performance.

The Importance of Understanding Display Technologies

As technology continues to evolve, understanding different types of display technologies becomes increasingly important for users experiencing issues like dim screens:

- LCD vs OLED vs LED Displays: Each type of display technology has its unique characteristics and potential issues. For instance, OLED displays offer deeper blacks and higher contrast ratios than traditional LCDs but may suffer from burn-in effects over time if static images are displayed for prolonged periods.

- Emerging Technologies: Newer technologies such as MicroLED are emerging as viable alternatives to both OLED and traditional LCDs. These displays promise improved brightness levels and energy efficiency while minimizing issues like burn-in associated with OLED technology.

Understanding these differences equips users with knowledge about their devices and helps them make informed decisions regarding repairs and replacements when necessary.

User Experiences and Anecdotes

Many users have shared their experiences dealing with dim displays across various devices:

- Laptop Users: Numerous laptop owners have reported that simple fixes like adjusting brightness settings resolved their issues quickly without needing repairs. Others discovered that replacing their laptop's battery improved overall performance, including screen brightness levels.

- Desktop Monitors: Desktop users often face different challenges due to larger monitors requiring more power for backlighting. Some have found success in switching out old monitors for newer models featuring advanced technologies like LED backlighting which offers better energy efficiency and brightness control options.

These anecdotes highlight how user experiences vary based on device type but also emphasize common solutions that many have found effective in addressing similar problems related to dim screens.

Conclusion

A faulty LCD cable can indeed cause a dim screen among other display issues. Recognizing symptoms early and performing diagnostic checks can help users determine whether their LCD screen problems stem from a faulty cable or another component. Addressing these issues promptly can save time and potentially costly repairs down the line.

By understanding how an LCD screen functions and recognizing signs of potential problems early on, users can take proactive steps toward maintaining their devices in optimal condition. Whether it's through simple troubleshooting techniques or more complex repairs like replacing an LCD cable, being informed empowers users to keep their screens bright and functional.

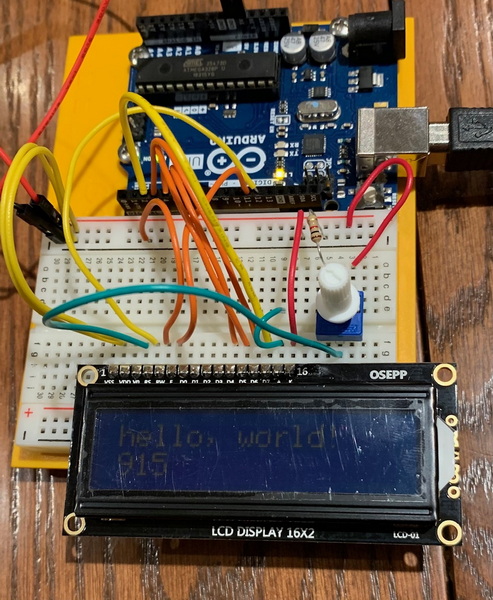

Faulty can Cable Cause Dim Lcd Screen

FAQ

1. Can a faulty LCD cable cause permanent damage to my monitor?

Yes, if left unaddressed, a faulty cable could potentially lead to more severe damage in other components over time.

2. How do I know if my LCD screen is damaged or if it's just the cable?

Testing with an external monitor can help determine if the issue lies with your LCD screen or its connection.

3. Is it safe to open my monitor to check for loose cables?

Yes, but ensure you follow safety precautions and disconnect power before attempting any repairs.

4. Can I replace an LCD cable myself?

Yes, if you are comfortable with basic electronics and have access to proper tools, you can replace it yourself; otherwise, consider professional help.
