The question of whether analog pins can be used for an LCD screen is a common inquiry among electronics enthusiasts and beginners. In this article, we will delve into the details of using analog pins with LCD screens, exploring the feasibility, limitations, and practical applications. Understanding how analog and digital pins function on microcontrollers like Arduino is crucial for this discussion.
Analog pins on microcontrollers, such as Arduino, are primarily used for reading analog signals from sensors like potentiometers or light sensors. These pins can measure voltage levels between 0V and the reference voltage (usually 5V), allowing for the detection of continuous changes in voltage. This capability is essential for applications that require monitoring environmental conditions, such as temperature or light intensity. On the other hand, digital pins can be either inputs or outputs and are used for binary logic operations—either high (5V) or low (0V). Digital pins are commonly used for controlling LEDs, motors, and other devices that require on/off states.

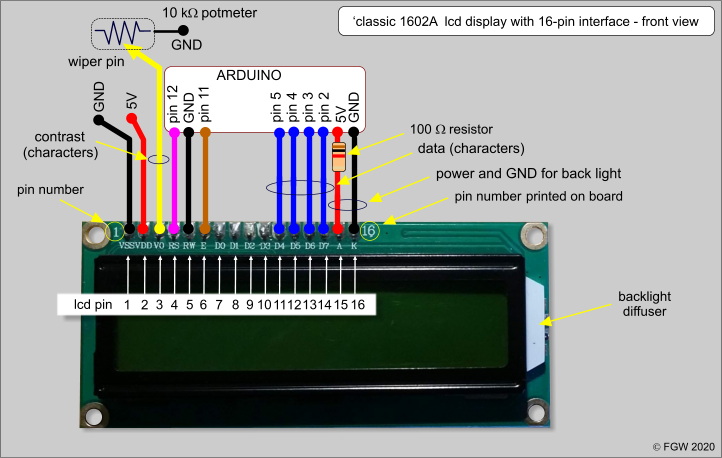

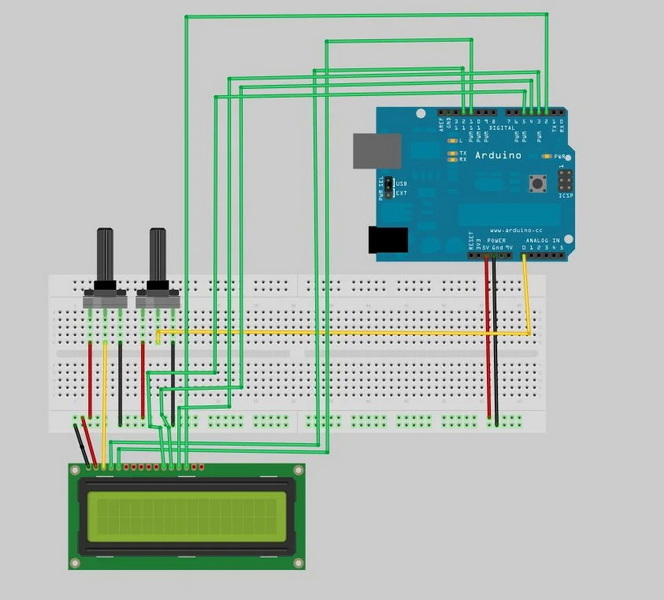

LCD screens typically require digital signals to operate. They need specific digital pins to control the display's register select (RS), enable (E), read/write (R/W), and data lines. However, it is technically possible to use analog pins as digital outputs by declaring them as such in the project setup. For example, on Arduino boards, analog pins A0 to A5 can also be used as digital pins 14 to 19, respectively. This means you can connect an LCD screen to these pins if you properly declare them in your project configuration.
For instance, if you want to use analog pins A1, A2, A3, A4, and A5 as digital outputs for an LCD screen, you would need to ensure that these pins are not being used for any analog input functions. This approach might limit the functionality of other components that rely on these pins for analog input, such as sensors that monitor environmental conditions.
While using analog pins for LCD screens is feasible, there are practical limitations to consider. If you need to read analog data from sensors, using these pins for LCD control might not be ideal. Additionally, if your project requires I2C communication (as with some LCD modules or other devices like RTC modules), you might need to use specific pins dedicated to I2C (A4 and A5 on Arduino Uno). This could further restrict the availability of analog pins for other uses.

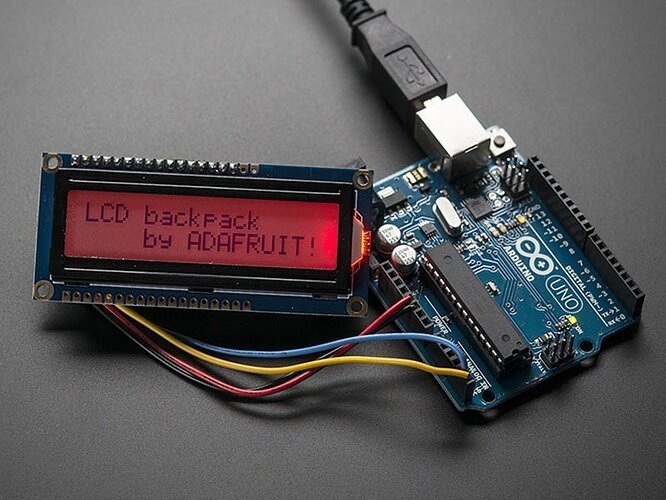

An alternative approach is using I2C LCD modules, which require only two pins (A4 and A5 on Arduino Uno) for communication. This setup is more efficient when you have limited digital pins available or need to connect multiple devices via I2C. I2C modules allow for a simpler wiring setup and reduce the complexity of your circuit, making them a preferred choice for projects where pin conservation is crucial.
When deciding whether to use analog pins for an LCD screen, it's essential to consider the overall design of your project. If your project involves multiple components that require digital communication, such as buttons, LEDs, or other displays, using analog pins for LCD control might not be the most efficient approach. However, if you are working on a simple project that doesn't require extensive analog input, repurposing analog pins as digital outputs can be a viable solution.
Another important consideration is the complexity of your circuit. Using analog pins as digital outputs can add complexity to your wiring and project setup, especially if you are new to electronics. In contrast, I2C modules simplify the connection process and reduce the risk of wiring errors, making them a better choice for beginners or projects with tight deadlines.
To design efficient projects, it's crucial to plan your pin usage carefully. Start by identifying all the components in your project and their pin requirements. If you have multiple devices that can use I2C communication, consider using I2C modules to save digital pins. For components that require analog input, ensure that you have enough analog pins available.
Additionally, consider the scalability of your project. If you anticipate adding more components in the future, using I2C modules can provide more flexibility and make it easier to integrate new devices without running out of pins. This forward-thinking approach can save time and reduce frustration during the development process.
When using analog pins for LCD screens, common issues might arise due to incorrect pin configurations or conflicts with other components. It's essential to verify that your LCD screen is properly connected to the correct pins and that these pins are not being used for any other functions. If you encounter issues with the display not showing data correctly, check your wiring and ensure that the pins are correctly declared as digital outputs.
Furthermore, if you are using I2C modules, ensure that each device on the I2C bus has a unique address. This prevents conflicts between devices and ensures reliable communication. Troubleshooting these issues early on can help streamline your project development and avoid unnecessary delays.
In addition to using I2C modules, other advanced techniques can enhance the efficiency of your project. For instance, using serial communication protocols like SPI or UART can provide faster data transfer rates and more flexibility in circuit design. These protocols are particularly useful when working with devices that require high-speed data communication, such as SD cards or Ethernet modules.
Moreover, understanding how to optimize your circuit for power consumption can be beneficial, especially for battery-powered projects. By minimizing power usage, you can extend the lifespan of your device and reduce the need for frequent recharging or battery replacements.
As technology advances, new methods for interfacing with LCD screens and other devices are emerging. For instance, the use of serial communication protocols like SPI or UART can provide faster data transfer rates and more flexibility in circuit design. Additionally, advancements in microcontroller technology are leading to devices with more pins and improved capabilities, reducing the need for pin conservation in many projects.
Understanding these trends and developments can help you stay ahead in the field of electronics and ensure that your projects remain relevant and efficient. By embracing new technologies and techniques, you can create more sophisticated and user-friendly electronic devices.
For those interested in learning more about electronics and microcontrollers, there are numerous educational resources available. Online platforms like Arduino's official website, forums, and tutorials provide valuable insights and step-by-step guides for beginners. Additionally, joining electronics communities or forums can be beneficial for troubleshooting and learning from others' experiences.
Engaging with these resources can enhance your understanding of electronics and help you tackle more complex projects with confidence. Whether you're a beginner or an experienced enthusiast, continuous learning and exploration are key to staying updated with the latest technologies and techniques.
Using analog pins for an LCD screen is technically feasible by treating them as digital outputs. However, it's essential to consider the limitations and potential conflicts with other components in your project. I2C LCD modules offer a more efficient solution when pin conservation is necessary. By understanding the capabilities and constraints of your microcontroller's pins, you can design more effective and efficient electronic projects. Whether you choose to repurpose analog pins or use I2C modules, careful planning and consideration of your project's requirements will ensure a successful outcome.
Yes, you can use analog pins as digital outputs for an LCD screen by properly declaring them in your project setup. However, ensure that you are not using these pins for any analog input functions.
In microcontrollers like Arduino, analog pins can be used as digital pins by specifying their corresponding digital pin numbers in your project configuration.
The main limitation is that you cannot use these pins for analog input if they are being used as digital outputs for the LCD. This might restrict the functionality of other components in your project that rely on analog data.
Yes, I2C LCD modules are a good alternative if you want to save digital pins. They use only two pins for communication, allowing you to connect multiple devices via the I2C bus.
Multiple devices can be connected to the I2C bus by assigning each device a unique address. This way, the master device can communicate with each slave device independently, enabling efficient communication between multiple components.
