Replacing a laptop screen can seem like a straightforward task, but compatibility issues can make it more complex than it appears. Choosing the wrong screen can lead to frustration, wasted money, and even damage to your laptop. Here's what you need to know to ensure you select the correct replacement of an LCD screen and avoid potential pitfalls.
When replacing an LCD screen, several factors must match to ensure compatibility and proper functionality:

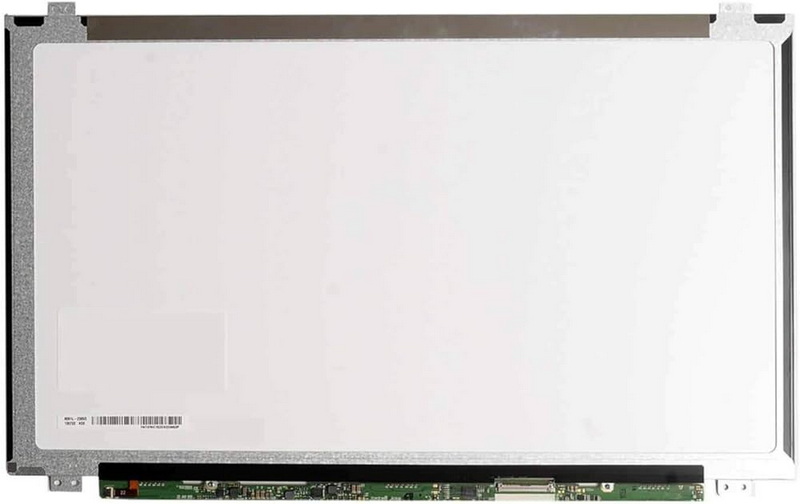

- Model Number: The most reliable way to ensure compatibility is to match the model number of the old screen. The model number, typically found on the back of the screen, guarantees the same size, resolution, and connector type. Treat this number as the golden key to unlocking a successful screen replacement. Ignoring this can lead to endless searching and potential missteps.
- Size, Resolution, and Connector Type: These three specifications must be identical between the original and replacement screen. Different screen sizes are obviously not interchangeable; attempting to install a smaller or larger screen will be physically impossible and could damage the laptop's frame. Furthermore, different resolutions may not be compatible, even within the same laptop model. The graphics card and display drivers are designed to work with a specific resolution, and using an incompatible resolution can result in a distorted or unusable image.

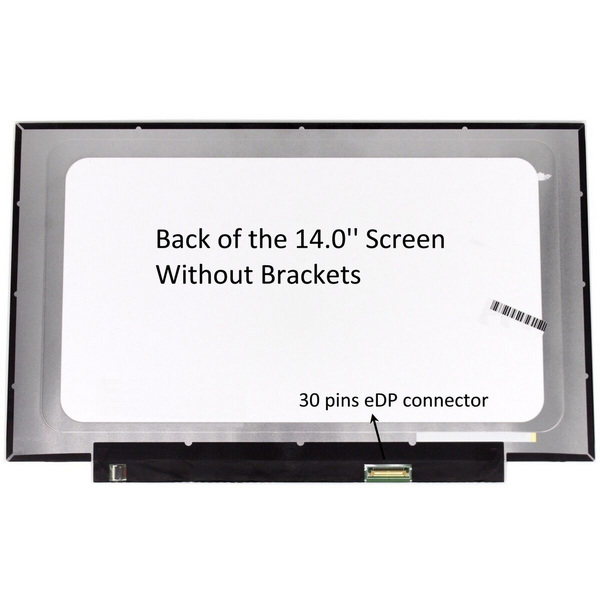

- Connectors: LCD screen connectors vary in size and pin count. While some laptops use unique connectors designed by the original equipment manufacturer (OEM), most screens use either a 30-pin or 40-pin connector. A 30-pin connector is common in non-touch screens with resolutions up to 3,840 x 2,160, while a 40-pin connector is used in modern touch and high-resolution screens, and some older LVDS (Low-Voltage Differential Signaling) screens. Attempting to connect a screen with the wrong connector can damage the connector pins or the laptop's motherboard.
- Backlight Type: Older screens used CCFL (cold cathode fluorescent lamp) backlights, while newer screens use LED (light-emitting diode) backlights. These two types are fundamentally incompatible due to different voltage requirements and connection methods. If the laptop was manufactured after 2011, it most likely uses an LED backlight. If you're unsure, check the laptop's specifications or the original screen's documentation. Using the wrong backlight type can lead to the screen not working at all or, in some cases, damaging the laptop's power circuitry.
To gain a comprehensive understanding of LCD screen compatibility, let's delve deeper into the specifications mentioned above:
- Resolution: Measured in pixels (e.g., 1920x1080, 1366x768), resolution determines the image's clarity and detail. Higher resolution screens display more information and sharper images. However, the laptop's graphics card must be capable of supporting the higher resolution; otherwise, the image may be distorted or the laptop's performance may suffer.
- Screen Size: Measured diagonally in inches, the screen size determines the physical dimensions of the display. Common laptop screen sizes include 11.6", 13.3", 14", 15.6", and 17.3". The screen size must match the laptop's bezel and mounting points.
- Connector Type and Placement: The connector type refers to the physical interface that connects the screen to the laptop's motherboard. The most common types are 30-pin and 40-pin eDP (Embedded DisplayPort) connectors. The connector's placement is also critical, as it must align with the connector on the laptop's motherboard.
- Surface Finish (Matte vs. Glossy): LCD screens come in two main surface finishes: matte and glossy. Matte screens have a non-reflective surface that reduces glare, while glossy screens have a reflective surface that enhances color vibrancy and contrast. While surface finish doesn't directly affect compatibility, it's a matter of personal preference.
- Viewing Angle: The viewing angle refers to the range of angles from which the screen can be viewed without significant distortion or color shift. Wide viewing angle screens offer a more consistent viewing experience from various positions.
- Refresh Rate: Measured in Hertz (Hz), the refresh rate determines how many times per second the screen updates the image. Higher refresh rates result in smoother motion and are particularly important for gaming and video editing.
Beyond the key considerations, here are some additional points to keep in mind during your replacement search:
- Laptop Model: Using the laptop model number to find a replacement screen is often sufficient. Many online retailers and screen suppliers allow you to search for compatible screens based on your laptop model. However, some manufacturers offer options for higher resolutions or different screen sizes within the same model. In such cases, it's always best to check the LCD screen model number on the back of the old screen or the laptop's specifications.
- Manufacturer's Part Number: You can also order a replacement screen using the manufacturer's part number. This is a unique identifier assigned to the screen by the manufacturer, and it guarantees an exact match.
- Screen Manufacturers: LCD screen manufacturers release new models every 3 to 5 months. As a result, the original screen may be outdated, and finding an exact replacement may be challenging. Newer screens may have better electrical and optical parameters, such as improved brightness, contrast, and color accuracy. In these cases, a compatible replacement from a different manufacturer may be a viable option.
- Compatibility Information: Laptop manufacturers often do not share compatibility information openly, preferring that customers purchase screens directly from them. This can make finding compatible screens from third-party suppliers more challenging. However, compatible screens are often available at lower prices from other sources. Online forums and communities dedicated to laptop repair can be valuable resources for finding compatibility information.
- Generic Components: While many components in laptops are device-specific and not generic, some components, such as RAM and hard drives, often adhere to industry standards and are interchangeable between different laptops. However, screens, keyboards, and other components closely integrated with the laptop's design are usually specific to the laptop manufacturer and model.
Using an incompatible LCD screen can lead to various problems, ranging from minor inconveniences to serious hardware damage. Here are some potential consequences:
- No Display: The most obvious consequence is that the screen simply won't display anything. This can occur if the connector is incompatible, the backlight type is incorrect, or the screen is not receiving power.
- Distorted Image: An incompatible resolution or refresh rate can result in a distorted, stretched, or blurry image. The image may also flicker or have incorrect colors.
- Overheating: An incompatible screen can draw too much power, leading to overheating of the screen itself or the laptop's motherboard. Overheating can damage the screen or other components.
- Permanent Damage: In severe cases, using an incompatible screen can permanently damage the laptop's motherboard or graphics card. This can result in costly repairs or the need to replace the entire laptop.
To determine if a replacement screen is compatible with your laptop and avoid the pitfalls mentioned above, follow these detailed steps:
1. Identify the Screen Model Number: Locate the model number on the back of the original LCD screen. This is the most reliable way to ensure compatibility. The model number is typically printed on a sticker or label affixed to the back of the screen. You may need to remove the screen from the laptop to access this label.
2. Check Size and Resolution: Ensure the replacement screen has the same size and resolution as the original. Measure the screen diagonally to determine the size, and check the laptop's specifications or the original screen's documentation to determine the resolution.
3. Verify Connector Type: Check the pin count and location of the connector to ensure it matches the original screen. Count the number of pins on the connector and compare it to the specifications of the replacement screen. Also, pay attention to the connector's location, as it must align with the connector on the laptop's motherboard.
4. Confirm Backlight Type: Determine whether the original screen uses a CCFL or LED backlight. If the laptop was made after 2011, it likely uses LED. You can also check the laptop's specifications or the original screen's documentation to confirm the backlight type.
5. Consult Compatibility Lists: Some websites specialize in providing compatibility information for laptop screens. These websites often have databases of laptop models and compatible screen replacements.
6. Contact a Professional: If you are unsure about compatibility, consult a professional laptop repair technician. They can help you identify the correct replacement screen and ensure it is installed properly.
If you can't find an exact match for your laptop screen, you may still be able to use a compatible alternative. However, proceed with caution and consider the following:
- Compatible Models: Laptop screen suppliers often have compatible models that meet the necessary specifications. These screens may not be the exact same model number as the original screen, but they have been tested to work with your laptop model.
- Updated Versions: LCD screen manufacturers release new models frequently, so a newer screen model may be compatible with your laptop. These updated versions may offer improved performance or features compared to the original screen.
- Professional Advice: Seek advice from screen suppliers or technicians to find a compatible replacement. They can help you assess the risks and benefits of using a non-exact match screen.
While it might seem like any LCD screen could work for your laptop, several factors, including the model number, size, resolution, connector type, and backlight, must align for guaranteed compatibility. Although laptop manufacturers may nudge you towards purchasing directly from them, compatible and often more affordable alternatives exist. By following the steps outlined and understanding the critical specifications, you can confidently find a replacement screen that breathes new life into your laptop and avoids the potential headaches of incompatibility. Remember, patience and attention to detail are key to a successful screen replacement.
It may be possible if the laptop supports the display panel. For example, a Dell Latitude D630 supports both WXGA+ and WXGA displays, allowing you to swap between them. The laptop's graphics card and display drivers must also be compatible with the higher resolution.
The location of the connector needs to be confirmed, especially for some 15.6″ and 17.3″ HP laptops. A slight difference in connector location can prevent the screen from connecting properly or even damage the connector pins.
If you are comfortable disassembling your laptop and have experience with electronics repair, you can replace the screen yourself. Many online resources provide step-by-step instructions and videos for laptop screen replacement. However, if you are not confident in your abilities, it is best to take it to a professional. A professional technician has the expertise and tools to replace the screen safely and efficiently.
All manufacturers create service documents for laptops with lists of all part numbers. Finding the document that covers your exact model is important. You can often find these documents on the manufacturer's website or through online search engines. These documents can provide valuable information about the laptop's components and specifications.
A compatible screen means that it has been tested to work with your laptop model, even if it's not the exact same model number as the original screen. These screens meet the required specifications for size, resolution, connector type, and backlight. However, there may be minor differences in appearance or features.
