The Osoyoo 3.5 touchscreen LCD display 480x320 Osoyoo is a popular compact display designed primarily for Raspberry Pi and other mini PC projects. It offers a convenient way to add a touchscreen interface with a resolution of 480 by 320 pixels. A common question among users is whether this 3.5 touchscreen LCD display 480x320 Osoyoo can be used without HDMI or external power. This article explores this question in depth, covering the technical specifications, power requirements, connectivity options, and practical considerations for using the display in various scenarios.
The Osoyoo 3.5 touchscreen LCD display 480x320 Osoyoo is a compact TFT LCD screen with a resistive or capacitive touch panel, depending on the model. It typically features a resolution of 480x320 pixels, driven by an ILI9488 driver IC and controlled via SPI or HDMI interfaces. The display is designed for Raspberry Pi and similar single-board computers, providing a user-friendly interface for projects ranging from DIY electronics to industrial applications.
- Screen Size: 3.5 inches diagonal
- Resolution: 480x320 pixels
- Touch Type: Resistive or capacitive touch (depending on model)
- Driver IC: ILI9488
- Interface: SPI (for some models) or HDMI (for others)
- Power Supply: Typically 5V via GPIO or USB Type-C port
- Compatibility: Raspberry Pi OS and other Linux-based systems with appropriate drivers
This 3.5 touchscreen LCD display 480x320 Osoyoo is designed to be compact and versatile, making it ideal for embedded applications where space and power efficiency are important.
The Osoyoo 3.5 touchscreen LCD display 480x320 Osoyoo comes in different variants with distinct interfaces:
- SPI Interface Model: This version connects via SPI pins on the Raspberry Pi GPIO header. It does not require HDMI for display data transmission.
- HDMI Interface Model: This version uses the HDMI port for video input and usually requires HDMI connection for display signals.
If you have the SPI model, you do not need HDMI to use the display. The SPI interface handles both the display data and touch input signals via GPIO pins. However, the HDMI model requires an HDMI connection for video signals and cannot operate without it.
- SPI Model: Can be used without HDMI. It connects directly to the Raspberry Pi GPIO pins and uses SPI communication to display images and receive touch input. This makes it suitable for projects where HDMI output is unavailable or impractical.
- HDMI Model: Cannot be used without HDMI because the display relies on HDMI signals for video input. It also requires power through USB Type-C or GPIO pins.
In summary, whether you can use the Osoyoo 3.5 touchscreen LCD display 480x320 Osoyoo without HDMI depends on the specific model you have. The SPI model works independently of HDMI, while the HDMI model does not.
The Osoyoo 3.5 touchscreen LCD display 480x320 Osoyoo requires a stable 5V power supply. Power can be provided in several ways:
- From Raspberry Pi GPIO 5V Pin: The display can draw power directly from the Raspberry Pi's 5V GPIO pin. This is common when the display is attached to the Pi's GPIO header.
- External Power Supply: For HDMI models or setups where the display is not powered from the Pi, an external 5V power adapter (usually via USB Type-C) is used.
- Combined Power: When the display is powered externally, the Raspberry Pi can also be powered through GPIO pins, reducing the need for multiple power sources.

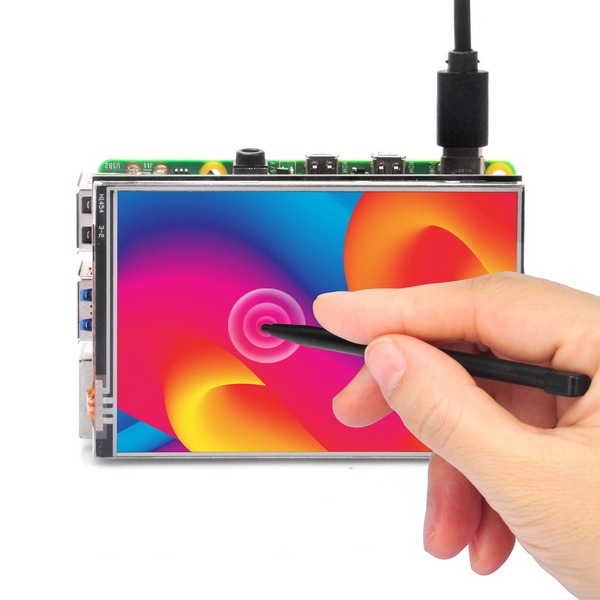

If you connect the Osoyoo 3.5 touchscreen LCD display 480x320 Osoyoo directly to the Raspberry Pi GPIO pins, it can be powered by the Pi without needing an additional external power supply. This applies mainly to the SPI interface model that mounts directly on the GPIO header.
However, for the HDMI interface model, external power is generally required because the HDMI port does not supply power, and the display needs power via USB Type-C or other means.
Typical power consumption is about 120mA at 5V for the SPI model and around 200–230mA at 5V for the HDMI model at maximum brightness. This means the Raspberry Pi's 5V pin can usually supply enough power for the SPI model without external power, but the HDMI model often requires a dedicated power source to ensure stable operation.
The SPI version of the 3.5 touchscreen LCD display 480x320 Osoyoo requires specific drivers to work correctly with Raspberry Pi OS. Without installing the touch driver, the screen may show a white or blank screen. The driver enables the display and touch functionality over the SPI interface.
The HDMI model requires installing a specific driver package to enable touch functionality on Raspberry Pi OS. The display itself can show video without drivers, but touch input will not work until the driver is installed.
- Without drivers, the SPI model will not display anything useful.
- The HDMI model can display video without drivers but loses touch functionality.
| Model Type | HDMI Needed? | External Power Needed? | Notes |
|---|---|---|---|
| SPI Interface | No | No (if powered via Pi) | Connects via GPIO, requires driver installation |
| HDMI Interface | Yes | Yes | HDMI for video, USB Type-C or external power for power |
The Osoyoo 3.5 touchscreen LCD display 480x320 Osoyoo offers two main interface options: SPI and HDMI. Whether you can use it without HDMI or external power depends on the model you have. The SPI interface model does not require HDMI and can be powered directly from the Raspberry Pi's GPIO pins, making it suitable for embedded projects without HDMI output or external power adapters. On the other hand, the HDMI interface model requires HDMI for video input and external power via USB Type-C or GPIO pins for stable operation.
For users seeking a compact touchscreen solution without HDMI or external power, the SPI model of the Osoyoo 3.5 touchscreen LCD display 480x320 Osoyoo is the best choice. Proper driver installation is essential for both display and touch functionality. Understanding these differences helps users select and use the 3.5 touchscreen LCD display 480x320 Osoyoo effectively in their Raspberry Pi or other embedded projects.
No, the HDMI model requires an HDMI connection for video input and cannot display without it. For no HDMI usage, you need the SPI interface model.
The SPI model can be powered directly from the Raspberry Pi's 5V GPIO pin, so external power is not necessary. The HDMI model generally requires external power via USB Type-C or a dedicated power supply.
No, the touchscreen functionality requires installing the appropriate drivers for the model and operating system, especially on Raspberry Pi OS.
Yes, the HDMI model can work as a general HDMI display with other devices, but touch functionality may only be supported on Raspberry Pi OS with drivers. The SPI model is primarily designed for Raspberry Pi.
If you have the SPI model, connect it directly to the Raspberry Pi GPIO pins, which supply 5V power. This eliminates the need for an external power supply.
