The integration of GPS navigation on LCD screens has become increasingly popular, both in automotive and personal projects. This technology allows users to visualize navigation data, such as maps and directions, directly on a display. Whether it's enhancing the driving experience in vehicles or creating interactive navigation systems for personal use, the ability to display GPS information on LCD screens is a powerful tool. In this article, we will explore how GPS navigation can be implemented on LCD screens, focusing on both automotive applications and DIY projects using platforms like Arduino.

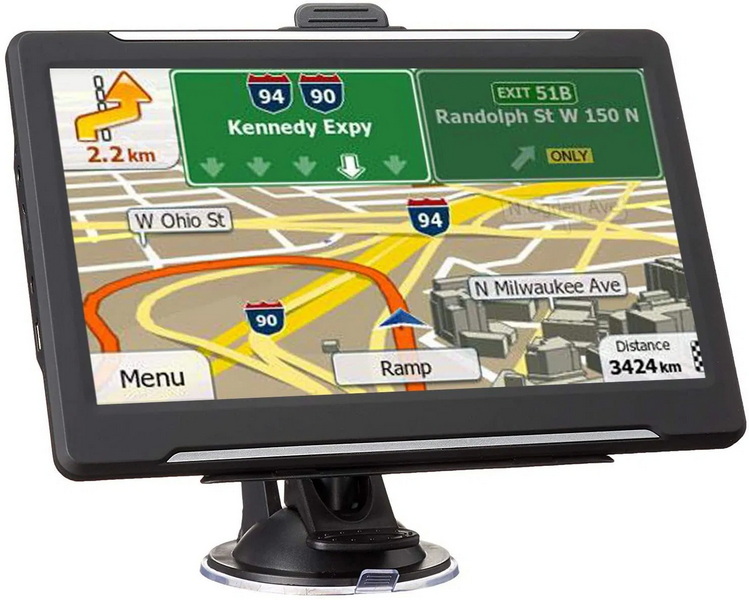

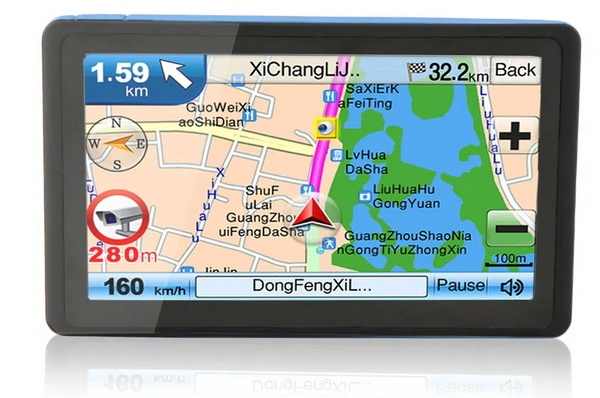

In the automotive sector, LCD screens are widely used for infotainment systems, digital instrument clusters, and head-up displays. These systems not only provide entertainment options but also offer navigation features that can be controlled via touch interfaces or voice commands. Modern vehicles often come equipped with advanced LCD screens that can display GPS data, including maps, directions, and real-time traffic updates. This integration enhances the driving experience by providing essential information at a glance, ensuring that drivers can focus on the road while navigating.
For those looking to upgrade their vehicle's navigation system, options like Android Auto and Apple CarPlay allow users to connect their smartphones to the car's LCD screen, providing access to GPS navigation apps directly from the vehicle's display. This approach simplifies the process of integrating GPS navigation into existing automotive systems without requiring a full hardware upgrade.
For enthusiasts and hobbyists, platforms like Arduino offer a versatile way to create custom GPS navigation systems using LCD screens. By integrating a GPS module with an Arduino board and an LCD display, users can build a simple navigation system that displays location data such as latitude and longitude. This setup typically involves connecting the GPS module to the Arduino via serial communication, allowing the Arduino to process GPS data and display it on the LCD screen.
Tutorials and projects available online guide users through the process of setting up such systems, including how to connect the hardware components and write the necessary instructions to extract and display GPS data. Tools like Visuino provide a visual interface for designing and programming these systems, making it easier for beginners to create complex projects without extensive programming knowledge.
One common challenge in DIY projects is handling the raw GPS data, which often comes in NMEA format. This data needs to be parsed and processed to extract useful information such as location coordinates. In some cases, users might encounter issues where unwanted GPS strings appear on the LCD screen instead of the intended data. This can be resolved by ensuring that the instructions correctly filter and process the GPS data before displaying it.
Another challenge is ensuring compatibility between different hardware components, such as the GPS module and the LCD display. Choosing components that are compatible with the Arduino platform and ensuring they are properly connected is crucial for a successful project.
Both automotive and DIY GPS navigation systems offer opportunities for customization. In vehicles, users can personalize their navigation experience by adjusting display settings, choosing map orientations, and integrating voice commands. Similarly, in DIY projects, users can customize the display layout and the type of data shown on the LCD screen, allowing for a tailored navigation experience.
GPS navigation systems can also be integrated with other technologies to enhance their functionality. For example, in automotive systems, integration with smart assistants like Siri, Google Assistant, or Alexa allows for voice-activated commands, making navigation safer and more convenient. In DIY projects, users can explore integrating their GPS systems with other sensors or devices to create more complex and interactive projects.
The integration of 5G technology into GPS navigation systems promises significant advancements. With its lightning-fast data transfer speeds and low latency, 5G will enable real-time navigation updates and seamless connectivity between vehicles, infrastructure, and smart devices. This enhanced connectivity will not only improve the accuracy of GPS data but also enable more comprehensive features such as real-time traffic information, predictive route suggestions, and cloud-based updates for maps and navigation software[2].
The integration of IoT into car navigation will allow vehicles to interact with smart infrastructure, other vehicles, and even pedestrians, creating a dynamic and cooperative ecosystem. For example, IoT-enabled traffic lights can communicate with vehicles to optimize traffic flow, while connected cars can exchange real-time data about road conditions and hazards, leading to safer and more efficient navigation[2].
High-definition (HD) maps will play a crucial role in the future of car navigation. These maps will be incredibly detailed, providing accurate information about lane markings, traffic signs, and even the curvature of the road. HD maps, coupled with 3D visualization technology, will offer a more realistic and immersive navigation experience. Drivers will be able to see intricate details of their surroundings, enhancing situational awareness and reducing the likelihood of wrong turns or missed exits[2].
LiDAR (Light Detection and Ranging) technology has gained prominence in the development of autonomous vehicles, but its applications extend beyond self-driving cars. In car navigation, LiDAR can significantly improve the accuracy of GPS positioning, especially in urban canyons and areas with limited GPS signal availability. By using laser pulses to measure distances, LiDAR can create highly precise maps and help vehicles better understand their surroundings, leading to more reliable and robust navigation systems[2].
Future trends in car navigation point toward gesture and voice control solutions. Drivers will be able to interact with navigation features through simple hand gestures or natural voice commands, allowing for a safer and more intuitive user experience[2].
The integration of GPS technology with artificial intelligence (AI) is transforming navigation systems into intelligent tools capable of optimizing routes, reducing delays, and providing tailored user experiences. AI enhances GPS by integrating contextual data such as weather conditions, road closures, and real-time traffic updates. These systems also adapt to user behavior, learning preferences and adjusting suggestions accordingly[3].
AI is revolutionizing GPS accuracy by analyzing vast amounts of location data and correcting errors in real time. Traditional GPS systems can struggle with challenges like urban canyons or signal interference. AI algorithms address these issues by utilizing advanced filtering and machine learning techniques to refine positioning. By integrating satellite data with sensor inputs, AI-powered GPS ensures more precise and reliable navigation[3].
Machine learning is transforming GPS systems into predictive tools that go beyond simple navigation. By analyzing historical data, weather patterns, and user behavior, machine learning algorithms can anticipate traffic congestion and suggest alternative routes. These systems continuously improve as they learn from new data, offering users smarter and more dynamic navigation experiences[3].
The ability to put GPS navigation on LCD screens has revolutionized both automotive and personal navigation experiences. Whether it's enhancing the driving experience in vehicles or creating interactive DIY projects, this technology offers a powerful tool for visualizing navigation data. As technology continues to evolve, we can expect even more sophisticated integration of GPS navigation with LCD screens, offering users more intuitive and personalized navigation experiences.
Using an old GPS device's display with Arduino is possible but often requires a dedicated controller board. The display type and its compatibility with microcontrollers need to be assessed before attempting to integrate it into an Arduino project. In some cases, users have successfully driven such displays using microcontroller/FPGA combinations, but this typically involves custom development and may not be straightforward.
To display GPS coordinates on an LCD screen using Arduino, you need to connect a GPS module to the Arduino board and use serial communication to receive GPS data. The data is then processed and displayed on the LCD screen using libraries like LiquidCrystal for handling the LCD and SoftwareSerial for serial communication with the GPS module. Tutorials and examples available online provide step-by-step guidance on setting up such a system.
In cars, GPS navigation is typically displayed on infotainment screens, digital instrument clusters, or head-up displays. Infotainment screens offer a range of features including navigation, entertainment, and connectivity options. Digital instrument clusters replace traditional gauges with customizable LCD displays, while head-up displays project essential information onto the windshield, enhancing safety by keeping the driver's eyes on the road.
Yes, touch screen technology can be used with GPS navigation on LCD screens. This is common in both automotive infotainment systems and some DIY projects. Touch screens allow users to interact directly with maps, input destinations, and access various navigation features with ease. This interactive interface enhances the navigation experience by providing a seamless and intuitive way to control the system.
Integrating GPS navigation into your car's LCD screen can be done through several methods. For vehicles compatible with Android Auto or Apple CarPlay, you can connect your smartphone to the car's system and use GPS apps directly on the car's display. Alternatively, you can opt for an external GPS device or visit a dealer for an integrated system upgrade. Ensuring compatibility and following the manufacturer's instructions is crucial for a successful installation.
