Introduction to DSLRs: LCD Screens and Viewfinders

DSLRs, or Digital Single Lens Reflex cameras, have been a cornerstone of photography for decades. They are known for their versatility, image quality, and the ability to interchange lenses. One of the key features that distinguish DSLRs from other types of cameras is their use of both LCD screens and viewfinders. In this article, we will delve into the specifics of these components, exploring how they function, their advantages, and how they contribute to the overall photography experience.

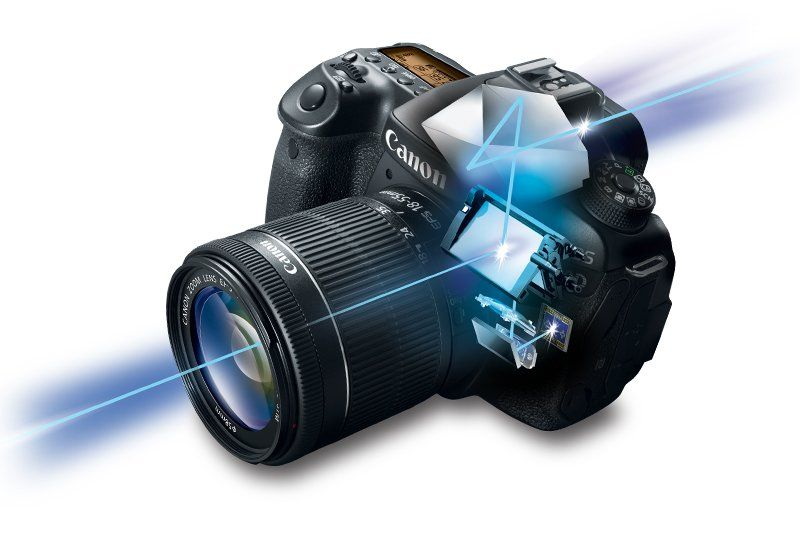

DSLRs typically come equipped with an optical viewfinder (OVF) and an LCD screen. The optical viewfinder uses a reflex mirror system to reflect light coming through the lens up into the viewfinder, allowing photographers to see exactly what the lens sees. This real-time, unprocessed view is beneficial for capturing dynamic scenes and ensuring precise composition. On the other hand, the LCD screen on a DSLR is primarily used for reviewing captured images and accessing camera settings. However, when a DSLR is switched to Live View mode, the LCD screen becomes a live preview of the scene, similar to how a mirrorless camera operates.

Understanding Optical Viewfinders

Optical viewfinders in DSLRs provide a direct optical path to the scene, offering clarity and brightness without any lag. This makes them ideal for capturing fast-moving subjects and composing shots in bright conditions. However, optical viewfinders typically show between 90% to 100% of the scene that will be captured, depending on the camera model. High-end DSLRs often provide 100% viewfinder coverage, which is crucial for professional photographers who need precise framing.

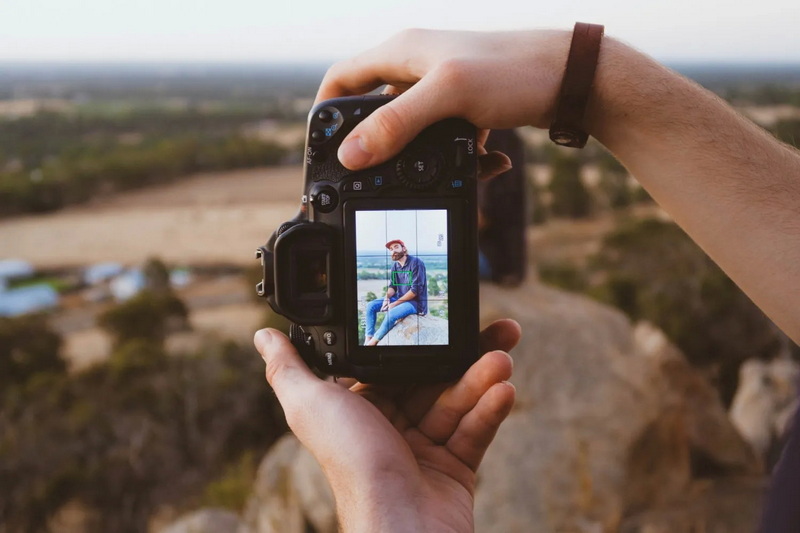

Understanding LCD Screens in DSLRs

The LCD screen on a DSLR is not just for reviewing images; it also serves as a tool for composition when the camera is in Live View mode. In this mode, the reflex mirror is lifted, and the shutter is opened, allowing light to pass through to the sensor. The resulting image is displayed live on the LCD screen, providing an accurate preview of how the final image will look. This feature is particularly useful for checking exposure settings, white balance, and focus before taking a shot.

Key Differences Between DSLRs and Mirrorless Cameras

Optical vs. Electronic Viewfinders

DSLRs use optical viewfinders, while mirrorless cameras use electronic viewfinders (EVFs). Optical viewfinders provide a natural, unprocessed view of the scene, whereas EVFs display a digital preview of the image, including the effects of exposure settings and white balance. This allows mirrorless users to see exactly how their adjustments will affect the final image before capturing it.

Live View Mode in DSLRs

In Live View mode, DSLRs function similarly to mirrorless cameras by displaying a live preview on the LCD screen. This mode is beneficial for precise composition, especially in scenarios where the camera is mounted on a tripod or when shooting from unusual angles. However, using Live View can consume more battery power and may not be ideal for tracking moving subjects.

Advantages and Disadvantages of Using Viewfinders and LCD Screens

Advantages of Viewfinders

1. Stability and Immersion: Holding the camera to your eye provides stability and helps you immerse yourself in the scene, reducing camera shake and improving composition.

2. Real-time Feedback: Optical viewfinders offer real-time feedback without lag, making them ideal for fast-paced photography.

3. Battery Efficiency: Optical viewfinders do not consume battery power, unlike electronic viewfinders or LCD screens.

Disadvantages of Viewfinders

1. Limited Coverage: Some DSLRs may not offer 100% viewfinder coverage, which can lead to slight discrepancies between what you see and what is captured.

2. No Exposure Preview: Optical viewfinders do not display the effects of exposure settings or white balance, requiring photographers to rely on experience or check the LCD for previews.

Advantages of LCD Screens

1. Composition Flexibility: LCD screens are useful for shooting from unusual angles or when the camera is mounted on a tripod.

2. Exposure Preview: In Live View mode, LCD screens provide an accurate preview of the final image, including exposure settings.

3. Manual Focus Assistance: LCD screens can be zoomed in for precise manual focusing, and features like focus peaking can be activated to highlight areas in focus.

Disadvantages of LCD Screens

1. Battery Consumption: Using the LCD screen, especially in Live View mode, consumes more battery power compared to using the viewfinder.

2. Camera Shake: Holding the camera away from your body to use the LCD screen can increase the risk of camera shake.

3. Visibility Issues: In bright sunlight, LCD screens can be difficult to view, making composition challenging.

Conclusion

In conclusion, DSLRs offer both LCD screens and viewfinders, each serving distinct purposes. Optical viewfinders provide a natural, real-time view of the scene, ideal for dynamic photography and precise composition. LCD screens, particularly in Live View mode, offer flexibility in composition and an accurate preview of exposure settings. Understanding the advantages and disadvantages of each can enhance your photography experience. Whether you prefer the traditional feel of an optical viewfinder or the modern capabilities of an LCD screen in Live View mode, DSLRs provide the versatility needed to adapt to various shooting scenarios.

Frequently Asked Questions

1. Do DSLRs have both LCD screens and viewfinders?

Yes, DSLRs typically come equipped with both an optical viewfinder and an LCD screen. The viewfinder is used for composing shots, while the LCD screen is primarily for reviewing images and accessing camera settings, as well as for Live View mode.

2. What is the main difference between optical and electronic viewfinders?

Optical viewfinders provide a direct, unprocessed view of the scene, while electronic viewfinders display a digital preview that includes the effects of exposure settings and white balance.

3. Can DSLRs use their LCD screens as viewfinders?

Yes, DSLRs can use their LCD screens as viewfinders in Live View mode. This allows for an accurate preview of the final image, including exposure settings.

4. Why do some photographers prefer using viewfinders over LCD screens?

Viewfinders offer stability, real-time feedback, and do not consume battery power. They also provide an immersive shooting experience by allowing photographers to hold the camera closer to their body.

5. Are there any disadvantages to using the LCD screen in DSLRs?

Yes, using the LCD screen, especially in Live View mode, consumes more battery power and can increase the risk of camera shake. Additionally, visibility can be an issue in bright sunlight.
