Modern LED TVs have become a staple in many homes, offering improved picture quality, energy efficiency, and sleek designs compared to their predecessors. However, there is often confusion about the underlying technology used in these TVs. The question of whether modern LED TVs still rely on LCD screens is a common one, and understanding this requires a deeper dive into the technology behind LED TVs.
LED TVs are essentially LCD TVs that use Light Emitting Diodes (LEDs) for backlighting instead of the traditional Cold-Cathode Fluorescent Lamps (CCFLs) used in older LCD TVs. This change in backlight technology has significantly enhanced the viewing experience by providing better contrast, improved color accuracy, and reduced power consumption. Despite the advancements, the core display technology remains LCD, with the LEDs serving as the backlight to illuminate the liquid crystals that form the images on the screen.
The evolution of LED TVs has been marked by several key innovations. One of the most significant advancements is the transition from CCFL to LED backlighting. LEDs are more energy-efficient and allow for thinner designs, making modern TVs more aesthetically pleasing and environmentally friendly. Additionally, the use of LEDs enables features like local dimming, which can improve contrast by adjusting the brightness of different areas of the screen independently.

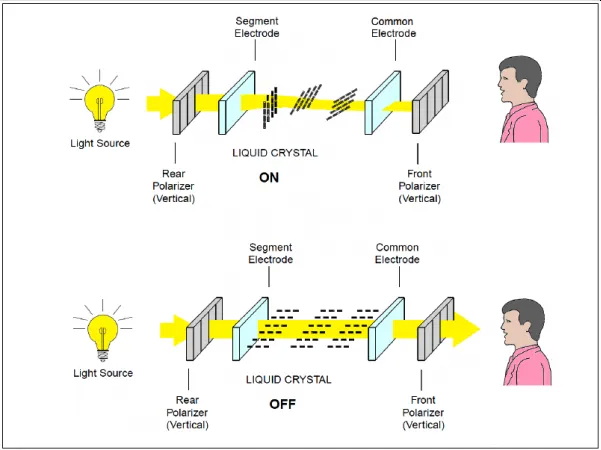

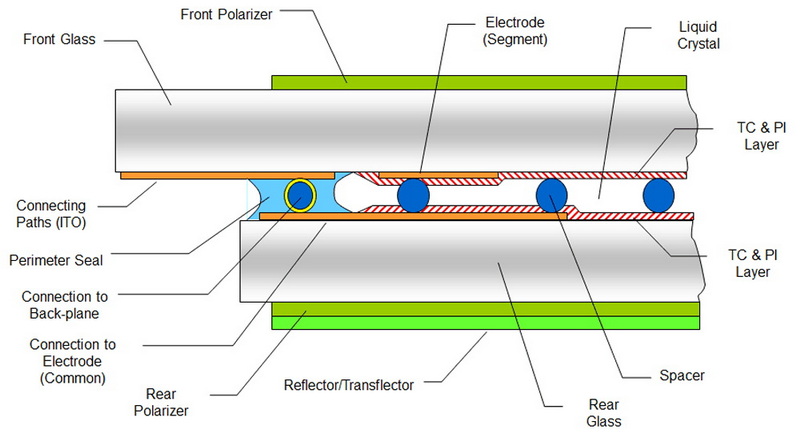

LCD stands for Liquid Crystal Display, a technology that relies on liquid crystals to block or allow light to pass through and create images. Since liquid crystals do not emit light themselves, they require a backlight to function. In the past, this backlight was typically a CCFL, but modern TVs have shifted towards using LEDs due to their superior energy efficiency and thinner design.
LED TVs, therefore, are not a separate display technology but rather an evolution of LCD technology with improved backlighting. The LEDs can be arranged in different configurations, such as edge-lit or full-array, each offering distinct advantages in terms of picture quality and design. Edge-lit LEDs are placed around the edges of the screen and use light guides to distribute the light evenly, allowing for thinner designs. Full-array LEDs, on the other hand, are placed directly behind the screen, enabling more precise control over brightness and contrast by dividing the backlight into zones that can be dimmed or brightened independently.
The choice between edge-lit and full-array backlighting often depends on the intended use of the TV. For general viewing, edge-lit models may suffice, offering a slim profile and lower cost. However, for those seeking superior picture quality, especially in environments with varying lighting conditions, full-array models are preferable due to their ability to produce deeper blacks and more vivid colors.
In recent years, LED TV technology has continued to evolve with advancements like Mini-LED and QLED. Mini-LED technology uses a large number of small LEDs to achieve even more precise local dimming, resulting in better contrast and deeper blacks compared to standard LED TVs. This technology bridges the gap between traditional LED TVs and OLED displays, offering improved picture quality without the high cost associated with OLED technology.
QLED TVs, while still using an LCD panel with LED backlighting, incorporate quantum dots to enhance color accuracy and brightness, offering vibrant colors and improved HDR performance. Quantum dots are tiny crystals that emit light when excited by an electric current, allowing for more precise color reproduction and higher peak brightness levels. This technology has been particularly effective in enhancing the viewing experience for HDR content, providing a wider color gamut and better contrast.
Despite these advancements, the fundamental reliance on LCD screens remains unchanged. The improvements are primarily in the backlighting and additional layers like quantum dots, which enhance the overall picture quality without altering the basic LCD technology.
When comparing LED TVs to other display technologies like OLED, it's important to consider the strengths and weaknesses of each. OLED (Organic Light Emitting Diode) TVs use organic compounds that emit light when an electric current is passed through them, eliminating the need for a backlight. This results in superior contrast, true blacks, and wider viewing angles compared to LED TVs. However, OLEDs can be more expensive and may suffer from issues like burn-in, although manufacturers have made significant strides in mitigating these risks.
MicroLED is another emerging technology that uses micrometer-scale LEDs to produce images. It offers the potential for even better contrast and color accuracy than OLEDs, with no risk of burn-in. However, microLED TVs are currently very expensive and not widely available.
In conclusion, modern LED TVs do indeed still rely on LCD screens. The term "LED TV" refers to the use of LEDs for backlighting in an LCD display, which offers several advantages over traditional CCFL backlights. As technology continues to evolve, we can expect further enhancements in picture quality, energy efficiency, and design, but the core LCD technology will likely remain a cornerstone of these displays for the foreseeable future.
The choice between different types of TVs—whether LED, QLED, OLED, or microLED—should be based on individual needs and preferences. For those seeking a balance between cost and performance, LED TVs remain a viable option. For those willing to invest in superior picture quality, OLED or microLED might be more appealing.
An LCD TV traditionally uses a CCFL backlight, while an LED TV uses LEDs for backlighting, offering better energy efficiency, thinner designs, and improved picture quality.
Yes, LED TVs use LCD panels but with LED backlighting instead of CCFLs, enhancing the viewing experience with better contrast and color accuracy.
Modern LED TVs can have edge-lit or full-array backlighting. Edge-lit LEDs are placed around the screen's edges, while full-array LEDs are distributed behind the screen, allowing for more precise control over brightness and contrast.
QLED TVs use quantum dots to enhance color accuracy and brightness, while OLED TVs use organic light-emitting diodes that produce their own light, eliminating the need for a backlight and offering superior contrast and viewing angles.
While newer technologies like OLED and microLED are gaining traction, LCD remains widely used due to its cost-effectiveness and established manufacturing infrastructure. However, OLED and other technologies are becoming more competitive in terms of picture quality and energy efficiency.
