In the realm of modern technology, particularly in devices like smartphones, tablets, and laptops, two crucial components are often discussed: the digitizer and the LCD screen. While they work together to provide a seamless user experience, they serve distinct purposes. The question "Does a digitizer show an LCD screen?" might seem straightforward, but understanding the roles of these components requires a deeper dive into their functions and how they interact.
The LCD screen is primarily responsible for displaying visual content, such as text, images, and videos. It consists of layers of glass with liquid crystals between them, which react to electrical currents to produce images. On the other hand, the digitizer, often referred to as the touchscreen digitizer, is a separate layer above the LCD screen. Its main function is to detect touch input and convert it into digital signals that the device can understand.
In a typical touchscreen device, the digitizer and LCD screen work in tandem. When a user touches the screen, the digitizer senses the location and pressure of the touch and sends this information to the device's processor. The processor then interprets the touch as a command and instructs the LCD screen to display the appropriate response. This interaction is what allows users to interact with devices in a natural and intuitive way, using gestures like tapping, swiping, and pinching.
Digitizers are essential for enabling touch screen functionality. They convert analog touch signals into digital signals that the device can process. There are different types of digitizers, such as resistive and capacitive. Capacitive digitizers, which are more common in modern devices, use a layer of transparent conductive material to detect changes in capacitance when a finger touches the screen. This technology supports multi-touch gestures and provides better clarity and responsiveness compared to resistive screens.
LCD screens are not only crucial for displaying visual content but also require a separate light source to be visible. This is typically achieved through backlighting, which can be provided by technologies like fluorescent lamps or LEDs. LED backlighting is widely used due to its energy efficiency and long lifespan. Without an LCD screen, a device would not be able to display images or text, rendering it useless for visual interaction.
While both components are vital for a functional touchscreen device, they have distinct roles. The digitizer is responsible for detecting touch input, while the LCD screen is responsible for displaying images. If either component is damaged, it can severely impact the device's usability. For instance, if the digitizer is broken, the device may still display images but will not respond to touch. Conversely, if the LCD screen is damaged, the device may not display any images, even if touch input is detected.
To answer the question directly, a digitizer does not show an LCD screen. Instead, it works in conjunction with the LCD screen to enable touch functionality. The digitizer detects touch input and sends digital signals to the device's processor, which then instructs the LCD screen to display the appropriate visual response. Thus, while the digitizer is crucial for interacting with the device, it does not display images itself.
Understanding the roles of digitizers and LCD screens is also important for diagnosing common issues. If a device's touchscreen is unresponsive but the display is fine, the problem likely lies with the digitizer. Conversely, if the display is distorted or not visible at all, the issue is likely with the LCD screen. In some cases, both components may need to be replaced if they are fused together, as is common in many modern smartphones.
The future of digitizer and LCD screen technology is promising, with advancements in both fields expected to enhance user experience significantly. For digitizers, improvements in sensitivity and accuracy are anticipated, allowing for more precise touch detection and potentially enabling new gestures. In the realm of LCD screens, technologies like OLED (Organic Light Emitting Diodes) are becoming more prevalent, offering better contrast, color accuracy, and energy efficiency compared to traditional LCDs.
Advancements in digitizer technology are focused on improving responsiveness and accuracy. This includes the development of more sensitive capacitive screens that can detect subtle changes in touch pressure and location. Additionally, there is a push towards integrating more advanced gesture recognition capabilities, allowing users to interact with devices in more intuitive ways.
LCD screen technology is evolving rapidly, with OLED displays becoming increasingly popular. OLED screens do not require backlighting, as each pixel emits its own light, resulting in deeper blacks and more vibrant colors. This technology also allows for thinner and more flexible displays, opening up possibilities for innovative device designs.
The manufacturing process for digitizers and LCD screens involves several complex steps. For digitizers, the process typically includes applying conductive layers to a substrate, such as glass or plastic, and integrating these layers with the device's electronics. For LCD screens, the process involves creating the liquid crystal matrix, applying polarizing filters, and integrating backlighting.
Manufacturing digitizers involves precision engineering to ensure that the conductive layers are accurately aligned and integrated with the device's circuitry. This process requires advanced machinery and quality control measures to ensure that the digitizer is both responsive and durable.
Manufacturing LCD screens is a highly specialized process that involves several stages, including the creation of the liquid crystal matrix, the application of polarizing filters, and the integration of backlighting. Each stage requires precise control over temperature, pressure, and alignment to ensure that the screen displays images clearly and consistently.

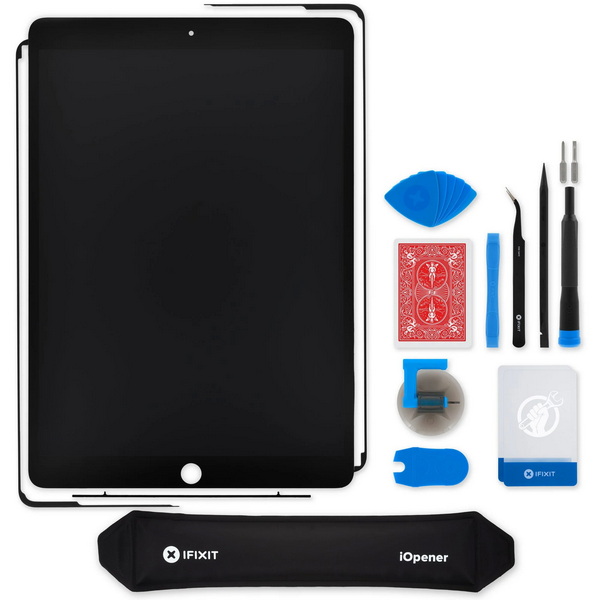

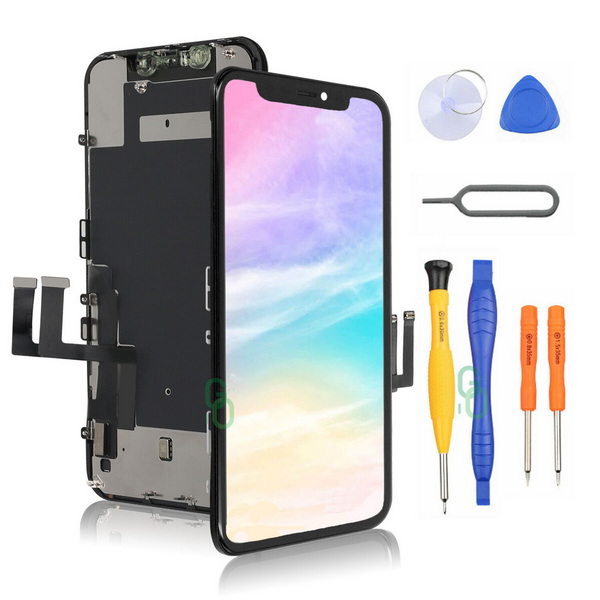

Repairing digitizers and LCD screens can be challenging due to their complex nature. For digitizers, repairs often involve replacing the entire digitizer layer if it is damaged. For LCD screens, repairs can range from replacing the backlight to replacing the entire screen, depending on the extent of the damage.
Repairing a digitizer typically involves replacing the damaged layer with a new one. This process requires careful disassembly of the device to access the digitizer, followed by precise alignment and reassembly to ensure that the new digitizer functions correctly.
Repairing an LCD screen can be more complex, depending on the type of damage. If the backlight is faulty, replacing it might be straightforward. However, if the liquid crystal matrix is damaged, replacing the entire screen may be necessary. This often involves specialized tools and expertise to ensure that the new screen is properly aligned and connected.
In conclusion, while a digitizer and an LCD screen are both essential components of a touchscreen device, they serve different purposes. The digitizer detects touch input and converts it into digital signals, while the LCD screen displays visual content. Understanding these roles is crucial for both diagnosing issues and appreciating the technology that enables modern devices to function seamlessly. As technology continues to evolve, we can expect even more sophisticated digitizers and LCD screens that enhance user experience and open up new possibilities for device design and functionality.
The primary function of a digitizer is to detect touch input and convert it into digital signals that the device can understand. This allows users to interact with the device through gestures like tapping and swiping.
An LCD screen works by using liquid crystals to block or allow light to pass through, creating images. It requires a separate light source, typically provided by backlighting, to be visible.
No, a digitizer cannot display images. It is responsible for detecting touch input and sending digital signals to the device's processor, which then instructs the LCD screen to display the appropriate visual response.
If the digitizer is damaged, the device may still display images but will not respond to touch input. This means users cannot interact with the device through the touchscreen.
If the screen is visually fine but does not respond to touch, the issue is likely with the digitizer. If there are display issues such as a cracked or distorted screen, the problem is likely with the LCD screen.
