When exploring modern electronic devices such as smartphones, tablets, laptops, or industrial control panels, the terms LCD and touch screen often come up. Many users wonder if LCD means touch screen or if these terms are interchangeable. This article will clarify what an LCD is, what a touch screen is, how they differ and work together, and the technologies involved in making modern touch-enabled displays. We will also explore common misconceptions and provide detailed insights into the components that make up these devices.
LCD stands for Liquid Crystal Display. It is a flat-panel display technology commonly used in screens for devices like laptops, smartphones, tablets, and monitors. The LCD works by manipulating liquid crystals sandwiched between layers of glass or plastic. These crystals react to electrical currents to control the passage of light, thereby forming images on the screen.
An LCD itself is purely a display panel—it shows images, videos, text, and graphical content but does not inherently have any touch input capability. It requires a backlight to illuminate the liquid crystals since they do not emit light on their own. Modern LCDs often use LED backlighting for better brightness and energy efficiency[2][3][4].
The LCD panel contains millions of pixels, each made up of liquid crystals that can be aligned to block or allow light. The display technology has evolved from passive-matrix to active-matrix (TFT) technology, which uses thin-film transistors to control pixels more precisely, resulting in sharper and more responsive displays.
The backlight shines through the liquid crystal layer, and by controlling the orientation of the crystals, the display can produce a full range of colors and images[4].
A touch screen is a type of input device layered on top of a display that can detect and respond to touch input from a user. It enables direct interaction with the content displayed on the screen by using fingers, a stylus, or other objects.
The touch screen is composed of a touch panel or digitizer, which is a transparent layer that senses touch. It converts the physical touch signals (analog) into digital signals that the device's processor can interpret and act upon[1][2][3][5].
Touch screens detect input through various technologies:
- Resistive touch technology uses two flexible layers that make contact when pressed, detecting touch by pressure.
- Capacitive touch technology uses a transparent electrode layer that senses changes in the electrostatic field caused by a finger or conductive stylus.
- Infrared and other technologies use light sensors to detect touch.
Capacitive touchscreens are the most common in modern devices because they support multi-touch gestures and provide better clarity and sensitivity[1][6][8].
No, LCD does not mean touch screen. They are two distinct components that serve different purposes in a device.
- The LCD is the display panel responsible for showing images.
- The touch screen (digitizer) is the input layer that detects touch.
They are often integrated into a single unit in modern devices, but they remain separate parts. The touch screen is placed on top of the LCD panel, allowing users to interact directly with the images displayed[1][2][3][7].
In a touch-enabled device, the LCD displays the visual content, while the touch screen layer detects user input. For example, when you tap an icon on your smartphone, the touch screen digitizer senses the touch location and sends this information to the device's processor. The processor then updates the display accordingly via the LCD.
If the touch screen is damaged but the LCD is intact, you can still see the display but cannot interact via touch. Conversely, if the LCD is damaged but the touch screen digitizer is functional, you may still be able to register touch inputs, but the screen image will be distorted or invisible[1][2].
There are different ways to integrate the touch screen layer with the LCD display:
- Air Bonding: The touch panel and LCD are glued together with an air gap between them. This method is simpler and cheaper but can reduce screen clarity due to reflections and dust.
- Optical Bonding: The touch panel is glued directly onto the LCD with an optical adhesive, eliminating the air gap. This improves clarity, reduces reflections, and makes the screen thinner but is more expensive[9].

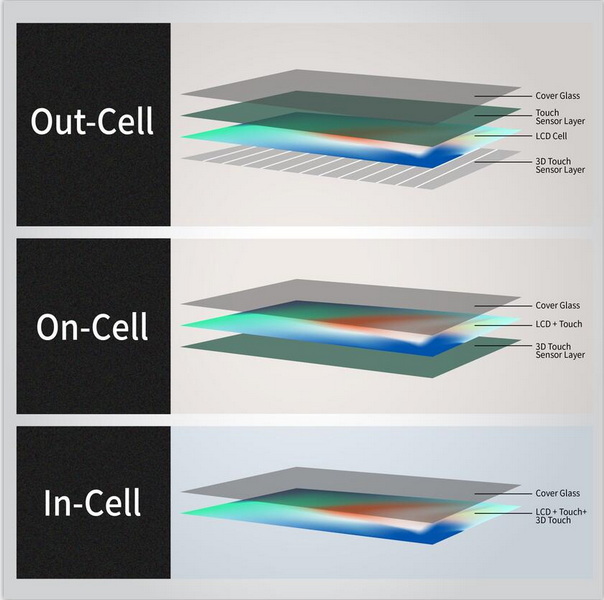

There are three main capacitive touch screen technologies related to LCDs:
- In-Cell: The touch sensor is embedded inside the LCD pixels themselves, making the display thinner and improving sunlight readability.
- On-Cell: The touch sensor is placed on top of the LCD panel but beneath the protective glass.
- One Glass Solution (OGS): The touch sensor is integrated with the protective glass, reducing thickness and cost while improving touch sensitivity.
Each technology has trade-offs in terms of thickness, clarity, touch responsiveness, production complexity, and cost[9].
Many users assume that if a device has an LCD, it must be touch-enabled. However, many devices have LCDs without any touch functionality, such as traditional monitors and some laptops.
The touch screen is often mistaken for the LCD itself. In reality, the touch screen is a separate transparent layer placed on top of the LCD. They function independently but work together.
It is possible for only one component to be damaged. For example, a cracked glass digitizer might still allow the LCD to display images perfectly, or a faulty LCD might show distorted images while the touch screen still responds to input[1][2].
LCD touch screens combine the benefits of LCD displays with interactive touch input, enabling intuitive user interfaces in smartphones, tablets, kiosks, and industrial controls. Capacitive touchscreens provide excellent clarity, multi-touch support, and durability.
The integration of touch layers can sometimes reduce screen brightness and clarity due to additional layers. Resistive touchscreens, while affordable and accurate, often have lower clarity and support only single-touch input. Touchscreens can also be more fragile and costly to repair compared to non-touch LCDs[6].
In summary, LCD and touch screen are not the same thing. An LCD is a display technology responsible for showing images, while a touch screen is an input technology layered on top of the display that detects user touch. Together, they create the interactive displays found in most modern electronic devices. Understanding their distinction helps in troubleshooting, repairing, and selecting devices based on user needs.
LCD stands for Liquid Crystal Display. It is a technology used to display images by manipulating liquid crystals with electrical currents, producing the visuals you see on screens[2][4].
No. Many LCD screens do not have touch capabilities. Touch functionality requires an additional layer called a touch screen or digitizer placed on top of the LCD[1][7].
A touch digitizer is a transparent layer above the LCD that detects touch input and converts it into digital signals for the device to process[2][3].
Yes, the touch screen can still detect input if the LCD is damaged, but you may not see the display properly. Conversely, if the touch screen is broken, the display may still show images but won't respond to touch[1].
The main types include resistive, capacitive, and infrared. Capacitive is the most common in modern devices due to its clarity and multi-touch support. Integration methods like In-Cell, On-Cell, and One Glass Solution also affect how the touch sensor is combined with the LCD[6][9].
