In the world of electronic device repair, particularly smartphones and tablets, the question of whether separating the LCD from the digitizer ruins the screen is a common and important concern. The LCD (Liquid Crystal Display) and the digitizer (the glass touch-sensitive layer) are often fused together during manufacturing, and their delicate bond is maintained by strong adhesives. Repairing or replacing one component without damaging the other requires skill, the right tools, and understanding of the process. This article explores the technical aspects of separating the LCD from the digitizer, the risks involved, modern techniques, and best practices to minimize damage.
The LCD is the component responsible for displaying images, while the digitizer is the transparent layer that senses touch input. In many modern devices, these two layers are laminated together using optical adhesive to create a single, thin, and durable touchscreen assembly. This lamination improves display clarity and touch responsiveness but also complicates repairs.
Separating these layers involves breaking the adhesive bond without cracking the glass or damaging the liquid crystals inside the LCD. The process is delicate because the LCD is sensitive to heat, pressure, and mechanical stress. Improper separation can lead to dead pixels, discoloration, touch malfunction, or complete screen failure.
Yes, it is possible to separate the LCD from the digitizer, but it requires specialized equipment and techniques. Professional repair shops often use LCD separator machines designed to safely and efficiently separate these layers. These machines apply controlled heat and pressure to soften the adhesive and use thin wires or blades to slice through the bond without damaging the components[1][2][5].
Manual separation methods also exist, involving heating the screen with a heat gun or hair dryer to soften the adhesive and carefully prying the glass away with thin tools. However, manual methods carry a higher risk of damaging the LCD due to uneven heat distribution and mechanical stress[2][4].
The adhesive used between the LCD and digitizer is typically a special optical adhesive that ensures clarity and touch sensitivity. When separating the layers, residual adhesive often remains on the LCD surface, which must be carefully cleaned with isopropyl alcohol or acetone to avoid scratching or damaging the screen[2][4].
After separation and repair, the layers are usually re-bonded using new optical adhesive (OCA glue), often cured with UV light to ensure a bubble-free, strong bond that restores the original display quality[4].
Separating the LCD from the digitizer can potentially ruin the screen if not done properly. The main risks include:
- Cracking or breaking the glass digitizer due to mechanical stress during prying or slicing.
- Damaging the LCD pixels or backlight by applying excessive heat or pressure.
- Residual adhesive contamination leading to display distortion, dimness, or rainbow-like effects.
- Loss of touch sensitivity or ghost touches if digitizer cables or sensors are damaged.
- Discoloration or dead pixels caused by overheating or uneven heating.
These risks highlight why professional equipment and experience are crucial for successful separation[2][5][6].

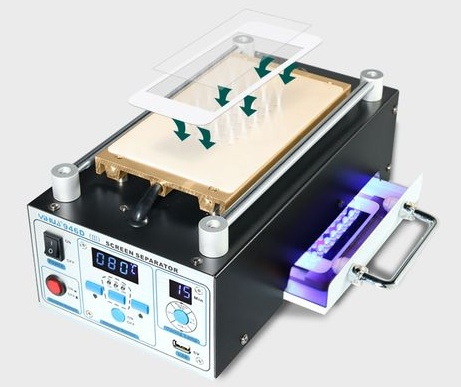

These machines are the gold standard for separating LCD from digitizers. They use a combination of heat (typically between 80°C and 120°C) and vacuum suction to hold the device securely. A thin molybdenum wire is threaded between the glass and LCD to slice through softened adhesive with precision and minimal mechanical stress[1][2][5].
The temperature and pressure settings are adjustable depending on the device model and adhesive strength. Overheating beyond recommended temperatures risks damaging internal components, while insufficient heat may not soften the adhesive enough for clean separation[5].
An innovative alternative is the freezing LCD separator machine, which uses ultra-low temperatures to make the adhesive brittle and easier to separate. This method avoids the risks associated with heat, such as LCD warping or discoloration. It is faster, environmentally friendly, and reduces technician safety hazards related to heat exposure[3].
Freezing technology is especially useful for devices with heat-sensitive components or those with adhesives that do not respond well to heat. The freezing process contracts the adhesive, allowing for clean separation without damaging the LCD or digitizer[3].
For those without access to professional machines, manual separation is possible but requires patience and skill. The process involves applying even heat with a heat gun or hair dryer, then carefully prying the glass with thin blades or playing cards. Using fishing line or molybdenum wire to slice through the adhesive reduces the risk of cracking the glass, especially on heavily cracked screens[2][4].
Manual methods require practice, and it is recommended to practice on broken screens first to gain confidence. Uneven heating or excessive force can easily ruin the screen[4].
- Use controlled heat within safe temperature ranges (80–120°C) to soften adhesive evenly.
- Employ professional separator machines or freezing technology when possible.
- Thread thin wires (like molybdenum wire) carefully to slice adhesive without pulling or bending the glass.
- Clean residual adhesive with isopropyl alcohol or acetone gently to avoid scratching.
- Replace optical adhesive with high-quality OCA glue and cure properly with UV light.
- Avoid rushing the process; patience reduces the risk of damage.
- Use safety gear to protect against glass shards and chemical fumes.
- Inspect the LCD after separation for dead pixels, discoloration, or backlight issues before reassembly.
- For curved or edge-to-edge screens, use separator machines with adjustable arms to match screen contours[4][5].
Residual adhesive or missing optical glue can cause dimness or rainbow-like effects. Applying proper OCA glue during reassembly restores clarity[6].
These issues often result from damaged digitizer cables or connectors. Recalibrating touch sensitivity or replacing damaged flex cables can resolve them[4].
Check backlight connections and LCD integrity. Sometimes, overheating during separation causes pixel damage requiring LCD replacement[4].
Separating the LCD from the digitizer is a delicate but feasible process that does not inherently ruin the screen if done correctly. The key to success lies in using the right tools-preferably professional LCD separator machines or freezing separator machines-and following precise procedures that control heat, pressure, and mechanical stress. Manual methods are possible but carry higher risks and require experience.
Technicians must carefully clean residual adhesives and use appropriate optical glue to restore the screen's original quality. Understanding the risks and best practices ensures that separating the LCD from the digitizer can be part of effective screen repair without ruining the device.
Yes, it is possible using professional LCD separator machines or freezing separator machines that apply controlled heat or cold to soften the adhesive. Manual methods can work but have a higher risk of damage and require skill[1][2][3][5].
Typically, temperatures between 80°C and 120°C are used to soften the adhesive safely. Exceeding this range can damage the LCD or other internal components[2][4][5].
Yes, if the LCD remains undamaged during the separation and is properly cleaned of residual adhesive, it can be reused. Proper re-bonding with optical adhesive is essential for restoring display quality[2][4].
Isopropyl alcohol is commonly used to gently remove adhesive residues without damaging the LCD surface. For tougher adhesive, acetone may be used cautiously, followed by rinsing with distilled water[2][4].
If done correctly without damaging digitizer cables or sensors, touch sensitivity should remain unaffected. However, improper separation can cause ghost touches or unresponsive areas, which may require recalibration or cable replacement[4].
